As of July 23, 2026
In a professional workshop, time is not just money – it is the most valuable resource of all. Every minute a vehicle remains untouched on the lift (idle time) and every meter a mechanic unnecessarily walks (travel time) directly reduces your profit. Often, it’s not the big breakdowns but the sum of many small inefficiencies in daily operations that make the difference at the end of the day.
Tire Change Service Station: Lift, Mounting Machine, Balancing Machine
Especially during the seasonal business, tire service sets the pace for your workshop's throughput. An uncoordinated process here can quickly become a bottleneck. The solution is setting up a dedicated "tire service zone".
This is what the optimal and classic workflow looks like:
Lift the Vehicle (Lift):
The vehicle is lifted to an ergonomic working height, and the wheels are removed. Ideally, a wheel lift is used. This is back-friendly and securely holds the wheel.
Dismount/Mount Tires (Mounting Machine):
The distance from the lift to the mounting machine should be as short as possible. Ideally, only a few steps should be in between.
Balance Wheels (Balancing Machine):
The balancing machine should be placed directly next to the mounting machine. This way, the wheel can be mounted immediately after installation without having to carry it across the workshop.
If the mechanic does not have to leave their workspace of just a few square meters for the entire process, you save valuable minutes per set of wheels. It all adds up!

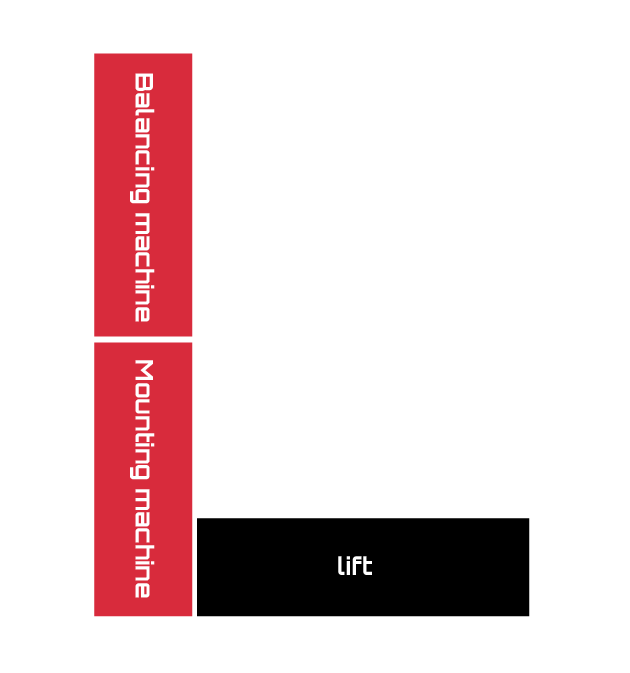

1. The L-Shape (The Space-Saving Classic)
The lift forms one leg of the "L," while the tire mounting and balancing machines are placed side by side to form the other leg. This arrangement is ideal for elongated workshops, as the path from the vehicle to the processing area is short and direct.

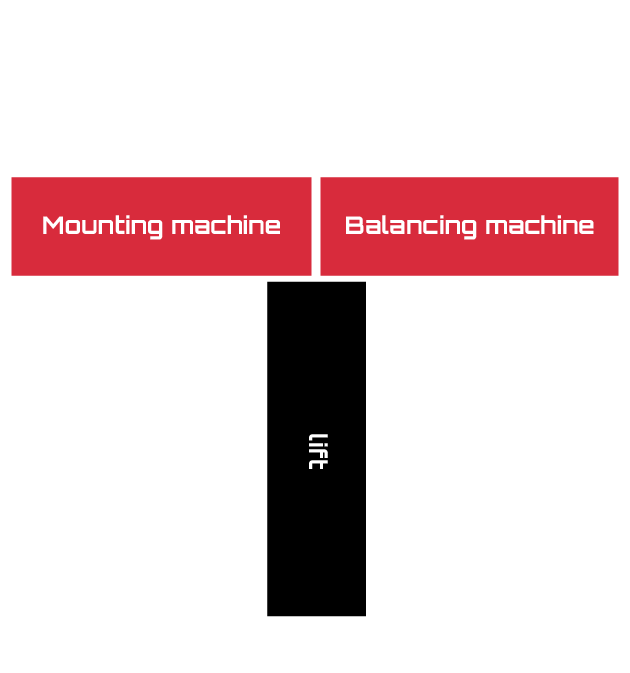

2. The T-Shape (The Linear Process)
The lift is positioned centrally. Directly in front of it, serving as the "head" of the "T," you place the mounting and balancing machines side by side. This setup enables a very straightforward process: remove the wheel from the vehicle, take one step forward to mount/balance, and then go straight back.

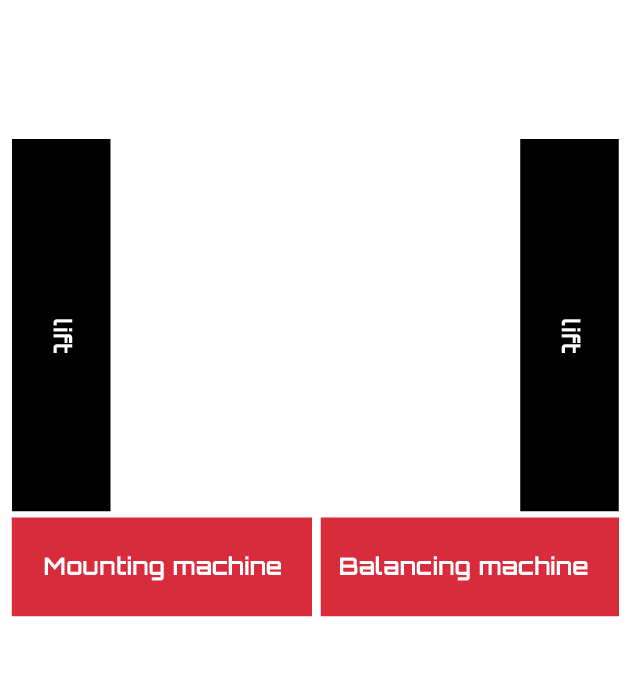

3. The U-Shape (The Professional Solution for High Volume)
Two lifts are positioned opposite each other, forming the sides of the "U." In the center between them, the tire mounting and balancing machines are placed. This layout is unbeatable when working on two vehicles simultaneously, as the central machines are optimally accessible from both workstations.
Practical Tip for All Layouts:
Regardless of the chosen layout, the organization of the immediate surroundings is crucial. Place everything you need for the tire change within easy reach to avoid interrupting the workflow:
- A shelf with the most common balancing weights.
- A handy box with new valves.
- Torque wrench and the appropriate sockets.
- Mounting paste and a brush.

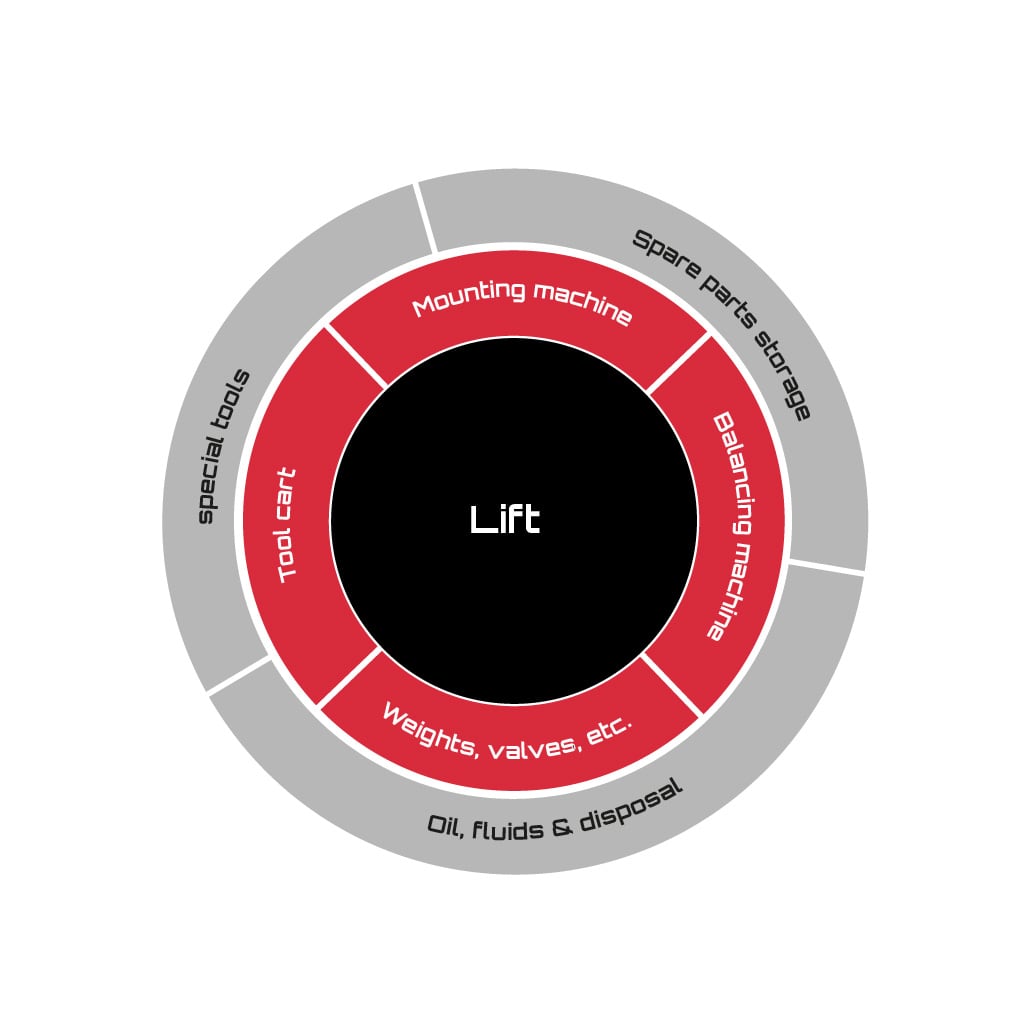

The Lift as an Autonomous Work Center
Every lift is its own profit center. Treat it as such! Everything needed for 80% of the tasks performed at this station should be within immediate reach.
Think Beyond the Equipment: Peripherals and Storage
A perfect equipment layout can be slowed down by a chaotic environment. Even the most modern machines and shortest paths can only reach their full potential when the surrounding environment is also well-organized. An unstructured storage area or constantly misplaced tools and consumables disrupt the workflow and cost valuable minutes.
A well-thought-out overall concept not only includes the main equipment but also creates a logical and organized system for all necessary materials and tools. When every action is precise and the process flows smoothly, it not only enhances efficiency but also boosts professionalism and workplace safety.
Personal Tool Cart:
Every workstation should have a fully equipped, mobile tool cart. The central tool storage should only be necessary for specialized tools.
Fluids & Disposal:
A mobile oil drain cart and dispensers for the most common fluids (windshield washer fluid, brake cleaner) should be available at every workstation. This saves countless trips.
Wear Parts:
Set up small "satellite storage areas." A box with the top 5 oil filters, spark plugs, or brake pads directly at the workstation can drastically reduce idle time during standard services.
The Spare Parts Storage
It doesn’t need to be a palace, but it does need a system. A logically organized, well-labeled storage area that can be quickly overseen by the supervisor is worth its weight in gold.
Special Tools
Create a central, easily visible location for special tools. Nothing is more frustrating than searching for that one puller you only need three times a year.
Old Parts and Disposal
Define clear zones for scrap, waste oil, and tire stacks to keep the work areas clean and safe.
Conclusion: Planning is the Most Direct Path to Higher Profits
Take the time to mentally "walk through" a typical work order – from an oil change to a complete tire service. Measure the distances and time the waiting periods. You’ll be surprised at how much potential lies in simply rearranging your equipment or organizing your tools better.
An efficient workshop is no accident; it’s the result of smart planning. And if, during this planning, you realize that a new piece of equipment could revolutionize your workflow – whether it’s a lift with faster lifting speeds or a mounting machine with a time-saving helper arm – you know where to find us.
Talk to our experts! We’ll not only advise you on the right equipment but also on how to integrate it optimally into your processes.
