As of July 23, 2026
Quick Overview

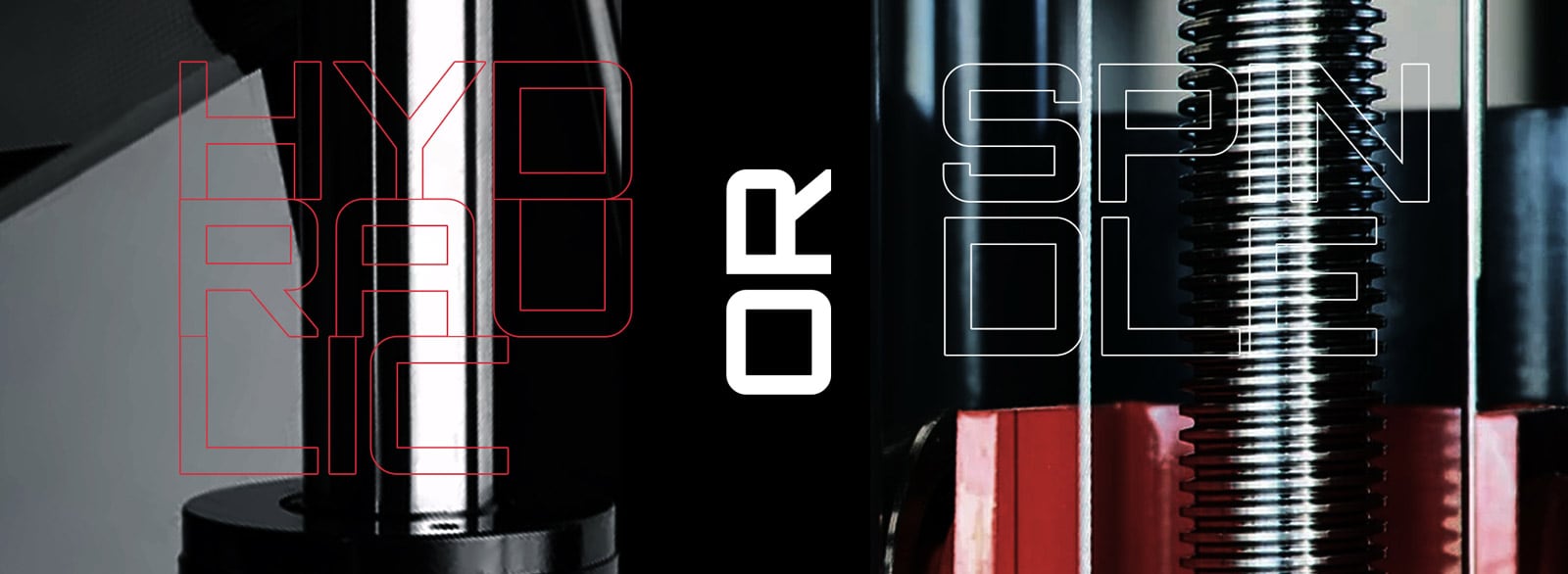

- There are two main technologies for 2-post lifts: mechanical spindle drive vs. hydraulic cylinder drive.
- Hydraulic drive: Hydraulic 2-post lifts are low-maintenance, have fewer wear parts, and often provide faster lifting.
- Spindle drive: A spindle lift can be lowered directly to any height – without needing to lift it first to release a lock. Additionally, it usually operates more quietly than a hydraulic lift.
- Decision criteria: The type of work you want to perform, your budget, and the conditions at the installation site are important factors.
Our recommendation: Don’t just consider the purchase price in isolation, but also the Total Cost of Ownership (TCO) over 8–12 years.
What Are the Advantages and Disadvantages of a Spindle Lift?
Spindle Lift (Mechanical Drive)
An electric motor (or two synchronized motors) drives a threaded spindle via belts, on which nut packages (load and safety nuts) guide the lifting carriage. Power transmission is purely mechanical; lifting is achieved by rotating the spindle.
Advantages
- 2-post lifts with spindle drives are excellent for professional continuous use but also work very reliably in hobby operations. Additionally, the spindle drive is less prone to issues during long idle periods, making it ideal if the lift is not used daily.
- For installation and removal work on engines, transmissions, and similar components – essentially anywhere where millimeter-precise work is required – the spindle lift demonstrates its full strengths.
- Flexible positioning: Models from our ELVT series also allow for later relocation (with suitable floor quality C20/25 with at least 160 mm thickness).
- Ideal for mixed and hobby operations, even if only a few vehicles are moved per week.
- Quiet load transfer without hydraulic pressure storage – perfect for long-term lifting (e.g., bodywork, underbody restoration).
- Easier diagnosis in case of problems (visible mechanical components).
Potential Problems – Causes, Prevention, Solutions
| Potential Problem | Cause | Preventive Measure | Our Solution |
|---|---|---|---|
| Wear on Load Nut | High cycles + insufficient lubrication | Lubrication interval every 4 weeks or every 200 lifts | TRUSTERS ELVT2400, a lift with automatic spindle lubrication |
| Uneven Operation | Uneven load distribution | Position the vehicle centrally | A TRUSTERS ELVT2400 lift with automatic electronic height adjustment |
| Spindle Contamination | Missing spindle protection | Check spindle protection tape | High-quality spindle oil available in our shop |
| Noise | Dry spindle bearing | Regular lubrication | Special grease available in our shop |
Maintenance Interval (Recommendation)
- Weekly: Visual inspection of protective covers, check arm locking.
- Monthly: Lubricate spindle, lubricate lifting carriage guide, check rubber pads.
- Annually: Check wear on load/safety nuts, check wear on lifting carriage guide, inspect weld seams.
- After 6–8 years of intensive use: Proactive replacement of the load nut is recommended.
What Makes a Hydraulic Lift Different?
Hydraulic Lift (Hydraulic Drive)
A unit (electric motor + pump) pumps hydraulic oil into one or two cylinders; the pistons move the support arms via carriage guides. Lowering is achieved by controlled opening of a valve (energy-efficient as it uses gravity).
Advantages
- High efficiency: The motor runs only during lifting, lowering is energy-efficient due to valve control.
- Fewer moving wear parts – resulting in predictable, low maintenance costs.
- Faster cycle times increase workshop throughput.
- Smooth operation with less vibration.
Potential Problems – Causes, Prevention, Solutions
| Potential Problem | Cause | Preventive Measure | Our Solution |
|---|---|---|---|
| Cold-Related Sluggishness | Thick oil | Use winter-grade HVLP oil | Maintain consistent room temperature |
| Micro-Leakages | Aging seals | Annual visual inspection | Fast spare parts delivery |
| Improper Installation | Incorrect force distribution | Professional installation | Optional nationwide installation service |
| Irregular Lowering | Contaminated valve | Oil change interval every 5–6 years | Service package for oil & filter |
Maintenance Interval (Recommendation)
- Weekly: Visual inspection, check arm locking, test safety latches.
- Quarterly: Visual inspection of hoses, keep cylinder rods clean (free of dirt).
- Every 6–12 months: Check oil level.
- Every 3–5 years or when discolored: Partial or full oil change.
- After 5–6 years: Check cylinder seals for tightness (duration depends on lifting cycles).
Energy Consumption: Spindle vs. Hydraulic Lift
A detailed comparison of electricity consumption and the resulting costs between a 2-post spindle lift and a comparable hydraulic lift.
1. Assumptions & Key Data
- Usage frequency: 25 cycles/day over 250 days = 6,250 cycles/year
- Electricity price (assumed): €0.30/kWh
- Lifting time (identical): 50 seconds
2. Technical Specifications
- Spindle Lift:
- Power: 2 motors at 2.5 kW each = 5.0 kW total power
- Motor operation: During lifting (50s) and lowering (50s)
- Hydraulic Lift:
- Power: 1 unit with 2.2 kW power
- Motor operation: Only during lifting (50s), lowering occurs gravity-dependent without motor.
3. Energy Consumption per Work Cycle (Lifting & Lowering)
A complete cycle includes lifting and then lowering the vehicle.
- Spindle Lift (2 times 50s motor operation):
5.0 kW × (100s / 3600s/h) ≈ 0.139 kWh per cycle - Hydraulic Lift (50s motor operation):
2.2 kW × (50s / 3600s/h) ≈ 0.031 kWh per cycle
Interim Conclusion: For a complete work cycle, the spindle lift consumes approximately 4.5 times more energy than the hydraulic lift.
4. Annual Electricity Costs & Savings
Based on 6,250 cycles per year, the following costs arise:
- Spindle Lift:
6,250 cycles × 0.139 kWh/cycle × €0.30/kWh ≈ €261 per year - Hydraulic Lift:
6,250 cycles × 0.031 kWh/cycle × €0.30/kWh ≈ €58 per year
Purchase Price: Spindle vs. Hydraulic
When purchasing a lift, significant price differences become apparent, which largely depend on the country of manufacture and the technology used.
Spindle Lifts: Stable Prices from Europe
Spindle lifts with load capacities of 3 to 6 tons are typically priced between €3,500 and €18,000. Their production takes place almost exclusively in Europe, resulting in stable but comparatively higher costs on a global scale. As a result, they are rarely found outside of Europe.
Hydraulic Lifts: A Wide Price Range Due to Global Manufacturing
Hydraulic lifts have a significantly wider price range of €1,800 to €28,000. The reason lies in global manufacturing:
- Affordable models (up to approximately €4,000): These almost always originate from the Far East (especially China), where production costs are significantly lower.
- High-quality models: European manufacturers also produce hydraulic lifts. However, due to higher development, manufacturing, and labor costs, these are often priced higher than spindle lifts.
This global production mix explains the large price disparity within the hydraulic category.
Price Ranges at a Glance
- Spindle Lifts: €3,500 – €18,000
→ Almost exclusively European production, rarely found globally. - Hydraulic Lifts: €1,800 – €28,000
→ Affordable models (up to €4,000) almost always come from the Far East.
→ High-quality European models are often more expensive than spindle lifts.
Common Misconceptions
| Myth | Reality |
|---|---|
| Hydraulics always leak eventually | High-quality systems are permanently sealed when properly installed |
| Spindle systems are outdated | Modern spindle systems with optimized pitch & nut materials remain highly relevant |
| Every spindle nut lasts 10+ years | Usage profile & lubrication are key factors |
| Hydraulics should never be used for long-term parking | Short- to medium-term parking is unproblematic; just avoid weeks of parking without pressure relief |
