No, the ELVT3350 is designed exclusively for surface mounting on the workshop floor. An in-ground installation is not legally permitted, which is why we strictly advise against it.
TRUSTERS ELVT3350 | Short-Stroke Scissor Lift 3.5t | Twin Platform
Ideal for workshops without an installation pit: With a drive-over height of just 110 mm, 3.5 t lifting capacity, and up to 1,020 mm lifting height, the TRUSTERS ELVT3350 comfortably brings passenger cars, SUVs, and light commercial vehicles to a back-friendly working height.
Product number:
TE3350
Regular price:
€2,399.00
Delivery time, 20 days.
Leasing is that simple!
Use the many advantages of leasing for your success. No more long trips to the bank and a decision within minutes.
Product information "TRUSTERS ELVT3350 | Short-Stroke Scissor Lift 3.5t | Twin Platform"
- 3,500 kg Load Capacity: Suitable for passenger cars, SUVs, and light vans up to 3.5 t total weight. The maximum lifting height of 1,020 mm enables ergonomic work during daily workshop routines.
- Drive-Over Height of Just 110 mm: The low-profile design allows for surface-mounted installation on a level workshop floor without pit or foundation work. The gentle 12° drive-on angle protects low-clearance vehicle underbodies.

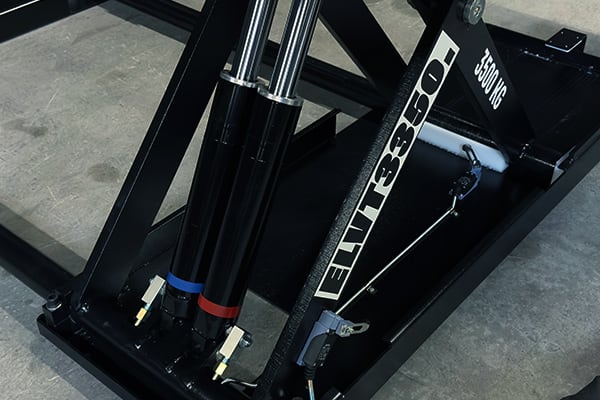

- Four-Cylinder Hydraulic System: The four hydraulic cylinders hold the lift hydraulically and there are no mechanical locks. The lift can therefore be lowered directly from any height, without first raising it to release a lock.

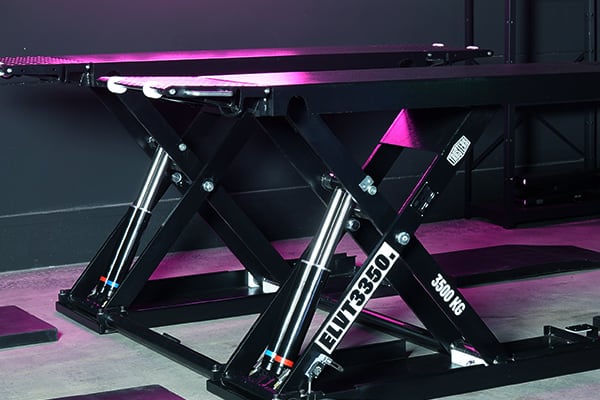

- Robust Double-Scissor Construction:Two robust platforms provide smooth lifting and a firm stance for wheel, brake or bodywork.
- Compact Power Unit: The external hydraulic power unit with integrated control and emergency stop switch operates easily on 230 V / single-phase power.
- Smart Equipment: Foldable drive-on ramps on both sides facilitate vehicle access and extend the usable platform surface when locked.
| Drive: | hydraulic |
|---|---|
| Type of lifting plattform: | mobile lifts, scissor lifts |
| Capacity range: | 2,5 t - 3,5 t |
Login
No reviews found. Share your insights with others.
Selected items:
0
Subtotal:
€0.00
The ELVT3350 is a low-profile scissor lift with a 3,500 kg lifting capacity and a maximum lifting height of 1,020 mm. When fully lowered, it measures just 110 mm and sits flat on the workshop floor—no pit or foundation work required. Four hydraulic cylinders ensure smooth, steady lifting, and you can lower the lift directly from any height without having to raise it first. This easily brings passenger cars, SUVs, and vans up to 3.5 t total weight to a back-friendly working height.

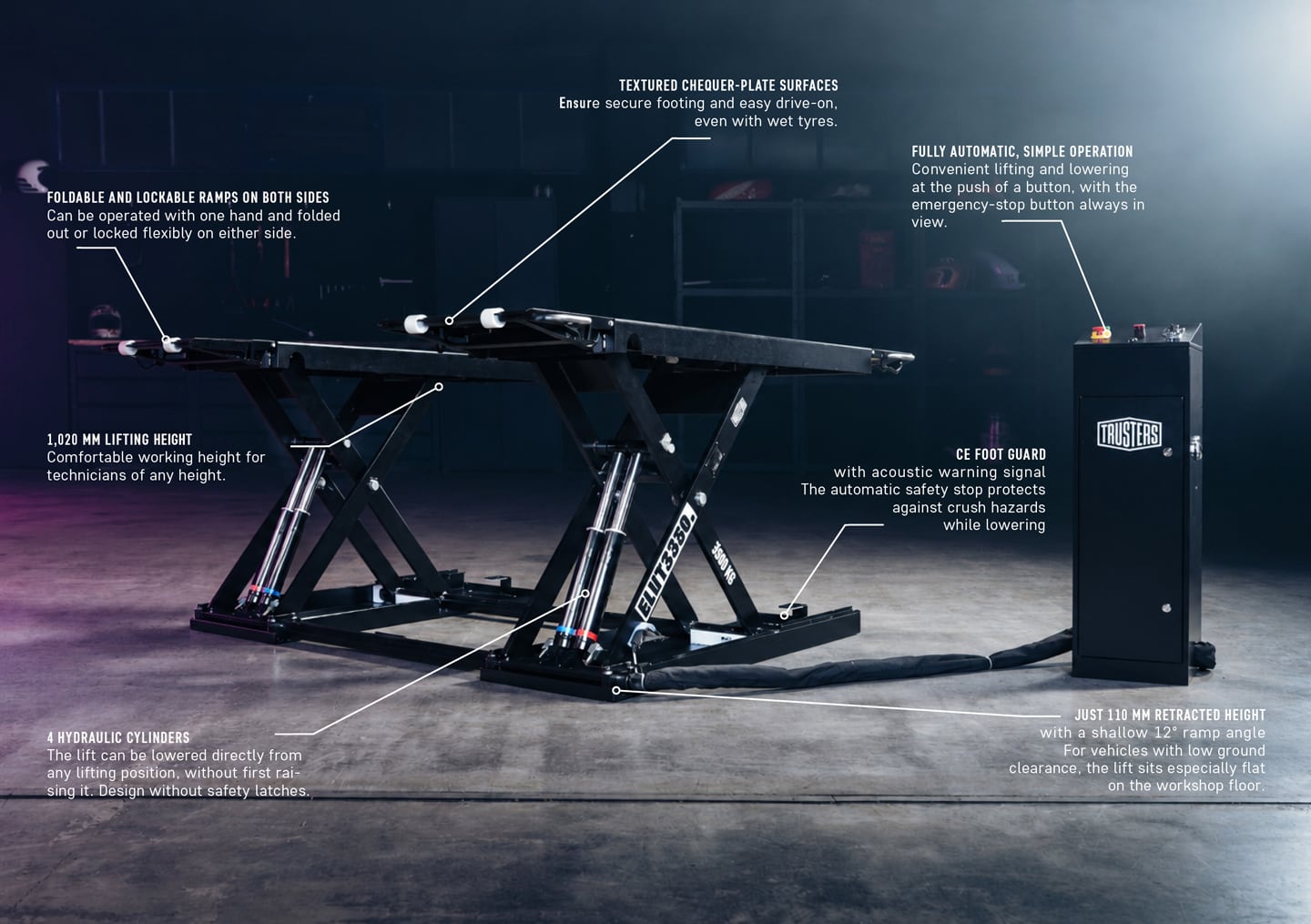

TRUSTERS ELVT3350 Features
Discover the details that make this scissor lift an indispensable tool for your workshop.

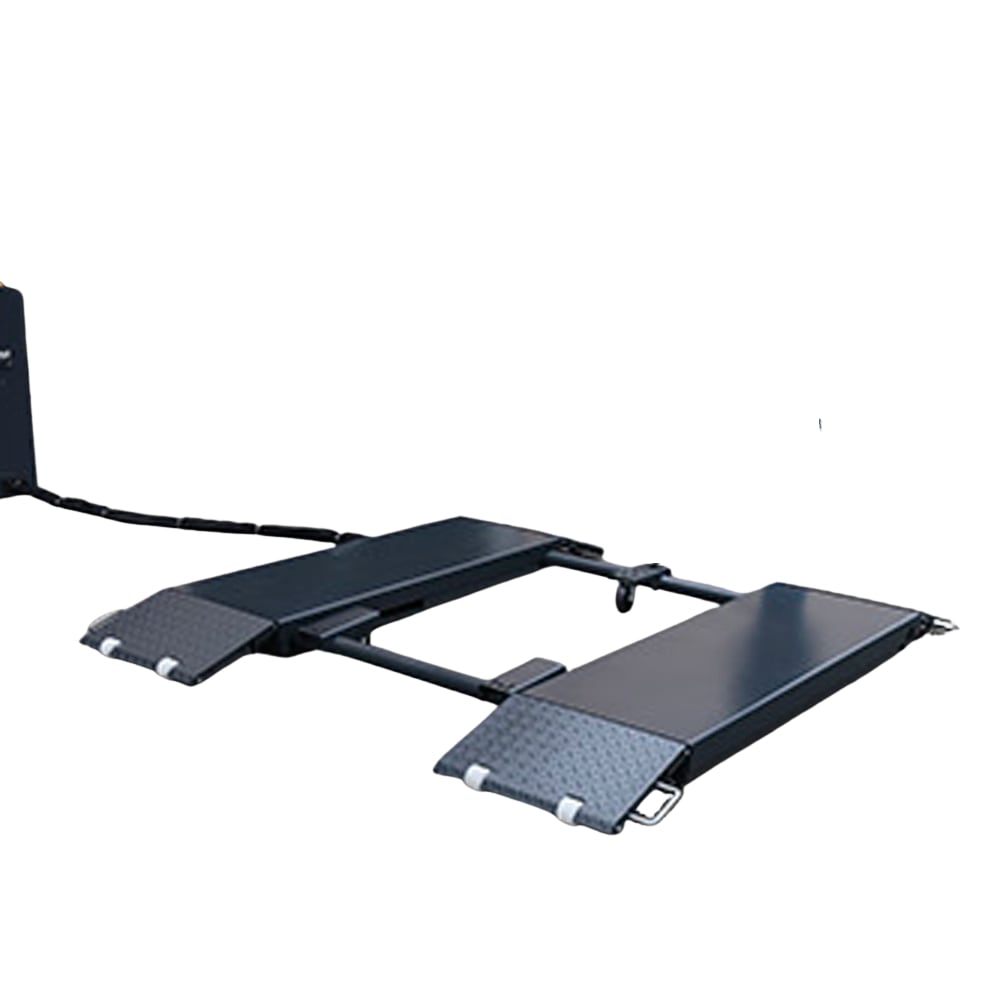

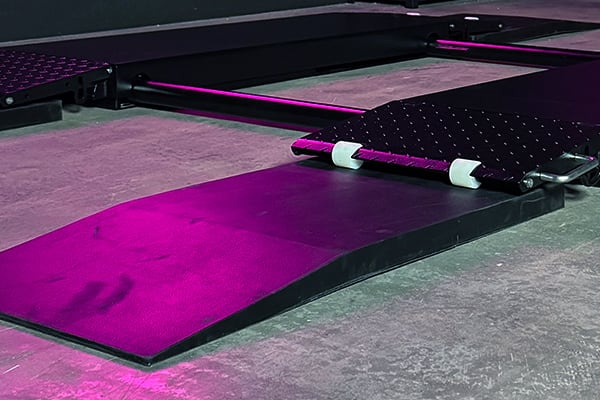

Ultra-Low Clearance of Just 110 mm
With a lowered height of just 110 mm, even lowered vehicles can drive onto the lift without difficulty. The image shows the optional rubber ramps (item no. RR1001). They are not included in the delivery and are available as an accessory.
Hydraulic Holding System
The hydraulic system holds the lift securely in position. A pressure relief valve inside the hydraulic circuit and an emergency stop button on the power unit ensure maximum safety.

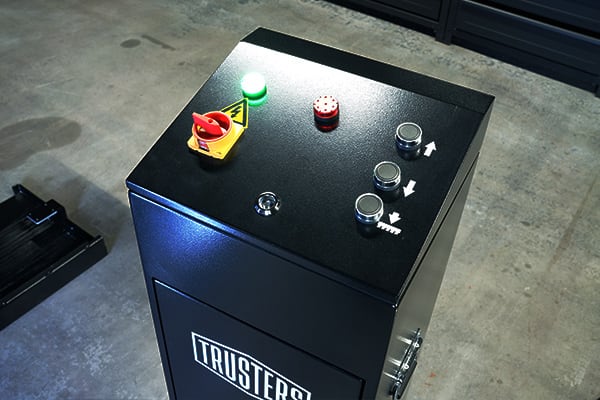

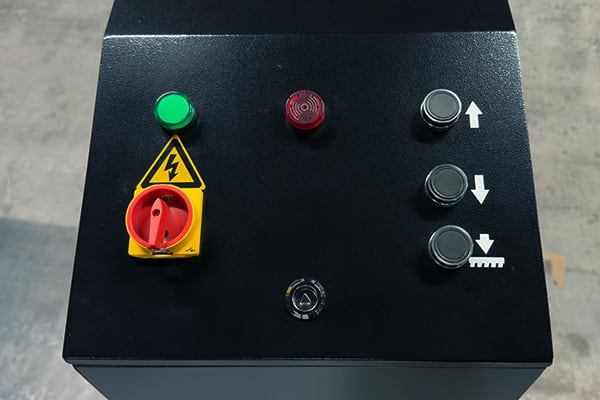

Control via Compact Power Unit
The lift is operated conveniently via the compact hydraulic power unit (230 V, 2.2 kW). The controls are integrated directly into the unit.

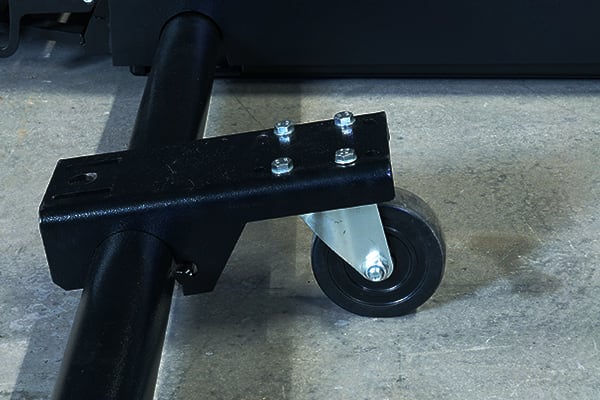

Mobile & Flexible Thanks to Included Mobile Kit
Maximum workspace flexibility: With the included mobile kit comprising 3 wheels and a practical towing bar, the lift can be moved quickly and effortlessly around the workshop whenever needed.

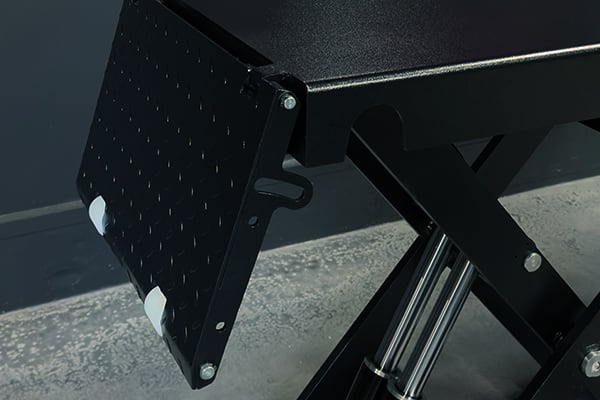

Foldable Drive-On Ramps with 12° Angle
The foldable drive-on ramps with textured non-slip surfaces make driving on effortless. The gentle 12° drive-on angle protects low-clearance vehicle underbodies.
CE Foot Protection with Acoustic Warning Signal
Safety up to the latest standards: During the lowering process, an integrated CE foot guard protects against pinch hazards. An audible acoustic signal alerts nearby personnel when the lift approaches ground level.
Direct Lowering from Any Position
Thanks to four hydraulic cylinders, you can lower the lift directly from any height—no preliminary lifting required. This saves valuable time in your daily workshop routine.
Ideal for:
- General automotive workshops
- Tire service & wheel changes
- Oil & brake servicing
- Suspension & steering repairs
- Body repair work
Detailed Product Description
Load Capacity:
From compact city runabouts to robust SUVs and spacious vans—with a 3,500 kg capacity, the ELVT3350 lifts vehicles up to 3.5 t total weight safely and reliably.
Lifting Height & Flexibility:
With a maximum lifting height of 1,020 mm, you work at a comfortable, ergonomic level. When fully retracted, the lift measures only 110 mm, and the folding drive-on ramps with a 12° angle make drive-on smooth and safe.
Safety & CE Protection:
Your safety is top priority: A hydraulic locking system keeps the lift securely in place. An active CE foot protection feature with an acoustic warning buzzer guards against pinch injuries when lowering. Additional safety is provided by the pressure relief valve and an emergency stop button on the unit.
Highlights & Commissioning:
Direct Lowering: Four hydraulic cylinders allow you to lower the lift immediately from any height without having to raise it first.
No Pit Required: At just 110 mm clearance, the lift is mounted directly on a flat, load-bearing concrete floor—excavation and foundation work are unnecessary.
Full Mobility: The included mobile kit (3 wheels and towing bar) allows for fast and easy repositioning anywhere in your workshop.
Hydraulic Oil: Approximately 6 liters of HLP 32 hydraulic oil are required for installation and initial commissioning (not included in scope of delivery).

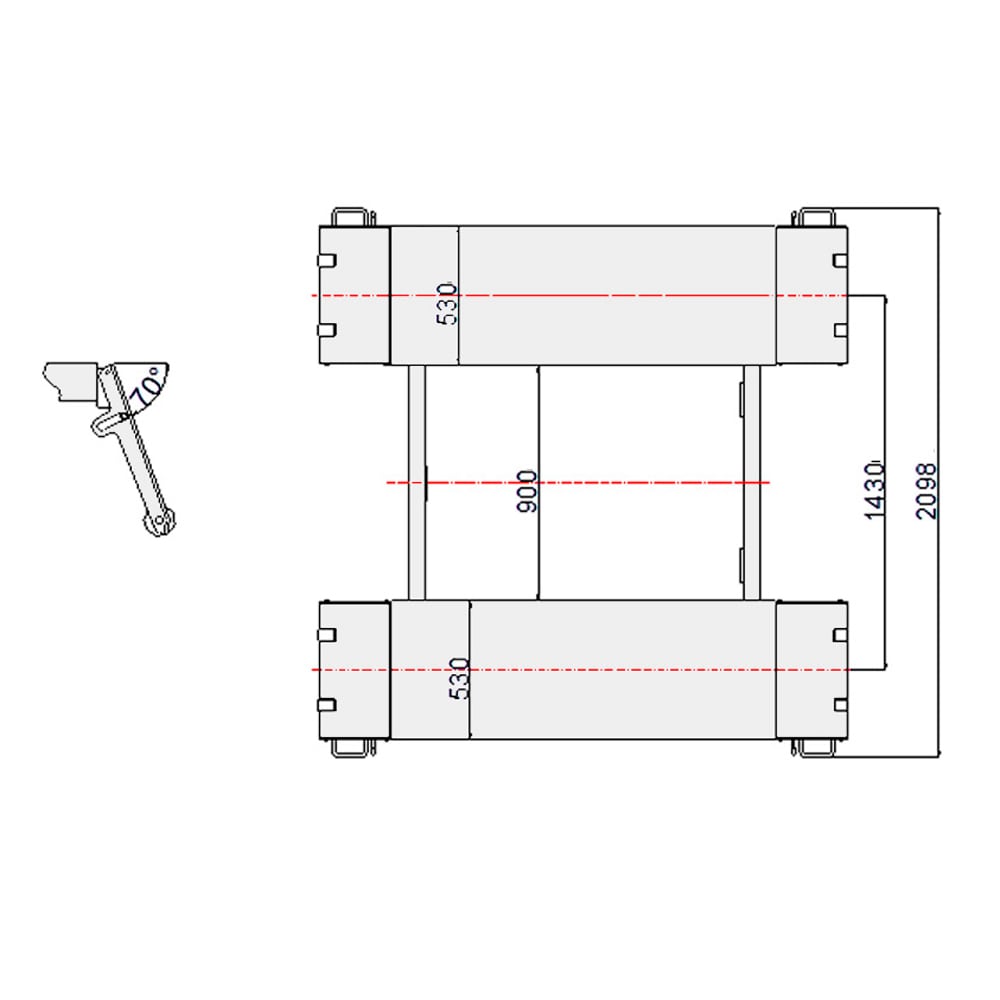

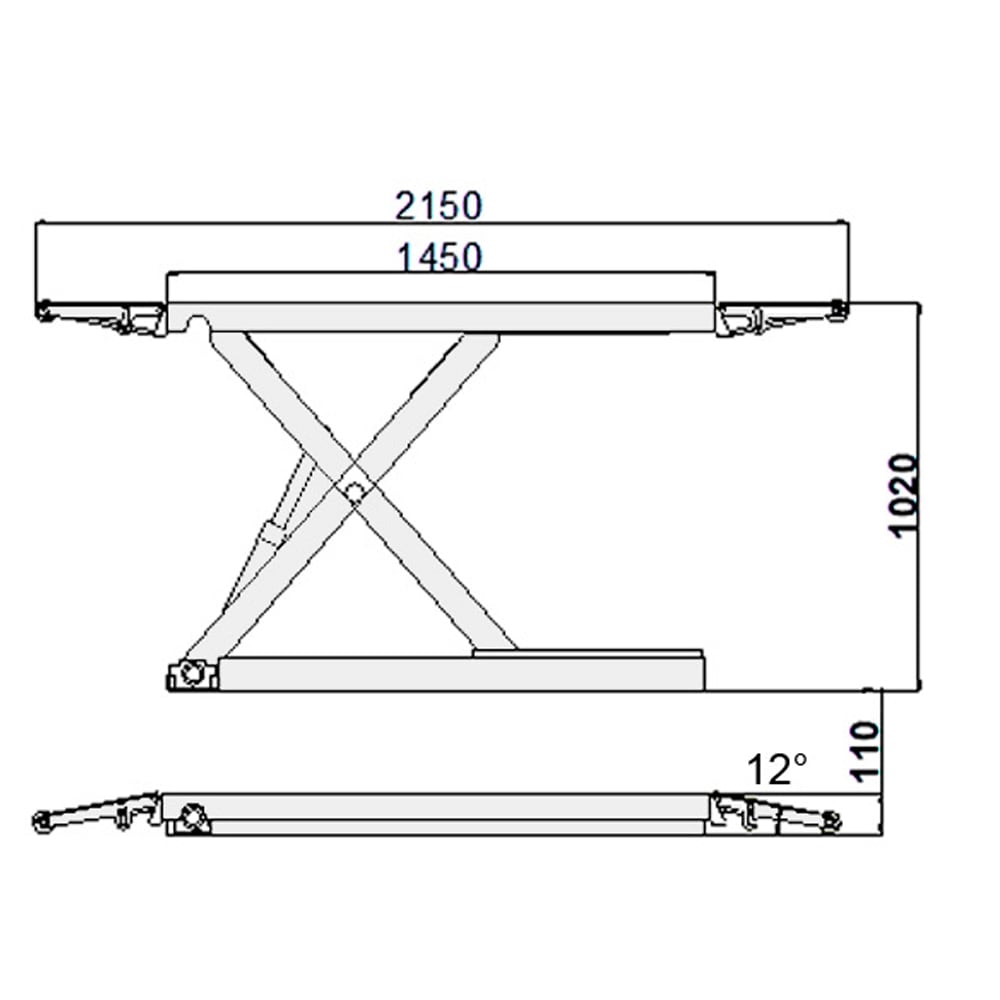

| Technical Specifications | ||
|---|---|---|
| Load capacity | 3,500 kg | |
| Max. lifting height | 1,020 mm | |
| Min. clearance (lowered) | 110 mm | |
| Total length | 2,150 mm | |
| Platform width (each) | 530 mm | |
| Total width | 2,098 mm | |
| Inner track width | 1,430 mm | |
| Wheelbase center/center | 900 mm | |
| Drive-on angle | 12° | |
| Number of hydraulic cylinders | 4 | |
| Voltage | 230 V / single-phase | |
| Motor power | 2.2 kW | |
| Hydraulic oil (for installation) | 6 liters HLP 32 (not included) | |
| Lifting time | 30 sec | |
| Dead weight | 585 kg | |
| Certification | CE compliant with foot protection & warning signal | |
| Scope of Delivery |
|---|
| 1× Scissor lift platform TRUSTERS ELVT3350 (pre-assembled) |
| 1× Hydraulic power unit with integrated control |
| 1× Hydraulic connecting hose |
| 1× Mobile kit (3 wheels and towing bar) |
| Foldable drive-on ramps (both sides, per platform) |
| 4x rubber blocks |
Questions we have received from other customers
Yes, the drive-on ramps are fully load-bearing. Once securely locked in the raised position, they act as a seamless extension of the platform. This increases the usable working area, allowing vehicles with a longer wheelbase to be lifted safely and without any issues.
