TRUSTERS ELVT2400H | 4t load capacity | Hydraulic drive
Ideal for low ceiling heights – 30 mm drive-over plate. With a 4-tonne load capacity, the ELVT2400H reliably lifts everything from compact cars and electric vehicles to fully loaded vans.
Product number:
TE2400H
Regular price:
€2,199.00
Ready for dispatch, Delivery time 2 - 4 days
Leasing is that simple!
Use the many advantages of leasing for your success. No more long trips to the bank and a decision within minutes.
Not included:
Product information "TRUSTERS ELVT2400H | 4t load capacity | Hydraulic drive"
- Ideal for space restrictions: Perfect for workshops with limited ceiling height where a clear-floor solution is not possible.
- Flat drive-over plate: Only 30 mm build height – protects cables, ensures a clean floor finish and allows quick entry even for lowered vehicles.
- 4,000 kg load capacity: Effortless lifting of heavy electric vehicles, converted camper vans or trade vans to an ergonomic working height of up to 2050 mm.
- Maximum flexibility: Asymmetric, double telescoping support arms for reliable continuous use with short to very long vehicles.
- Highest safety: Multiple protection systems including overload valve, pipe burst protection and mechanical safety pawls for worry-free work.
| Drive: | hydraulic |
|---|---|
| Type of lifting plattform: | 2-post lift |
| Capacity range: | 3,6 t - 5,0 t |
Login
1 review
8 July 2026 19:50
Perfekte Hebebühne, Top Service
Hier passt alles, angefangen von der kompetenten und bedarfsorientierten Beratung bis hin zur zeitlich perfekt abgestimmten Lieferung und fachgerechten Aufstellung (Danke Andi für die exzellente Montage und Feinjustierung).
Die Hebebühne ist sauber und solide verarbeitet, die Einstellmöglichkeiten an Tragarmen und Tellern haben sich im Praxistest als sehr variabel und durchdacht erwiesen. Das Anheben/Senken im Betrieb läuft gleichmäßig und stabil.
Empfehlenswert ist das optionale Beleuchtungspaket, welches enorm hohe Lichtstärke und eine großflächige Ausleuchtung erzeugt.
Jederzeit würde ich hier erneut zugreifen.
Danke an das Hebebuehne24-Team.
The ELVT2400H 2-post hydraulic lift covers the daily mix: compact city car in the morning, then a heavy electric vehicle, later a converted van or transporter - without having to change the process. The load capacity of 4,000 kg provides reserves for high battery or interior installations. The drive-over plate (only 25 mm) connects the columns, protects hydraulic and control lines and allows vehicles to enter quickly. You position, place the lifting arms, lift hydraulically smoothly and work at an ergonomic height.

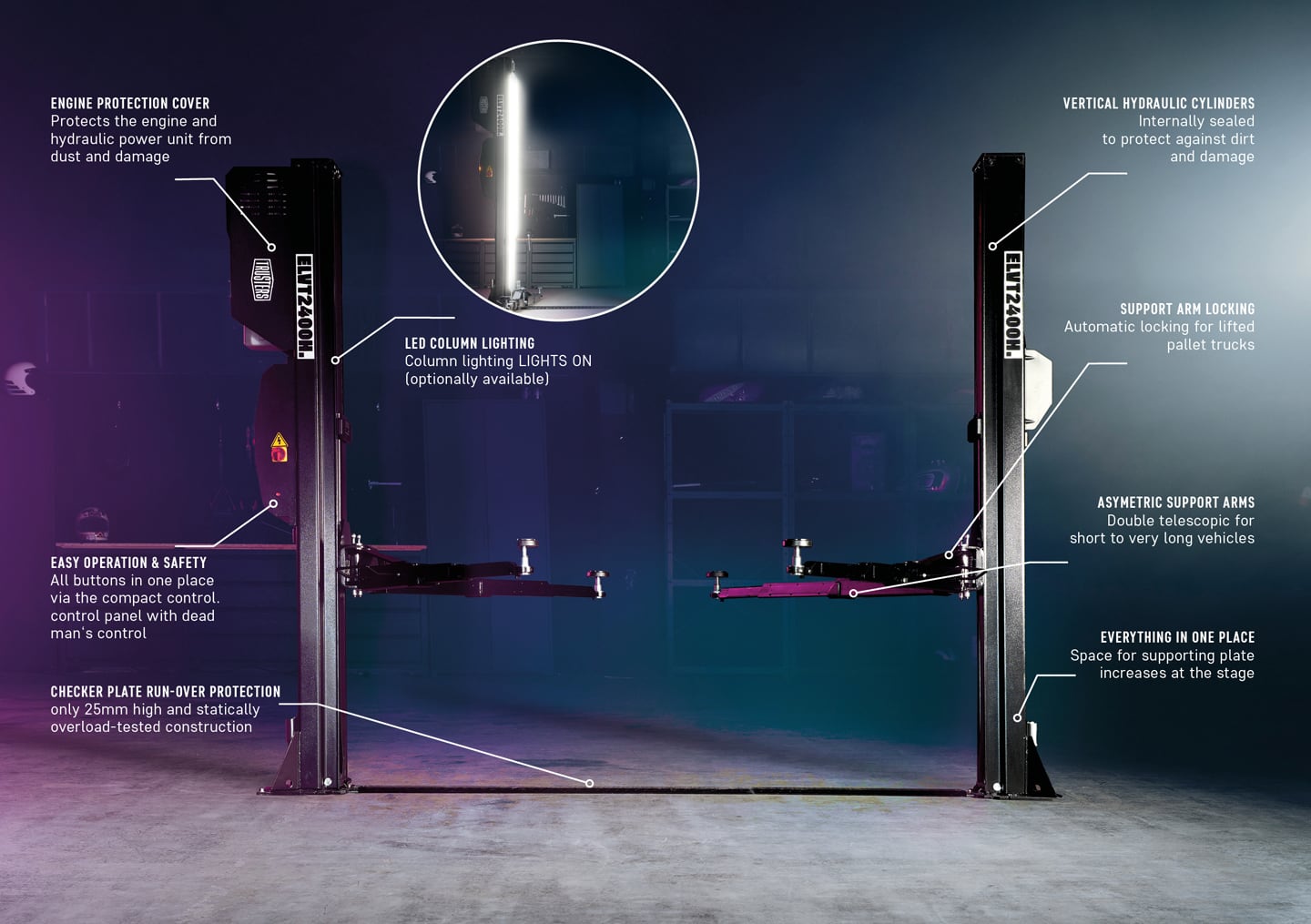

Product features of the TRUSTERS ELVT2400H
Discover the details that make this 2-post lift the indispensable centerpiece of your workshop.
Easiest and safest operation
Full control, easy. Using the intuitive control panel, you can conveniently control the raising and lowering at the touch of a button. A dead man control is integrated for your safety. The best thing about it: You decide where the control column is located. Whether left or right, it adapts perfectly to the conditions of your workshop. We have also given the control center a 230V socket to which you can connect important devices.
Double telescopic support arms
Built for long-term use: With the asymmetrical, double-telescopic support arms, you can flexibly accommodate short to very long vehicles. The lifting height of over 2 meters guarantees you an ergonomic and comfortable working position at all times.
Maximum security with every hub
As soon as the support arms are raised with the vehicle, the robust mechanical locking mechanism engages and locks the arms firmly in their position. Slipping or shifting while working is therefore impossible. It works just as intelligently in reverse: As soon as the platform is completely lowered again, the lock releases itself and the arms can immediately be swiveled freely again for positioning on the next vehicle.
Sophisticated door protection
Rubber protectors attached to both columns reliably prevent scratches and dents on vehicle doors that are opened against the lift.
Always at hand
No more searching for the right adapters! There are two holders on each column in which the 100 mm support plate risers can be stored conveniently and safely. This means you always have the important accessories exactly where you need them - directly on the lift.
More freedom, less worries.
The 2.2 kW electric motor positioned at the top is out of the way and drives the robust hydraulic system. Its stationary lifting cylinders have internal seals. This construction reliably protects the entire technology from dirt, dust and damage, which ensures a long service life and low-maintenance operation.
Checker plate overrun protection
The robust drive-over plate made of statically overload-tested 25 mm checker plate protects cables, ensures a clean floor finish and allows even deep vehicles to enter quickly.
Light exactly where work is being done
No more mobile lamps that are constantly misplaced: The optionally available LIGHTS ON (Item No.: ELVT-LL) column lighting ensures optimal visibility directly on the vehicle and is conveniently operated with a switch.
Best for:
- General vehicle workshops
- Tire Services
- body workshops
- Paint shops
Detailed product description
Load capacity & future security:
With a load capacity of 4,000 kg, you are prepared for the future. Whether heavy electric platforms, converted camper vans or craftsman transporters - this platform effortlessly integrates heavy vehicles into your everyday workshop life. A safe investment, as the trend is clearly towards heavier vehicles.
Flexibility & construction:
The asymmetrical, double-telescoping support arms allow the flexible mounting of everything from small cars to vans. A maximum lifting height of 1900 mm ensures ergonomic work. Thanks to the low pivoting height of just 110 mm and the extremely flat 25 mm drive-over plate, it is the ideal solution for workshops with limited ceiling height (from 3200 mm).
Safety & Longevity:
The powerful 2.2 kW motor drives the robust hydraulic system. Its standing lifting cylinders with internal sealing and an additional engine protection cover reliably protect the entire technology from dirt and dust. Mechanical safety catches (automatic unlocking at the push of a button), an automatic support arm lock, an overload valve, a pipe burst protection and the 24V dead man control ensure maximum safety.
Thoughtful details & comfort:
Everything has been thought of here: rubber protectors attached to both pillars prevent dents on vehicle doors. Integrated holders for the included support plate risers ensure order and are always within easy reach. A practical 230V socket directly on the control panel puts an end to cable clutter. Optionally, the "LIGHTS ON" LED lighting ensures perfect visibility directly at the work area.
| Technical data | ||
|---|---|---|
| Load capacity | 4000 kg | |
| Max. Lifting height | 2015 mm | |
| Bottom swing height | 110 mm | |
| Column height | 2550 mm | |
| Max. Total height | 2848 mm | |
| Setup width | 3520 mm | |
| Passage width | 2560 mm | |
| Inner column spacing | 2860 mm | |
| Long support arms (3 parts) | 860 - 1840 mm | |
| Short support arms (3 parts) | 580 - 1125 mm | |
| Lifting/lowering time | 50 s | |
| Drive power | 2.2 kW | |
| Power supply | 230 V / 50 Hz / 1 Ph | |
| Hedging (slow) | 20 A | |
| Protection class | IP54 (splash-proof) | |
| Foundation (thickness) | 200 mm (concrete C20/25) | |
| Anchoring | 10 anchors (5 per column) | |
| Color | Jet black RAL 9005 | |
| Scope of delivery |
|---|
| 2 columns complete with control unit |
| 4x support arms including mounting plates |
| 4x 100 mm mounting increases |
| Overrun plate |
| User manual |
