RAV KPH35 Standard | 3.5 t entry model | TEq-Link
€4,599.00
Delivery time, 25 days.
Product information "RAV KPH35 Standard | 3.5 t entry model | TEq-Link"
The RAV KPH35M Medium is a 2-post lift with 3.5 t lifting capacity that stands out from the Standard through two control units and a standard energy kit. Operable from both columns – saving time and speeding up daily workshop routines. Same proven mechanics as the HORIZON SERIES, with added operating comfort.
- Entry-level model 3.5 t: Solid base equipment at the best price – from small cars to vans.
- TEq-Link as standard: Networked diagnostics and connection to RAV systems straight from the factory.
- Electro-hydraulic drive: Fast and effortless lifting at the push of a button in just 32 seconds.
- Asymmetric columns: Comfortable entry and exit with good door clearance.
- Safety & comfort: Cable-free synchronization, mechanical safety latch, and end switch as standard for worry-free work.
| Drive: | hydraulic |
|---|---|
| Type of lifting plattform: | 2-post lift |
| Capacity range: | 2,5 t - 3,5 t |
Login
The RAV KPH35 Standard is a 2-post lift with 3.5 t lifting capacity and asymmetric columns – the entry model of the HORIZON SERIES. As the only version in the KPH35 range, it comes with a single control unit and without an energy kit, but with TEq-Link connectivity as standard. Ideal if you're looking for a reliable base lift for daily passenger car work.
Features of the RAV KPH35 Standard
Discover more about the details that make this 2-post lift an optimal tool for your workshop.

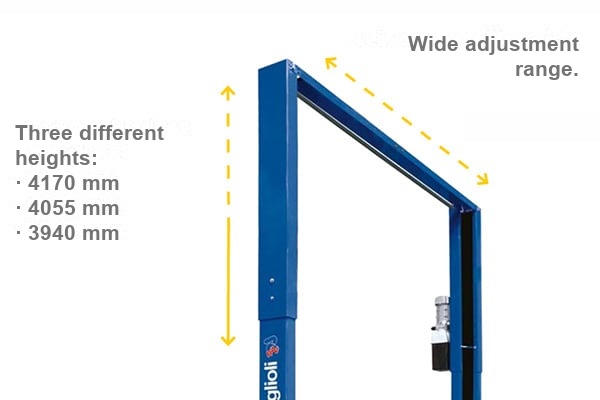

Flexibly adaptable to structural conditions
Option for a narrower installation width for workshops with limited working space. Installation in 3 height levels.
Cable-free synchronization
Perfect synchronization of the lifting carriages via the hydraulic system. Low-maintenance thanks to the absence of cables.
Arm safety lock
With automatic engagement and automatic release as soon as the arm reaches the ground.
Maximum height sensor.
Automatically detects the highest lifting position and interrupts movement, preventing the vehicle from leaving the operating range.
Safety latches
Mechanical safety is guaranteed at all times. The mechanical latch ensures maximum safety during parking.
TEq-Link workshop connectivity
TEq-Link connects your workshop equipment in real time: status (free, occupied, fault) and test data of all devices are centrally recorded and clearly displayed. You plan work orders and priorities, retrieve measurement results, and keep track of usage times and maintenance schedules.
Ideal for:
- Independent garages and repair shops
- Tire and wheel service
- Car dealerships with service and inspection reception
- Body shops and paint shops
- Fleet and commercial vehicle service (within lifting capacity)
- Ambitious hobby mechanics with their own garage

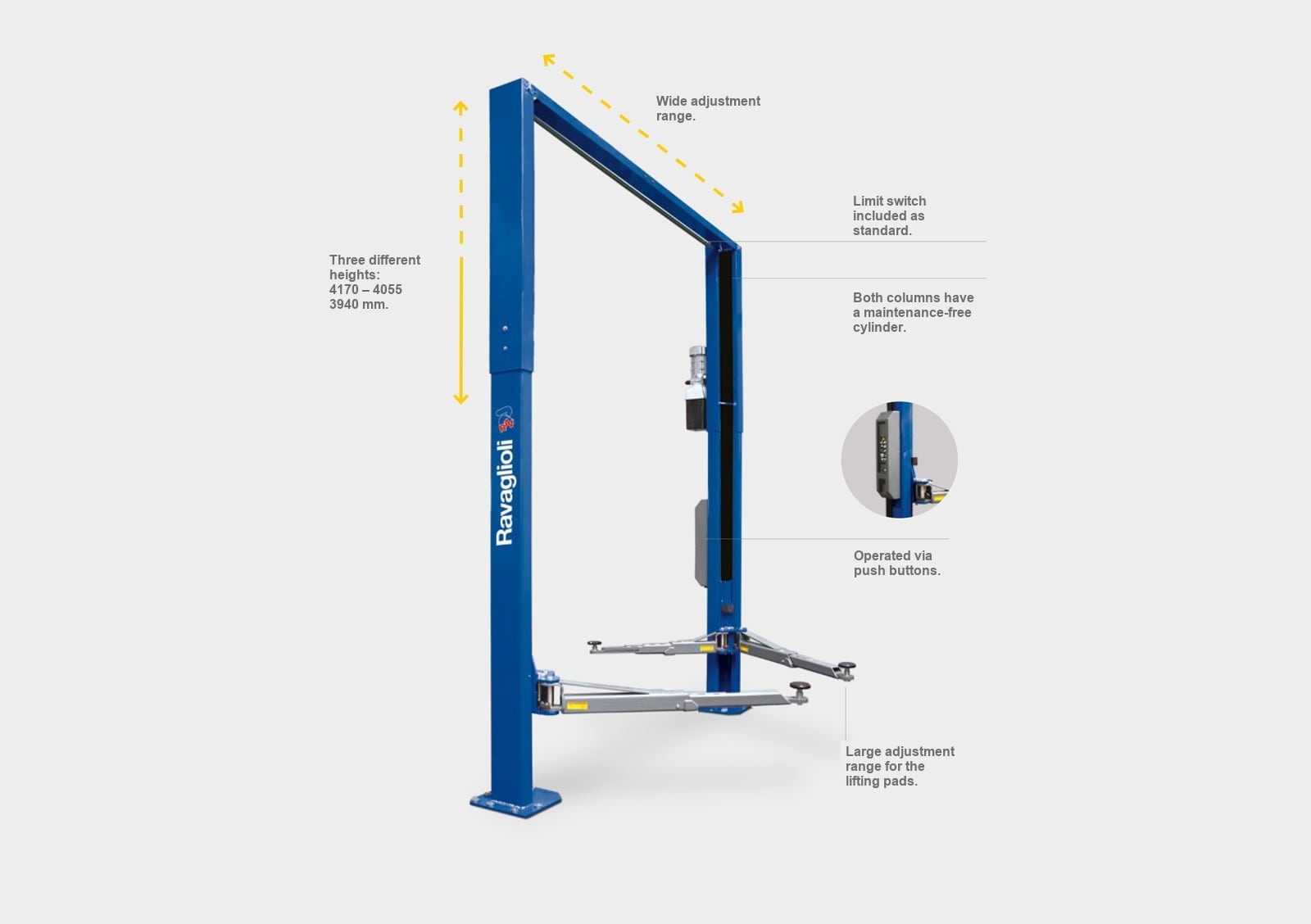

Detailed Product Description
With a lifting capacity of 3.5 tons, the RAVAGLIOLI KPH35 Standard is optimally designed for passenger cars and vehicles of common size classes. The electro-hydraulic drive lifts the vehicle powerfully and evenly to the desired working height.
The asymmetric arms are front 3-stage and rear 2-stage telescopic (550–1,473 mm) and reliably cover the common pickup points of classic passenger cars. The automatic arm lock ensures secure hold and releases automatically when set down on the ground.
With a maximum lifting height of 2,007 mm, the KPH35 Standard offers comfortable access to the vehicle underbody. The minimum pickup height of 101 mm also facilitates lifting low vehicles. A lifting time of only 32 seconds supports fast workflows and efficient vehicle turnover.
The permanently active mechanical safety latch reliably locks the lift in the parking position. The cable-free hydraulic synchronization ensures precise alignment of both lifting carriages. Additionally, the standard end switch protects against exceeding the maximum lifting height.
TEq-Link as standard: Despite its entry-level positioning, the KPH35 Standard already comes with TEq-Link's networked diagnostic and connectivity function from the factory.
Cable-free synchronization: The synchronization of the lifting carriages takes place directly via the hydraulic system. This enables an even lift and reduces maintenance requirements.
Protected hydraulic cylinders: A maintenance-free hydraulic cylinder is integrated into each of the two columns and reliably protected from external damage.
Proven base mechanics: Same solid technology as the entire HORIZON SERIES – without an energy kit and with a single control unit as a clearly calculable entry model.
Space-saving installation: The asymmetric column design and the option of a narrower installation width also make the lift interesting for workshops with limited space.
Quick installation: The well-thought-out design enables fast assembly and quick commissioning in workshop operation.
| Technical Data | |
|---|---|
| Model | RAVAGLIOLI KPH35 Standard |
| Series | HORIZON SERIES |
| Lifting Capacity | 3,500 kg |
| Max. Lifting Height | 2,007 mm |
| Min. Pickup Height | 101 mm |
| Lifting Time | 32 s |
| Lowering Time | 30 s |
| Drive Type | Electro-hydraulic |
| Control | Push-button |
| Control Units | 1 |
| Column Design | Asymmetric |
| Arms | Asymmetric, front 3-stage and rear 2-stage telescopic |
| Arm Range | 550–1,473 mm |
| Column Distance | 2,700 mm |
| Drive-through Width | 2,456 mm |
| Overall Height | From 3,940 mm |
| Required Ceiling Height | 4,250 mm |
| Minimum concrete thickness | 160 mm |
| Drive Power | 2.6 kW |
| Power Supply | 400 V / 50 Hz / 3 Ph |
| Energy Kit | Not available |
| TEq-Link | Standard |
| Weight | 735 kg |
| Color | Blue, RAL 5005 |
| Scope of Delivery |
|---|
| 2-post lift RAVAGLIOLI KPH35 Standard (HORIZON SERIES) |
| Hydraulic unit and control system |
| Arms with pickup pads |
| Assembly and operating instructions |
