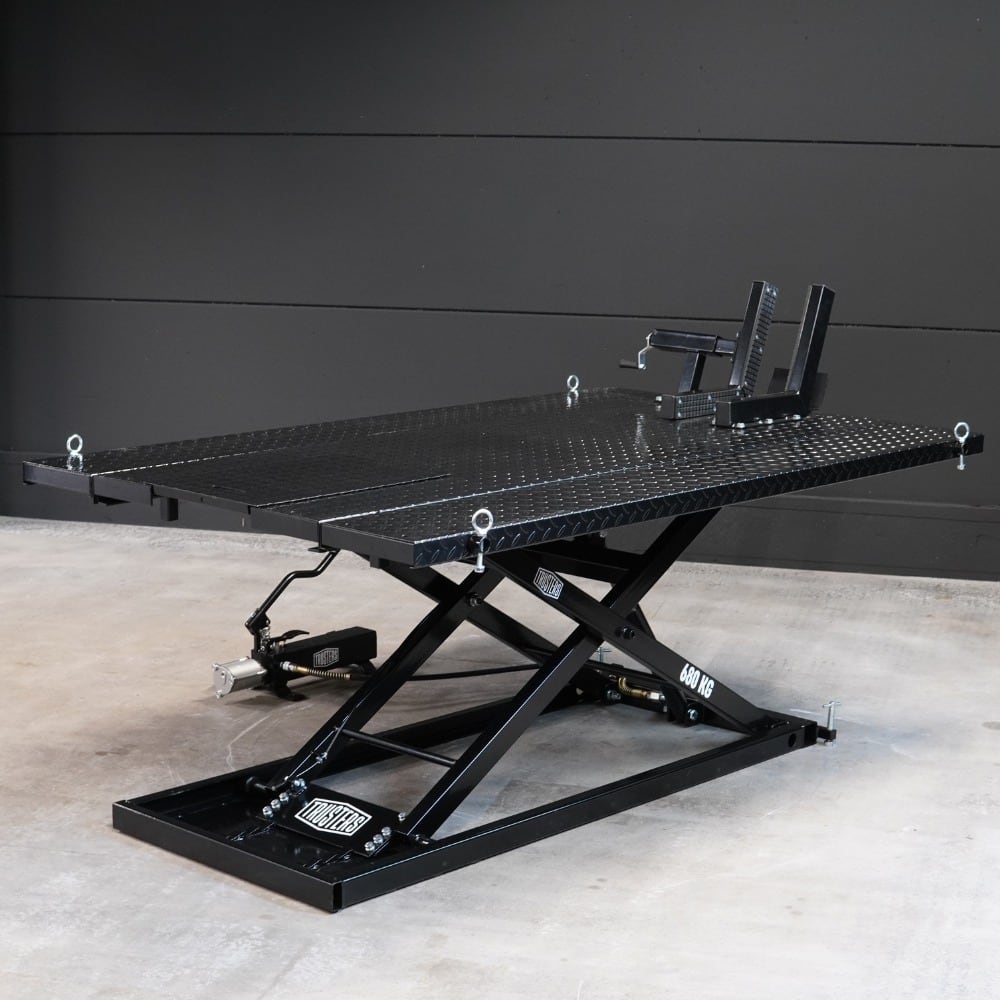

TRUSTERS POWERLIFT680X - Quad lift

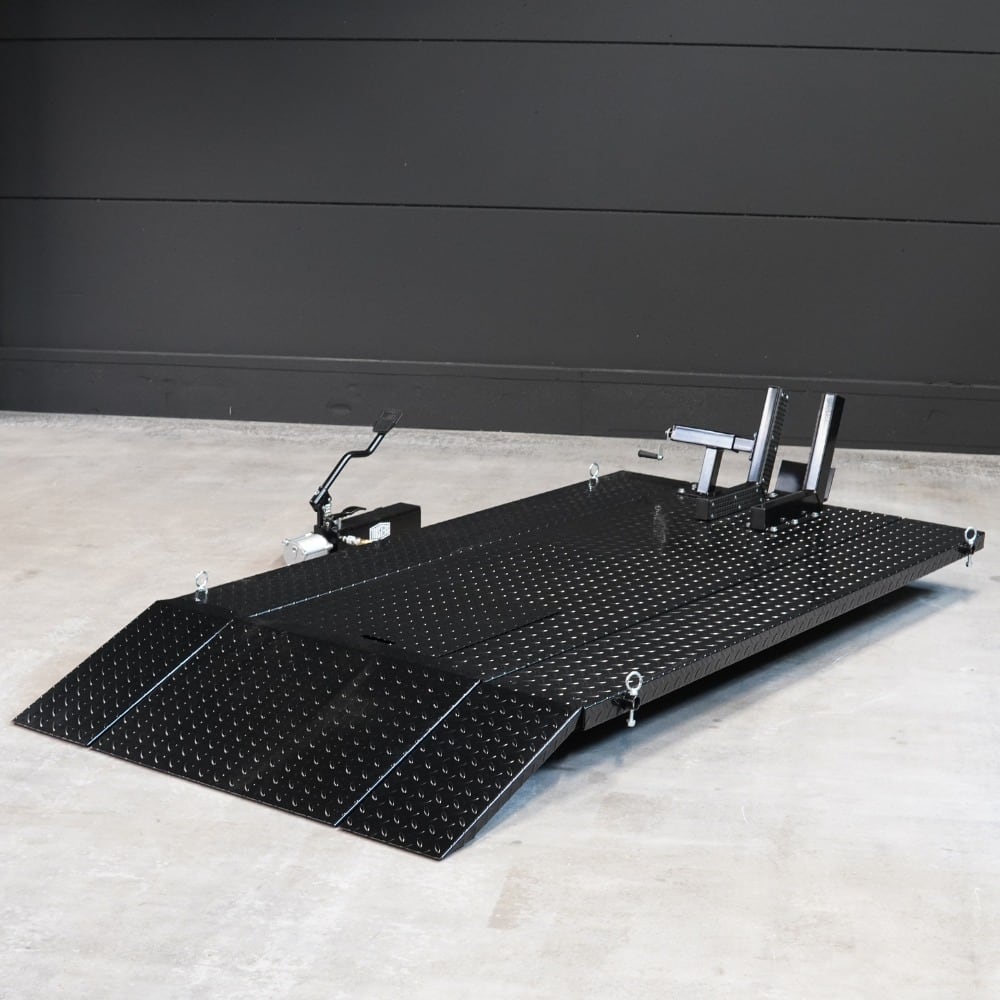

One lift – two faces: With attached widening rails for quads, ATVs, or lawn tractors; without rails, a slim 71 cm motorcycle table. 680 kg lifting capacity including a double-action pump.
Product number:
82-680-Q
Regular price:
€1,099.00
Ready for dispatch, Delivery time 2 - 4 days
Leasing is that simple!
Use the many advantages of leasing for your success. No more long trips to the bank and a decision within minutes.
Product information "TRUSTERS POWERLIFT680X - Quad lift"
- Variable width: Base platform (2000 x 710 x 185 mm) including quad rails for a generous support width of 1218 mm.
- 680 kg lifting capacity: Strong reserves for wide utility ATVs, work quads, hydrostatic lawn tractors, or heavy tourers.
- Dual-mode foot pump: Flexible operation – either pneumatically via a compressor connection or manual quick lift for precise lifting.
- Service-optimized: Removable table plate for quick access to the rear axle, drivetrain, differential, or mower deck components.
| Lift capacity: | 680 kg |
|---|---|
| Type of lifting plattform: | motorcycle lifts, quad lifts |
Login
4 reviews
27 June 2024 06:12
Passt alles
Ist eine super Bühne.. ich bin sehr zufrieden :-)
26 June 2024 12:24
Sehr zufrieden
Bin sehr zufrieden mit der Hebebühne, es hat alles reibungslos geklappt.
26 June 2024 12:19
Bin sehr zufrieden!
Ich bin sehr zufrieden mit der Hebebühne.
25 June 2024 13:13
Alles bestens gelaufen
Ich bin sehr zufrieden mit der Hebebühne!
One stage - two faces: The POWERLIFT680X embodies the idea of modular use in the medium load class. Do you need space for an ATV or lawn tractor today and a focused motorcycle area tomorrow? Stake out the rails – done. At its full width, the platform offers plenty of support for four-wheeled vehicles and allows symmetrical lashing. The removable rear segment plate opens the maintenance channel for direct access to the rear axle or differential.

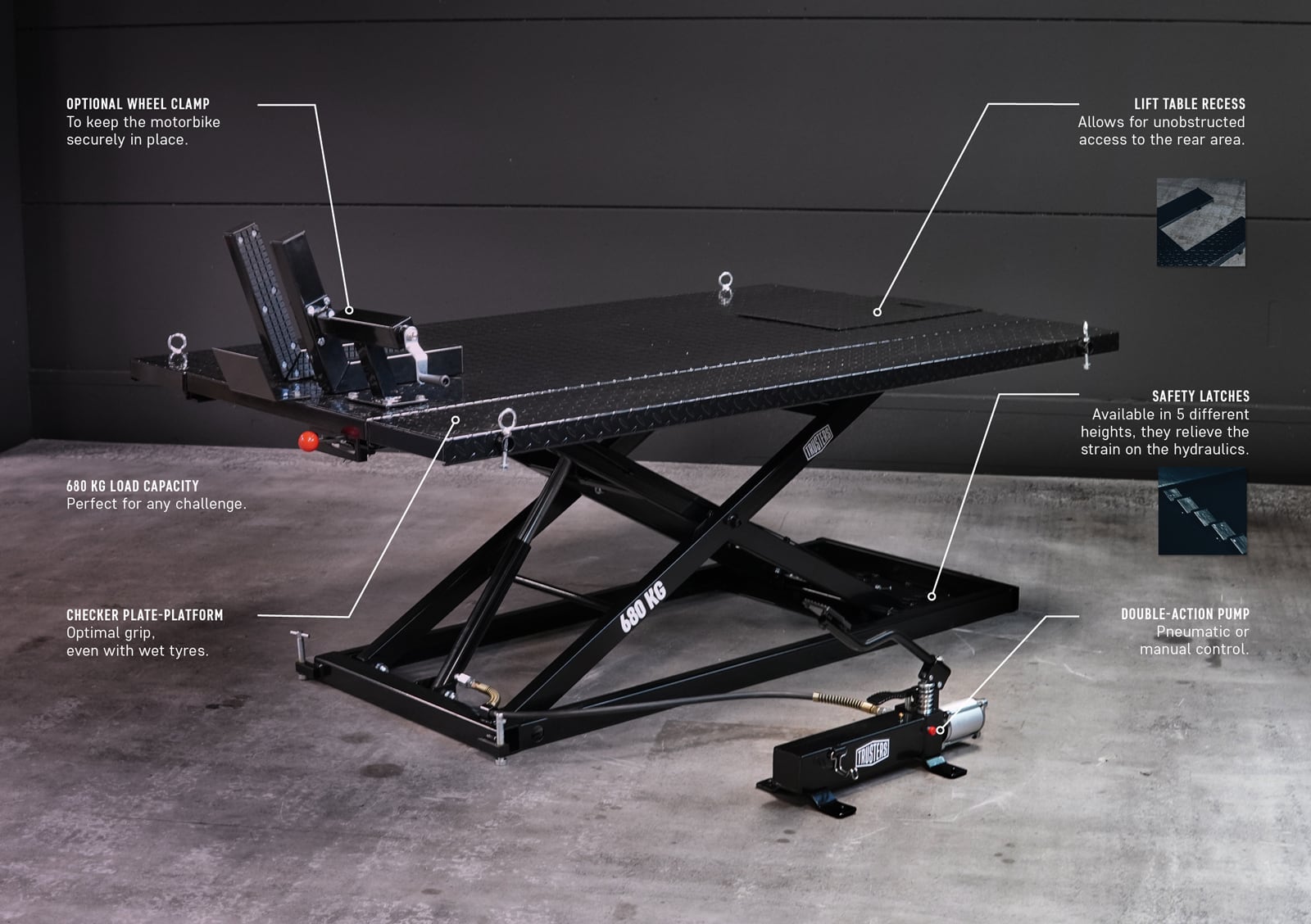

Features of the TRUSTERS POWERLIFT680X
Take a look at the features that make this mobile stage a must-have for every workshop.

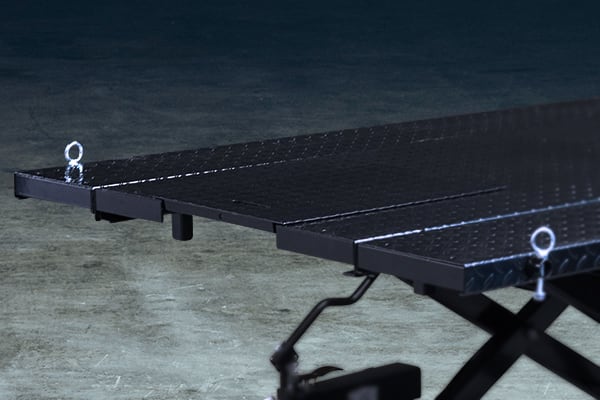

Bike ready in seconds:
The extension rails
The POWERLIFT680X can be narrowed from a 121.8 cm wide quad lift to a 71 cm wide motorcycle lift using plug-in extension rails.

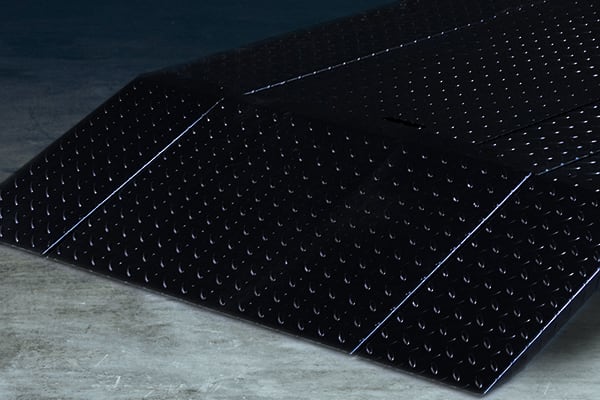

Wide access ramp
for maximum confidence when driving up
The pluggable access ramp consisting of several segments covers the entire width of the lift and forgives even an imprecise approach.

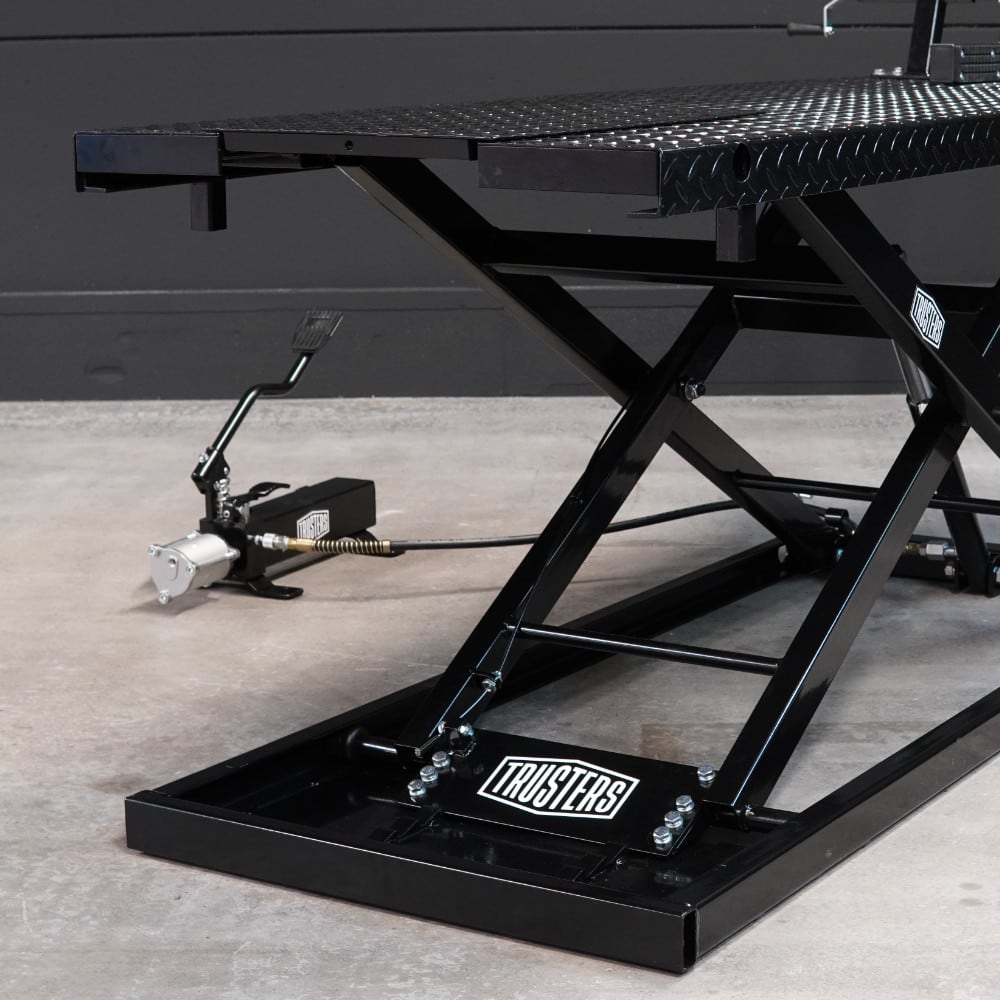

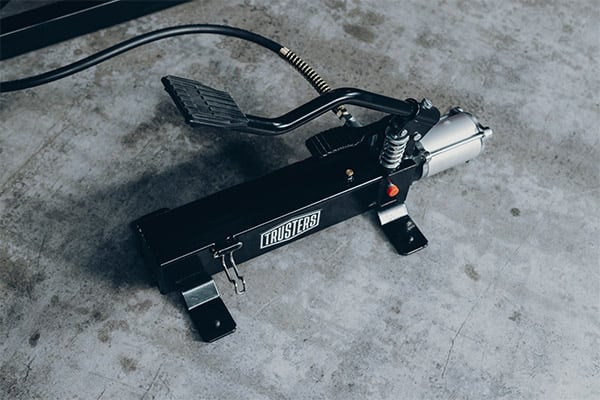

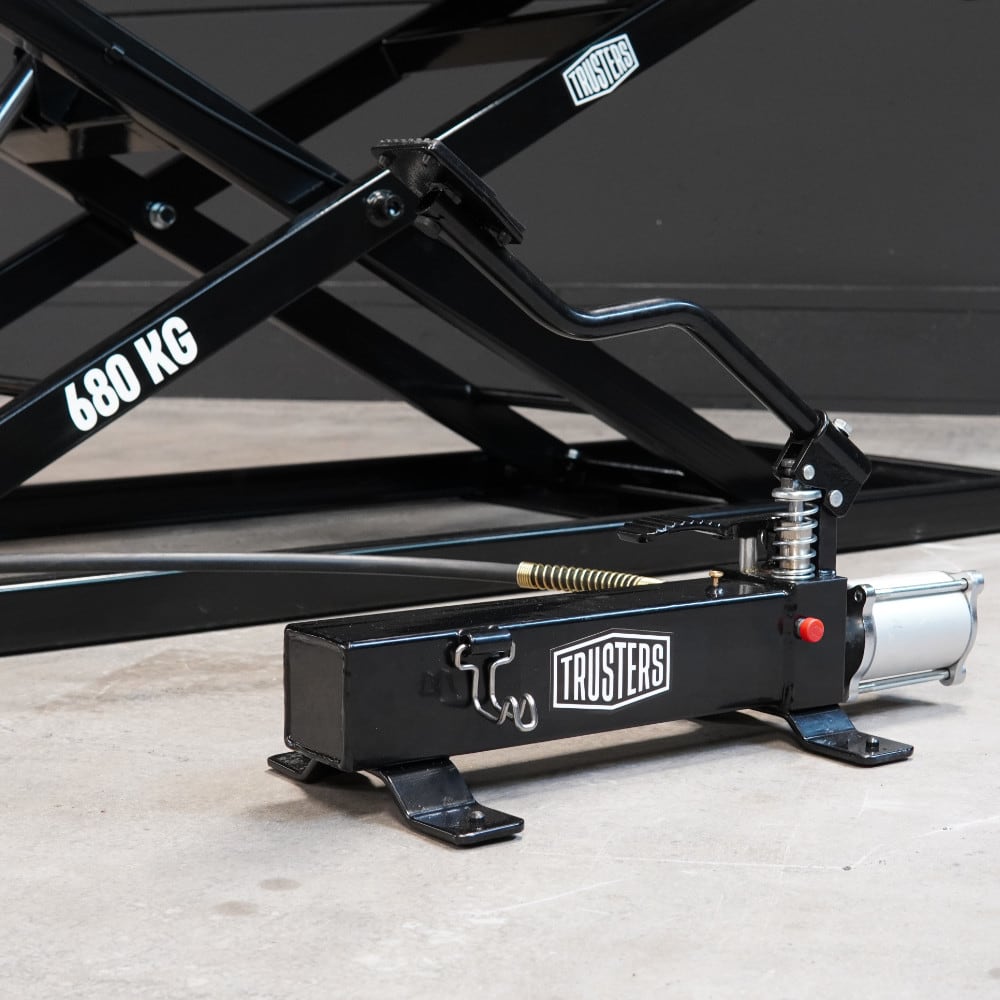

Double power, easy to use - the hydraulic pump
The dual-mode function offers two operating modes: manual foot pump operation or pneumatic use with compressed air via a quick coupling.

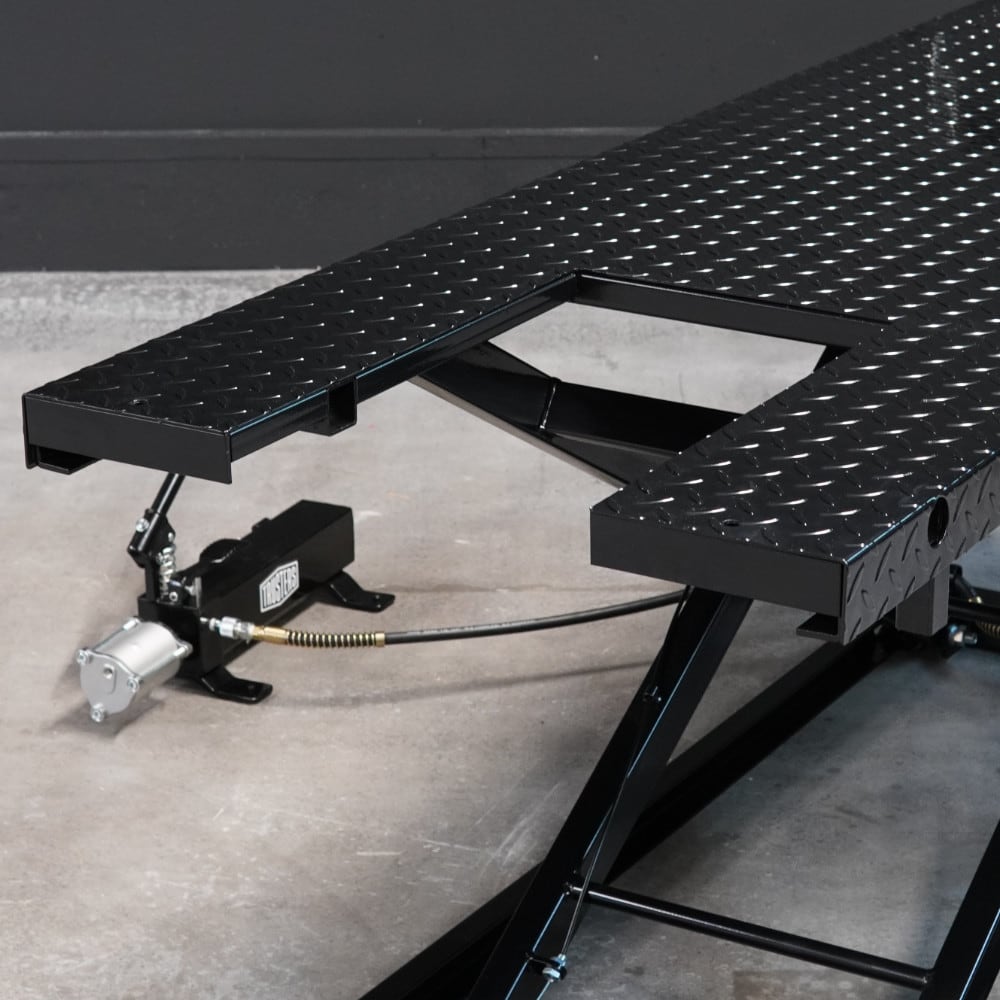

Lift table flaps –
Free access to the axes
The POWERLIFT680X features a convenient rear lifting table flap. This design ensures unrestricted access to the wheels and axles, allowing you to perform maintenance and repair tasks on your quad or ATV with ease.

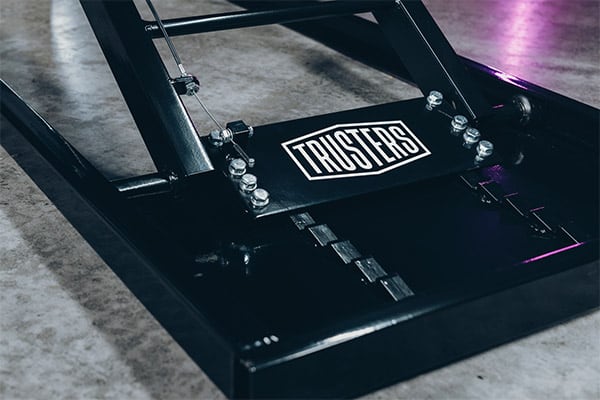

Safe & flexible –
with mechanical support
The mechanical safety support allows the lift to be locked at 5 different heights and relieves the load on the hydraulic system.

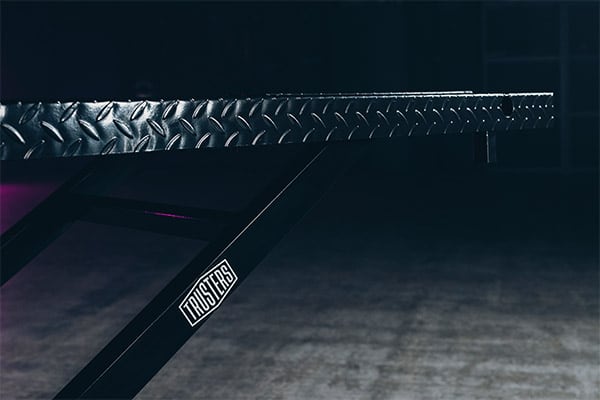

Tear plate –
Protection and anti-slip
The motorcycle platform with tearplate surface ensures non-slip grip and secure footing, even with wet tires.
Best for:
- Mixed workshops (ATV/Quad + Motorcycle)
- Agriculture & forestry companies with their own ATV fleets
- Off-road and adventure touring workshops
- Dealers, clubs and associations with mixed vehicle inventory
Which vehicles does this stage raise?
We have already measured these vehicles for you. Is yours included?
- ✓ CFORCE 450
- ✓ CFORCE 520
- ✓ CFORCE 625
- ✓ Sportsman 570
- ✓ Sportsman XP 1000
- ✓ Sportsman Touring 570 EPS
- ✓ Sportsman Touring XP 1000
- ✓ Sportsman X2 570 EPS
- ✓ Maxxer S 300T
- ✓ Maxxer 300 T
- ✓ Scout
- ✓ Scout Bobber
- ✓ Scout Bobber Twenty
- ✓ Scout Rogue
- ✓ Scout Sixty Classic
- ✓ Scout Sixty Bobber
- ✓ Scout Classic
- ✓ Sport Scout
- ✓ Super Scout
- ✓ 101 Scout
- ✓ Sport Chief RT
- ✓ Super Chief Dark Horse
- ✓ Chief Dark Horse
- ✓ Chief Bobber Dark Horse
- ✓ Super Chief Limited
- ✓ Sport Chief
- ✓ FTR
- ✓ FTR Sport
- ✓ FTR R Carbon
- ✓ FTR X 100% Carbon
- ✓ FTR X RDS Super Hooligan
- ✓ Nightster
- ✓ Sportster S
- ✓ Street Bob
- ✓ Low Rider S
- ✓ Low Rider ST
- ✓ Breakout
- ✓ Fat Boy
- ✓ Pan America 125
- ✓ Pan America 1250 ST
- ✓ CVO Pan America
Not included?
Then take measurements of your vehicle: Measure from the leading edge of the front tire to the center of the rear wheel and the total width (axle width) between the outer edges of the front wheels; If both values are below the lifting table dimensions of 2200 mm (length) x 1218 mm (width), the platform fits.
Detailed product description
Load capacity:
With a powerful 680 kg load capacity, the POWERLIFT680X is prepared for practically all common quads, ATVs and compact garden tractors. Even fully equipped machines are full and quiet. This way you work with reserves instead of at the limit.
Lift height:
The maximum working height of 85 cm puts the axles, chassis and drive in a pleasantly ergonomic zone. Back and knees remain relieved, even during long screwdriving or cleaning work.
Security:
Find your desired working height and lower the platform into the nearest mechanical safety catch (80, 72, 63, 52, 36 cm). This relieves the load on the hydraulics. The checker plate surface ensures grip and dimensionally stable fixation.
Versatility:
The stage can be converted from a wide quad stage (1218 mm) to a narrow motorcycle stage (710 mm) in seconds using the plug-in extension rails. Maximum adaptability instead of two separate systems.
Special features:

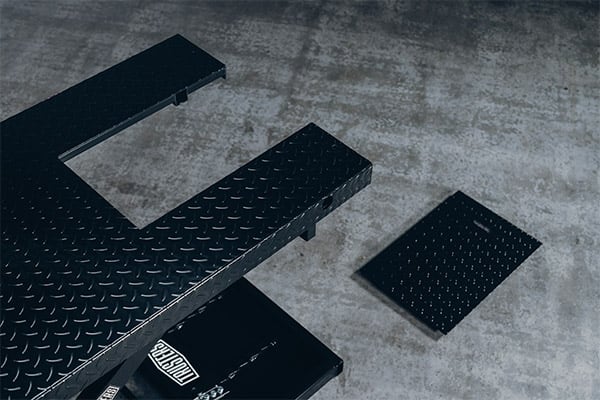

Service opening: The removable service opening (31 × 50 cm) gives you direct access to the rear axle, transmission/hydrostat or drive belt.
Wide ramps: Three full-width ramp segments make driving up stress-free. To work on the rear, you can remove the ramps in a flash.
Dual-mode pump: The pump works either pneumatically via your compressor or purely manually in quick stroke with your foot - full flexibility.
| Technical data | ||
|---|---|---|
| Load capacity | 680 kg | |
| Max. Lifting height | 850 mm | |
| Min. Height / access height | 185 mm | |
| Platform length | 2000 mm | |
| Platform width | 710 mm (motorcycle) / 1218 mm (quad/ATV) | |
| Safety notches | 360, 520, 630, 720, 800 mm | |
| Drive | Manual & Pneumatic | |
| Required air pressure | min. 4 Bar / 150 L/Min. | |
| Size of service opening | 310 x 500 mm | |

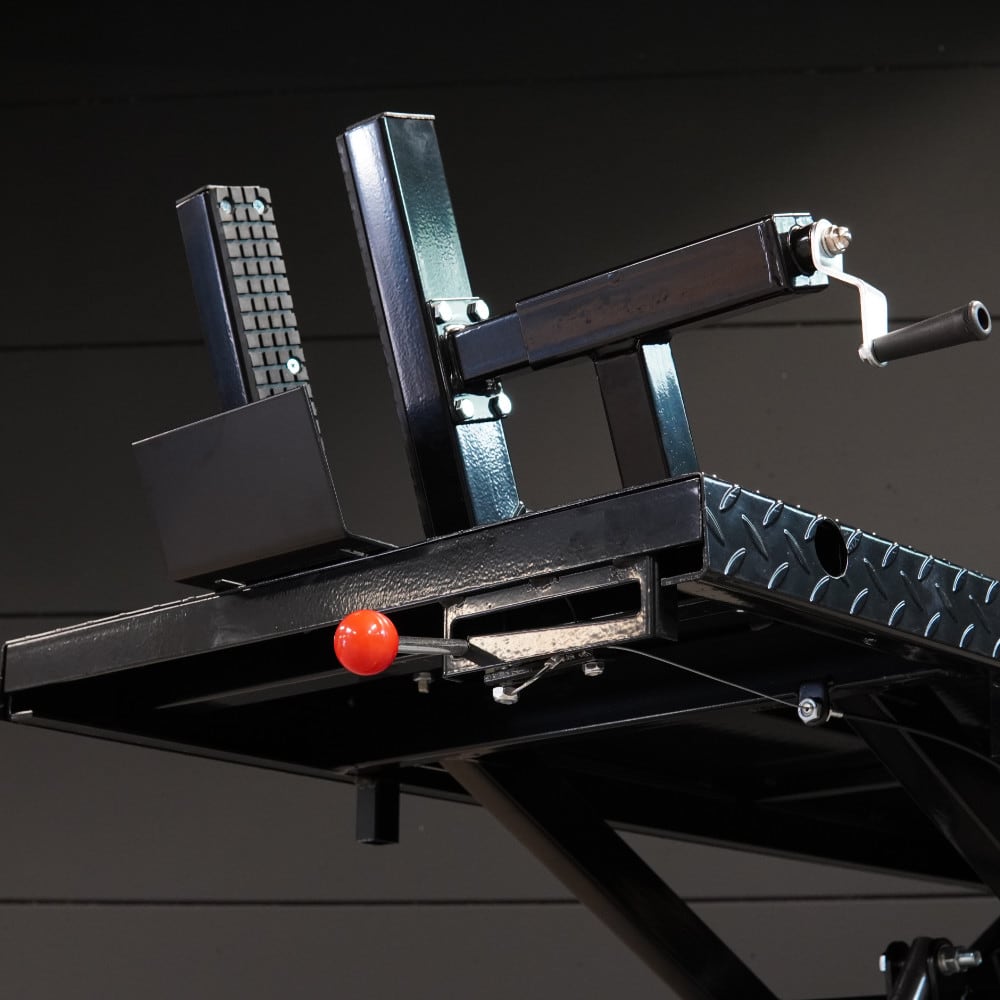

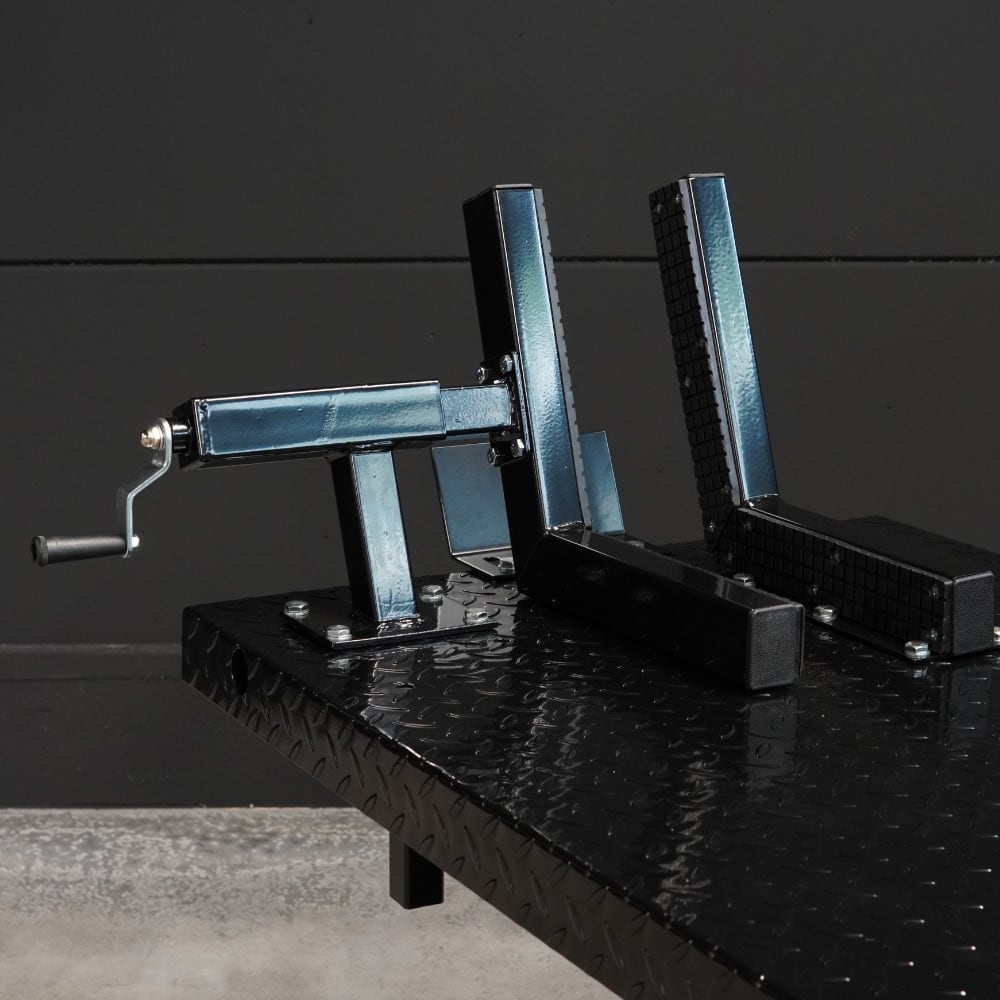

| Wheel clamp holder (motorcycle) | 30 - 200 mm | |
| Dead weight | approx. 245 kg (including rails) | |
| Packaging dimensions (L x W x H) | 2060 x 850 x 300 mm | |
| Color | Jet black RAL 9005 | |
| Included in delivery |
|---|
| POWERLIFT680X lifting platform |
| Extension rails (2 pieces) |
| Access ramps (3 segments) |
| Wheel clamp (for motorcycle use) |
| Hydraulic pump (dual mode) |
| Hydraulic oil |
| User manual |
