RAV KPH40SAVM | 4.0 t | AV arms, 20% more reach
€4,899.00
Delivery time, 25 days.
Product information "RAV KPH40SAVM | 4.0 t | AV arms, 20% more reach"
The RAV KPH40SAVM is a 2-post lift with a 4.0 t lifting capacity, symmetrical columns and innovative AV support arms (“All Vehicles”). These reach around 20% further than conventional arms and can therefore access the lifting points of a particularly wide range of vehicles – from passenger cars and heavier vehicles to light vans within the specified lifting capacity. Two control units, energy kit and TEq-Link are included as standard. The proven mechanics of the HORIZON SERIES ensure reliable, precise and comfortable operation in everyday workshop use.
- AV arms “All Vehicles”: Around 20% more reach than conventional support arms – ideal for a particularly wide variety of vehicle models.
- High lifting capacity: With a 4.0 t capacity, the lift offers additional reserves for heavy passenger cars, SUVs and light vans.
- Comfortable standard equipment: Two control units, energy kit and TEq-Link connectivity are already included as standard.
- Cable-free synchronization: Perfect synchronization of the lifting carriages via the hydraulic system – low-maintenance, precise and durable.
- Safety & comfort: Mechanical safety lock, automatic arm locking with floor release and standard limit switch for safe working.
| Drive: | hydraulic |
|---|---|
| Type of lifting plattform: | 2-post lift |
| Capacity range: | 3,6 t - 5,0 t |
Login
The RAV KPH40SAVM is a 2-post lift with a 4.0 t lifting capacity, symmetrical columns and innovative asymmetrical AV support arms ("All Vehicles"). These reach around 20% further than conventional arms, allowing them to access the lifting points of a particularly wide variety of vehicles. Two control units, energy kit and TEq-Link are included as standard.

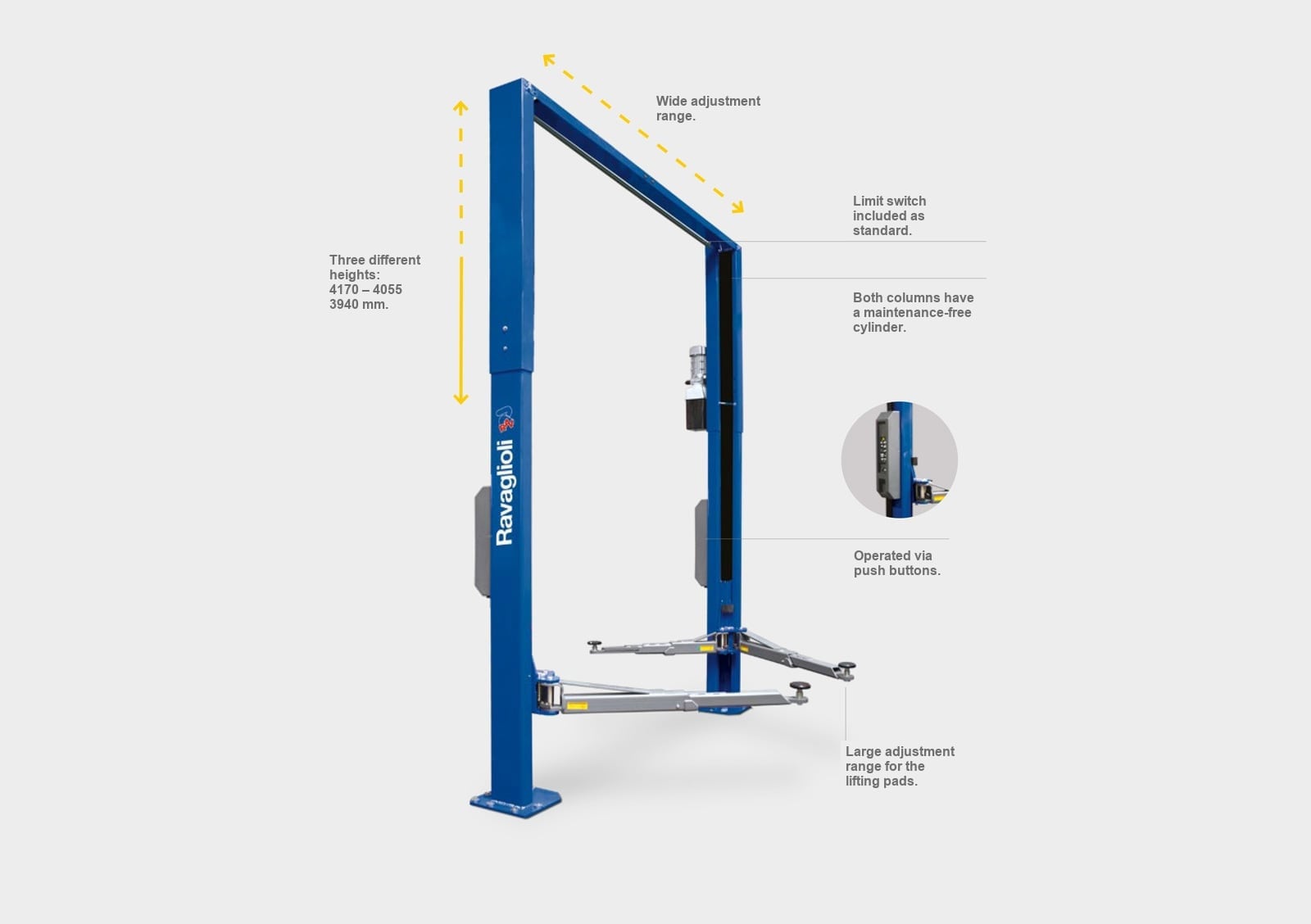

Features of the RAV KPH40SAVM
Learn more about the details that make this 2-post lift an optimal tool for your workshop.
Flexibly adaptable to structural conditions
Option for a narrower installation width for workshops with limited working space. Installation possible in 3 height levels.
Operation from both sides
Full control from either side – operation possible from both columns, no need to walk around.
Cable-free synchronization
Perfect synchronization of the lifting carriages via the hydraulic system. Low-maintenance thanks to the absence of cables.
Safety arm locking system
With automatic locking and automatic unlocking as soon as the arm reaches the floor.
Sensor for detecting maximum height
Automatically detects the highest lifting position and stops the movement, preventing the vehicle from leaving the operating range.
Safety locks
Mechanical safety is guaranteed at all times. The mechanical safety latch ensures the highest level of safety in the parking position.
Energy kit included
Provides power sockets, e.g. 230V/400V, and compressed air connections directly on the column of the lift.
Wide adjustment range of the pick-up points
The innovative AV arms (“All Vehicles”) reach 20% further than conventional arms, allowing them to access the lifting points of many vehicles.
Workshop connectivity with TEq-Link
TEq-Link networks your workshop equipment in real time: status (available, occupied, fault) and test data from all devices are centrally recorded and clearly displayed. You can plan work orders and priorities, retrieve measurement results and keep track of usage times and maintenance schedules.
Ideal for:
- Independent automotive workshops and repair businesses
- Tire and wheel service
- Car dealerships with service and inspection reception
- Bodywork and paint shops
- Fleet and commercial vehicle service, within the lifting capacity
- Ambitious hobby mechanics with their own garage
Detailed product description
With a lifting capacity of 4.0 tons, the RAVAGLIOLI KPH40SAVM offers sufficient reserve for vans and heavier passenger cars. The electro-hydraulic drive lifts the vehicle powerfully and evenly to the desired working height.
The AV support arms ("All Vehicles") are the central feature of this lift: they reach around 20% further than conventional support arms and therefore cover the lifting points of an exceptionally wide variety of vehicles – from compact passenger cars to vehicles with unusual wheelbases. The front arms are telescopic in the range of 470–1,039 mm, while the rear arms are telescopic in the range of 700–1,480 mm. The automatic arm locking system ensures a secure hold and unlocks automatically when lowered to the floor.
With a maximum lifting height of 1,977 mm, the KPH40SAVM offers good access to the vehicle underbody. At the same time, the minimum pick-up height of 97 mm makes it easier to lift low vehicles. A lifting time of 37 seconds and a lowering time of 34 seconds are matched to the load capacity of this class.
The permanently active mechanical safety lock reliably secures the lift in the parking position. The cable-free hydraulic synchronization ensures precise synchronization of both lifting carriages. In addition, the standard limit switch protects against exceeding the maximum lifting height.
AV arms "All Vehicles": Approx. 20% more reach than conventional support arms – suitable for a particularly wide variety of vehicles.
Two control units: Convenient operation from both column sides, included as standard in the scope of delivery.
Energy kit as standard: Ready for immediate use in energy-efficient workshop operation.
TEq-Link as standard: Connected diagnostic and integration function already built in at the factory.
Symmetrical columns: Even load distribution, particularly beneficial for heavy vehicles.
Installation height optionally extendable: Can be raised to 4,550–4,780 mm with suitable accessories – flexible for different workshop conditions.
Cable-free synchronization: The lifting carriages are synchronized directly via the hydraulic system. This enables smooth lifting and reduces maintenance effort.
Protected hydraulic cylinders: A maintenance-free hydraulic cylinder is integrated into each column and reliably protected against external damage.
Fast installation: The well-thought-out design enables quick assembly and fast commissioning in workshop operation.
| Technical data | |
|---|---|
| Model | RAVAGLIOLI KPH40SAVM |
| Series | HORIZON SERIES |
| Lifting capacity | 4,000 kg |
| Max. lifting height | 1,977 mm |
| Min. pick-up height | 97 mm |
| Lifting time | 37 s |
| Lowering time | 34 s |
| Drive type | Electro-hydraulic |
| Control | Push button |
| Control units | 2 |
| Column design | Symmetrical |
| Support arms | AV arms (All Vehicles), asymmetrical, approx. 20% more reach |
| Front arm reach | 470–1,039 mm |
| Rear arm reach | 700–1,480 mm |
| Column distance | 3,244 mm |
| Drive-through width | 2,594 mm |
| Overall height | From 3,940 mm |
| Required ceiling height | 4,250 mm |
| Minimum concrete thickness | 160 mm |
| Motor power | 2.6 kW |
| Power supply | 400 V / 50 Hz / 3 Ph |
| Energy kit | Standard |
| TEq-Link | Standard |
| Net weight | 735 kg |
| Color | Blue, RAL 5005 |
| Scope of delivery |
|---|
| 2-post lift RAVAGLIOLI KPH40SAVM (HORIZON SERIES) |
| Hydraulic unit and control system |
| Support arms with lifting pads |
| Installation and operating manual |
