Maneuvering jack 10 t load capacity " AC Hydraulic DK100Q
€1,849.00
Delivery time, 14 days.
Product information "Maneuvering jack 10 t load capacity " AC Hydraulic DK100Q"

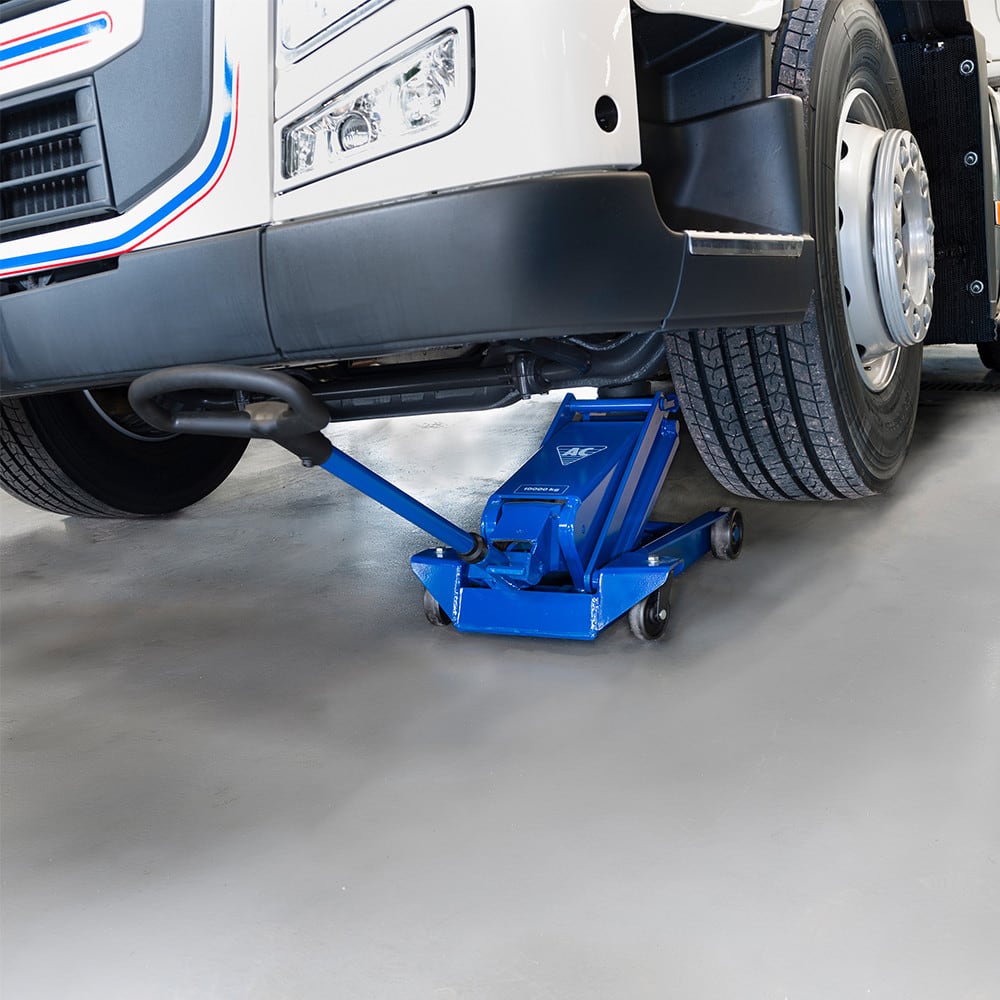

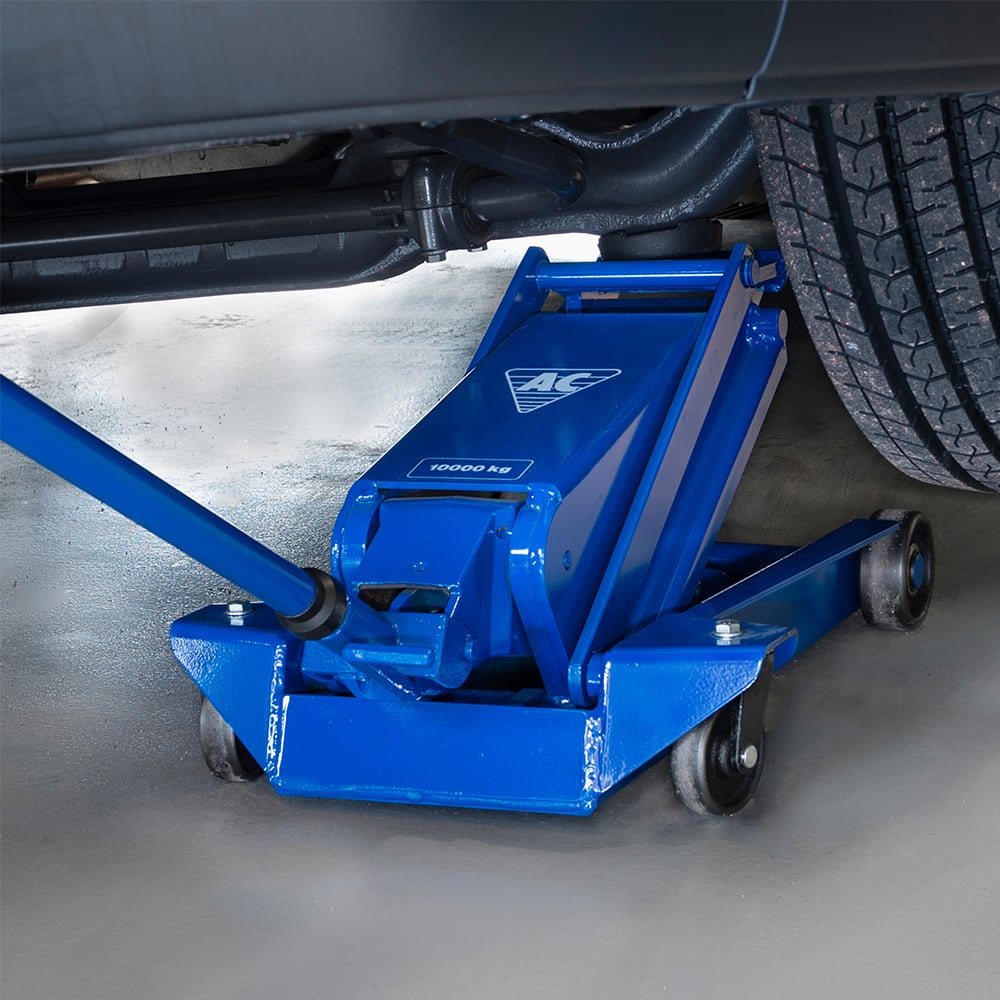

Maneuvering jack AC Hydraulik DK100Q
- 10t load capacity
- very low minimum height of only 150 mm
- Wide and robust frame made of high-strength steel
- Quick-lift foot pedal for fast bridging of the empty stroke
- Precise and safe control when lowering
- Optional pneumatic rubber wheels for easy movement (accessory)
- Dead man's control for optimum safety
- Built-in safety valve to prevent overloading
- Ergonomic handle ensures a good and firm grip
Perfect for use on the following vehicles
- Tractors
- Agricultural machinery
- Construction machinery
- TRUCKS
- Buses

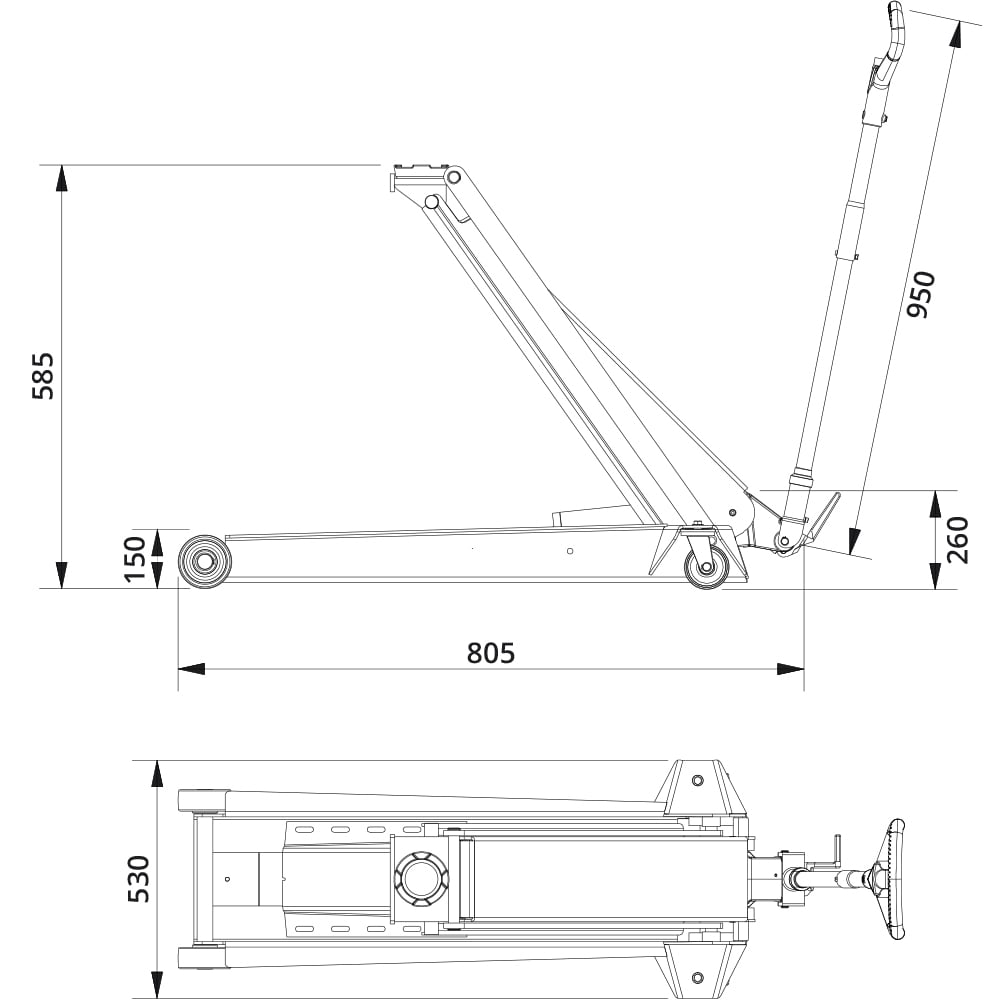

Technical data
| Truck capacity | 10 t |
| Min. height | 150 mm |
| Max. Height | 585 mm |
| Frame length | 805 mm |
| Frame height | 260 mm |
| Lever length | 950 mm |
| Width of lever | 530 mm |
| Weight | 118 kg |
| Car jack capacity: | 10 t |
|---|
