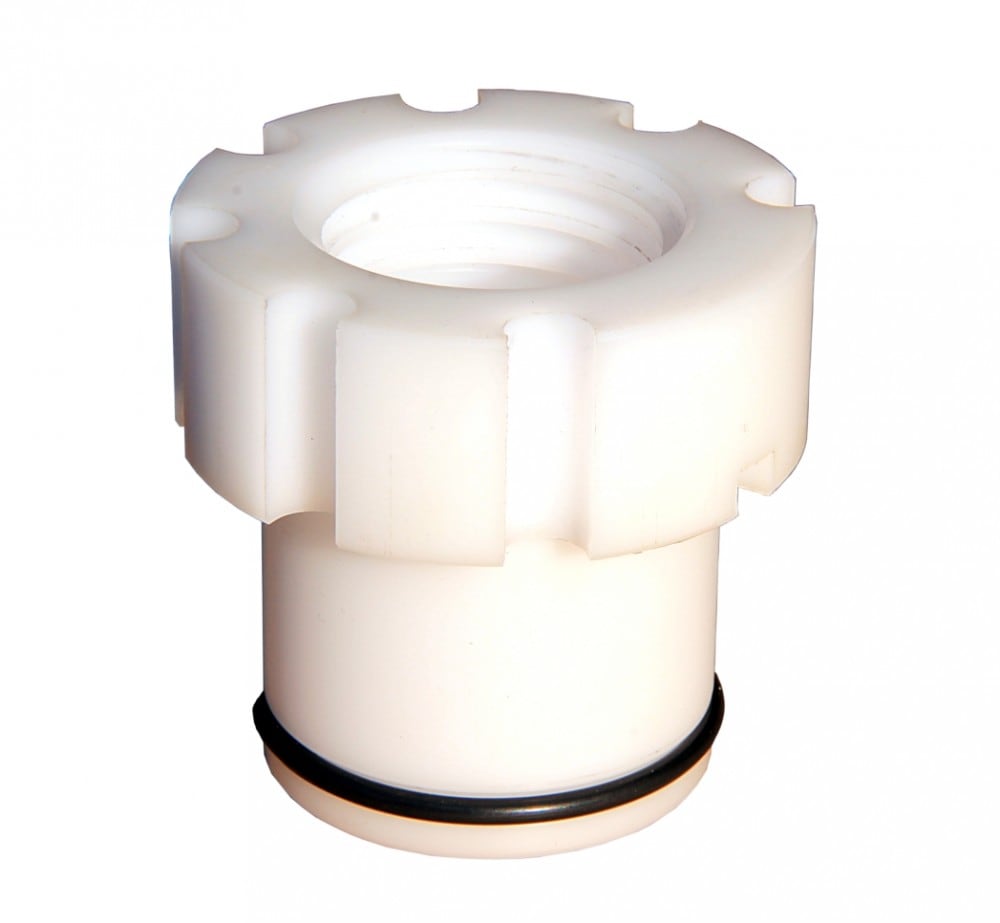

Support nut for Zippo 1730, 1731, 1735 " Original Zippo
Product information "Support nut for Zippo 1730, 1731, 1735 " Original Zippo"
Support nut for Zippo 1730, 1731, 1735 " Original Zippo
ORIGINAL ZIPPO spare part
Trapezoidal thread TR 40x5, with right-hand thread
Dimensions: 66mm long x Ø68mm (Ø50mm when turned off)
Made of high quality plastic!
Suitable for the following models:
Zippo 1730
Zippo 1731
Zippo 1735
Support and safety nut are identical in construction!
Support nut wear test:
In order to be able to carry out the wear test, it is necessary to dismantle the spindle cover plate in the column opening.
Measure the distance (test dimension) between the lower edge of the cage ring and the upper edge at the collar of the follower nut through a viewing hole in the lifting carriage (covered by a sealing plug) using a feeler gauge or caliper gauge.
The distance is 13.2 mm when new and may be a minimum of 11.2 mm .
| Spare parts for lifting platforms: | lift nuts & accessories |
|---|---|
| Zippo Lifts: | 1730, 1731, 1735 |
