Workshop press 20t " OMCN 156 " Two-lift hand pump
€1,569.00
Delivery time, 21 days.
Product information "Workshop press 20t " OMCN 156 " Two-lift hand pump"
Workshop press 20t " OMCN 156 " Two-lift hand pump
- Hydraulic press with 20t pressing force
- Made in Italy
- Cylinder piston made of special steel, treated and chrome-plated.
- Steel spring inserted in the cylinder for a quick return of the piston.
- Two-speed hand pump: adjustment of the speed during the approach phase of the piston to the workpiece.
- The two speeds are controlled by a handwheel on the pump.
- Maximum versatility thanks to the height-adjustable table.
- Equipped with a support plate and double prismatic blocks at the factory.
- Simple, user-friendly operation, for an efficient workflow
- A 100% Italian product with 60 years of experience

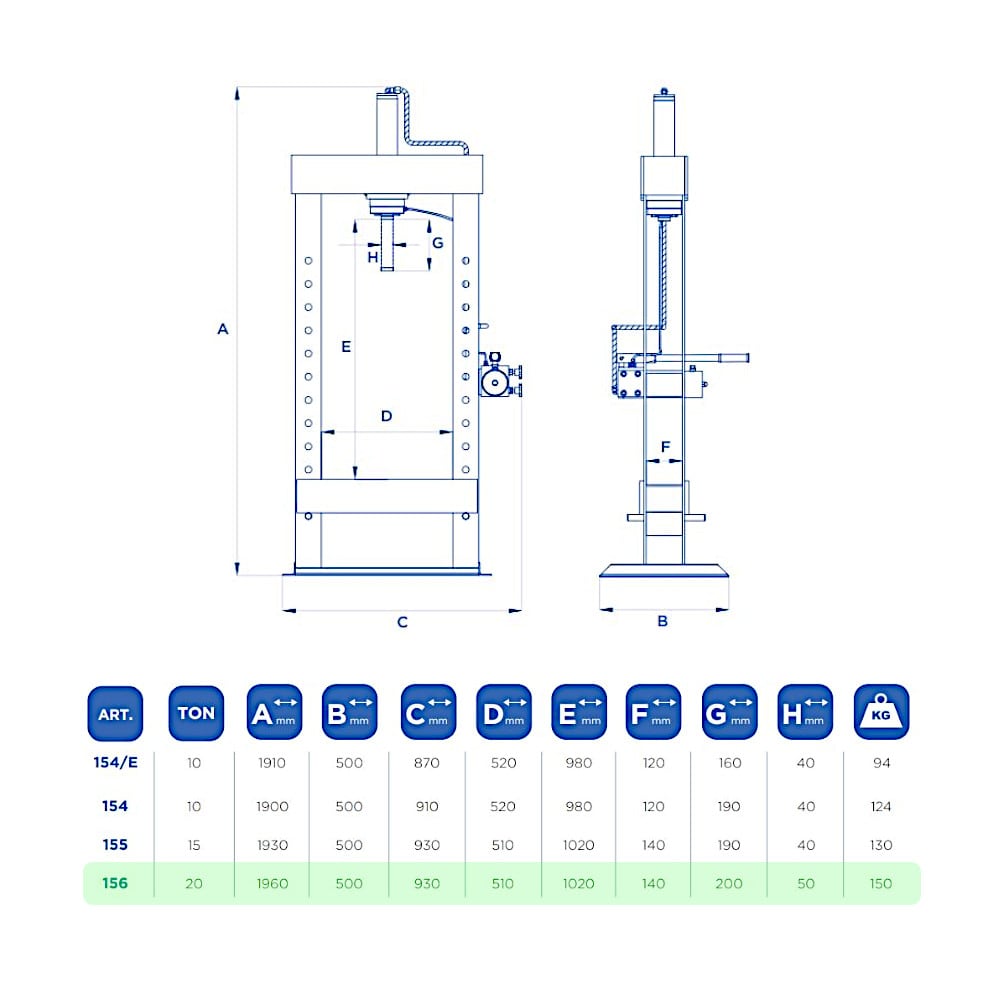

Technical data
| Model | OMCN 156 |
| Pressing force | 20t |
| Total height | 1960mm |
| Total width | 930mm |
| Inside frame dimension | 510mm |
| Lifting distance | 200mm |
| Ø piston | 50mm |
| Pump | Hand pump |
| Pump weight | 150 kg |
| Country of manufacture | Italy |
Optional accessories:
- Prism blocks Art. 031
- Pressure gauge Art. 001
- Support plate Art. 011
- Plunger extension (8-piece) Art. 045
- Privacy window Art. 090
- Centering device Art. 050
- Displaceable cylinder Art. 020
- Special production possible on customer request
| Press capacity: | 20t |
|---|---|
| Pump / Drive: | manual |
