Workshop press 15t " OMCN 155 " Two-lift hand pump
€1,349.00
Delivery time, 21 days.
Product information "Workshop press 15t " OMCN 155 " Two-lift hand pump"
Workshop press 15t " OMCN 155 " Two-lift hand pump
- Hydraulic press with 15t pressing force
- Made in Italy
- Cylinder piston made of special steel, treated and chrome-plated.
- Steel spring inserted in the cylinder for a quick return of the piston.
- Two-speed hand pump: adjustment of the speed during the approach phase of the piston to the workpiece.
- The two speeds are controlled by a handwheel on the pump.
- Maximum versatility thanks to the height-adjustable table.>
- Equipped with a support plate and double prismatic blocks at the factory.
- Simple, user-friendly operation, for an efficient workflow
- A 100% Italian product with 60 years of experience

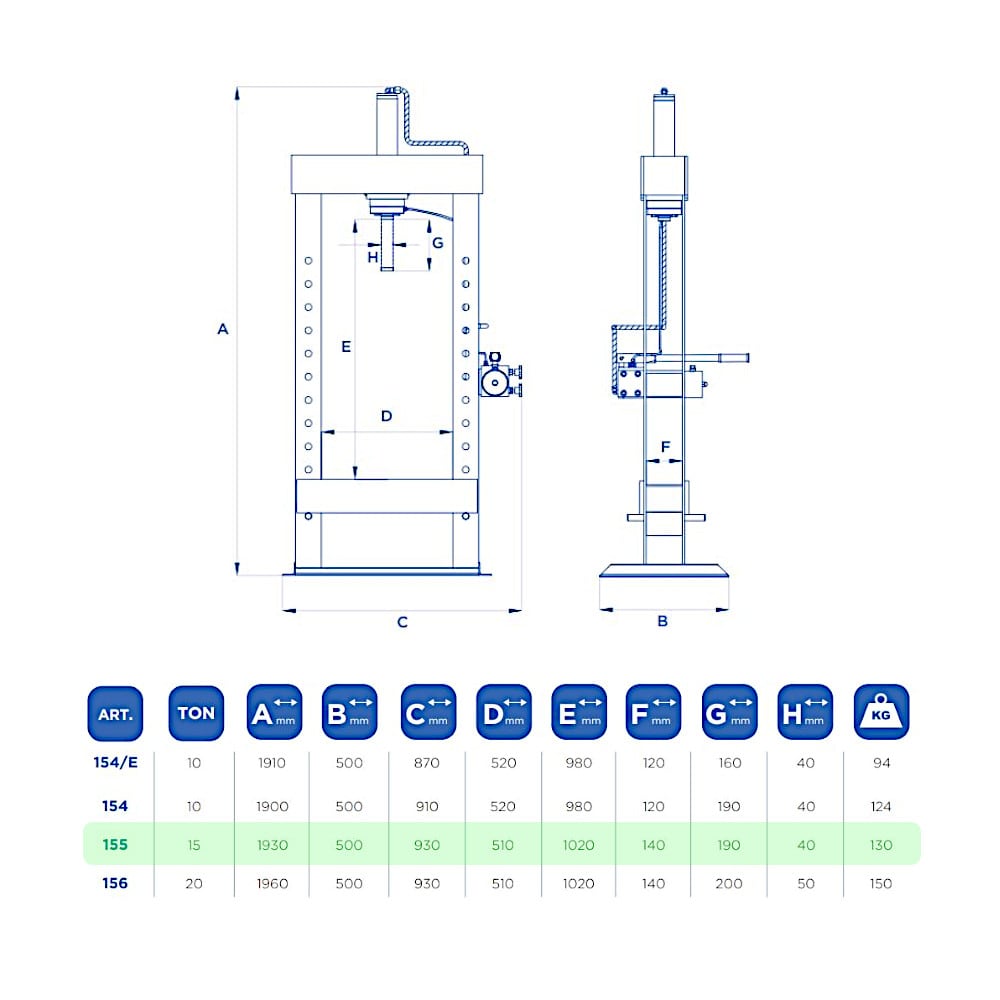

Technical data
Model OMCN 155 Pressing force 15t Total height 1930mm Total width 930mm Internal frame dimension 510mm Stroke 190mm Ø piston 40mm Pump Hand pump Pump weight 130 kg Country of manufacture ItalyOptional accessories:
- Prism blocks Art. 031
- Pressure gauge Art. 001
- Support plate Art. 011
- Plunger extension (8-piece) Art. 045
- Privacy window Art. 090
- Centering device Art. 050
- Displaceable cylinder Art. 020
- Special production possible on customer request
| Press capacity: | 15t |
|---|---|
| Pump / Drive: | manual |
