Workshop press 10t " OMCN 154 " Two lift hand pump
€1,169.00
Delivery time, 21 days.
Product information "Workshop press 10t " OMCN 154 " Two lift hand pump"
Workshop press 10t " OMCN 154 " Two lift hand pump
- Hydraulic press with 10t pressing force
- Made in Italy
- Cylinder piston in special steel, treated as well as chromium plated
- Steel spring inserted in the cylinder for a fast return of the piston
- Two-speed hand pump: adjustment of the speed during the approach phase of the piston to the workpiece
- Guidance of the two speeds by means of a handwheel on the pump
- Maximum versatility thanks to the height-adjustable table
- Factory equipped with a support plate and double prism blocks
- A 100% Italian product with 60 years of experience

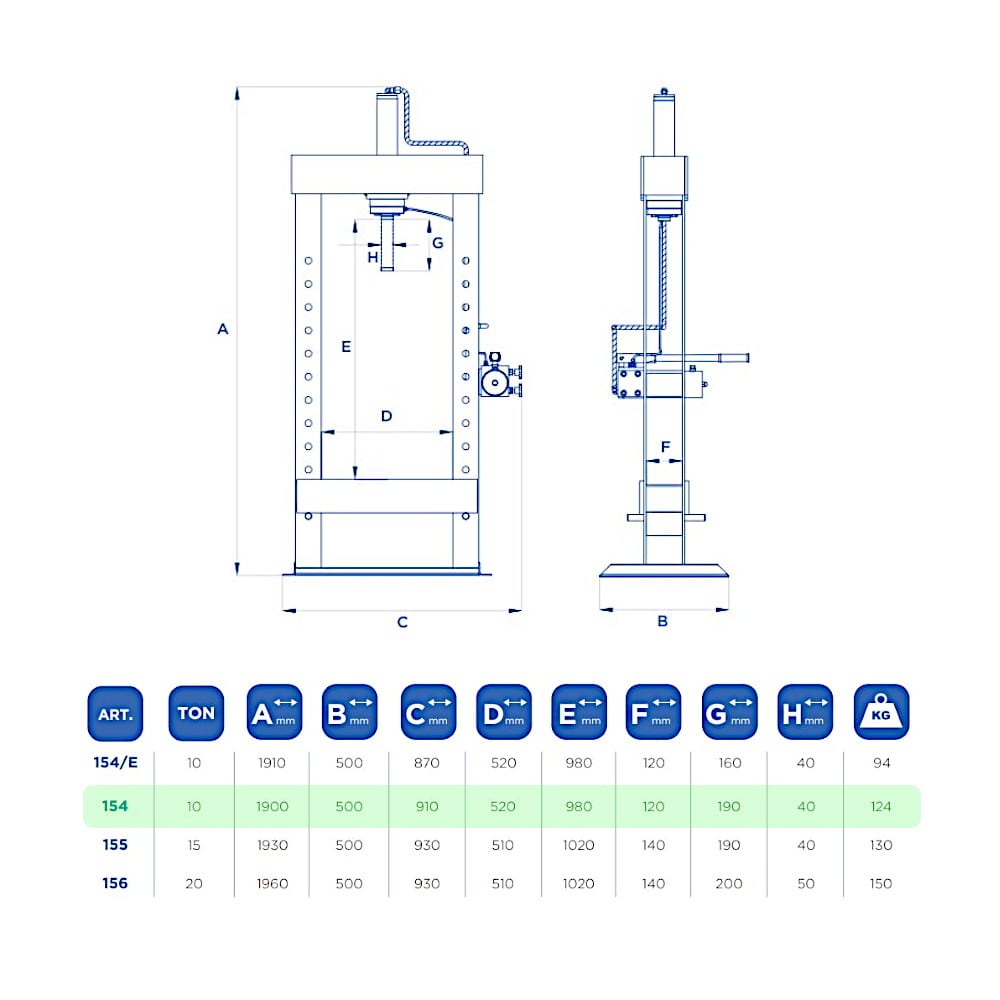

Technical data
Model OMCN 154 Pressing force 10t Total height 1900mm Total width 910mm Frame inside dimension 515mm Stroke 190mm Ø piston 40mm Pump Hand pump Weight 124 Kg Country of manufacture ItalyOptional accessories:
- Prism blocks art. 030
- Pressure gauge Art. 001
- Support plate Art. 010
- Plunger extension (8 pieces) Art. 045
- Viewing window Art. 090
- Centering device Art. 050
- Relocatable cylinder Art. 020
- Special design on customer request possible
| Press capacity: | 10t |
|---|---|
| Pump / Drive: | manual |
