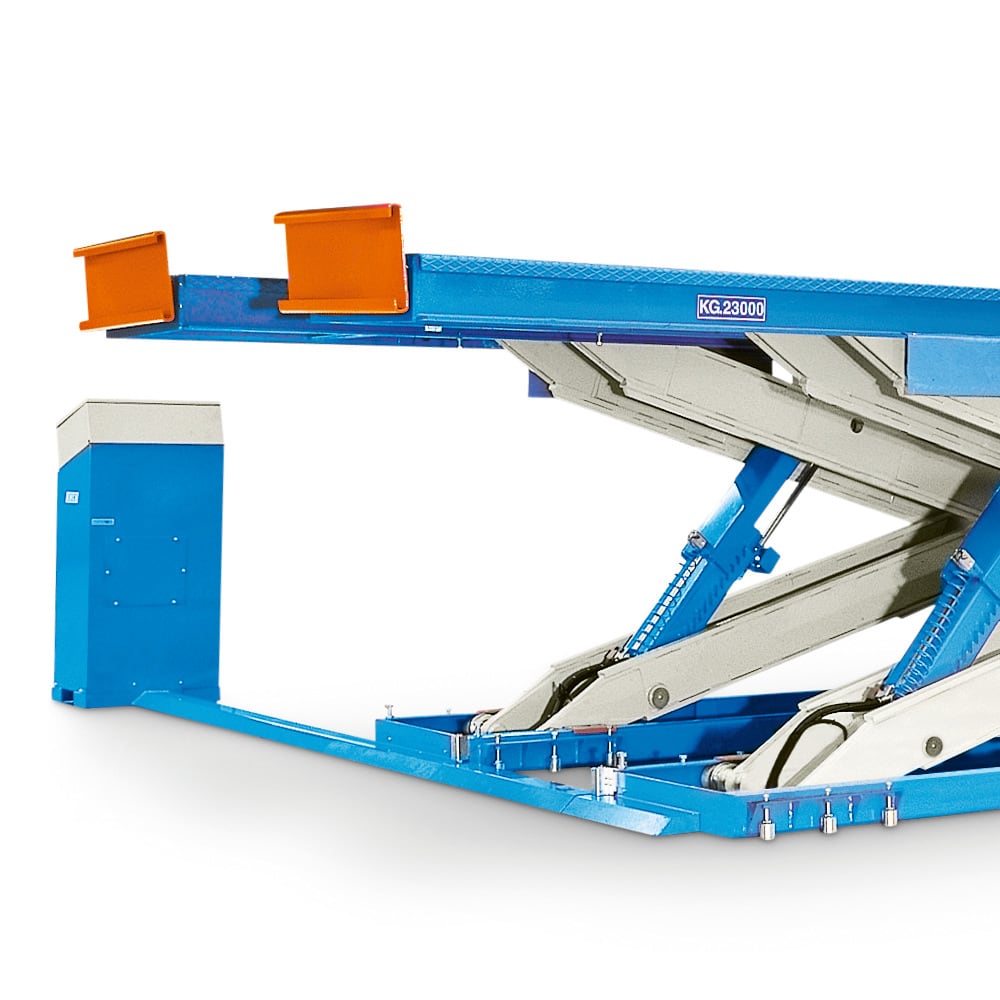

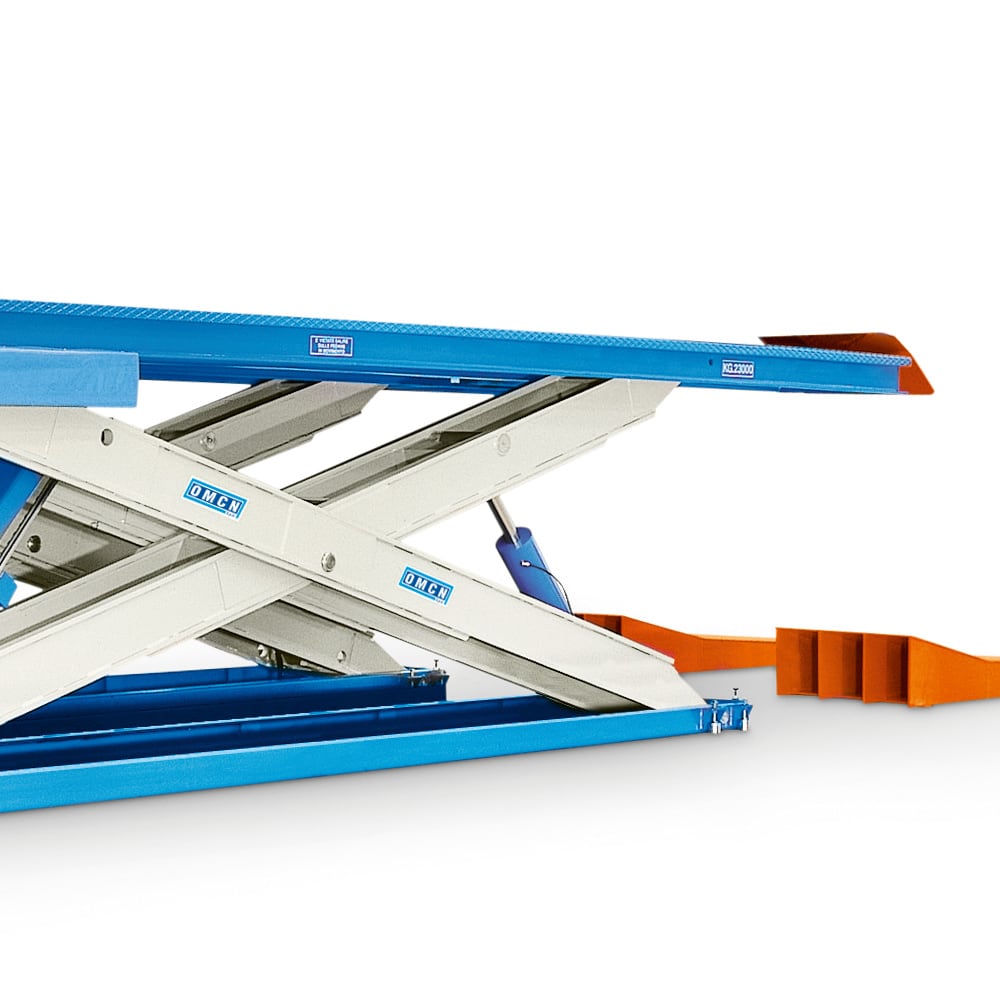

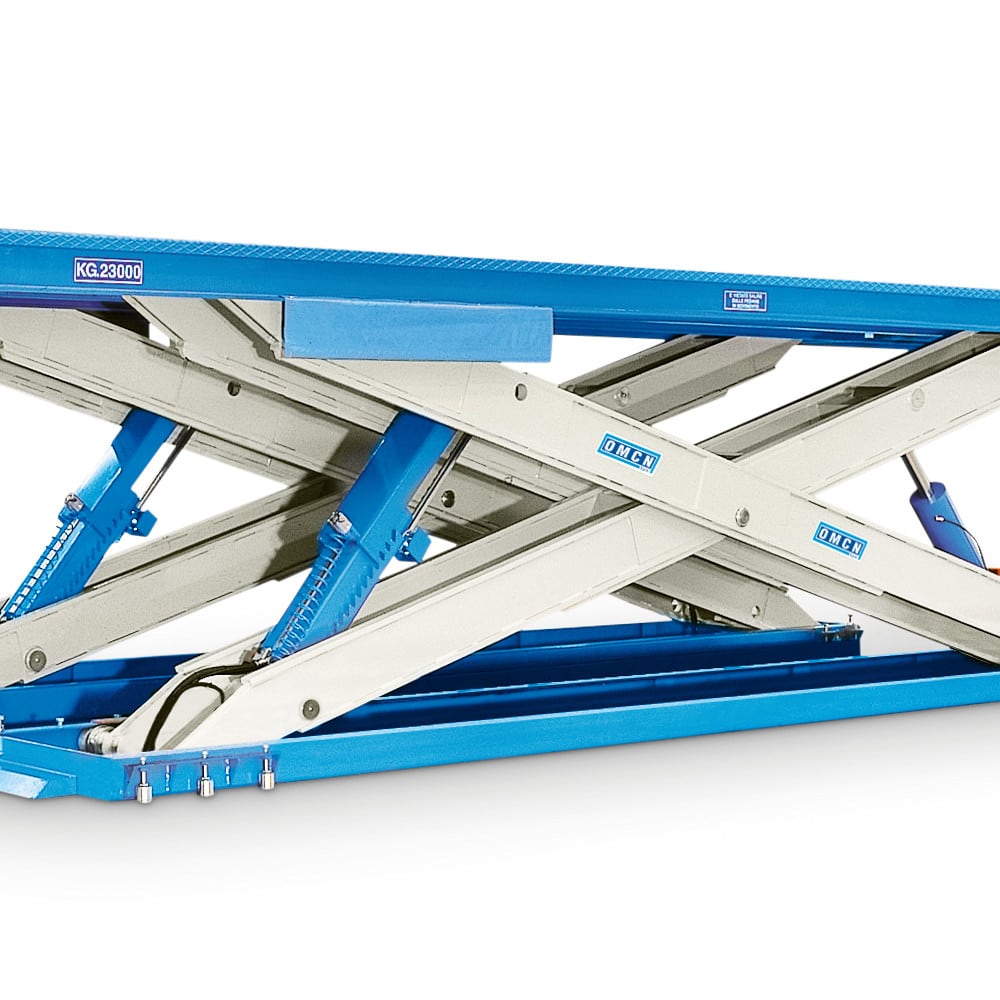

Product information "OMCN 910/SM " 9t lifting capacity " Underfloor"
OMCN 910/SM
9t lifting capacity | 4,6m length | EN1493 approved
- 100% Italian hydraulics,
- Made in Italy,
- 60 years of experience,

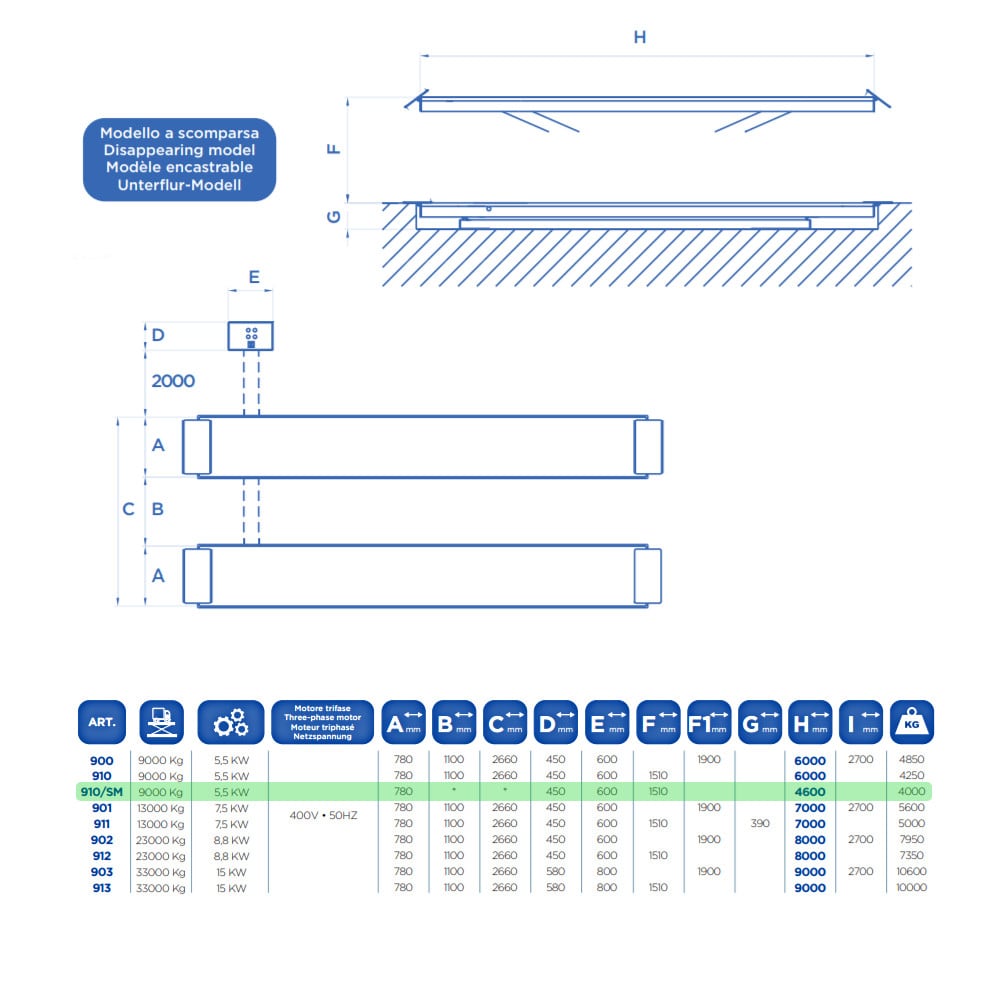

Technical data
| Model | OMCN 910/SM |
| Load capacity | 9t |
| Drive | Electro-hydraulic |
| >lift height | 151cm |
| Platform type | Underfloor (floor level) |
| Total width | 2660mm |
| Rail width | 780mm |
| Track length | 4600mm |
| Mains voltage | 400V - 50Hz |
| Motor power | 5,5 Kw |
| Weight | 4000Kg |
| Country of manufacture | Italy |
Applications of the 9t underfloor lift
- Forwarding agencies
- Trucking companies
- Maintenance companies
- Military
- German Armed Forces
- Bus companies
- Building yards
This underfloor lift prefers to lift the following vehicles:
- Industrial trucks,
- TRUCK,
- Bus,
- Military vehicles,
- Tractors,
- Motor homes,
- Forklifts,
- Construction machinery,
- Agricultural vehicles,
- Forestry vehicles,
- Airport commercial vehicles,
Features of the 9t inground truck lift
- The truck liftis
- electro-hydraulically operated with two 5.5 KW motors.
- This lift is an underfloor lift, i.e. installed in the ground at ground level and can therefore be accessed without barriers.
- All European standards have been taken into account in the manufacture and development of this lift .
- "Stand-by control". Control voltage 24 V.
- Acoustic signal and two-hand control during the last lowering phase. This is an important safety device for underfloor lifts.
- Safety valve as overload protection.
- Safety valve on each installed cylinder for monitoring the pressure lines
- Safety valve for controlling the lowering speed.
- Electronic device for monitoring and constantly ensuring the alignment of the running rail, regardless of the load distribution. Electronic synchronization control (PLC).
- Safety photocell for monitoring the position of the rails.
- Device for monitoring and securing the rails in the desired working position.

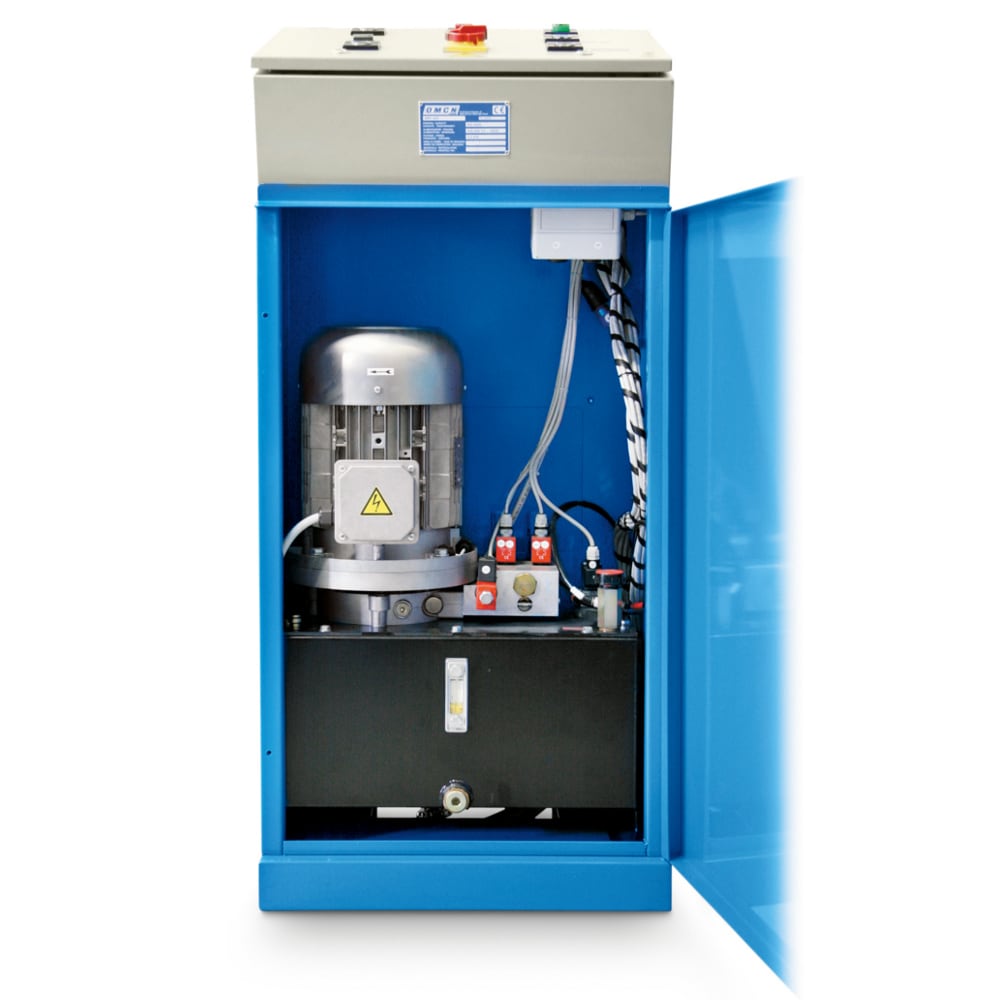

- Each workshop is different, sothe
- control panel can be placedas
- desired.The
- lift is supplied with oil for the hydraulic circuit. The
- rails are 78cm wide and have a length of 4.6m. Thus, even the largest trucks and buses fit on this lift with ease
| Drive: | hydraulic |
|---|---|
| Type of lifting plattform: | scissor lifts, underfloor lifts, utility vehicle lifts |
| Capacity range: | 9,0 t - 12 t |
