TRUSTERS TILT3000 - Rocking lift
€799.00
Delivery time, 60 days.
Product information "TRUSTERS TILT3000 - Rocking lift"
- Fast & efficient: Enables quick work without having to lift the vehicle completely.
- Compact & mobile: Easy to move and store in a space-saving manner thanks to castors and low weight.
- Targeted access: The tilt function precisely lifts the front or rear axle.
- Versatile application: Ideal for tire changes as well as service and maintenance work on brakes or suspension.
| Type of lifting plattform: | mobile lifts |
|---|---|
| Capacity range: | 2,5 t - 3,5 t |
Login

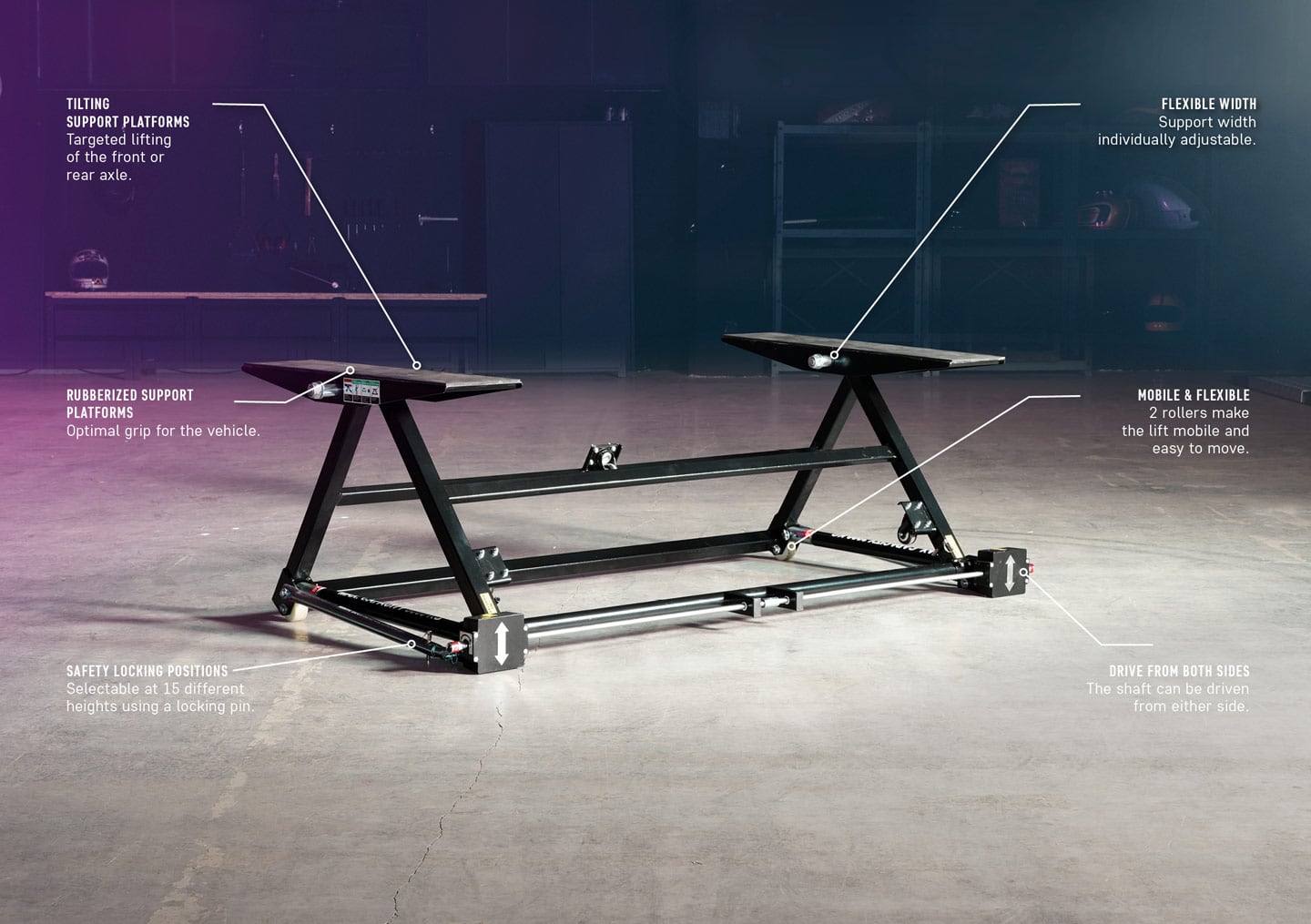

The TILT3000 rocker lift is your solution for fast service work and maximum efficiency in confined spaces. As a mobile and lightweight lift, it does not require a fixed place and can be easily positioned exactly where you need it thanks to the integrated castors. Its unique rocker design gives you targeted access to the front or rear axle, which is why it is particularly popular for tire services and maintenance work on brakes and chassis. With the flexibly adjustable mounting surfaces and a low pick-up height of only 110 mm, you can safely lift a wide range of vehicles. The entire operation is effortless with a cordless screwdriver, while the mechanical safety pegs ensure a secure and stable stand.
Product features of the TRUSTERS TILT3000
Discover the details that make this mobile rocker lift an indispensable helper for your workshop.
Absolutely mobile
Thanks to the wheels, the TILT3000 can be effortlessly positioned optimally in all directions by one person and simply put aside when the work is done.
Extremely space-saving
With a weight of only 50 kg and a compact design, the lift can simply be leaned against the wall when not in use.
Simple operation
No power connection required. A standard cordless screwdriver or drill is sufficient to lift the vehicle.
Optimal hold
The rubberized receiving surfaces are adjustable in width (1150 - 1620 mm) and thus adapt to a wide variety of vehicle models.
Multi-level security
Choose the right height from 15 mechanical safety catches and always work safely on the vehicle.
Dual-sided operation
The drive shaft for raising and lowering is accessible from both sides, thus offering maximum flexibility in positioning.
Best for:
- Hobby screwdrivers & private garages
- Tire services & vehicle detailers
- Small workshops with limited space
- Paint and body shops
Detailed product description
With a solid load capacity of 3,000 kg, the TILT3000 is ideally equipped for a variety of vehicles. The special feature is the rocker function, which allows the front or rear axle to be raised specifically to a working height of up to 56 cm. This allows quick and focused interventions on the wheels, brakes and chassis without having to lift the entire vehicle.
The TILT3000 shines with its enormous adaptability. Thanks to a low minimum height of just 110 mm, even vehicles with little ground clearance can be positioned easily. The mounting surfaces with rubber pads, adjustable in width from 1150 mm to 1620 mm, can be precisely adjusted to the mounting points of the vehicle and guarantee a secure hold.
The drive of the TILT3000 is ingeniously simple: a standard cordless screwdriver or drill is sufficient to operate the lift. A robust mechanical lock that can lock at 15 different heights ensures maximum safety while working. This means the load is securely supported and accidental lowering is prevented.
Maximum mobility: The integrated wheels and the low weight of just 50 kg make the TILT3000 extremely mobile. It can be easily positioned under the vehicle by one person and stored on the wall to save space when not in use.
Independent & Flexible: Since no power or compressed air connection is required, the TILT3000 can be used anywhere - in the garage, workshop or even outdoors. The drive shaft is also accessible from both sides, which makes handling even easier.
| Technical data | ||
|---|---|---|
| Load capacity | 3000 kg | |
| Receiving surfaces (L x W) | 800 x 180 mm | |
| Receiving width (adjustable) | 1150 - 1620 mm | |
| Minimum height | 110 mm | |
| Lifting height (at the mounts) | max. 560 mm | |
| Safety notches | 15 steps (28 cm to 56 cm) | |
| Total dimensions (L x W) | 1700 x 1300 mm | |
| Drive | Manual via drill / cordless screwdriver | |
| Take weight | 50 kg | |
| Color | Jet black RAL 9005 | |
| Scope of delivery |
|---|
| Rocker lift TILT3000 |
| 2x attachment for drill/cordless screwdriver |
| User manual |
