TRUSTERS LIBRA3200 - Balancing machine 10'' up to 24" with Sonar
€2,299.00
Ready for dispatch, Delivery time 2 - 4 days
Product information "TRUSTERS LIBRA3200 - Balancing machine 10'' up to 24" with Sonar"
- Laser marking: The laser precisely shows you the correct position for the wheel weight.
- Sonar technology: Automatic detection of wheel width via the sonar sensor on the cover hood.
- Data transfer: Distance and wheel diameter are automatically taken over by the measuring arm.
- Versatility: Ideally suited for cars, vans, motorcycles, and light trucks (10 to 28).
Login
The TRUSTERS LIBRA3200 is the solution for demanding tire services. With its 19.5" LED HD display and intuitive menu navigation, you always have an overview. The integrated foot brake securely fixes the wheel while you attach the weights exactly to the laser marking. Thanks to the automatic start when lowering the wheel arch and the quick balancing time of just 7 seconds, you massively increase your efficiency per wheel set.

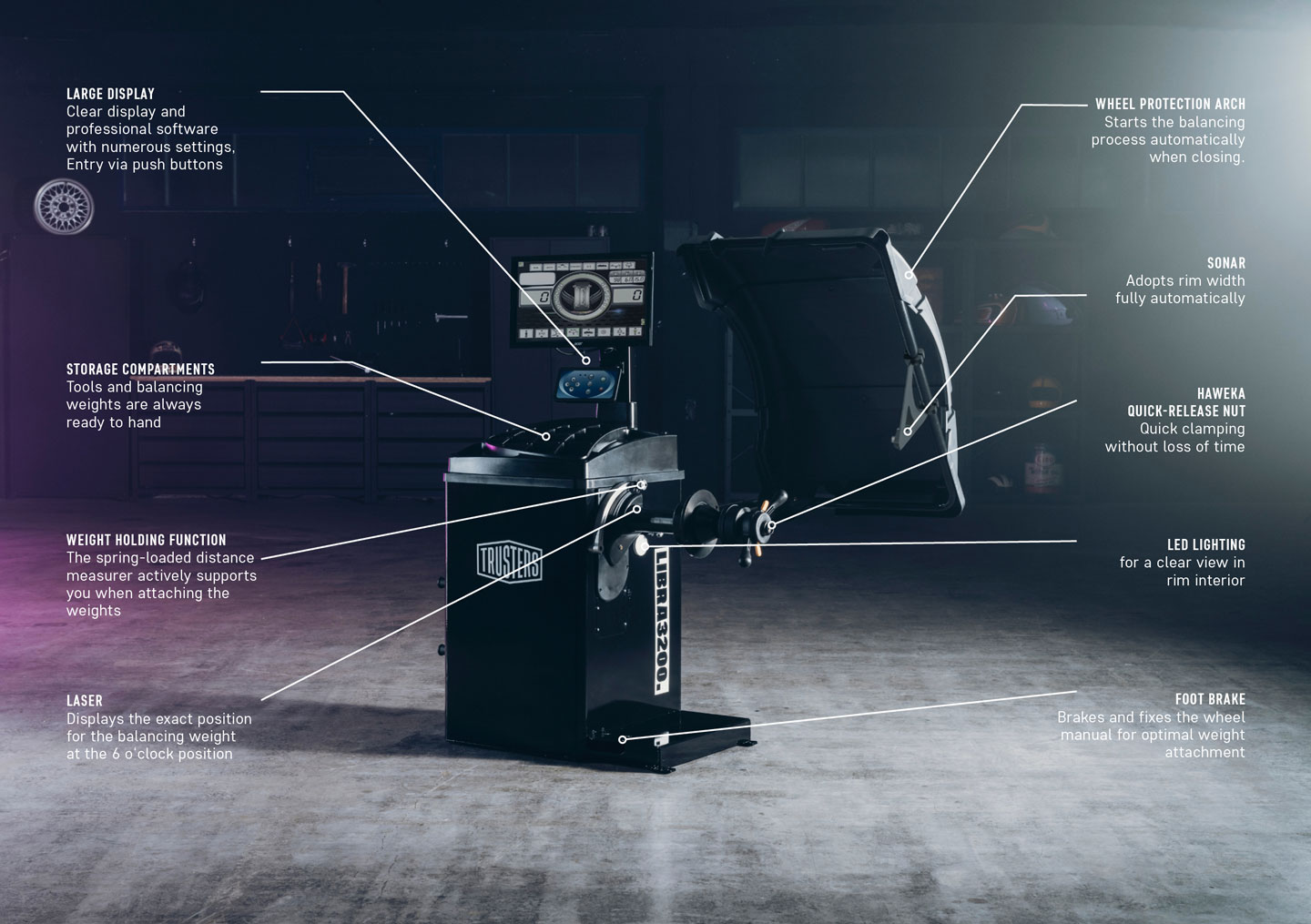

Features of the TRUSTERS LIBRA3200
Here is an overview of the most important features that will make your work easier:
Sonar width sensing &
Laser positioning
The sonar sensor on the cover determines the rim width fully automatically - no more manual measurement necessary. The laser shows the exact position for the balancing weight at the 6 o'clock position. Fast, precise and error-free.
19.5" LED HD screen
Clear menu and razor-sharp display on W-LED screen for intuitive operation of the 8 balancing programs for aluminum and steel rims.
HAWEKA quick release
Highest clamping precision and longevity thanks to the original HAWEKA quick-release nut from Germany.
Double braking system
Automatic brake after running and an additional foot brake to precisely fix the wheel when attaching weights.
Systematic order
16 storage compartments for weights as well as special compartments for pliers and clamping nuts keep your workplace clean.
Automatic start
The balancing process starts automatically when the lightweight plastic wheel arch is lowered.
Weight retention function
The spring-loaded spacer actively supports you in precisely attaching the weights to the rim.
Optional: motorcycle kit
Maximum flexibility for your workshop: With the motorcycle tire adapter you can precisely balance any bike on the 40mm shaft.
Best for:
- Professional tire service companies
- Car and van workshops
- Motorcycle specialist shops (with optional adapter)
- Sophisticated fleet workshops
Detailed product description
The LIBRA3200 optimizes the workflow through fully automatic data capture. While the internal distance measurer precisely determines the distance and the rim size, the innovative sonar sensor on the cover ensures that the rim width is also transferred directly into the system without manual intervention.
The right program is available for every challenge: In addition to the classic mode for steel rims, the machine offers five specialized aluminum rim programs with fixed weight positions. In addition, two ALS programs allow completely individual aluminum rim balancing, where you can freely determine the horizontal position of the balancing weights in order to perfectly balance even the most complex rim designs.
To maximize precision when attaching adhesive weights, the distance meter is equipped with an intelligent, spring-loaded weight holding function. This mechanical support fixes the weight exactly at the calculated location so that you can position it effortlessly and precisely in the rim.
The LIBRA3200 impresses with its well thought-out details that make everyday work easier. An integrated LED illuminator perfectly illuminates the inside of the rim, while the automatic standby mode saves valuable energy when not in use. The ergonomically designed wheel protection arch made of lightweight plastic, which can be opened and closed with almost no resistance, ensures particularly effortless work.
| Technical data | ||
|---|---|---|
| Rim size | 10" - 28" | |
| Rim width | 1.5" - 20" | |
| Max. Wheel weight | 70 kg | |
| Max. Tire diameter | 1118 mm | |
| Balance accuracy | +/- 1 g | |
| Balance speed | 140 rpm | |
| Balance time | approx. 7 seconds | |
| Balancer shaft Ø | 40 mm | |
| Power supply | 230 V / 1 Ph / 50 Hz | |
| Motor power | 90 W | |
| Color | Jet black RAL 9005 | |
| Net weight | 128 kg | |
| Dimensions (LxHxW) | 1160 x 1410 x 1550 mm | |
| Packaging size (LxHxW) | 990 x 760 x 1145 mm | |
| Scope of delivery |
|---|
| LIBRA3200 balancing machine incl. 19.5" HD monitor |
| 4x balancing cone |
| HAWEKA Schnellspannmutter & Druckhaube |
| Wheel protection arch |
| Impact pliers & rim width measuring pliers |
| 100 g calibration weight |
| User manual |
