No problem, the side tubes of the gallows can simply be shortened to the appropriate height to suit your workshop.

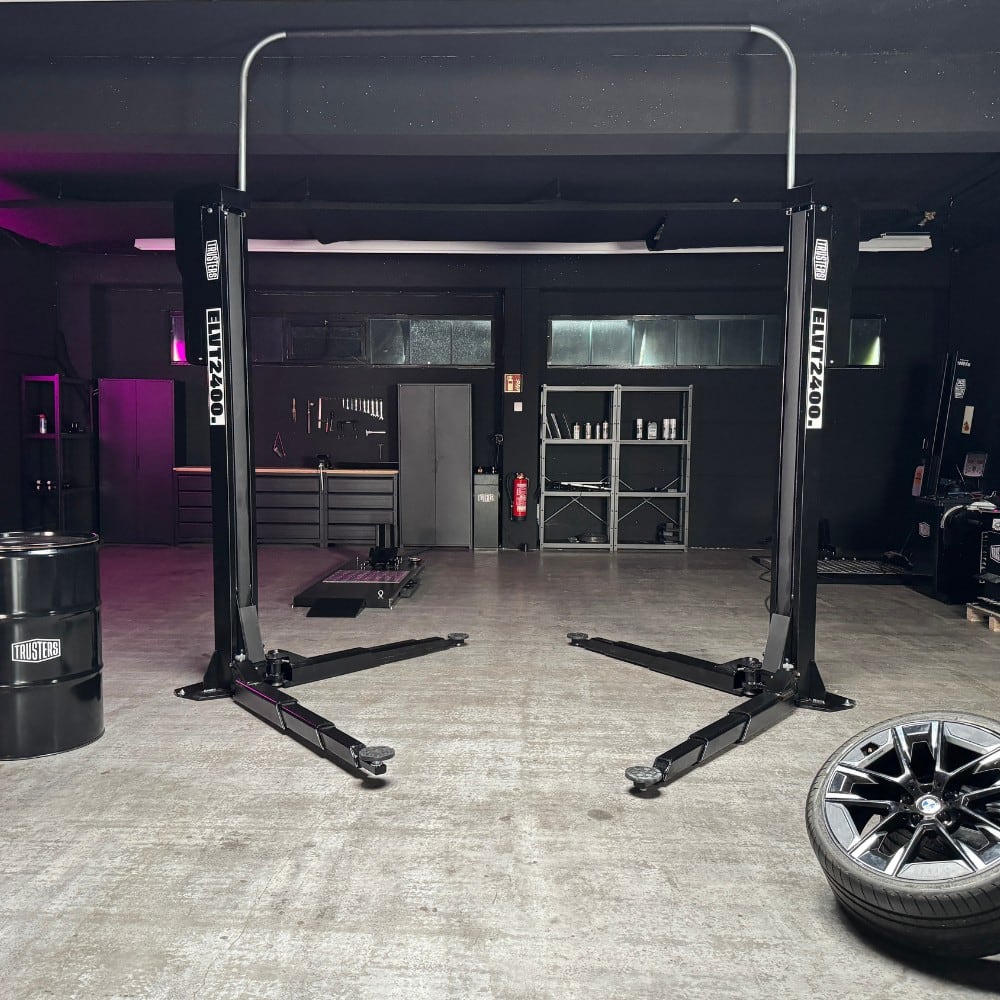

TRUSTERS ELVT2400 | 4t load capacity | Spindle drive
No obstruction between the columns and a 4-tonne load capacity. Handles electric vehicles, SUVs, and vans with ease. Also suitable for workshops with limited ceiling height, as the overhead bar can be shortened.
Product number:
TE2400
Regular price:
€5,399.00
Ready for dispatch, Delivery time 2 - 4 days
Leasing is that simple!
Use the many advantages of leasing for your success. No more long trips to the bank and a decision within minutes.
Product information "TRUSTERS ELVT2400 | 4t load capacity | Spindle drive"
- Compact design: With a column height of just 2550 mm, ideally suited for workshops and halls with limited ceiling height.
- Strong 4 t load capacity: Intelligent technology that confidently lifts everything from vans to heavy electric cars.
- Low swing-arm clearance: 85 mm entry height – perfect for lowered vehicles and modern electric cars with flat underbodies.
- Optimized access: 30° rotated columns allow vehicle doors to be opened wide for comfortable working.
- Trip-free design: The clear-floor (base-frame-free) construction ensures maximum freedom of movement on the floor between the columns.
| Drive: | spindle |
|---|---|
| Type of lifting plattform: | 2-post lift, car lifts |
| Capacity range: | 3,6 t - 5,0 t |
Login
No reviews found. Share your insights with others.
From a city car to a heavy electric SUV or van – the ELVT2400 brings a 4 t reserve without changing your usual routine. It is a seamless leap in performance for mixed fleets in which electric vehicles, heavier SUVs or light vans regularly appear. Instead of changing the way you work, stick to the familiar positioning. The additional carrying reserve creates mental peace. Rotated, barrier-free columns make door access easier and the open ground clearance allows transmission jacks or battery lifts to be transported freely under the vehicle.

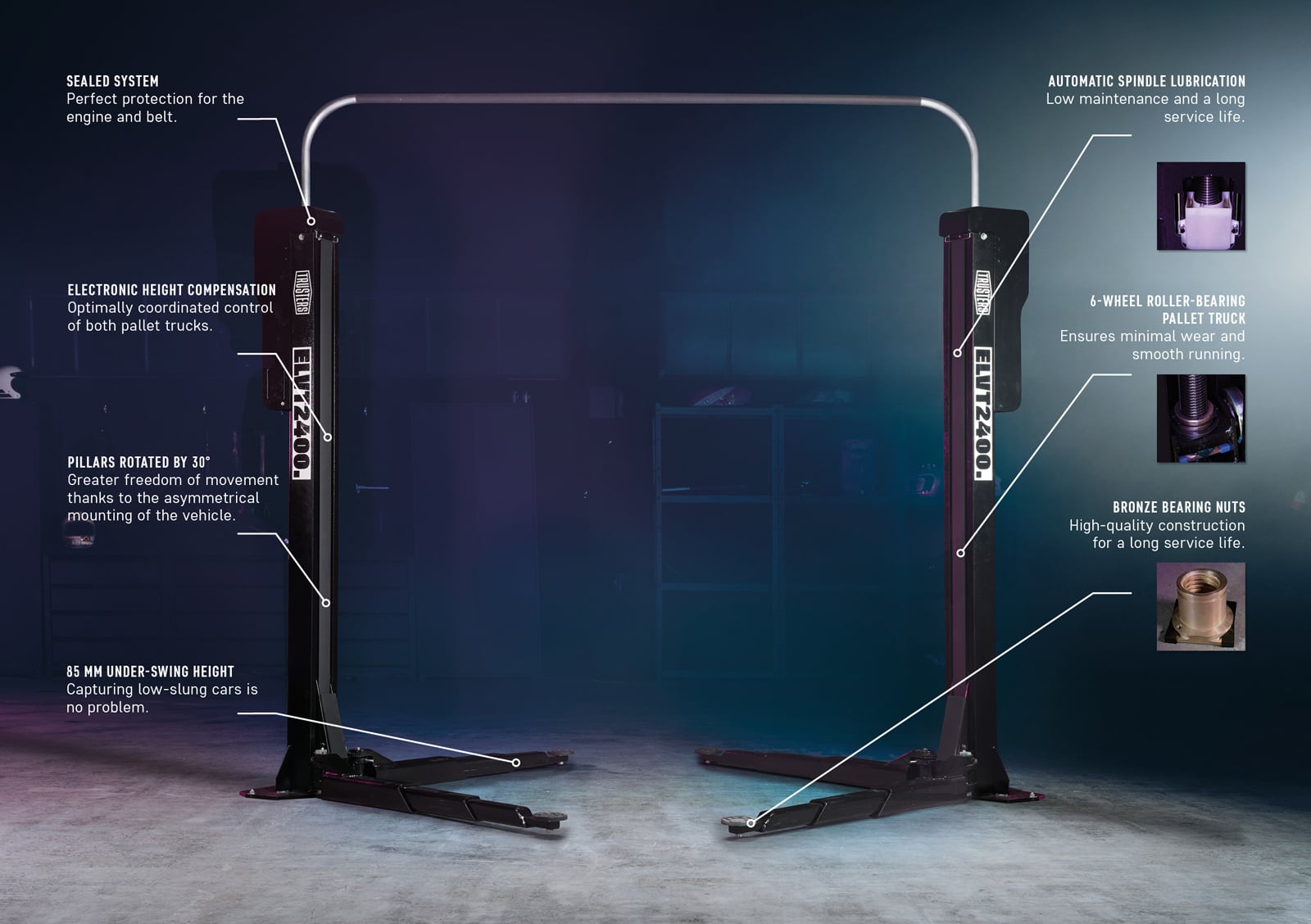

Product features of the TRUSTERS ELVT2400
Discover the details that make this 2-post lift the indispensable centerpiece of your workshop.

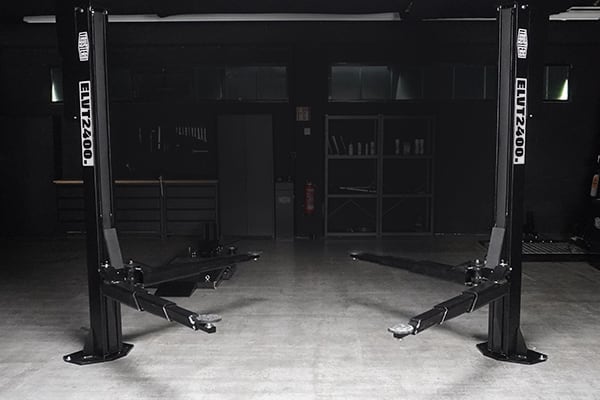

No metal bridge, no stumbling
The ELVT2400 has no ground connection between the columns. This means you can drive through freely and the tool trolley also has a clear path.

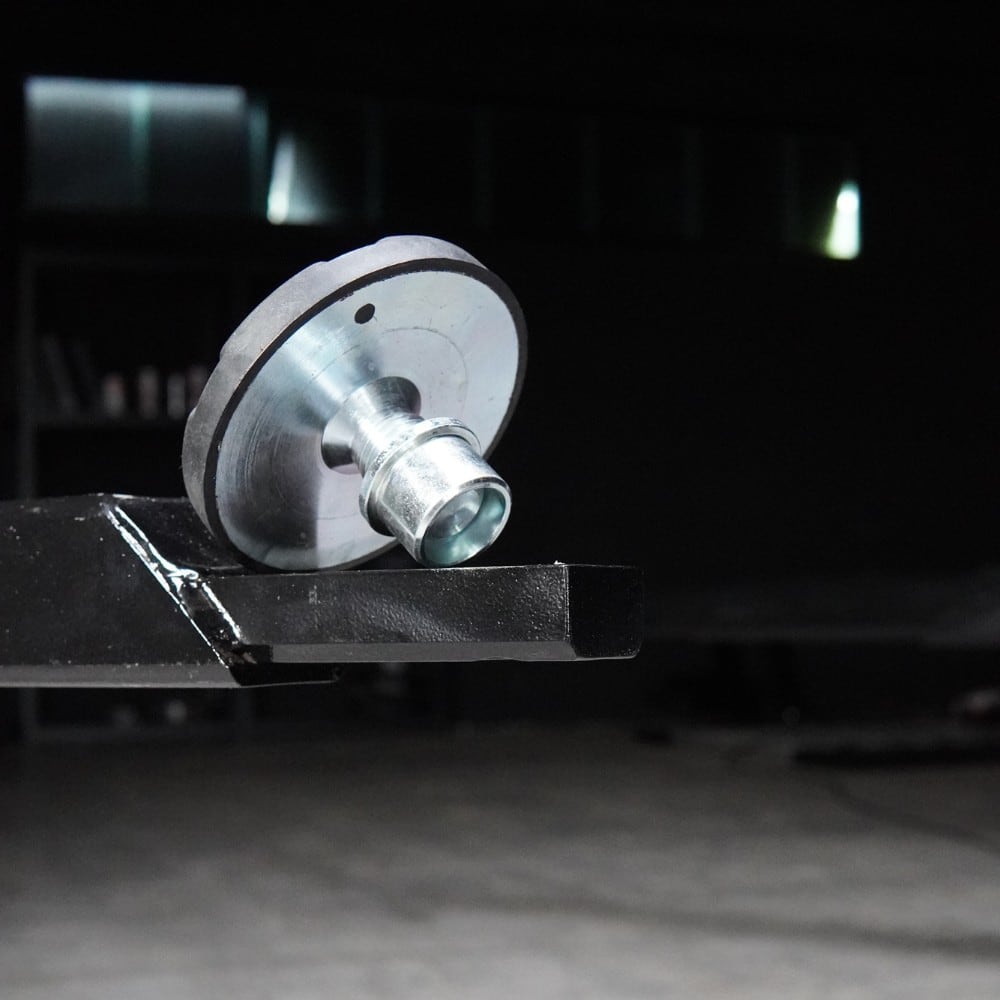

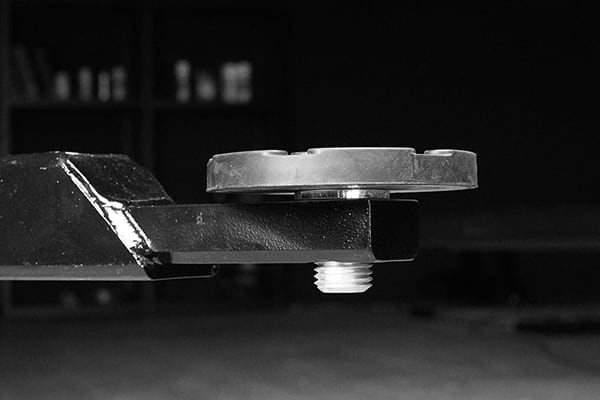

Ultra-low swivel height
Lowered vehicles? With an extremely low swivel height of only 85 mm, this is not an issue.

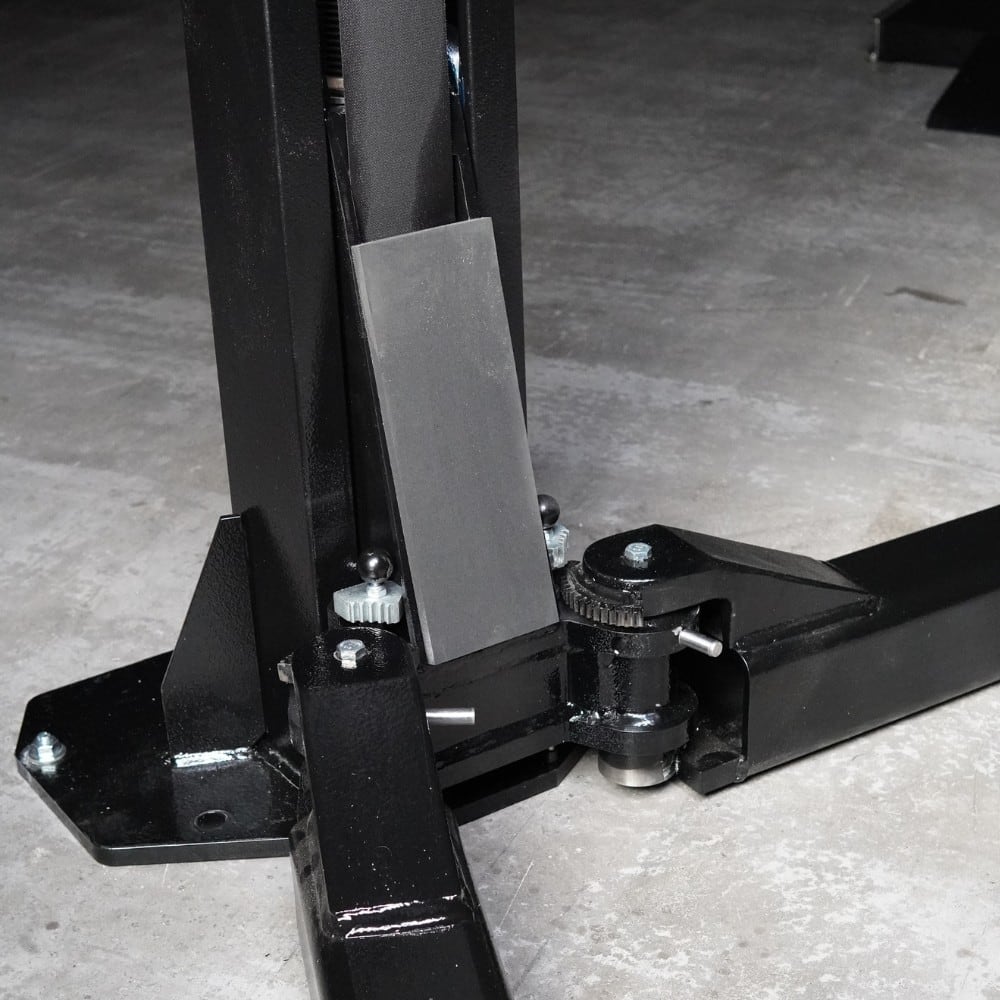

Move freely instead of twisting
The 30° rotated columns and the door protection rubbers allow the vehicle doors to be opened further and make getting in and out easier.

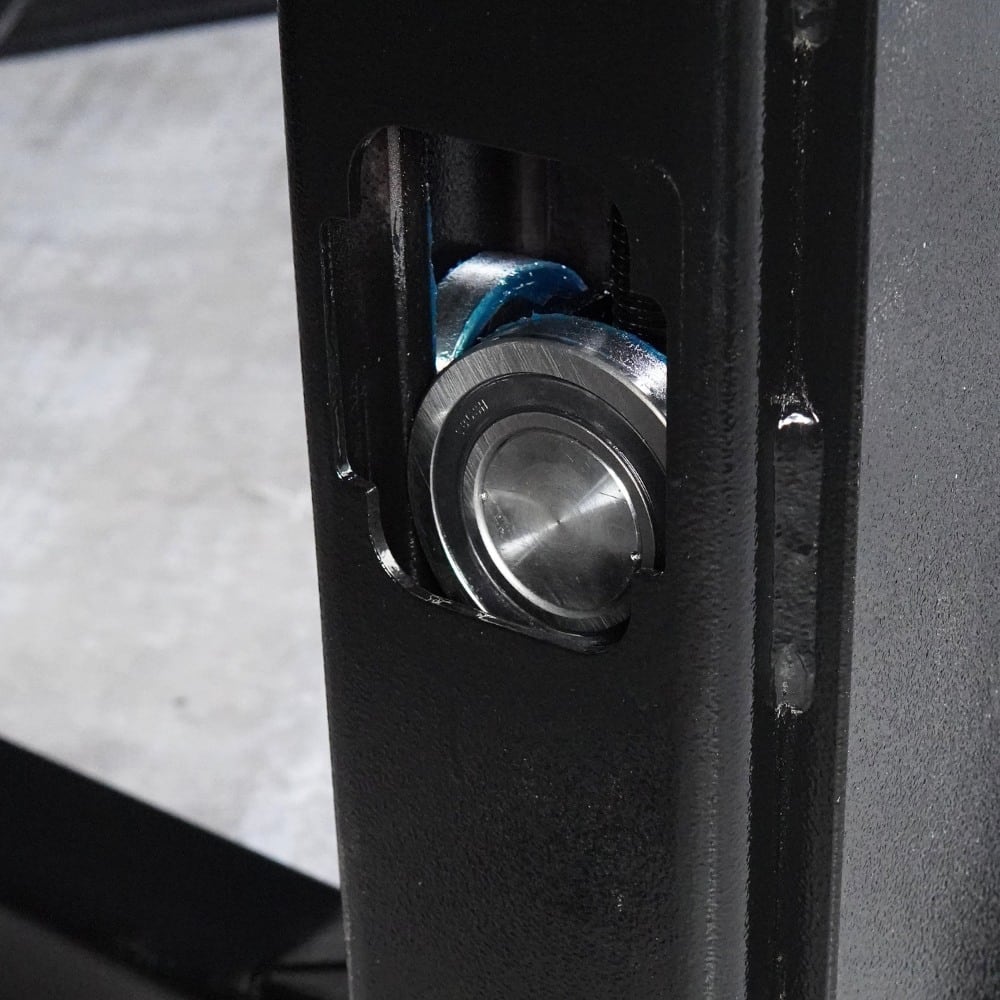

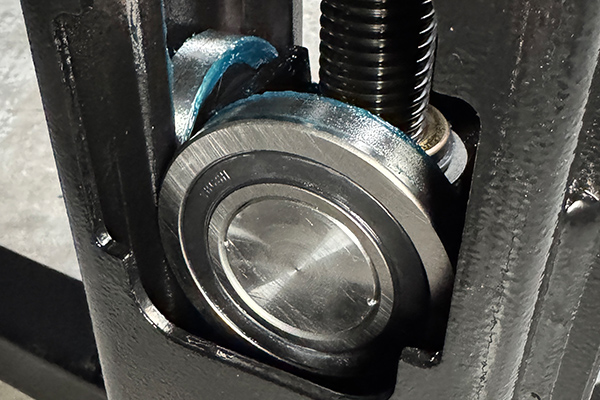

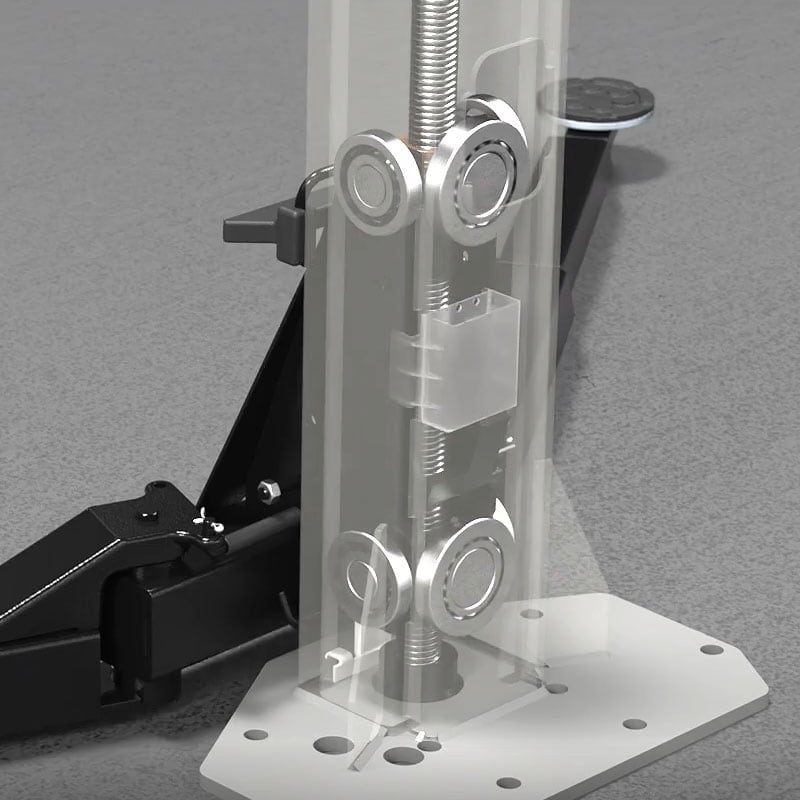

6-fold roller-bearing pallet truck
The pallet trucks glide so smoothly that the typical “stage noise” is practically eliminated. This reduces wear and demonstrates precision. The lifting height in both columns is optimally coordinated using electronic potentiometers, meaning that a rigid connection is not necessary.

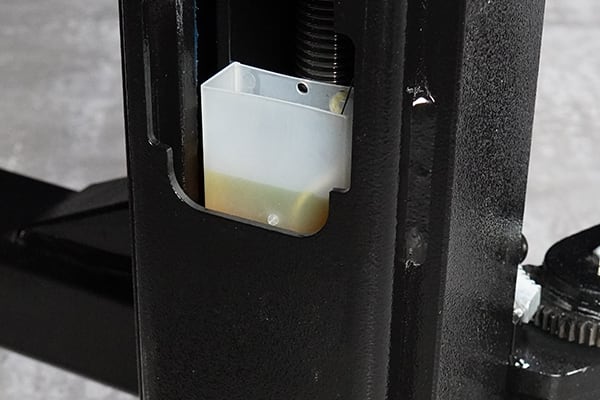

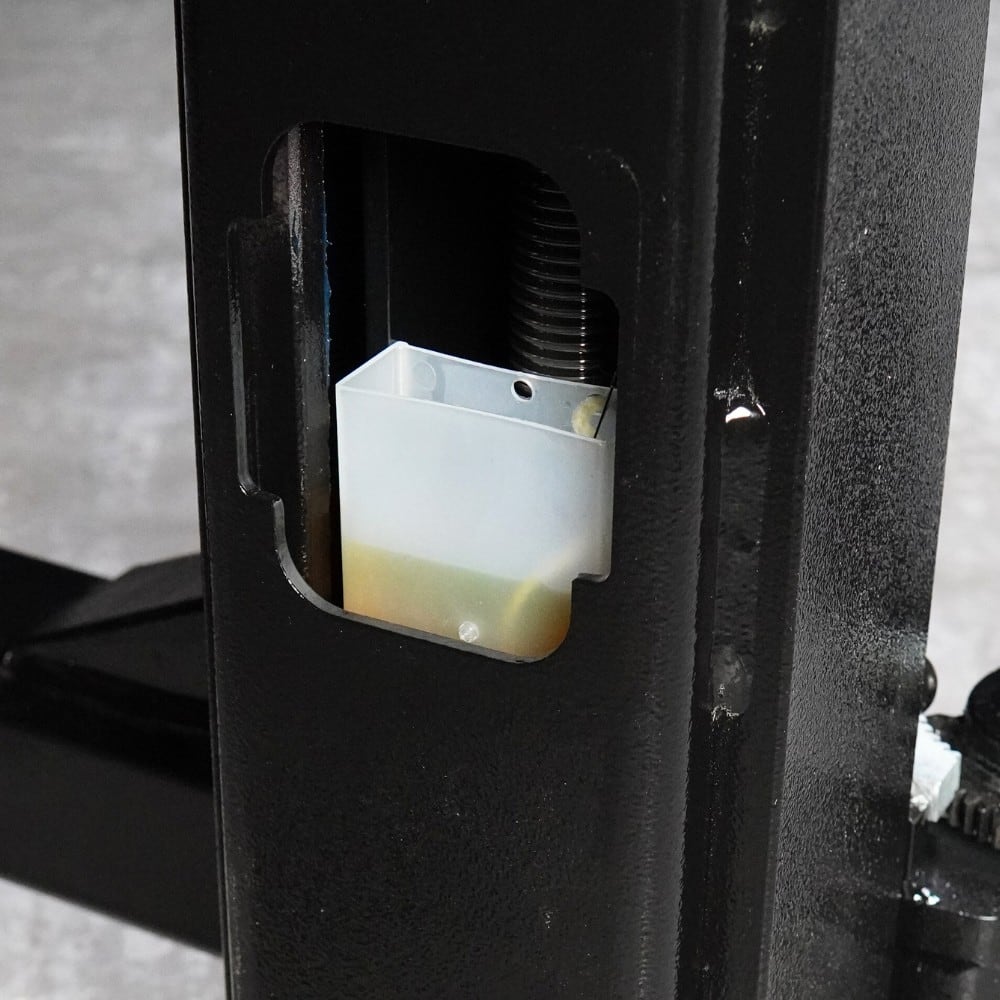

So that everything runs like clockwork!
The integrated spindle oiler delivers oil evenly to the lifting unit, ensuring maximum longevity of the spindle and lifting nuts.

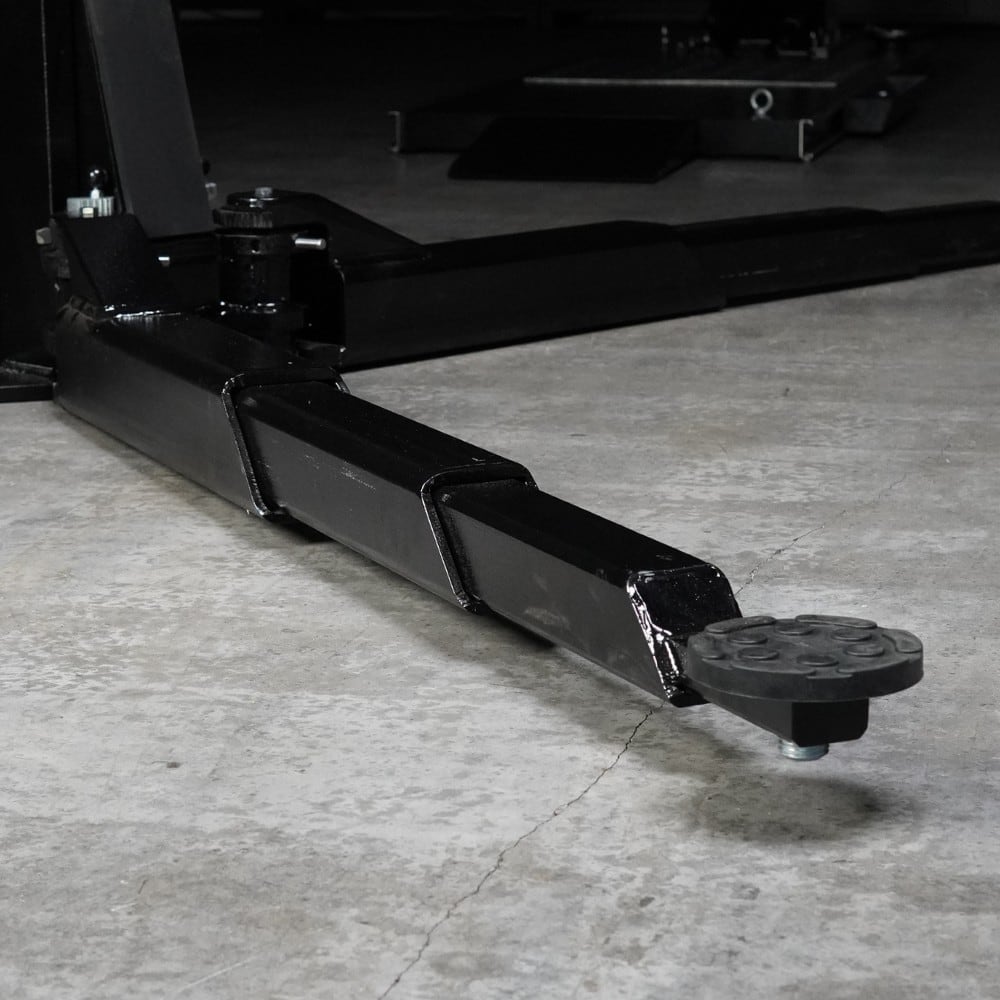

3-fold telescopic support arms

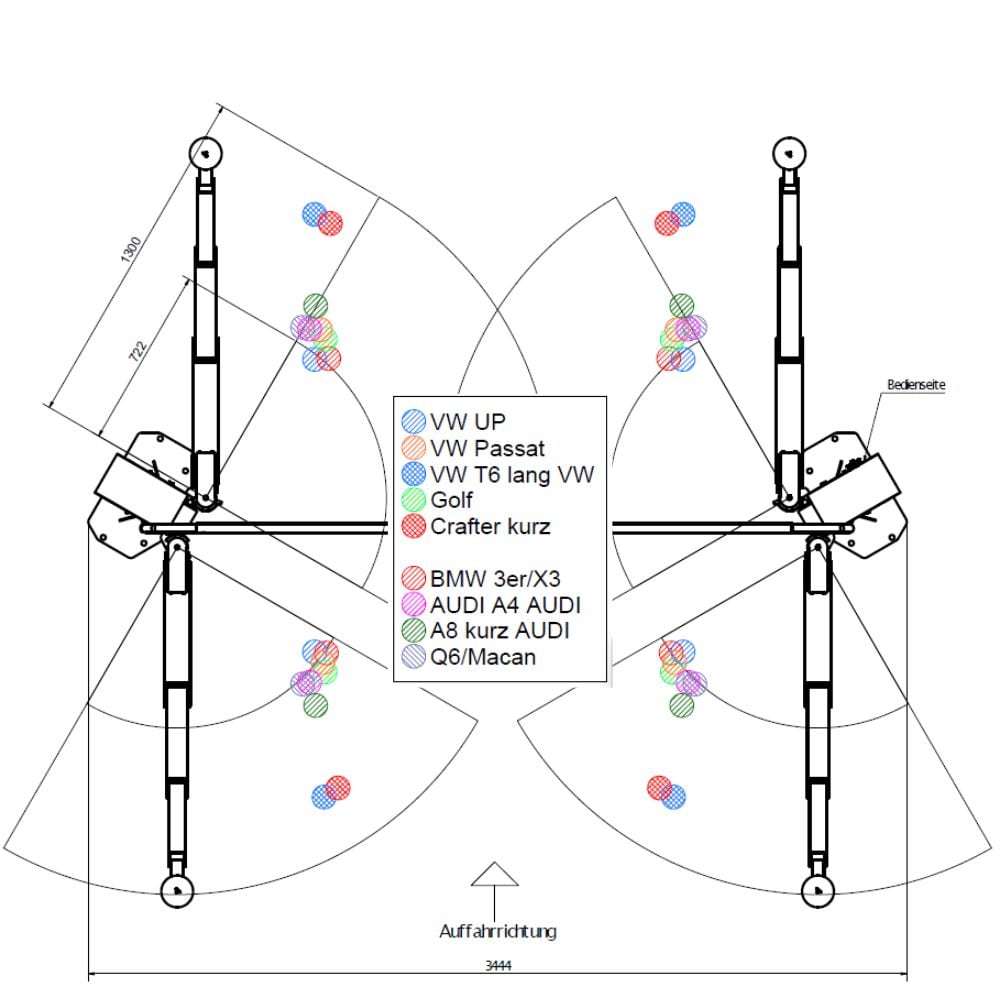

Enables the easy inclusion of everything from small cars (e.g. Smart) to large vans (e.g. Sprinter) thanks to an extremely wide adjustment range of the arms.

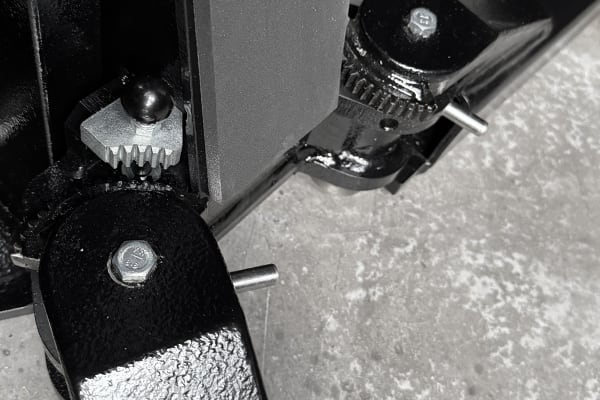

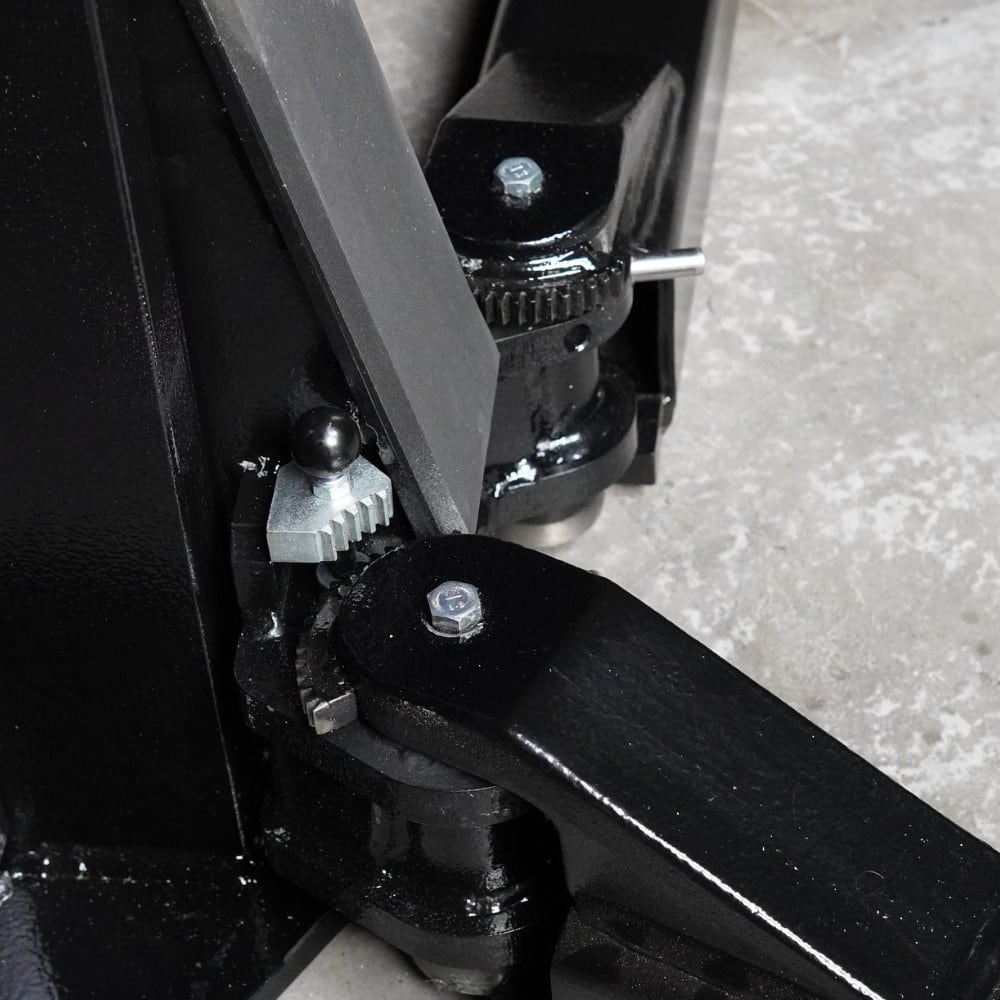

Delivers what it promises
When the support arms are brought into position and lifted, they are firmly locked and hold their position securely. As soon as they reach the ground again, they can be swivelled and moved freely.
Best for:
- General vehicle workshops
- Tire Services
- body workshops
- Paint shops
Detailed product description
Load capacity:
Whether it's a lowered sports car, a wide SUV, a heavy electric vehicle or a spacious van - the ELVT2400 with a 4 t load capacity accommodates them all in your normal routine. A stage that simply works. Day in, day out.
Lift & construction height:
2005 mm maximum lifting height enables ergonomic working in an upright position. With a minimum swing height of just 85 mm, you can attack even very deep vehicles in a relaxed manner. Thanks to the low column height of only 2552 mm, the stage also fits in many workshops with limited ceiling height (from 2800 mm).
Safety & Longevity:
An electronic height compensation ensures perfectly synchronized, quiet running without a rigid connection to the ground. The heart of safety is the proven nut system consisting of a durable bronze support nut and a cast safety nut. In addition, an automatic support arm lock, door protection rubbers and an acoustic signal when lowering ensure maximum safety. The stage is of course CE certified and protected against dust and splash water according to IP54.
Special features & quality:

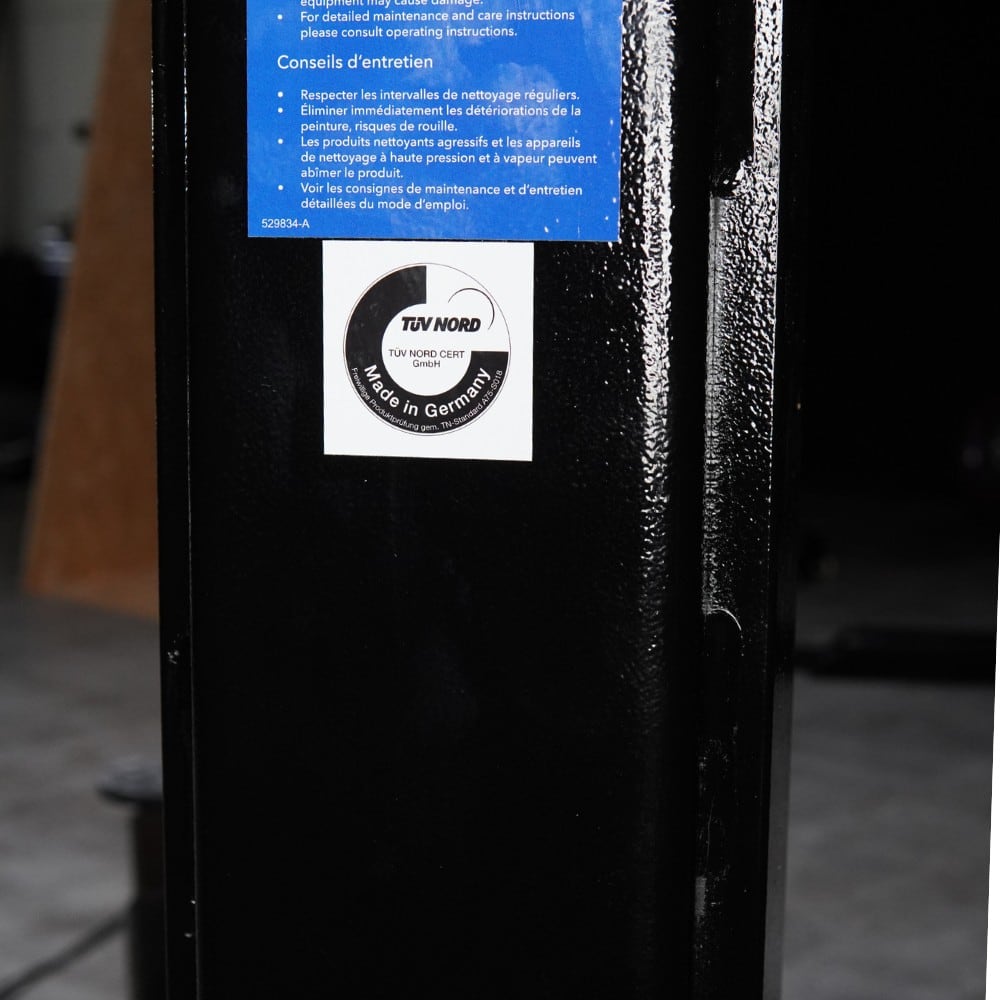

Made in Germany: Developed based on decades of experience in mechanical engineering. 30° rotated, barrier-free columns create more door opening angles and freedom of movement. The powerful spindle drive enables quick lifting and direct lowering. The automatic spindle lubrication and the encapsulated, roller-bearing pallet truck ensure low-maintenance operation. The control box can be flexibly mounted on the left or right to adapt perfectly to your workshop.
Soil requirement:
For installation, a continuous, double-reinforced concrete foundation (C20/25) with at least 4.0 × 2.0 m area and 21 cm thickness is required. 12 anchors attach the stage securely and with little vibration. For less stable foundations, we offer a reinforcement bracket.

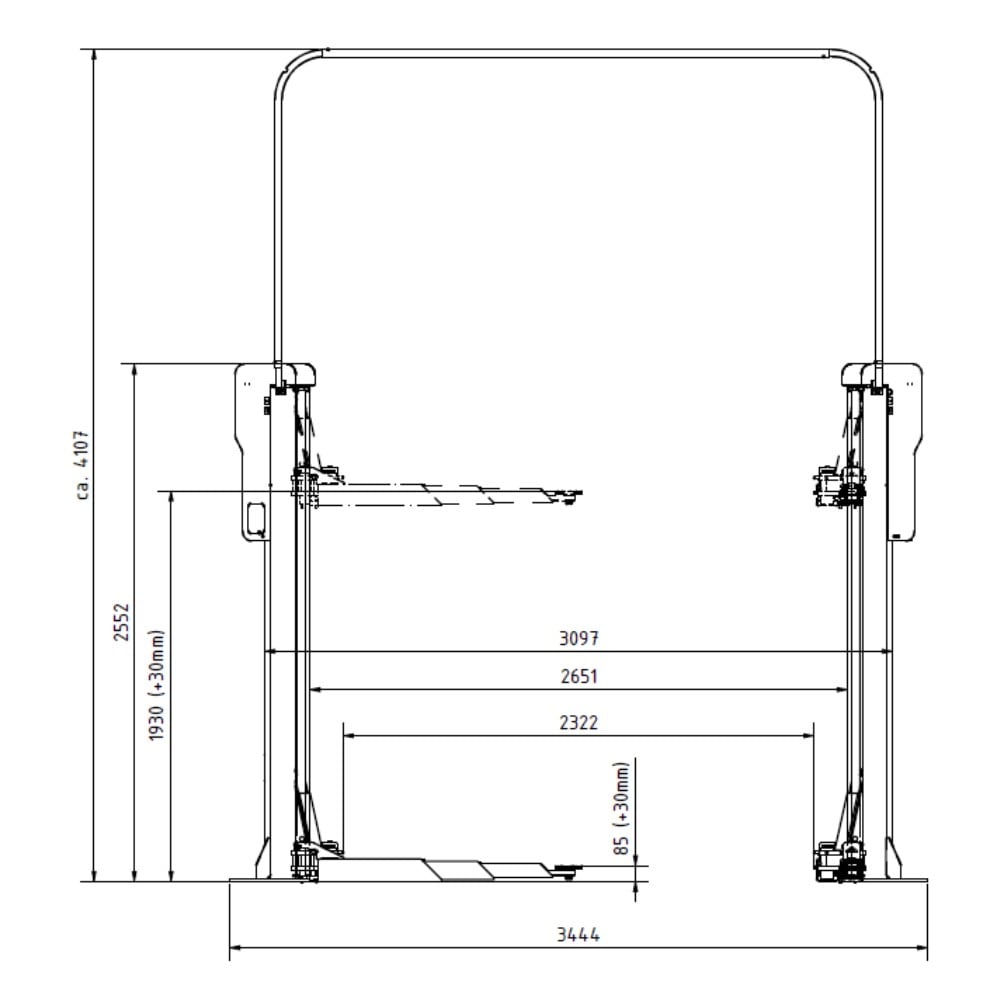

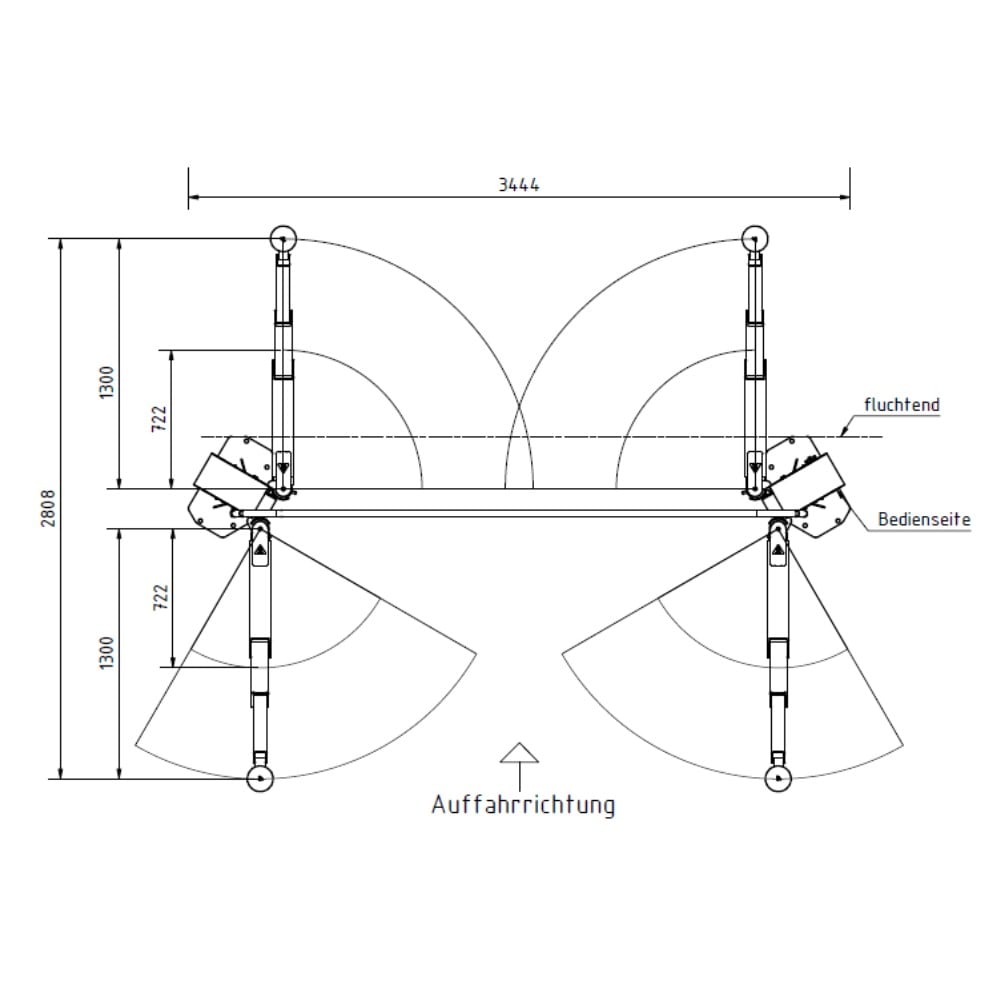

| Technical data | ||
|---|---|---|
| Load capacity | 4000 kg | |
| Max. Lifting height | 1960 mm | |
| Bottom swing height | 85 mm | |
| Column height | 2552 mm | |
| Max. Total height | 4107 mm | |
| Setup width | 3444 mm | |
| Passage width | 2322 mm | |
| Inner column spacing | 2651 mm | |
| Long support arms (3 parts) | 722 - 1300 mm | |
| Short support arms (3 parts) | 722 - 1300 mm | |
| Lifting/lowering time | approx. 45 s | |
| Drive power | 2x 2.5 kW | |
| Power supply | 400 V / 50 Hz / 3 Ph | |
| Hedging (slow) | 20 A | |
| Protection class | IP54 (splash-proof) | |
| Foundation (thickness) | 210 mm (concrete C20/25) | |
| Anchoring | 12 anchors (6 per column) | |
| Color | Jet black RAL 9005 | |
| Scope of delivery |
|---|
| 2 columns complete with control unit |
| 4 support arms including mounting plates |
| Connecting cables and gallows |
| User manual |
Questions that other customers have asked us.
Yes, but you need the reinforcement bracket item no. 370965, which we offer as an accessory.
No, for static reasons, you have to stick to the specified dimensions for turned columns.
