No problem, the side tubes of the gallows can simply be shortened to the appropriate height to suit your workshop.
TRUSTERS ELVT2300 | 3t load capacity | Made in Germany
3 t lifting capacity, only 85 mm swing-arm clearance and rotated columns for true door freedom – the ELVT2300 simply speeds up your daily throughput.
Product number:
TE2300
Regular price:
€3,799.00
Delivery time, 14 days.
Leasing is that simple!
Use the many advantages of leasing for your success. No more long trips to the bank and a decision within minutes.
Not included in delivery, but required for installation:
Product information "TRUSTERS ELVT2300 | 3t load capacity | Made in Germany"
- Maximum flexibility: Short arms that can swivel on both sides for space-saving and flexible vehicle positioning.
- Versatile load capacity: Intelligent 2-post technology with 3 t capacity – ideal for everything from passenger cars to vans.
- Low swing-arm clearance: At just 85 mm, it is perfectly suited for lowered vehicles.
- Better access: 30° rotated columns allow vehicle doors to be opened wider for comfortable interior work.
- Trip-free working: Thanks to the clear-floor (base-frame-free) design, the floor between the columns remains completely clear.
| Drive: | spindle |
|---|---|
| Type of lifting plattform: | 2-post lift, car lifts |
| Capacity range: | 2,5 t - 3,5 t |
Login
2 reviews
7 January 2025 23:57
Top Bühne
Zum Shop: erstklassige Kommunikation! Schnelle Lieferung. Zur Bühne: Einer der Kaufgründe war das Design. Die Verarbeitung ist auf höchstem Niveau. Hier gibt's nichts auszusetzen. Perfekt für tiefe Fahrzeuge.
12 November 2024 13:16
sehr zufrieden
ich möchte Ihnen nur mitteilen, dass die gelieferte Hebebühne ausgezeichnet funktioniert.
Die Bestellung und Anlieferung hat ebenfalls sehr gut geklappt.
The ELVT2300 is designed for continuous performance in everyday workshop life: 3 tons capacity covers the core range from small cars to station wagons to compact vans. The low drive-over height of just 85 mm gives you the freedom to lift lowered vehicles. 30° rotated, barrier-free columns create entry and exit space and reduce collision points for doors or tool trolleys. Inside, four roller-bearing pallet trucks work on cold-formed spindles; Bronze load-bearing and safety nuts distribute load reliably and benefit from automatic lubrication for long service lives. An electronic height compensation prevents asynchronous running, while the automatic support arm lock minimizes incorrect operation. Direct lowering without intermediate lifting reduces cycle times and brings efficiency to routine jobs such as tires, brakes, inspections. If you want to move more vehicles per day, you get a quiet stage - no more readjustments, but a smooth process.

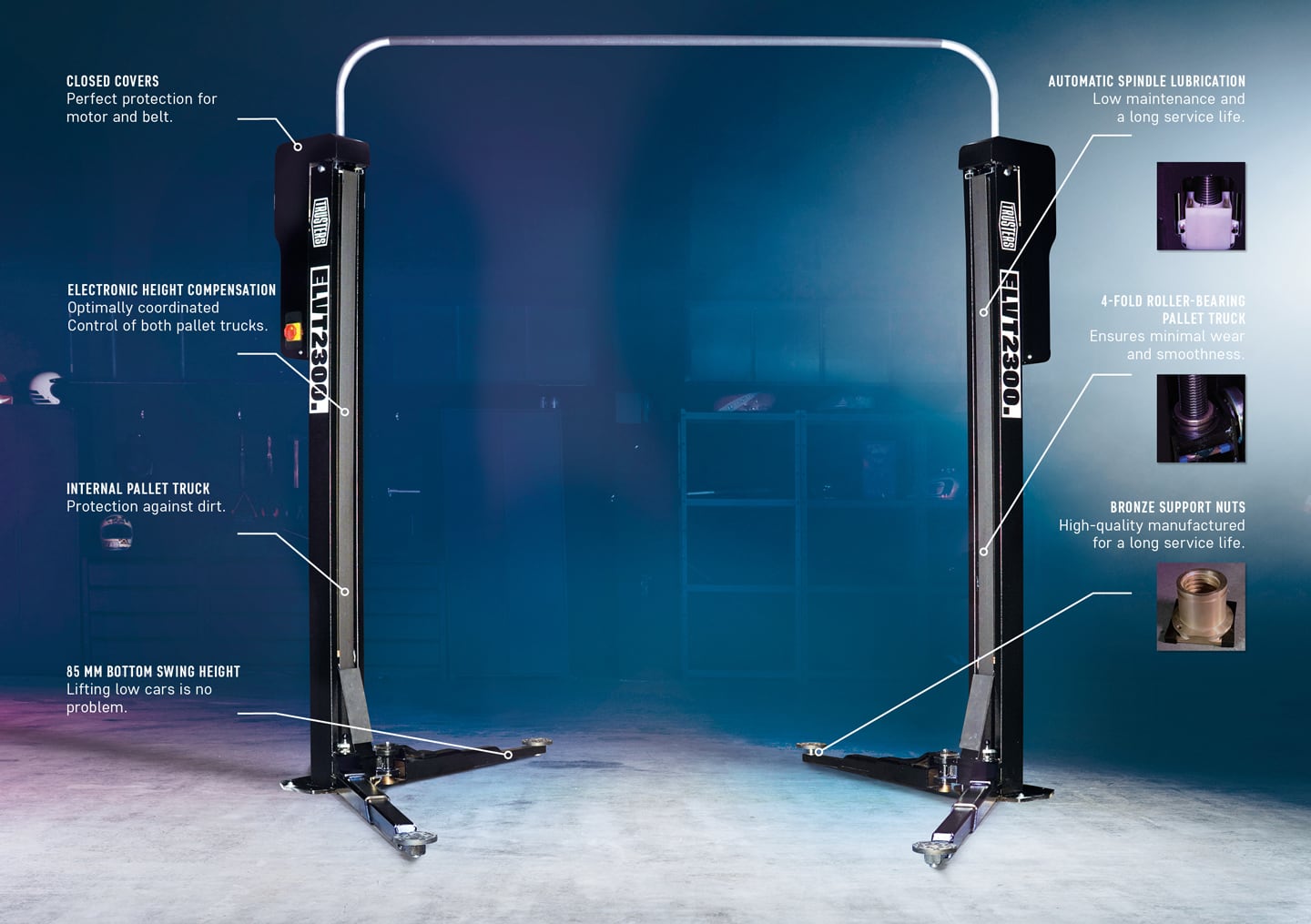

Features of the TRUSTERS ELVT2300
Discover the thoughtful details that make this lift a long-lasting and indispensable partner in your workshop.
Accessible workspace
Work safer and more efficiently on a completely clear floor. Tool and gear trolleys roll through unhindered without a disturbing base frame.
Grabs even the deepest cars
Thanks to the extremely flat mount of just 85 mm, lifting sports cars and vehicles with low ground clearance becomes a simple routine.
More door clearance, better access
The columns cleverly rotated by 30° create noticeably more space. You can open vehicle doors wider and get in and out more easily. We also gave the pillars a rubber pad, which provides additional protection for the vehicle door.
Smooth running in perfection
Be impressed by a quiet and gentle stroke. The pallet trucks with four roller bearings minimize noise and wear - a clear sign of precision.
One less thing to worry about
The automatic spindle lubrication continuously supplies the mechanics with oil. The result: less maintenance and a maximum service life of the core components.
3-fold telescopic support arms
Enables the easy inclusion of everything from small cars (e.g. Smart) to large vans (e.g. Sprinter) thanks to an extremely wide adjustment range of the arms.
Does what it promises
When the support arms are brought into position and raised, they are locked securely and hold their position securely. As soon as they reach the ground again, they can be swiveled and moved freely.
Best for:
- General vehicle workshops
- Tire Services
- body workshops
- Paint shops
Detailed product description
Load capacity & drive:
With a load capacity of 3 tons, the ELVT2300 lifts a variety of vehicles. The durable spindles enable quick lifting and direct lowering without having to raise the arms again.
Lift & construction height:
Over 2 m lifting height ensures ergonomic work. With just 85 mm lower swing height, you can accommodate even very deep vehicles, and thanks to the 2550 mm column height, the stage fits into many lower halls.
Safety & Longevity:
4-way roller-bearing pallet trucks run quietly and with little wear. High-quality bronze support nuts, automatic spindle lubrication and the automatic support arm lock ensure long-term operational reliability. The electronic height compensation keeps both sides precisely synchronized. A safety tone warns when lowering.
Design & Construction:
The internal pallet truck protects against dirt. 30° rotated, barrier-free columns with door protection rubbers give more door opening angles. Without a base frame there is no risk of tripping. The short arm, which can be swiveled on both sides, maximizes flexibility.
Variable lineup:
You have the option of setting up the columns wider during installation. This is ideal for wider vehicles or for use as a parking space. (Adjustments to the boom/cable may be necessary; coordination with the fitter/inspector is recommended).
| Technical data | ||
|---|---|---|
| Load capacity | 3000 kg | |
| Max. Lifting height | 2005 mm | |
| Bottom swing height | 85 mm | |
| Column height | 2550 mm | |
| Max. Total height | 4025 mm | |
| Setup width | 3315 mm | |
| Passage width | 2320 mm | |
| Inner column spacing | 2650 mm | |
| Long support arms (2 parts) | 830 - 1340 mm | |
| Short support arms (3 parts) | 430 - 830 mm | |
| Lifting/lowering time | approx. 50 s | |
| Drive power | 2x 2.5 kW | |
| Power supply | 400 V / 50 Hz / 3 Ph | |
| Hedging (slow) | 20 A | |
| Protection class | IP54 (splash-proof) | |
| Foundation (thickness) | 210 mm (concrete C20/25) | |
| Anchoring | 12 anchors (6 per column) | |
| Color | Jet black RAL 9005 | |
| Scope of delivery |
|---|
| 2 columns complete with control unit |
| 4 support arms including mounting plates |
| Connecting cables and gallows |
| User manual |
Questions that have reached us.
Yes, but you need the reinforcement bracket item no. 370965, which we offer as an accessory.
No, for static reasons, you have to stick to the specified dimensions for turned columns.
