TRUSTERS ELVT1100 | 1-post lift for quad bikes, ATVs, lawn tractors
€1,799.00
Ready for dispatch, Delivery time 2 - 4 days
Product information "TRUSTERS ELVT1100 | 1-post lift for quad bikes, ATVs, lawn tractors"
- Extremely space-saving: With a compact 181 x 214 x 133 cm, a true space miracle for your workshop or garage.
- High load capacity: Small in dimensions, but a real powerhouse with a 1000 kg capacity.
- Winter mode: Thanks to the design, another vehicle can easily be parked underneath the platform.
- Maximum customization: Flexibly extendable – usable as a closed surface or as two separate rails.
| Lift capacity: | 1000 kg |
|---|---|
| Type of lifting plattform: | 1-post-lift, motorcycle lifts, quad lifts |
Login
1 review
24 March 2025 07:26
Wirklich sehr zufrieden!
Die Bühne funktioniert einwandfrei und erleichtert uns das Leben sehr. Wir sind wirklich sehr zufrieden mit der Bühne und der Abwicklung.
The ELVT1100 1-column lift answers the space problem of many workshops and ambitious private rooms with a consistently compact one-column architecture. Instead of placing two columns in the movement space of a quad or lawn tractor, you use a central, rigid guide with an electro-hydraulic drive and safety-related valve technology. The result is free access on three sides: ideal for maintenance on the drive train, cutting system or axle components. The load capacity of 1.1 t provides reserves for heavier work ATVs or ride-on mowers with attachments. Intelligent load-bearing points can be positioned quickly and reduce setup time. Mechanical and hydraulic safety levels ensure that you concentrate on the job.

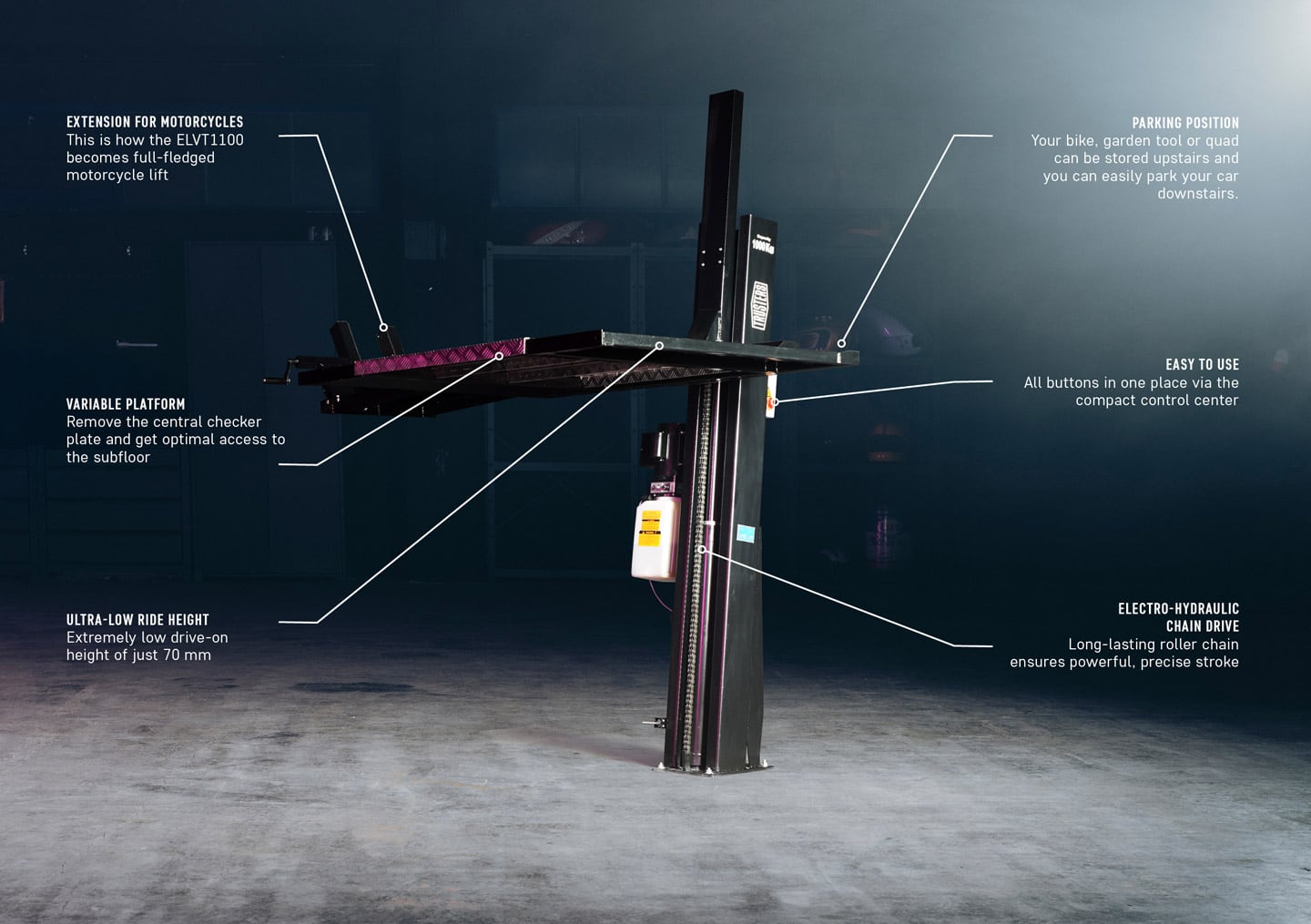

Product features of the TRUSTERS ELVT1100
These thoughtful details make the 1-post lift a real game-changer for your workshop.
Double use of space
with the park position
Ideal for wintering quads or other vehicles - the space under the platform remains free and can be used, for example. B. can be used for a car.
Ultra-low drive-on height
With an extremely low driveway height of just 70 mm, positioning vehicles is child's play.
Variable platform
The platform can be used as a complete surface, or as two rails if the checker plate is removed.
Electro-hydraulic chain drive
At the push of a button, the electric motor activates the hydraulics, which transmit their power to the platform via a long-lasting roller chain. This combination ensures a powerful, consistent and low-maintenance stroke.
Safety notches -
Safe and stable
The locking latch automatically locks the next lower position when the platform is raised, ensuring maximum safety when working or in parking mode.
Easy operation,
immediate stop
All control is via a compact housing with simple "up" and "down" buttons. For uncompromising safety, an emergency stop switch is integrated, which stops the lift immediately when activated.
Extension for motorcycles
Optionally, you can mount an extension including a wheel clamp. This makes the ELVT1100 a fully-fledged motorcycle lift. (included)
Best for:
- Small workshops
- Hobby screwdriver
- Agricultural businesses
- Motorcycle and quad dealers
- Municipal fleets
Detailed product description
With a whopping 1,000 kg load capacity, you have plenty of reserves - whether it's a heavy quad, a fully loaded touring motorcycle or a massive ride-on mower. The stage remains calm and torsionally rigid instead of working at the limit. More power means more relaxed, precise screwing.
The maximum lifting height of 1,515 mm brings the frame, drive and chassis to an ergonomically ideal working level. You can reach components while standing - less bending, kneeling or contortions. This speeds up service, cleaning and renovations.
Six mechanical support levels give you graded levels of safety: approach the desired height, lower it minimally until the next locking position - the hydraulics are relieved, the position is maximally stable. This extends the service life and ensures quiet, low-vibration work even during strenuous tasks.
Extension: With the optional platform extension including wheel clamp, you can convert it to your motorcycle in minutes. The front wheel is securely fixed - ideal for service. Modular instead of having to purchase two separate systems.
Variable platform: The platform can be used either as a continuous surface or - after removing the checker plate - as two open rails.
Double use of space: Your bike or garden tool can be stored upstairs and you can easily park your car downstairs.
Double use of space: Your bike or garden tool can be stored upstairs and you can easily park your car downstairs.
| Technical data | ||
|---|---|---|
| Load capacity | 1000 kg | |
| Max. Lifting height | 1515 mm | |
| Min. Height / access height | 70 mm | |
| Max. Total height | 2144 mm | |
| Total width | 1626 mm | 2410 mm motorcycle platform with wheel holder |
| Total depth | 1766 mm | |
| Platform size (W x L) | 1328 x 1626 mm | |
| Size of the rails (W x L) | 355 x 1250 mm | |
| Distance of the rails | 840 mm | |
| Clear width | 915 mm | |
| Lifting time | approx. 50 s | |
| Lowering time | approx. 50 s | |
| Drive | electro-hydraulic | |
| Operating voltage | 230 V / 50 Hz 1-phase | |
| Hedging (slow) | 12 A | |
| Town weight | 270 kg | |
| Color | Jet black RAL 9005 | |
| Packaging dimensions platform (LxWxH) | 1660 x 1363 x 120 mm | |
| Packaging dimensions column (LxWxH) | 2160 x 376 x 385 mm | |
| Scope of delivery |
|---|
| 1-post lift ELVT1100 |
| User manual |
