LINE LIGHT 1 - Universal lighting unit
Product information "LINE LIGHT 1 - Universal lighting unit"
LINE LIGHT 1 - Universal lighting unit
A robust, universal lighting solution
- Extremely robust and impact-resistant lighting solution
- Waterproof - suitable for wet and damp working environments
- Technical service life of the LEDs at least 100,000 hours
- Made in Denmark
LINE LIGHT 1 is indispensable for good workshop equipment and can be used universally wherever bright, efficient and focused light or an adjustable lighting angle is required.

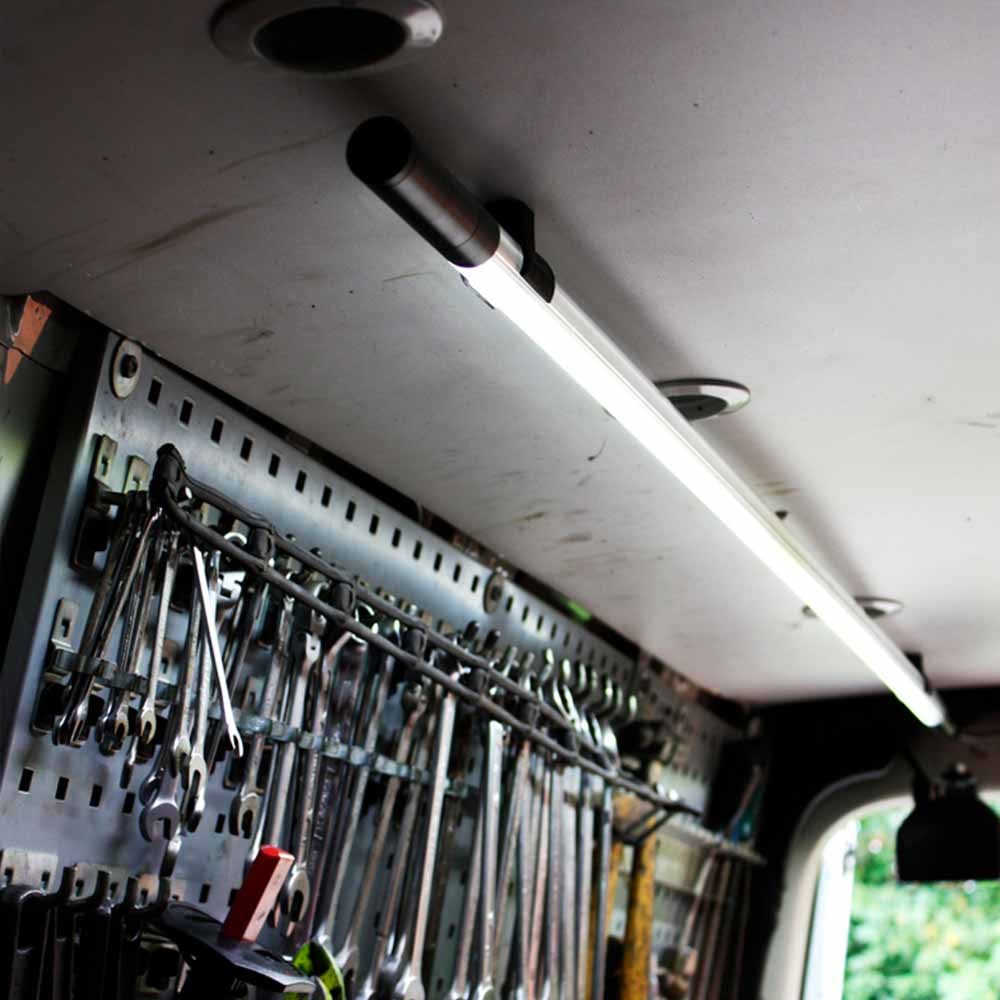

The powerful lighting solution can be used universally: when working on lifting platforms, vehicle repairs, on the workbench, in vans, in production, etc. LINE LIGHT 1 has an impressive luminous flux of max. 2750 lumens.
Compared to the 36W fluorescent tubes commonly used in the industry, LINE LIGHT 1 offers extremely bright illumination with low power consumption. LINE LIGHT focuses the light at a beam angle of 75° for extremely bright and powerful illumination of the entire work area. This means that the lamp can be rotated to provide the optimum lighting angle and illuminate the entire work area without dazzling the mechanic.
Extremely robust and impact-resistant lighting solution
At just 25 mm, the lighting unit is particularly slim. The LINE LIGHT system consists of a closed extruded acrylic profile (PMMA) with built-in prism, LED PCB and black anodized ALU end caps. It is extremely robust and withstands shocks, impacts and vibrations from industrial machinery. The system is waterproof (IP67) and therefore also suitable for wet working environments. The technical LED service life is at least 100,000 hours.
The LINE LIGHT system is quick and easy to install. Standard brackets, power supply and cables are supplied with each set.
LINE LIGHT 1 consists of 1 lighting unit 1630 mm and a 25 W power supply, cable and brackets.
Scope of delivery
- LINE LIGHT lighting unit with 2750 lumen and 216 SMD LED. Ø25x1630 mm
- 8 m long cable
- 25 W power supply
- Brackets
- Operating instructions

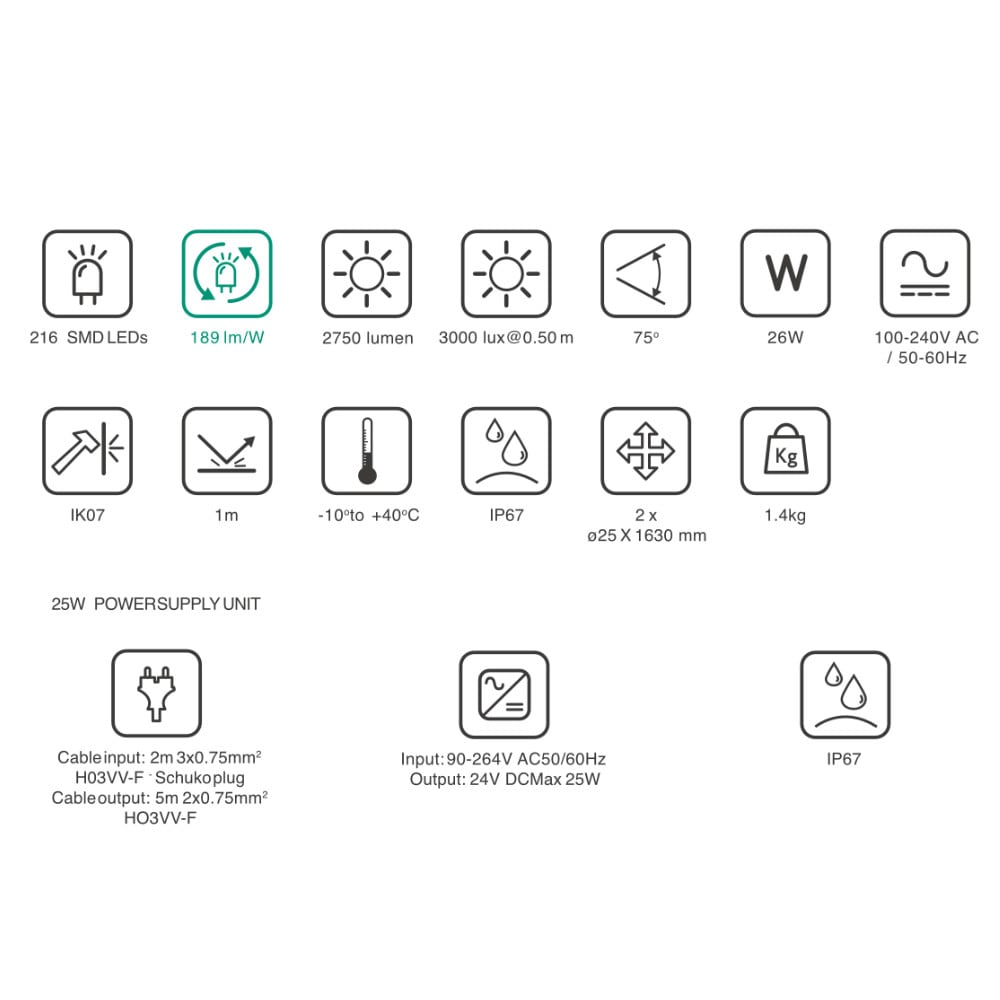

Technical data
| Length per unit | 1630 mm |
| Diameter per unit | 25 mm |
| Luminous flux max. per unit | 2750 lumen |
| Luminous intensity max. per unit | 3000 lux |
| Light source | 216 SMD LEDs |
| Beam angle | 75° |
| Power source | 24 V |
| Cable length | 8 meters |
| Input voltage | 100-240 V / AC 50 / 60 Hz |
| Plug | Type F (Schuko plug) |
| IP protection class | IP67 |
| Operating temperature | -10°C to +40°C |
| Type of lifting plattform: | 4-post lift |
|---|
