LINE LIGHT 4 Post - Lightning for 4-post lifts
€1,099.00
Delivery time, 14 days.
Product information "LINE LIGHT 4 Post - Lightning for 4-post lifts"
LINE LIGHT 4 - The 4 LED lighting unit for 4-post lifts
A robust, universal lighting solution
- Extremely robust and impact-resistant lighting solution for 4-post lifts
- Waterproof - suitable for wet and damp working environments
- Technical service life of the LEDs at least 100,000 hours
- Made in Denmark

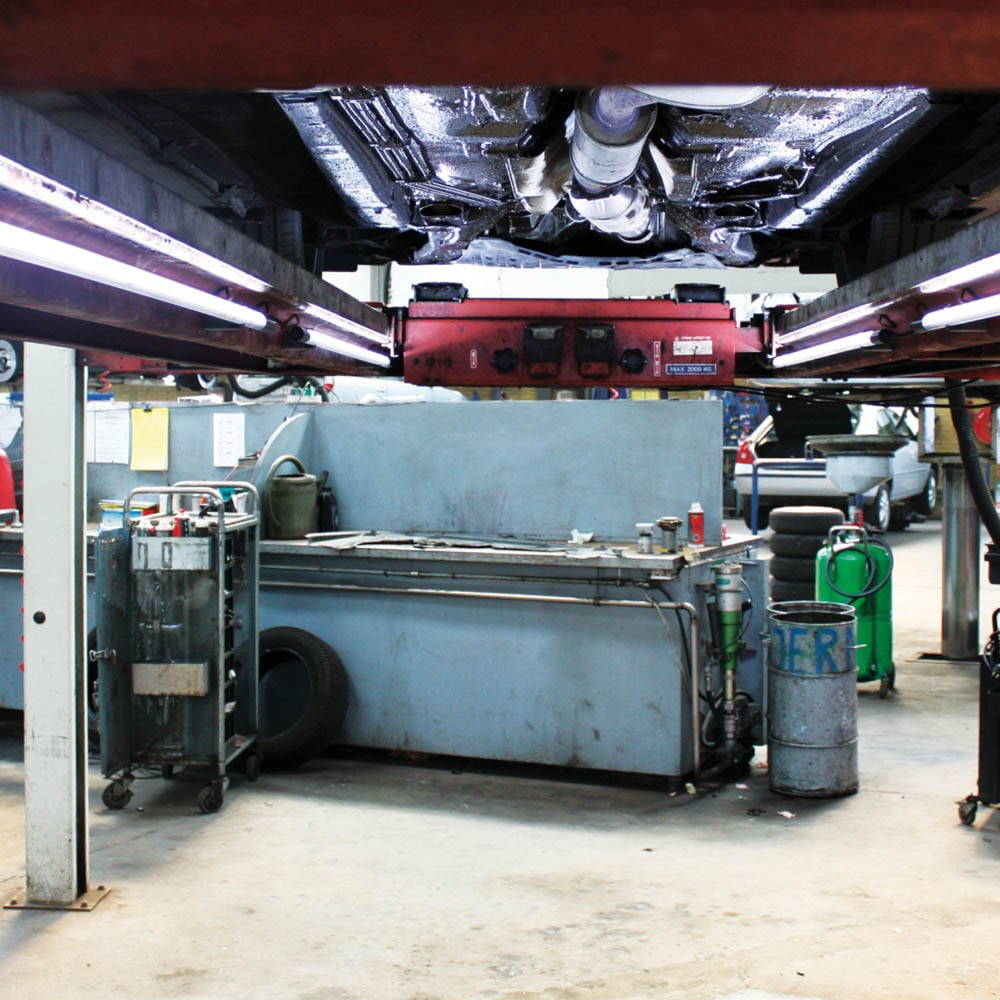

The LINE LIGHT 4 lighting unit is a lighting solution for universal use on 4-post lifts and offers extremely bright illumination. When working on the underbody, it is completely illuminated. The slim and compact design (only ø25 mm) allows unhindered movement.
LINE LIGHT 4 has been improved compared to the previous model and now offers 2750 lumens per light unit. Compared to the 36W fluorescent tubes commonly used in the industry, the system offers extremely bright illumination with low power consumption. LINE LIGHT 4 focuses the light at a beam angle of 75° and prevents glare during work. The light unit can be rotated for an optimum lighting angle.
Extremely robust and impact-resistant lighting solution
The LINE LIGHT system consists of a closed extruded acrylic profile (PMMA) with integrated prism, LED PCB and black anodized ALU end caps. It is extremely robust and resistant to shocks and impacts and waterproof (IP67) for wet working environments. The technical LED service life is at least 100,000 hours.
LINE LIGHT 4 consists of 4 lighting units, each 1630 mm long, with an 80 W power supply, 8 m cable, LINE LIGHT DIMMER and brackets. Because the LINE LIGHT system is powered by (24 V DC) low voltage, installation is quick and easy. Standard brackets, power supply and cable are supplied with each set.

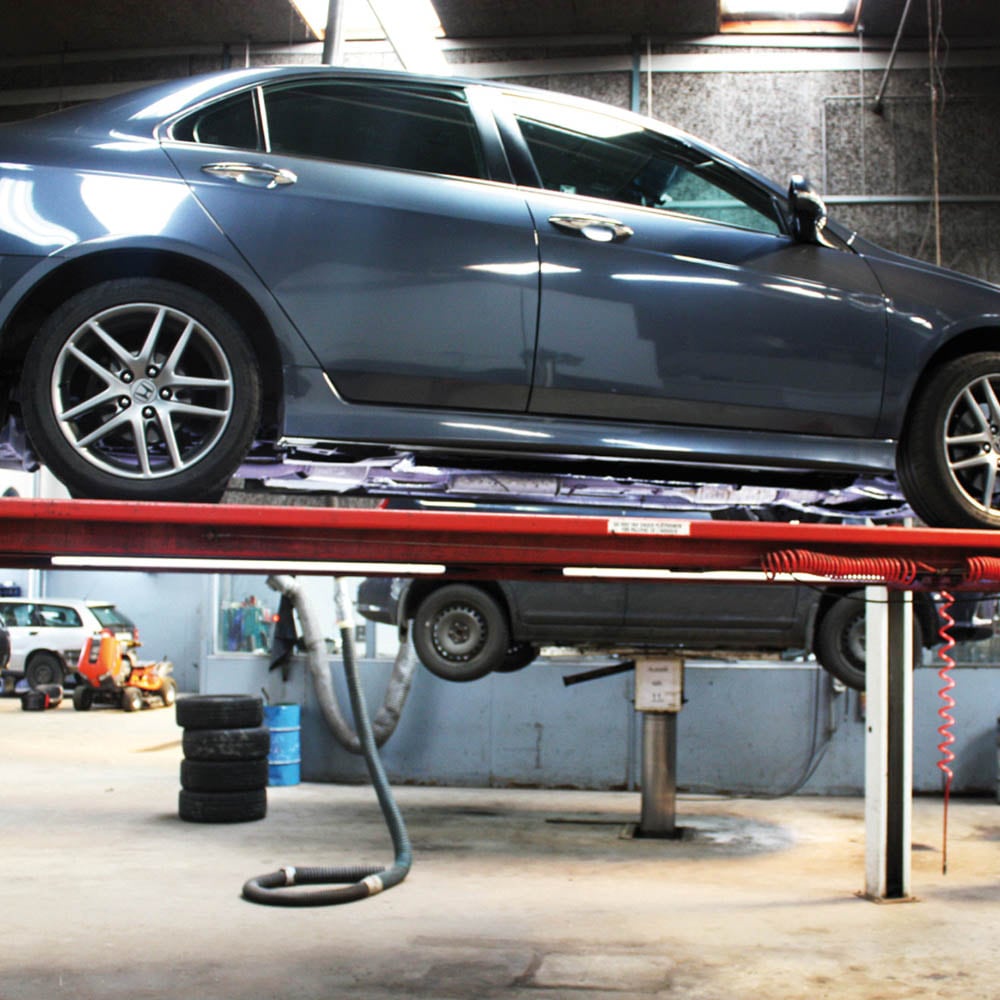

The prefabricated LINE LIGHT kit is universal and fits the majority of 4-post vehicle lifts, regardless of manufacturer or brand.
Scope of delivery
- 4 LINE LIGHT units, each with 2750 lumens and 216 SMD LEDs. Ø25x1630 mm
- 8 m long cable
- 25 W power supply
- LINE LIGHT dimmer
- Brackets
- Instruction manual

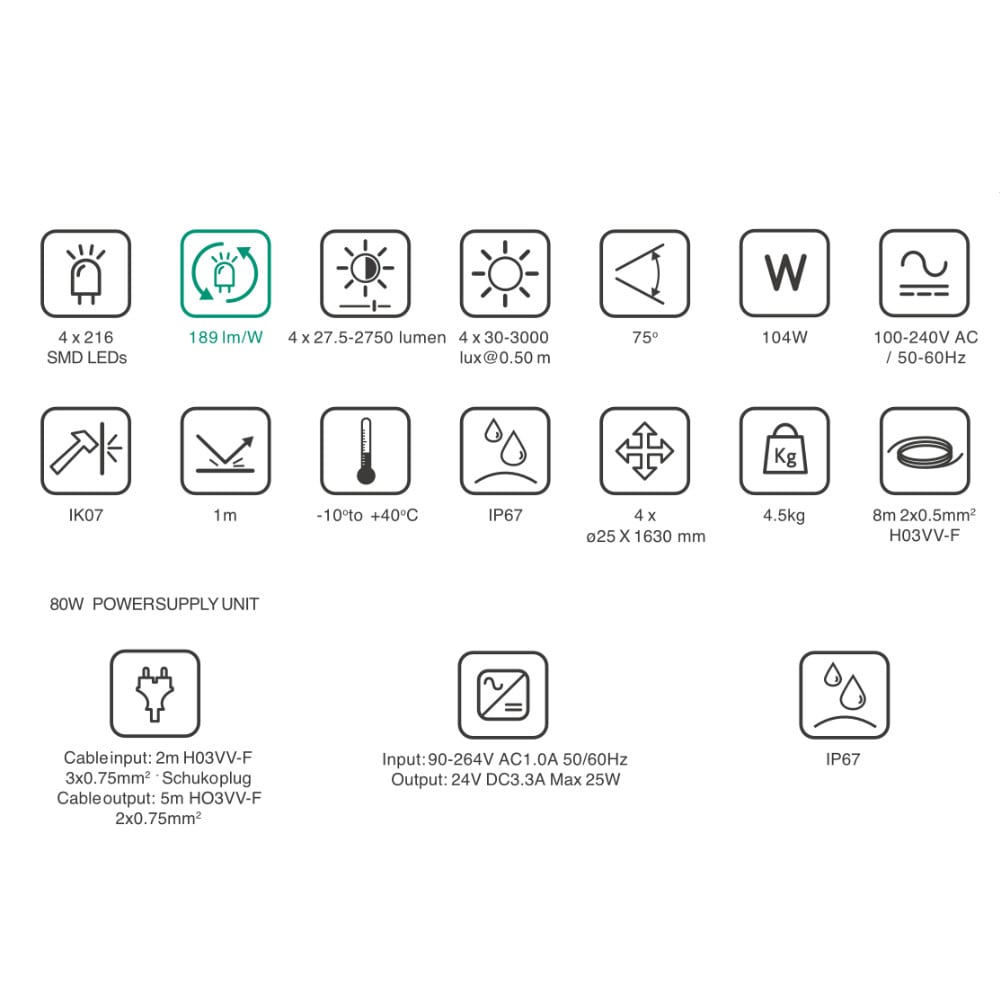

Technical data
| Length per unit | 1630 mm |
| Diameter per unit | 25 mm |
| Luminous flux max. per unit | 2750 lumen |
| Luminous intensity max. per unit | 3000 lux |
| Light source | 4 x 216 SMD LEDs |
| Beam angle | 75° |
| Power source | 24 V |
| Cable length | 8 meters |
| Input voltage | 100-204 V / AC 50 / 60 Hz |
| Plug | Type F (Schuko plug) |
| IP protection class | IP67 |
| Operating temperature | -10°C to +40°C |
| Type of lifting plattform: | 4-post lift |
|---|
