Rubber plate for Ravaglioli & OMCN A, AXR, C, CXR, Q, N, NXR, XR, B, BXR, P, F, F
Product number:
690-2
Product information "Rubber plate for Ravaglioli & OMCN A, AXR, C, CXR, Q, N, NXR, XR, B, BXR, P, F, F"

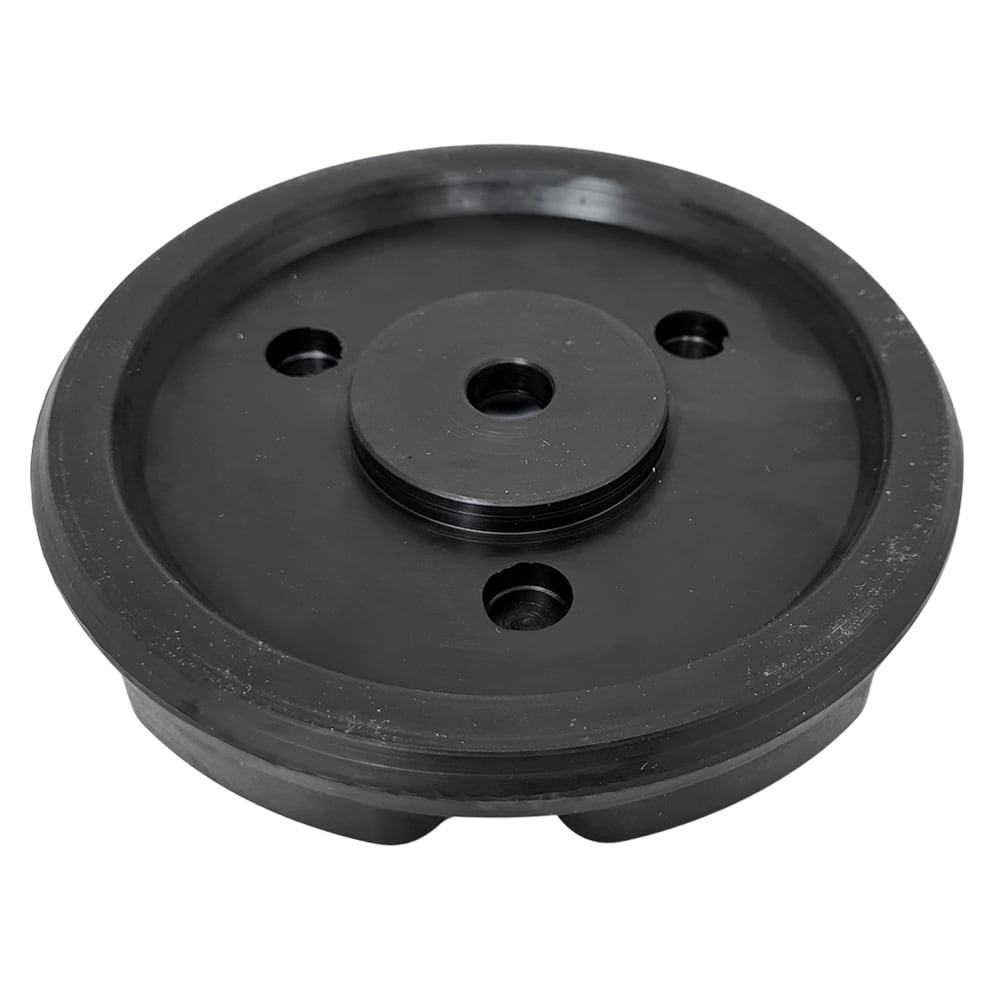

Rubber pad for Ravaglioli (old model), e.g., KP 123 and OMCN lifting platforms
- Rubber plate with recess on the top
- 1 hole for attaching the pad using a 12 mm diameter screw
- 3 recesses on the underside of the plate
- Suitable for Ravaglioli models and many OMCN lifting platforms

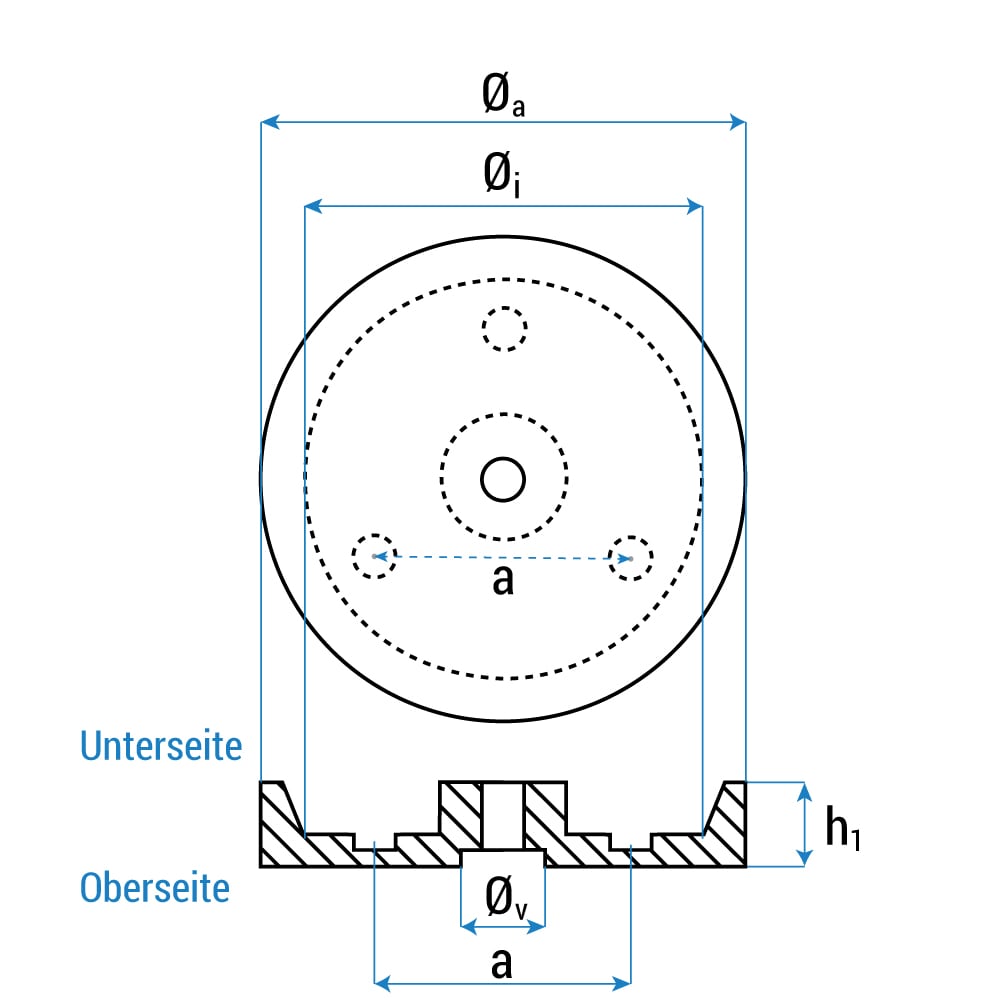

Dimensions
| Øa = outer diameter | 140 mm |
| Øi = Inner diameter | 115 |
| Øv = Diameter of the recess on the top side | 35 |
| h1 = Height | 12 |
| a = Distance between the indentations on the underside | 63 mm |
Rubber disc with wide edge and recesses
The rubber pad is suitable for Ravaglioli lifts and many OMCN models. The rubber pad has a recess around the center hole on the top side (see sketch). The wide rim and 3 recesses are noticeable on the bottom side. The rubber pad is attached using a Ø 12 mm screw (not included).
Suitable for the following Ravaglioli and OMCN models
- Ravaglioli lifts (old model), e.g., KP 123
- OMCN 199A
- OMCN 199AXR
- OMCN 199B
- OMCN 199BXR
- OMCN 199C
- OMCN 199CXR
- OMCN 199F
- OMCN 199FXR
- OMCN 199H
- OMCN 199HXR
- OMCN 199N
- OMCN 199NXR
- OMCN 199O
- OMCN 199OXR
- OMCN 199P
- OMCN 199Q
- OMCN 199XR
| Ravaglioli Lifts: | KP 121, KP 123, KPH 343, KPH 363, KPH 370, KPN 121, KPN 123, KPN 124, KPN 126, KPN 224, KPN 225, KPN 234, KPN 235, KPN 245, KPN 250, KPN 255, KPN 304, KPN 305, KPN 306, KPN 312, KPN 315, KPN 324, KPN 326, KPN 327, KPN 328, KPN 329, KPN 336, KPN 337, KPN 341, KPN 345, KPN 349, KPS 224, KPS 234, KPS 305, KPS 306, KPS 324, KPS 326, KPS 327, KPS 328, KPS 329, KPS 356, KPX 225, KPX 235, KPX 312, KPX 315, KPX 336, KPX 337, KPX 341 |
|---|
