Rubber pad for OMCN 199 G, DK, GK3, E, D, S, T, YC, GAMMA, Delta, 550/A
Product information "Rubber pad for OMCN 199 G, DK, GK3, E, D, S, T, YC, GAMMA, Delta, 550/A"
Rubber pad for OMCN lifting platforms
- With 3 pins on the underside of the plate lock
- 1 hole for fastening with a screw
- Recess around the center hole on the top and bottom
- Suitable for many OMCN models (see below)

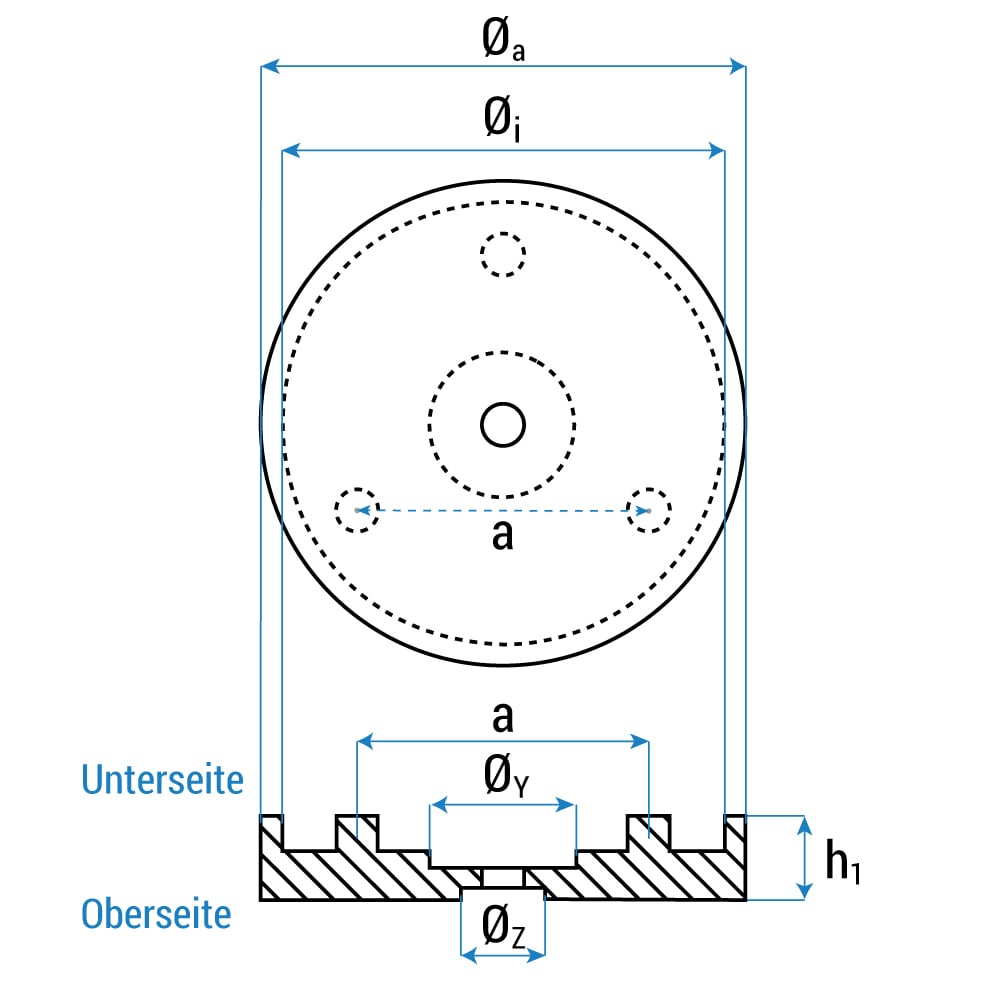

Dimensions
| Øa = outer diameter | 140 mm |
| Øi = Inner diameter | 132 mm |
| ØY = Inner diameter of the recess on the underside | 60 |
| ØZ = inner diameter of the recess on the top | 34 |
| a = Distance from center of tenon to center of tenon | 74 |
| h1 = height | 28 |

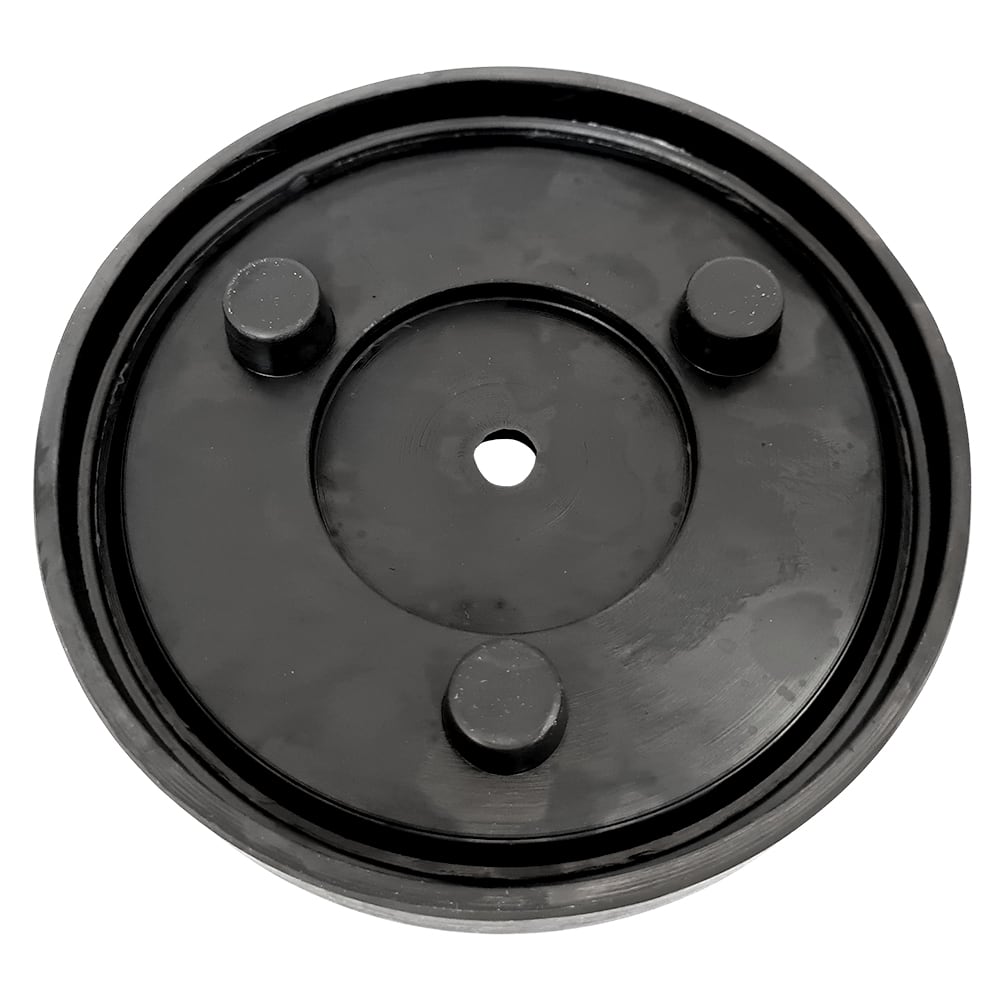

Rubber plate with 3 pins on the underside
This rubber disc is suitable for various OMCN lifting platforms. The rubber disc has a hole for attaching it to the metal plate with a screw. On the underside there are 3 pins and a recess in the middle, which are counterparts to the metal plate on which the disc is mounted.
Suitable for the following OMCN models
- OMCN 199D
- OMCN 199 Delta
- OMCN 199DK
- OMCN 199E
- OMCN 199G
- OMCN 199 GAMMA
- OMCN 199KG3
- OMCN 199S
- OMCN 199T
- OMCN 199YC
- OMCN 550/A
| Spare parts for lifting platforms: | rubber disks | holders |
|---|
