Support plate for Ravaglioli HE, HEK, HER LIK, WE, WEK, WELIK
Product number:
RAV-048417190
Product information "Support plate for Ravaglioli HE, HEK, HER LIK, WE, WEK, WELIK"

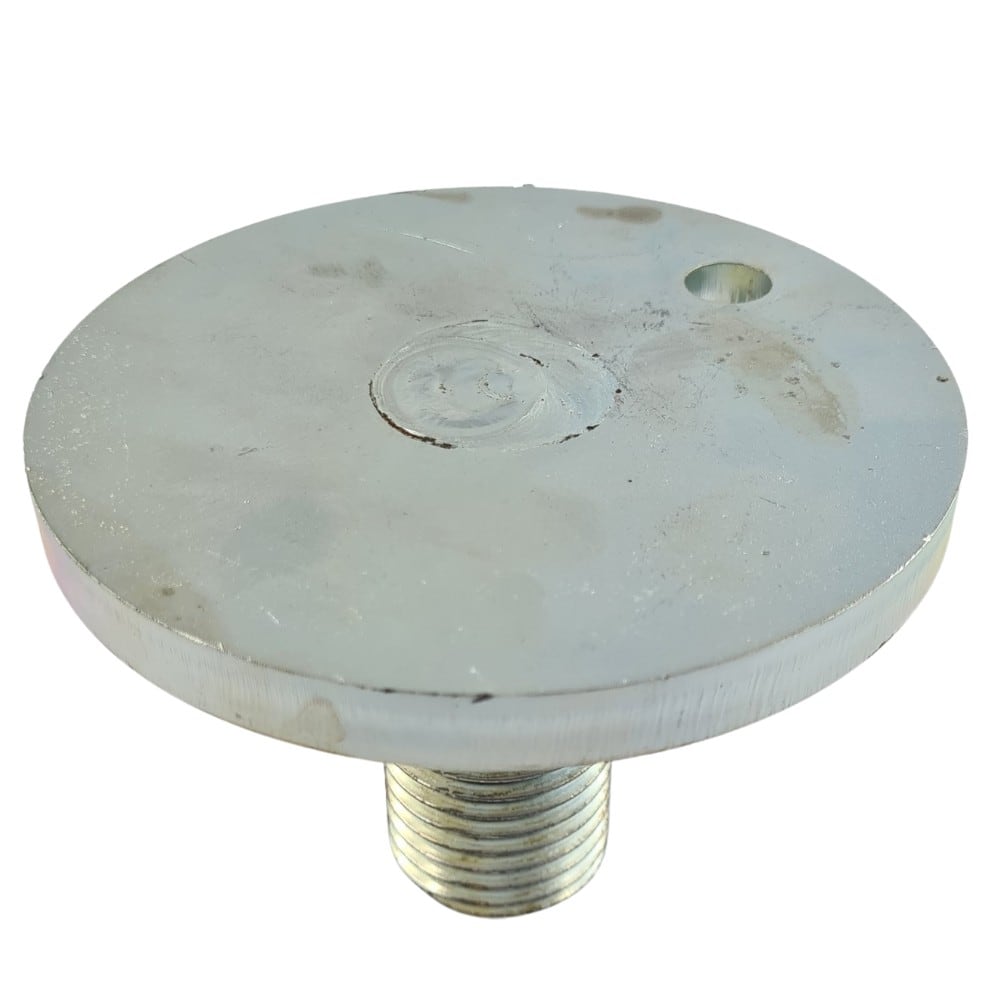

Support plate for Ravaglioli HE, HEK, HER LIK, WE, WEK, WELIK
Includes: 1x threaded metal plate
- Genuine Ravaglioli replacement part!
- Fits various Ravaglioli models (see below)
Dimensions
| Plate Ø | 125 mm |
This mount is either screwed into the bushing (not included) and then the bushing is inserted into the support arm, or the mount is screwed directly into the support arm of the lift. This depends on the lift model. The thread has a diameter of 33 mm.
Compatible with the following Ravaglioli models
- KPH 370.50 K
- KPH 370.50 LIK
- KPN 349 WE-WEK-WELIK
- (SHORT ARMS, SHORT ARMS WEK, LONG ARMS WE, LONG ARMS WEK, ARMS WELIK)
- KPN 234 HE-HEK-HELIK
- (LONG ARMS HK, SHORT ARMS H, SHORT ARMS HK, ARMS HLIK, LONG ARMS H)
- KPN345 WE-WEK-WELIK
- (SHORT ARMS WE, SHORT ARMS WEK, LONGS ARMS WE, LONGS ARMS WEK)
- KPS 224 HE-HEK-HER
- (LONG ARMS HK, SHORT ARMS H, SHORT ARMS HK, ARMS HLIK, LONG ARMS H)
- KPS234 HE-HEK-HELIK
- (LONG ARMS HK, SHORT ARMS H, SHORT ARMS HK, ARMS HLIK, LONG ARMS H9
- KPS 244 HE-HEK-HELIK
- (LONG ARMS HK, SHORT ARMS H, SHORT ARMS HK, ARMS HLIK, LONG ARMS H)
- KPX32
- KPX32ER
- KPX32P
- KPX32R
- KPX35
- KPX35EV
- KPX35EEV
- KPX341 WE-WEK-WER
- (SHORT ARMS WE, SHORT ARMS WEK, LONG ARMS WE, LONG ARMS WEK)
| Spare parts for lifting platforms: | rubber disks | holders |
|---|---|
| Ravaglioli Lifts: | KPH 370, KPN 345, KPN 349, KPS 224, KPS 234, KPS 244, KPX 341 |
