Pneumatic press with 10t, OMCN 154/IP
€1,859.00
Delivery time, 21 days.
Product information "Pneumatic press with 10t, OMCN 154/IP"
Pneumatic press with 15t pressing force
- Pneumatic drive via a pneumatic foot pump
- Hydraulic press with 15t pressing force
- Made in Italy
- Chrome-plated cylinder piston made of special steel for extremely high reliability Long service life.
- A steel spring is installed for quick piston return.
- Both hands free to work
- Simple, user-friendly operation for an efficient workflow
- The worktable can be adjusted to different heights.
- A 100% Italian product with 60 years of experience

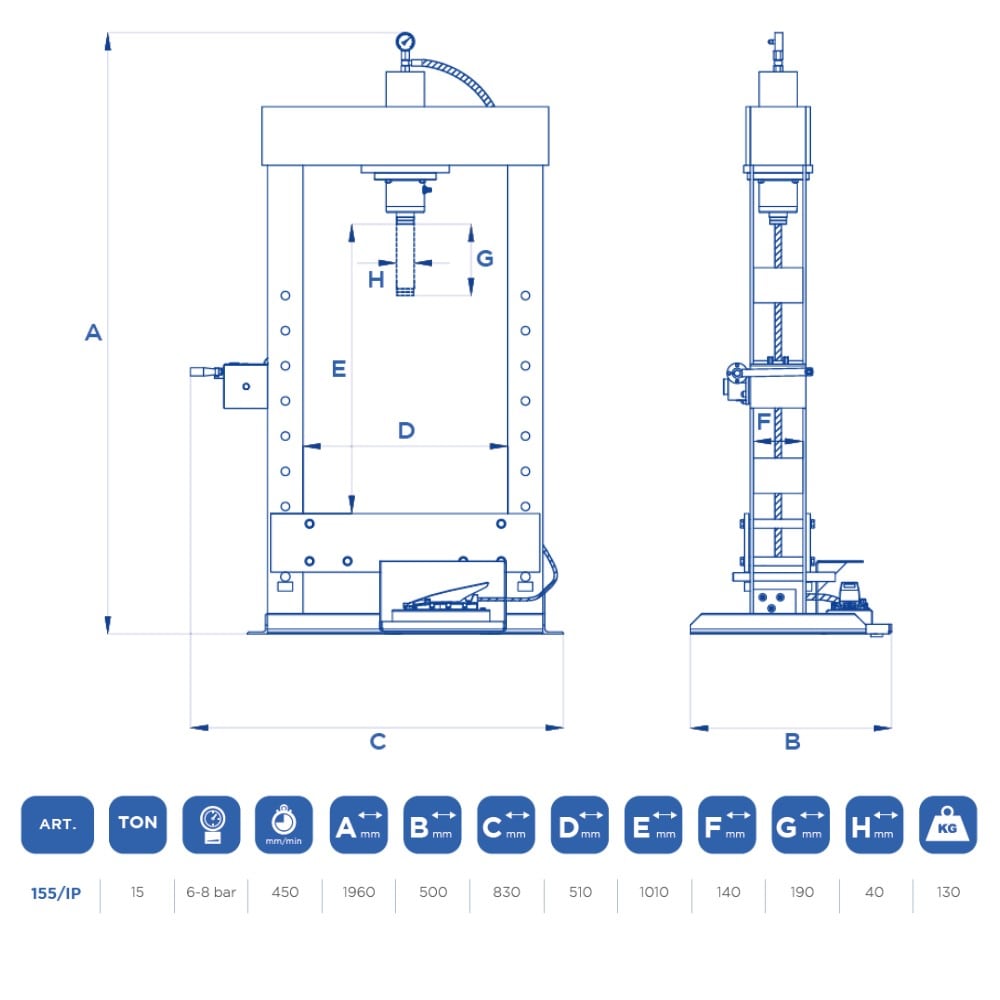

Technical data
| Pressing force | 15 t |
| Pressure | 6-8 bar |
| Pressing speed | 450 mm / min. |
| Total height | 1960 mm |
| Setting depth | 500 mm |
| Width | 830 mm |
| Clear width | 510 mm |
| Table to piston max. | 1010 mm |
| Stroke | 190 mm |
| Ø piston | 40 mm |
| Weight | 130 kg |
| Country of manufacture | Italy |
| Press capacity: | 15t |
|---|---|
| Pump / Drive: | pneumatic |
