Mounting plate for Consul H300, H400, H500 & more | Also Zippo " Ø130 mm
Product information "Mounting plate for Consul H300, H400, H500 & more | Also Zippo " Ø130 mm"
Mounting plate for Consul H300, H400, H500 & more | also Zippo lifts

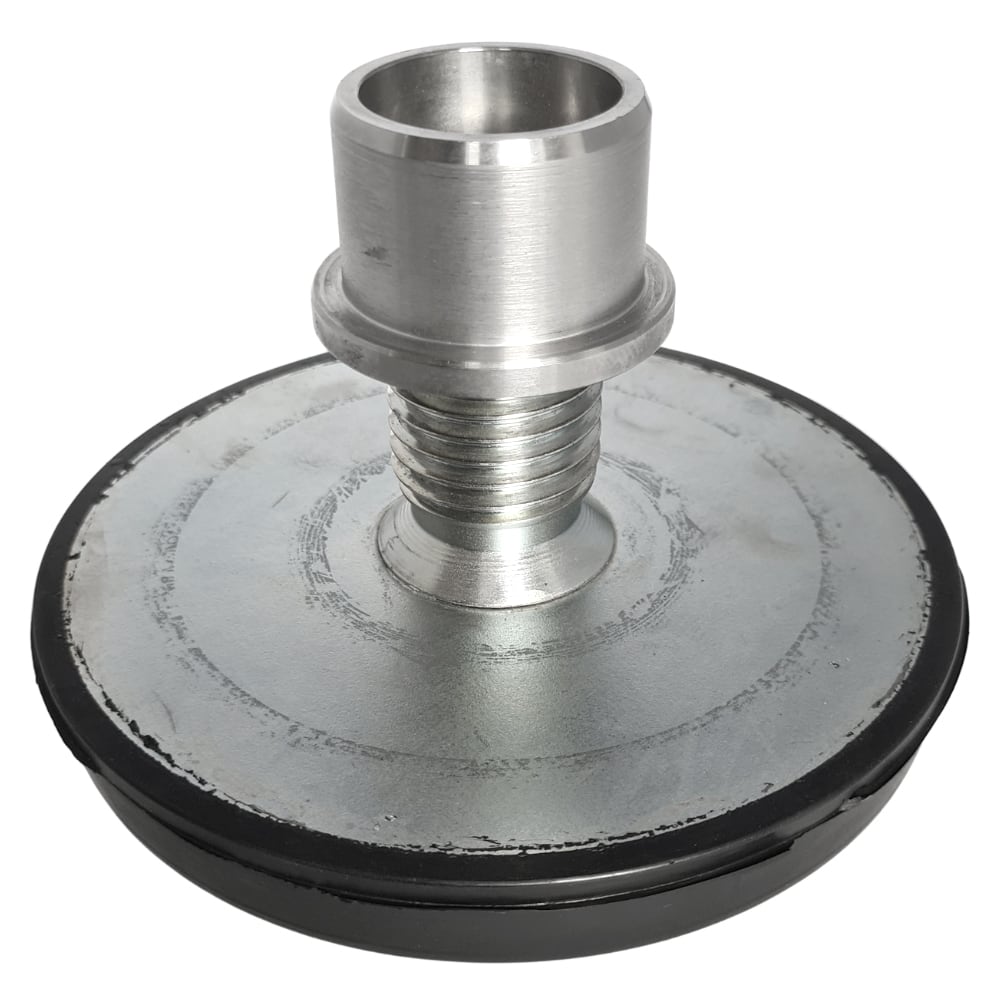

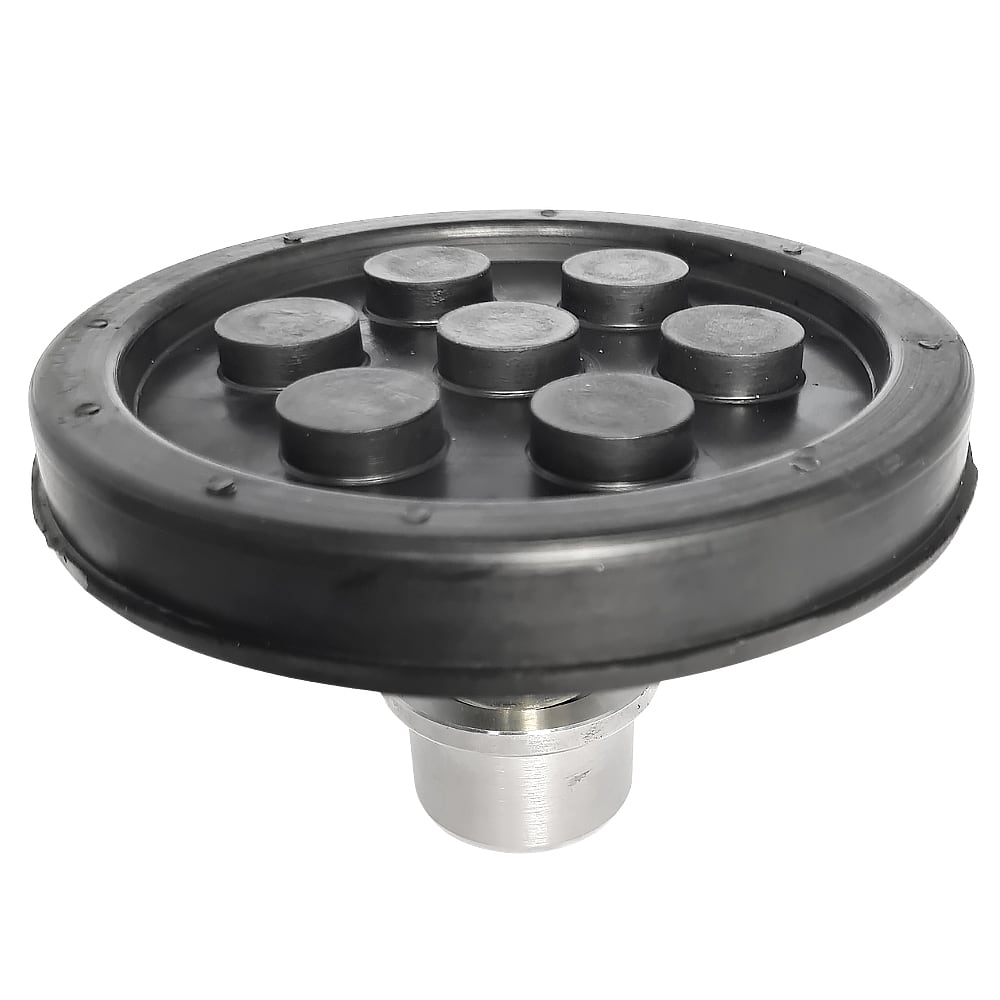

- Mounting consisting of rubber plate, thread, metal plate and bushing
- Bushing is flattened on one side
- Fits Consul and Zippo models (see model overview below)
- Ready to install - just plug it on and go to work
Dimensions:
| Øa = outer diameter | 130 mm |
| Øb = outer Diameter bushing | 40 mm |
| a = distance bush to plate | 36 mm |
| h2 = Height rubber plate | 17 mm |
| Total height retracted | 73 mm |
| Total height extended | 84 mm |
Complete mounting plate - ready for installation
This mounting plate is ready for installation. Simply remove the old receptacle from the support arm of the lifting platform and put the new receptacle on it, ready. Already you can go on. The bushing is flattened on one side and has the dimensions Ø40 mm x 30 mm...
Scope of delivery:
1x thread with metal plate and bushing

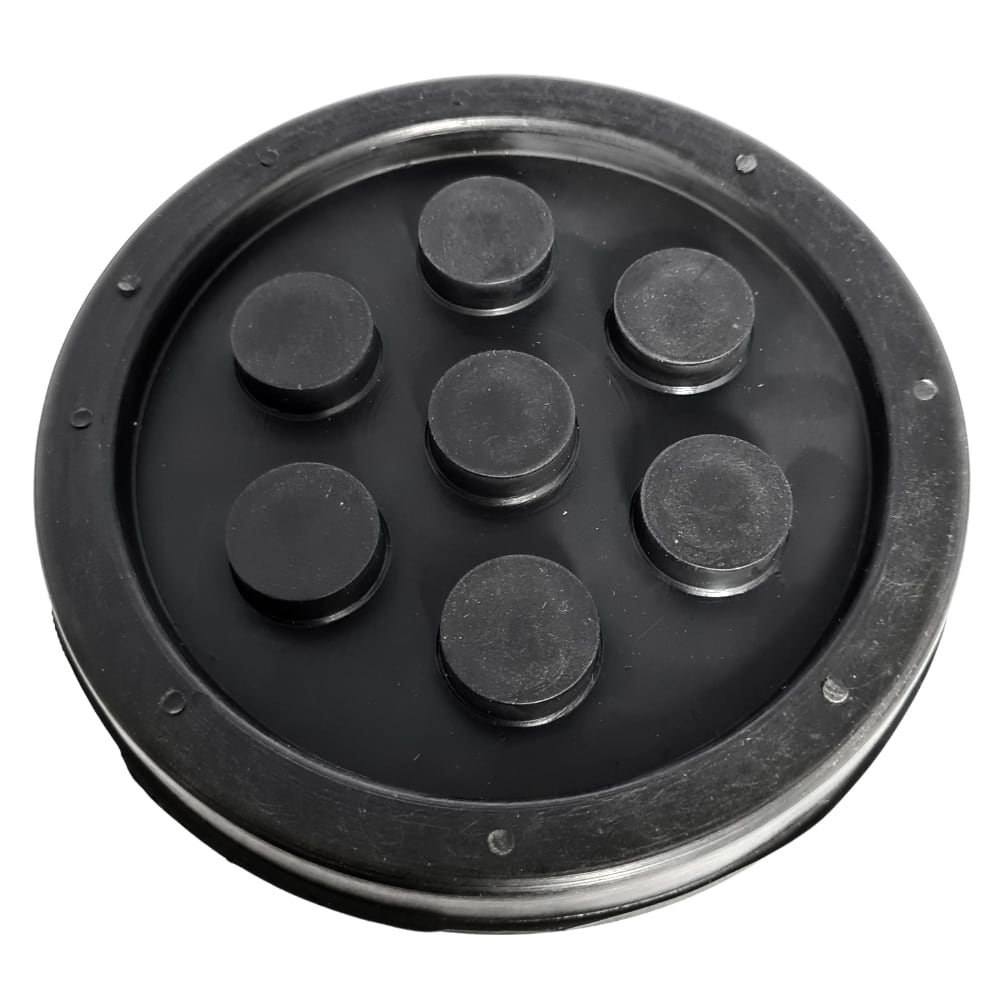

1x rubber pad
Suitable for the following models with support arm in WK design:
- Consul H327 (as of approx. 2005)
- Consul H300 (as of approx. 2009)
- Consul H354 (as of approx. 2009)
- Consul H355 (as of approx. 2009)
- Consul H383
- Consul H387
- Consul H388
- Consul H400 (as of approx. 2009)
- Consul H440 (as of approx. 2009)
- Consul H500
- Consul H505
- TRUSTERS ELVT2300
- Zippo 2030
- Zippo 2035
- Zippo 2040
- Zippo 2130
- Zippo 2135
- Zippo 2140
| Consul types: | H300, H327, H354, H400, H440, H500, H505 |
|---|---|
| Spare parts for lifting platforms: | rubber disks | holders |
| TRUSTERS Lifts: | ELVT2300 |
| Zippo Lifts: | 1930, 2030, 2035, 2040, 2130, 2135, 2140, H383, H387, H388 |
