LINE LIGHT 2 Post - Lightning for 2-post lifts and scissor lifts
Product information "LINE LIGHT 2 Post - Lightning for 2-post lifts and scissor lifts"
Lighting for 2-post lifts and scissor lifts
A flexible lighting solution that is always available and ready for use.
- Universally suitable for all two-post lifts and vertical lifts
- Ideal for mounting on existing lifts
- Integrated into the lift and easy to assemble
- No drilling required
- Dimmer included in the scope of delivery
- 75° beam angle
LIGHT 2-POST is the universal lighting solution that is compatible with all two-post lifts and scissor lifts, regardless of the manufacturer or brand. The lighting is integrated directly into the lift and is easy and straightforward to install without the need for Drilling.
Bright and even illumination of the work area with 1250 lumens
Compared to its predecessor, the LINE LIGHT 2 POST has increased output from 600 to 1250 lumens, providing significantly more brightness than the industry-standard 36W fluorescent tubes. The light beam is focused at a 75° beam angle, ensuring extremely bright and even illumination of the entire work area. At the same time, glare is avoided and the light can be swiveled for optimal lighting direction.
Versatile

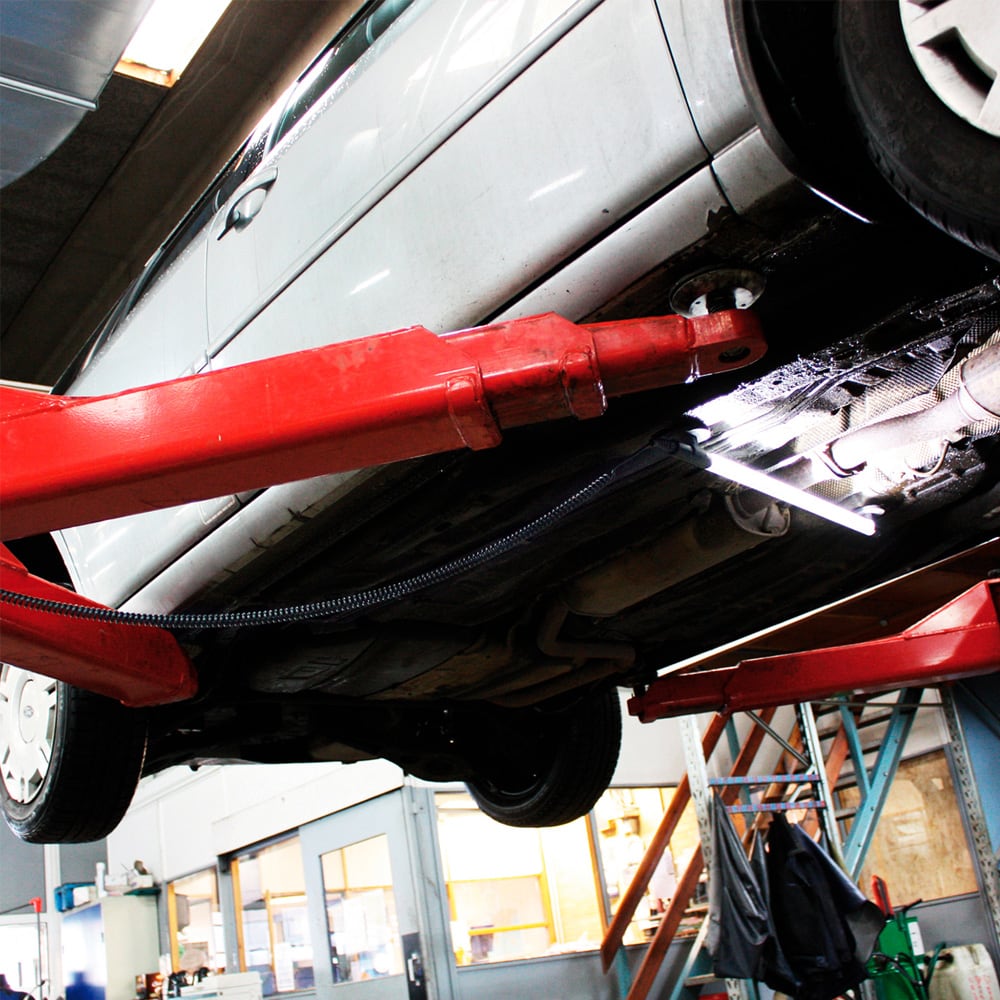

With a 5-meter coiled cable and strong magnetic clamps, the light is versatile – whether for lighting around or under the vehicle, in the engine compartment or in the wheel arch.
Extremely robust and impact-resistant lighting solution
The system consists of a fully enclosed extruded acrylic profile (PMMA) with an integrated prism, an LED board and black anodized aluminum end caps. It is extremely robust, resistant to shocks and waterproof (IP67 protection class), making it ideal for dirty and humid working environments. The LED technology offers a lifespan of at least 100,000 hours.

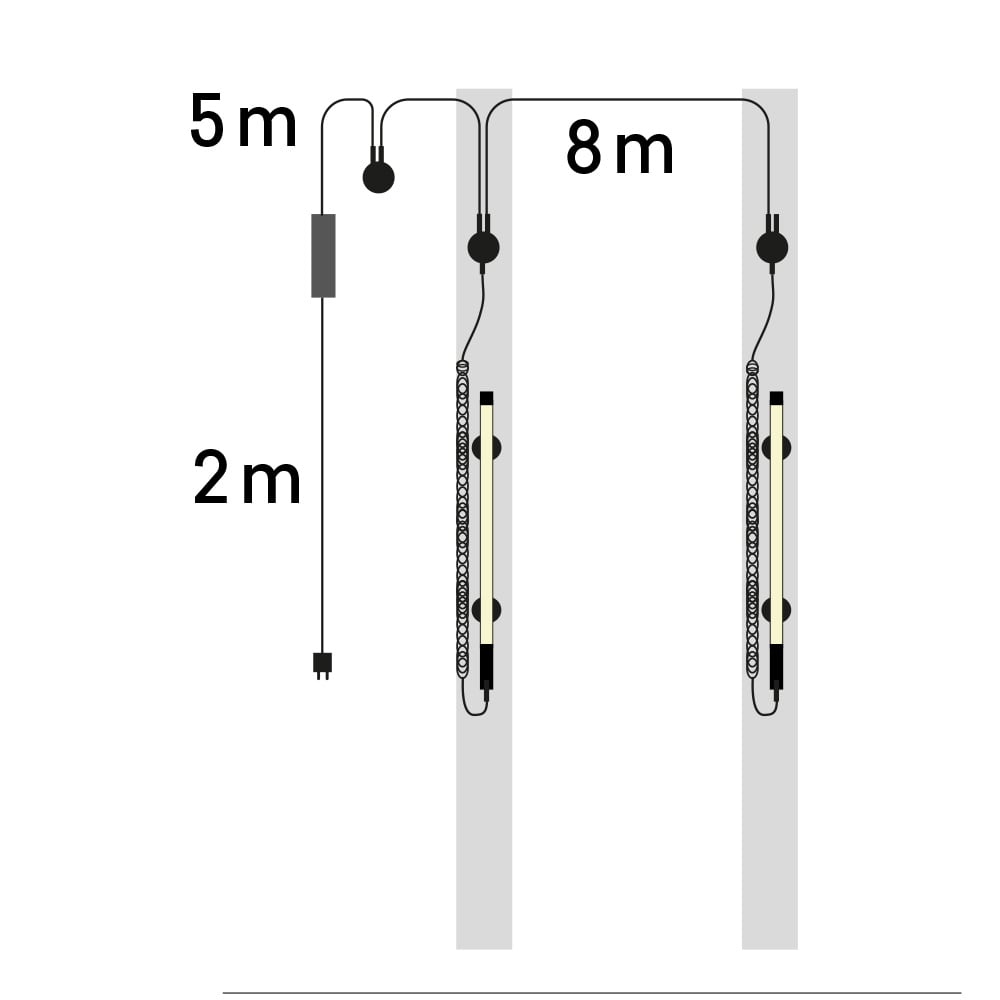

LIGHT 2 POST includes two 75 lighting units, each with 96 SMD LEDs, Ø25x770 mm, an 8 m cable, a 25 W power supply with 5 m cable and a LINE LIGHT dimmer.
Each lighting unit comes with a 1 m spiral cable and includes a magnetic junction box. Each lighting unit also comes with two strong magnetic clamps for flexible mounting Options.
Contents:
- 2 LINE LIGHT 75 lighting units with 96 SMD LEDs. Ø25x770 mm
- 8 m long cable
- 25 W power supply with 5 m cable
- LINE LIGHT dimmer
- Mounts
- User manual

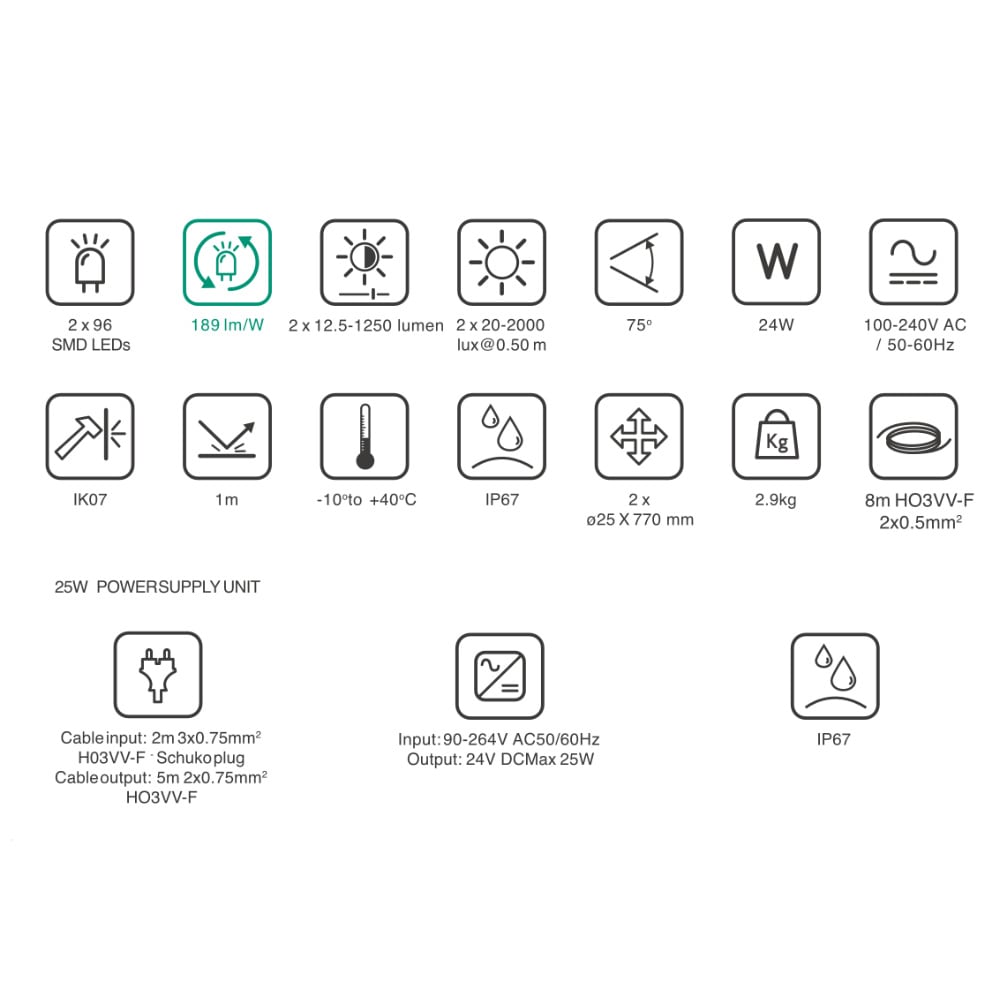

Technical data
| Luminous flux | 1250 to 2000 Lumen |
| Light source | 2 x 96 SMD LEDs |
| Beam angle | 75° |
| Power source | 24 V |
| Cable | 8 Meter |
| Input voltage | 100-204 V / AC 50 / 60 Hz |
| Plug | Type F (Schuko plug) |
| IP rating | IP67 |
| Operating temperature | -10°C to +40°C |
