OMCN 199/WRX " 5.5t " Hydraulics " Double-jointed support arms
€16,259.00
Delivery time, 30 days.
Product information "OMCN 199/WRX " 5.5t " Hydraulics " Double-jointed support arms"

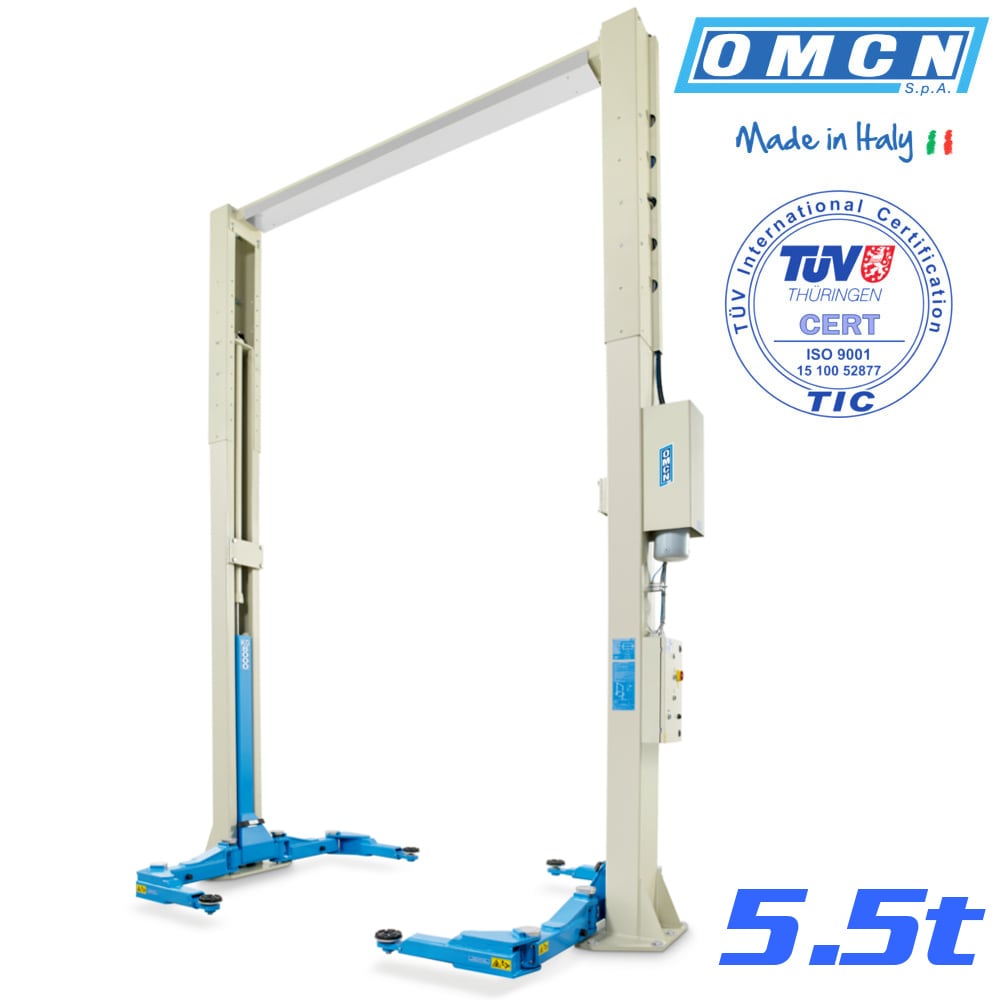

OMCN 199/WRX 2-Post Lift
- 5.5 metric tons lifting capacity
- Double-jointed support arms
- EN 1493 certified
- CE certified
- Made in Italy
- 60 years of experience
The one that does it all!
- Multi-link control arms designed to accommodate vehicles ranging from the Smart to XL vans
- The perfect solution to fully cover a wide range of vehicles
- Fully automatic locking and unlocking of the safety device—no manual lever required

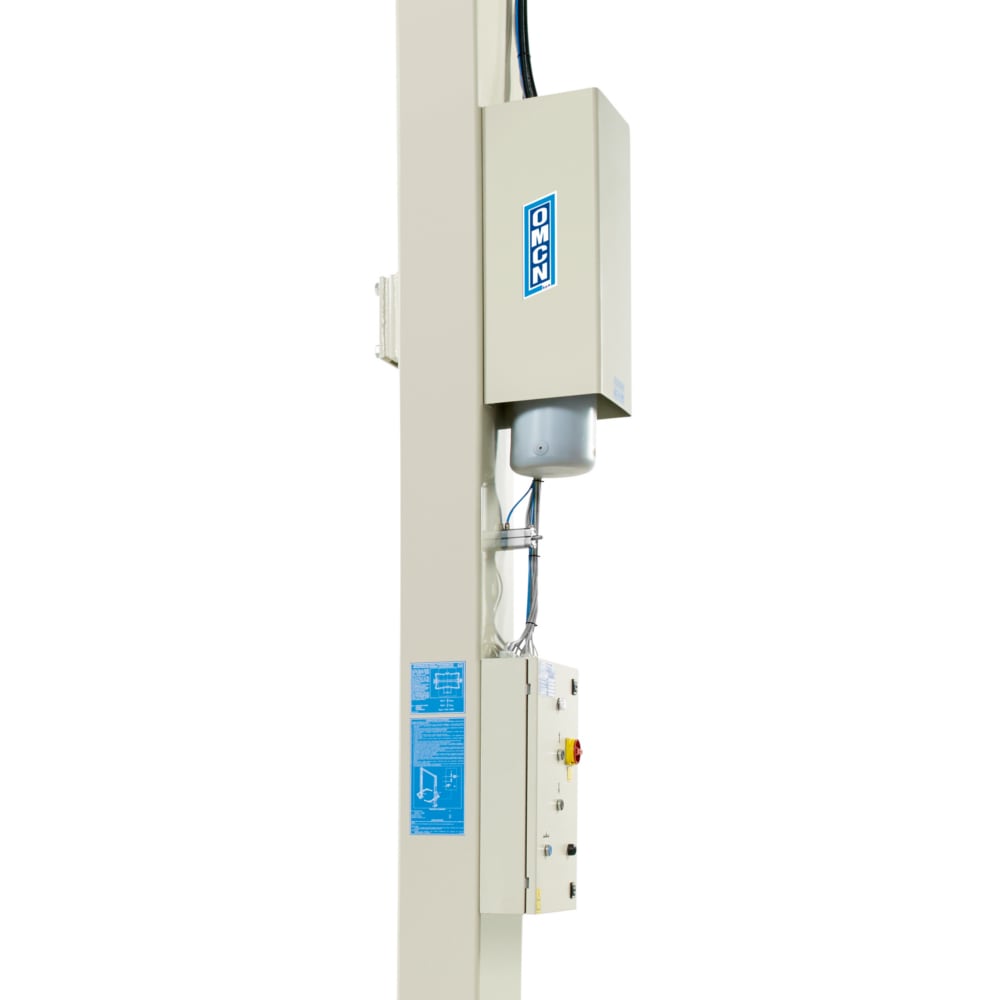

- The hydraulic unit is specially mounted at the top of the column so that the lower area of the platform remains clear for working
- Clear width between the columns of 3 meters. This not only allows all vehicles to drive in without any problems, but also makes getting in and out very comfortable.
- Special structure of the two columns to ensure maximum strength and rigidity
- The two extremely powerful hydraulic cylinders lift even under full load without losing lifting speed
- Height compensation is controlled by a PLC control unit, which not only ensures perfect level control but also allows operation without maintenance-intensive chains, cables, and pulleys
Double-jointed support arms for maximum flexibility
Can’t be done? Not a chance!
These articulated support arms provide maximum flexibility. Despite a clear width of over 3 meters, you’ll have no trouble loading a small Smart car, and even loading XL vans becomes a breeze. Even RVs, tractors, buses, and light trucks can be handled with these arms, as long as the 5.5-metric-ton load capacity isn’t exceeded.

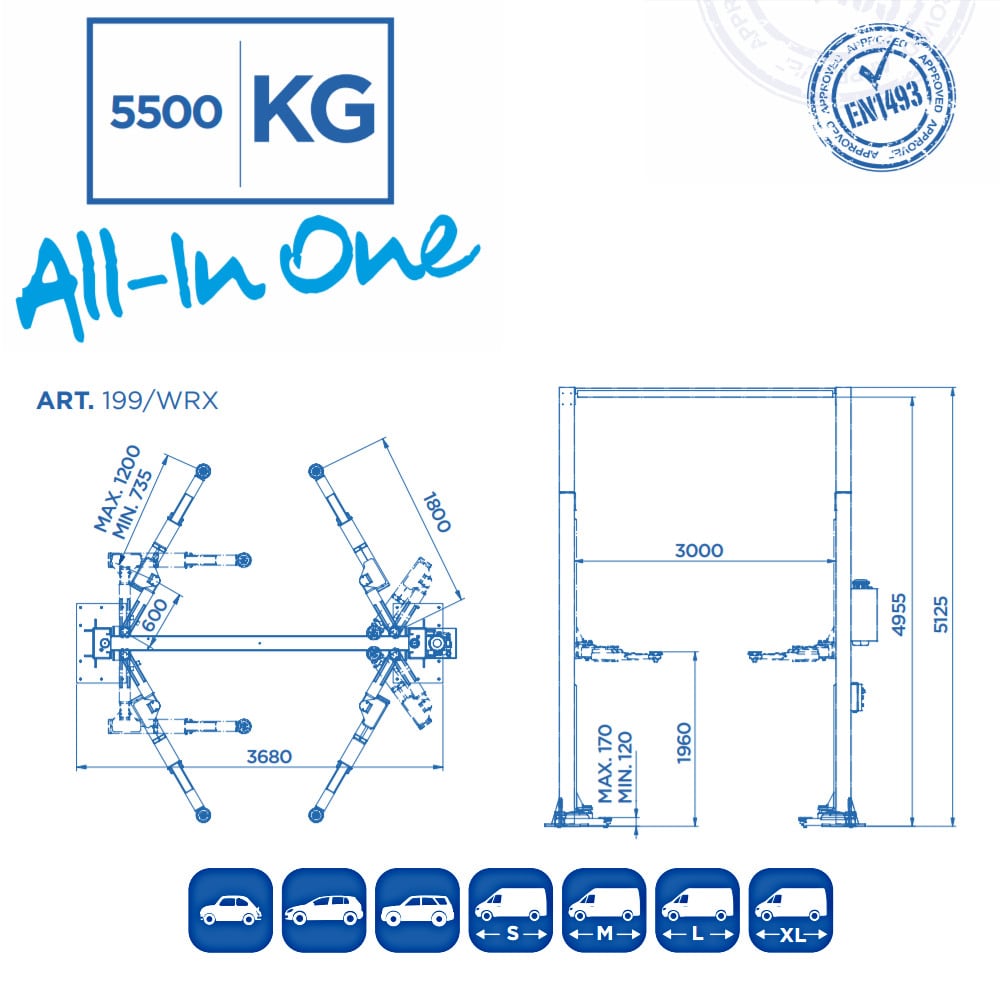

Technical Specifications
| Model | OMCN 199/WRX |
| Load Capacity | 5.5 metric tons |
| Drive | Electrohydraulic |
| Lifting height | 196 cm |
| Platform Type | 2-post lift |
| Support arms | Articulated arms |
| Support arm length | 735 mm to 1,800 mm |
| Lifting height | 120 mm to 170 mm |
| Clear width | 3,000 mm |
| Mains voltage | 400 V - 50 Hz |
| Motor power | 2.2 kW |
| Weight | 1,400 kg |
| Country of Manufacture | Italy |
Applications of the 5.5-metric-ton 2-post lift
- Freight Forwarders
- Car dealerships (all brands)
- Parcel delivery services
- Trucking companies
- Maintenance shops
- Military
- German Armed Forces
- Bus companies
- Public works depots
This articulating boom lift is best suited for lifting the following vehicles (up to 5.5 metric tons)
- From the Smart to XL vans with long wheelbases
- Industrial trucks
- Light trucks
- Buses
- Tractors
- RV
- Agricultural vehicles
- Forestry vehicles
| Drive: | hydraulic |
|---|---|
| Type of lifting plattform: | 2-post lift, car lifts, utility vehicle lifts |
| Capacity range: | 5,5 t - 8,0 t |
