Hydraulic press 70t " OMCN 163/W " Electro-hydraulic
€9,299.00
Delivery time, 21 days.
Hydraulic press 70t " OMCN 163/W " Electro-hydraulic
- Hydraulic press with 70t pressing force
- Chrome plated cylinder piston made of special steel for extremely high reliability and long life.
- Two-lift motorized control unit
- Drive by means of a lever three-way distributor.
- This design allows one-hand operation of the press. Thus, one hand is always free to move the material to be pressed to the desired position.
- With a calibration valve to always apply the pressing force of the hydraulic press exactly as it is needed.
- Simple, user-friendly operation, for an efficient workflow
- Lifting of the table by means of an easy to turn winch
- A 100% Italian product with 60 years of experience

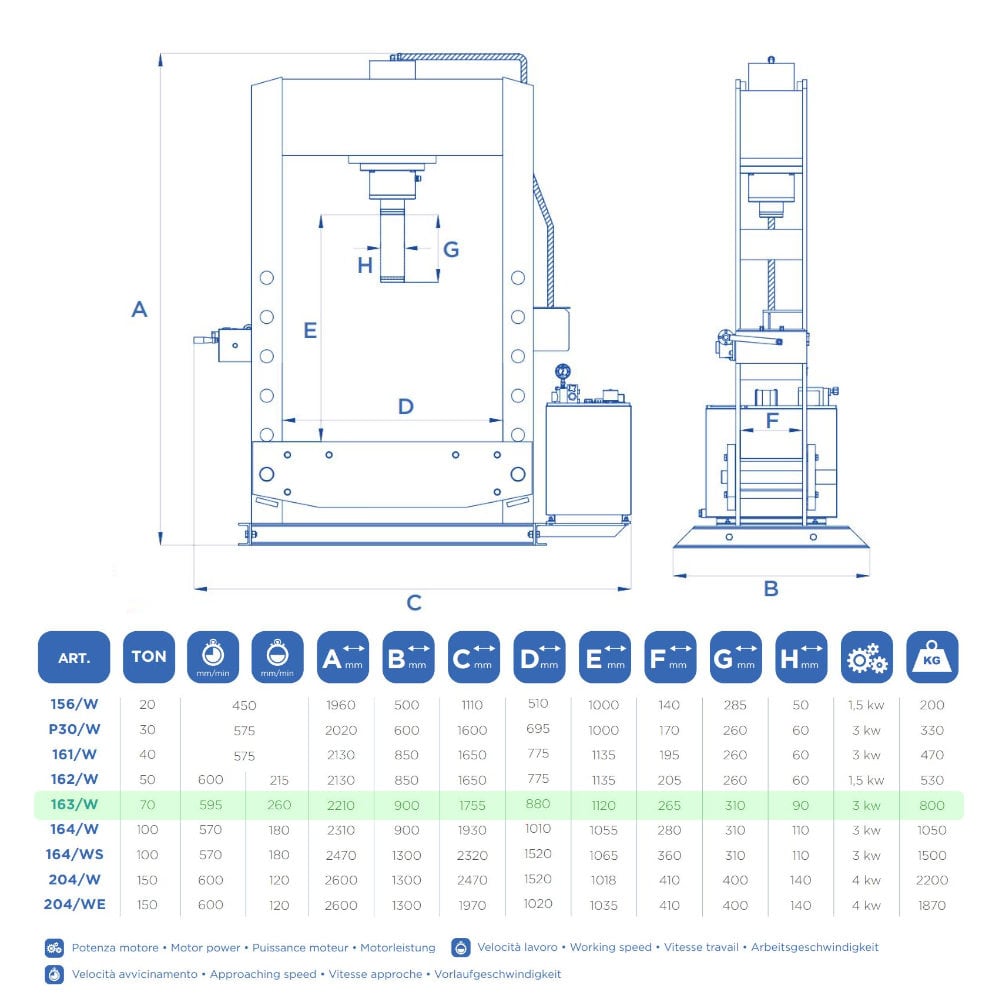

Technical data
Model OMCN 163/W Pressing force 70t Feeding speed 595mm / min. Working speed 260mm / min. Total height 2210mm Total width 1755mm Frame inside dimension 880mm Stroke 310mm Ø piston 90mm Engine power 3 Kw Weight 800 Kg Country of manufacture ItalyOptional accessories:
- Prism blocks art. 033
- Support plate art. 013
- Plunger adapter
- Viewing window Art. 090/C
- Centering device Art. 051
- Support plate with grooves as pressing die holder Art. 081
- Electric limit switch Art. 060
- Rotation stop device Art. 071
- Special design on customer request possible
| Press capacity: | 70t |
|---|---|
| Pump / Drive: | electric |
Login
Hydraulic presses that make the difference
- Fully welded frame - Solid, torsion-resistant, and therefore durable.
- Cylinder made of specially hardened steel - Very long service life.
- Piston hardened and chrome-plated - Therefore indestructible.
- Multiple speeds - For adaptable processes.
- High-quality components - From Holmac, Bosch-Rexroth, and Siemens.
- Delivered ready for operation - The presses are delivered completely ready for operation.
The OMCN quality promise
Guaranteed - Made in Italy.
TÜV certified
Over 65 years of experience
Independent. Self-determined. Real.
While most European press manufacturers have long since fallen into the hands of large American or Asian corporations, OMCN remains independent – out of complete conviction. Here in Bergamo, decisions are made not by an anonymous board of directors, but by people with intelligence, technical know-how, and craftsmanship in their veins.
Determining for ourselves where the path leads. A legacy that must be preserved.
Family business.
In-house production.
The Bergamo Effect.
Built to last for decades.
Hydraulic presses with tradition.
Welcome to Bergamo, the center of Italian engineering. Since 1958, a family business has stood for precision, reliability, and the highest quality: OMCN.
David Asshauer in front of a 300t press.
David Asshauer, Alexander Schugg, Dominik Dorn and Andreas Reisacher on their way to production.
Joint tour of the production facility.
Our Conclusion
We attach great importance to ensuring that the products we offer our customers meet the highest quality standards. Therefore, in March 2023 and February 2025, we personally visited the production facility at OMCN in Bergamo. What we saw there made a lasting impression: state-of-the-art production facilities, a highly qualified team of specialists, and quality control at the highest level. This visit confirmed what we had long believed: When we recommend OMCN products to our customers, we can do so with a clear conscience. Because we saw with our own eyes how carefully the work is carried out here – from the first weld to the final quality control.
