Hydraulic press 150t " OMCN 204/W " Electro-hydraulic
€21,629.00
Delivery time, 21 days.
Hydraulic press 150t " OMCN 204/W " Electro-hydraulic
- Hydraulic press with 150t pressing force
- Chrome-plated cylinder piston made of special steel for extremely high reliability Long service life.
- Two-lift motorized control unit
- Drive by means of a lever three-way distributor.
- This design allows one-hand operation of the press. Thus, one hand is always free to move the material to be pressed to the desired position.
- With a calibration valve to always apply the pressing force of the hydraulic press exactly as it is needed.
- Simple, user-friendly operation, for an efficient workflow
- Lifting of the table by means of a rod
- A 100% Italian product with 60 years of experience

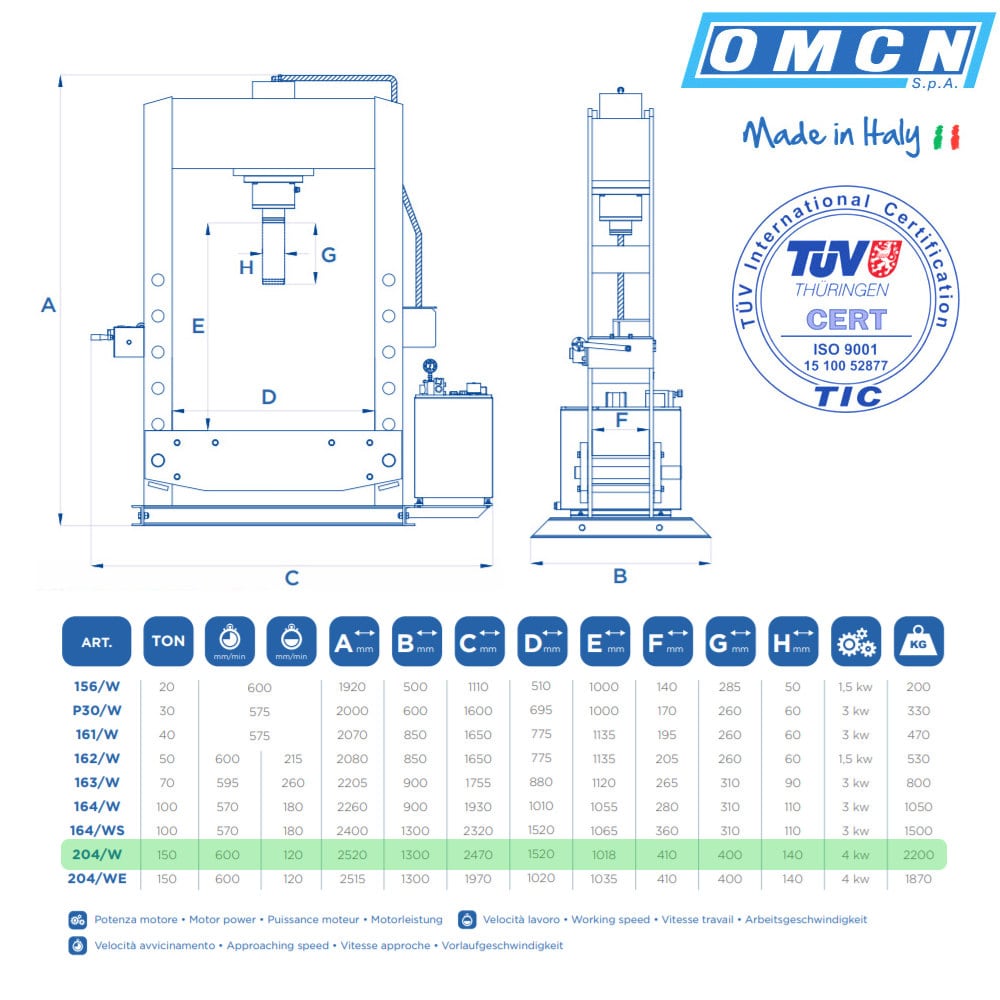

Technical data
Model OMCN 204/W Pressing force 150t Feeding speed 600mm / min. Working speed 120mm / min. Total height 2600mm Total width 2470mm Frame inside dimension 1520mm Stroke 400mm Ø piston 140mm Engine power 4 Kw Weight 2200 Kg Country of manufacture ItalyOptional accessories:
- Prism blocks art. 035
- Support plate art. 015
- Viewing window Art. 090/E
- Centering device Art. 052
- Support plate with grooves as press mold holder Art. 083
- Electric limit switch Art. 61
- Rotation stop device Art. 072
- Movable cylinder Art.022/B
- Special design possible on customer's request
| Press capacity: | 150t |
|---|---|
| Pump / Drive: | electric |
