Hydraulic cylinder double acting, 11t/4t, OMCN 369
Product number:
9966-369
Regular price:
€929.00
Delivery time, 20 days.
Leasing is that simple!
Use the many advantages of leasing for your success. No more long trips to the bank and a decision within minutes.
Product information "Hydraulic cylinder double acting, 11t/4t, OMCN 369"
Double acting cylinder OMCN 369
11t/4t lifting capacity | 700 bar
- 100% Italian hydraulics
- Made in Italy

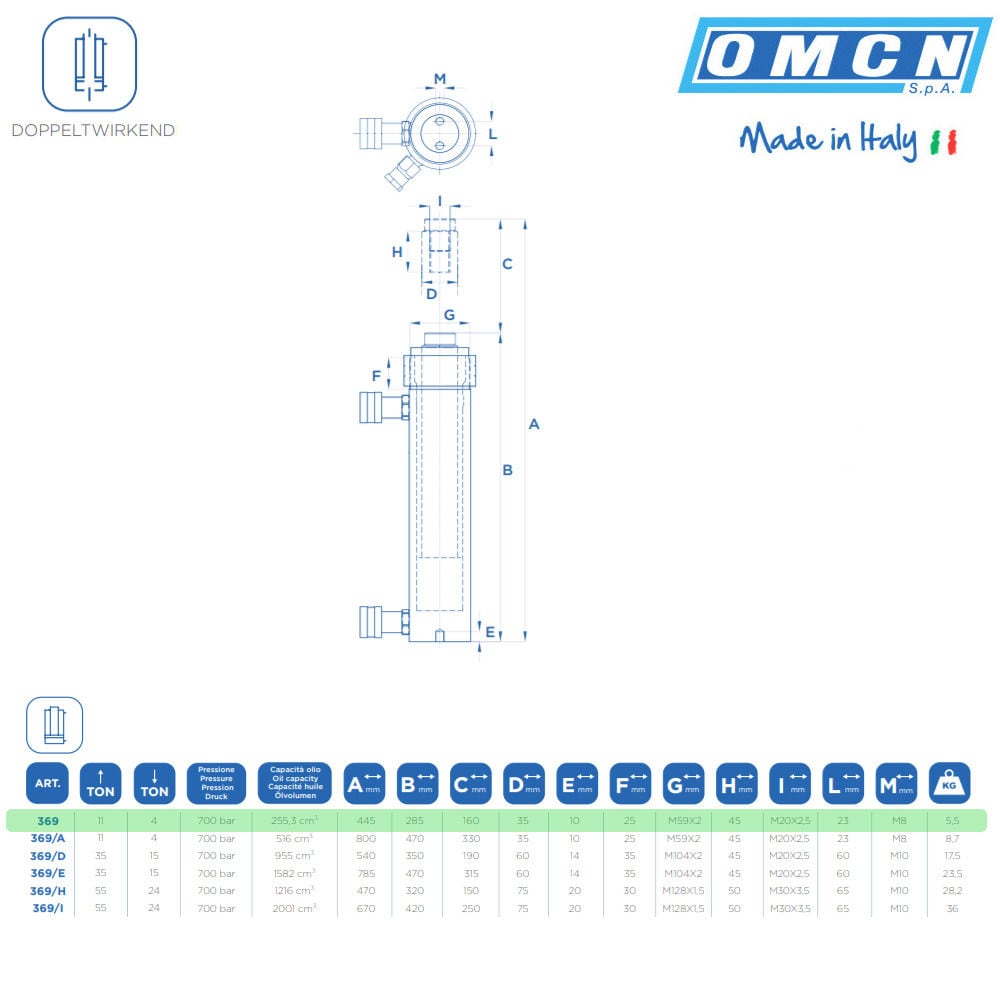

Technical data:
| Lifting capacity | 11t/4t |
| Action | double acting |
| Pressure | 700 bar |
| oil volume | 255,3 cm³ |
| Height max. | 445 mm |
| Height min. | 285 mm |
| Stroke | 160 mm |
| Ø piston | 35 mm |
| Quick coupling | 25/1,5 |
| Weight | 5,5 kg |
| Country of manufacture | Italy |
Hydraulic cylinder double acting - Characteristics:
- High-strength special piston for extremely long life and reliability
- Double acting with lifting force during extension and retraction
- Quick coupling size: 25/1,5
- Female thread on the cylinder if you want to attach another quick coupling/connection: F1/4" NPT
- A 100% Italian product with 60 years of experience
Applications of the double acting OMCN 369 hydraulic cylinder:
OMCN cylinders can be found in many industrial fields, such as.
- Steel construction
- Heavy industry
- Power plants
- Construction
- Plant engineering
- Mechanical engineering
The main field of application is lifting, aligning, weighing, clamping or as a power source for universal pressing work. Due to the short guides, flat cylinders should not be loaded at an angle or off-center.
