Hydraulic cylinder 10t, OMCN 360/DM, with spring return
Product information "Hydraulic cylinder 10t, OMCN 360/DM, with spring return"
Hydraulic cylinder OMCN 360/DM
10t lifting capacity | 700 bar | spring return
- 100% Italian hydraulics
- Made in Italy

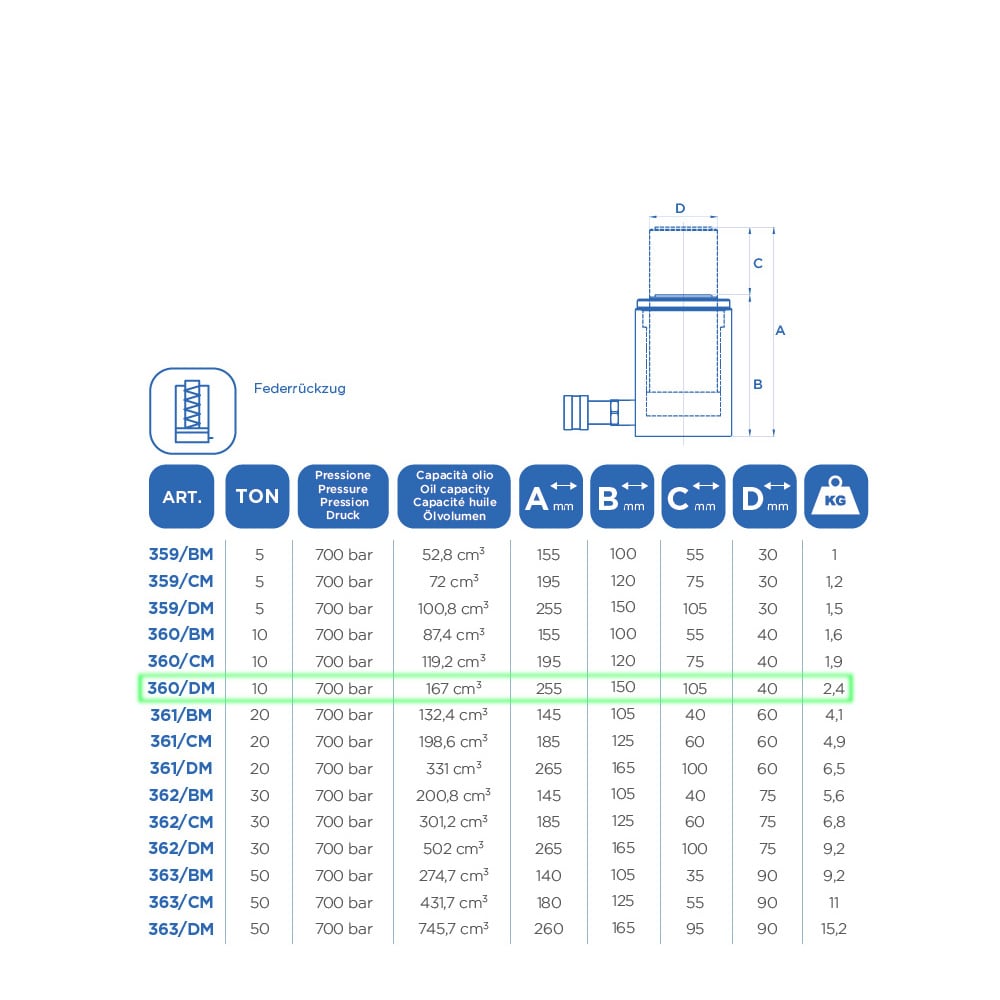

Technical data
| Lifting force | 10 t |
| Pressure | 700 bar |
| oil volume | 167cm³ |
| Piston return | Spring return |
| Action | Single acting |
| Height min. | 150 mm |
| Height max. | 255 mm |
| Stroke | 105 mm |
| Ø piston | 40 mm |
| Quick coupling | 25/1,5 |
| Weight | 2,4 Kg |
| Country of manufacture | Italy |
Features of the cylinder
- High strength special piston for extremely long life and reliability
- Single acting with spring return
- Quick coupling size: 25/1.5
- Female thread on the cylinder in case you want to attach another quick coupling/connector: F1/4" NPT
- A 100% Italian product with 60 years of experience
Applications of the OMCN 360/DM hydraulic cylinder
OMCN cylinders can be found in many industrial fields, such as
- Steel construction
- Heavy industry
- Power plants
- Construction
- Plant engineering
- Mechanical engineering
The main field of application is lifting, aligning, weighing, clamping or as a power source for universal pressing work. Due to the short guides, flat cylinders should not be loaded at an angle or off-center.
