Hydraulic cylinder 10t, OMCN 360/C
Product information "Hydraulic cylinder 10t, OMCN 360/C"
Hydraulic cylinder OMCN 360/C
10t lifting capacity | 700 bar | load retraction
- 100% Italian hydraulics
- Made in Italy

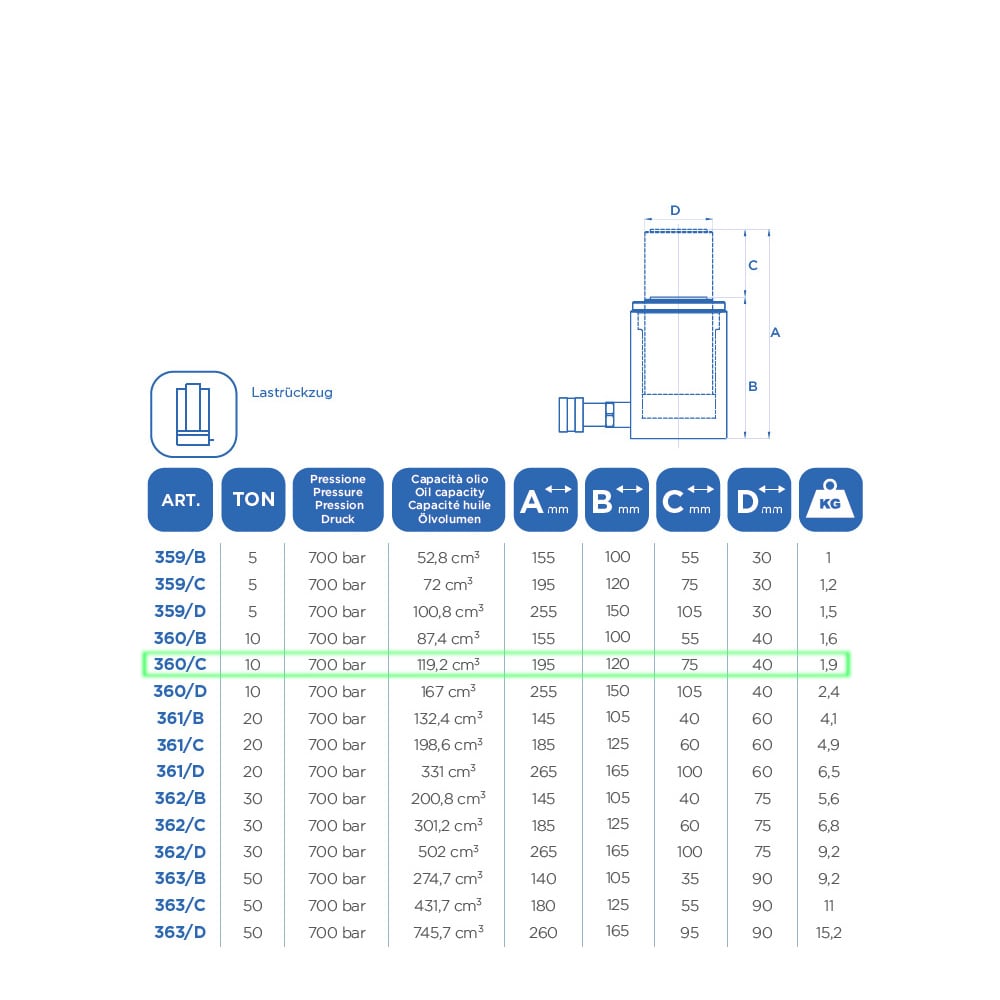

Technical data
| Lifting force | 10 t |
| Lifting pressure | 700 bar |
| oil volume | 119.2 cm³ |
| Piston return | Load retraction |
| Action | Single-acting |
| Height min. | 120 mm |
| Max. height | 195 mm |
| Stroke | 75 mm |
| Ø piston | 40 mm |
| Quick coupling | 25/1,5 |
| Weight | 1.9 kg |
| Country of manufacture | Italy |
Features of the cylinder:
- High-strength special piston for extremely long service life and reliability
- Single-acting with load retraction
- Quick coupling size: 25/1.5
- Internal thread on the cylinder if you want to attach a different quick coupling/connection: F1/4" NPT
- A 100% Italian product with 60 years of experience
Applications of the OMCN 360/C hydraulic cylinder:
OMCN cylinders can be found in many areas of industry, such as
- Steel construction
- Heavy industry
- Power stations
- Construction industry
- Plant engineering
- Mechanical engineering
The main area of application is lifting, aligning, weighing, clamping or as a power source for universal pressing work. Due to the short guides, flat cylinders should not be loaded at an angle or off-center.
