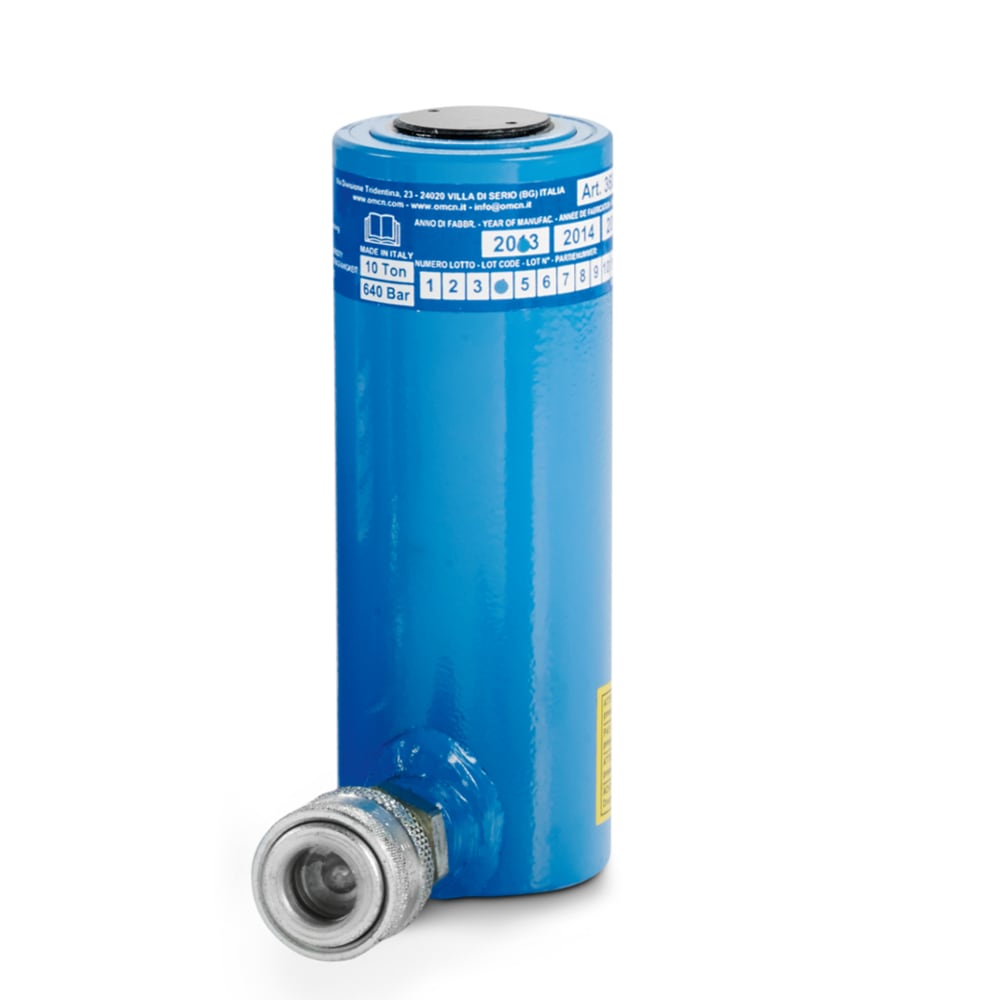

Hydraulic cylinder 10t, OMCN 360/B
Product information "Hydraulic cylinder 10t, OMCN 360/B"
Hydraulic cylinder OMCN 360/B
10t lifting capacity | 700 bar | load retraction
- 100% Italian hydraulics
- Made in Italy

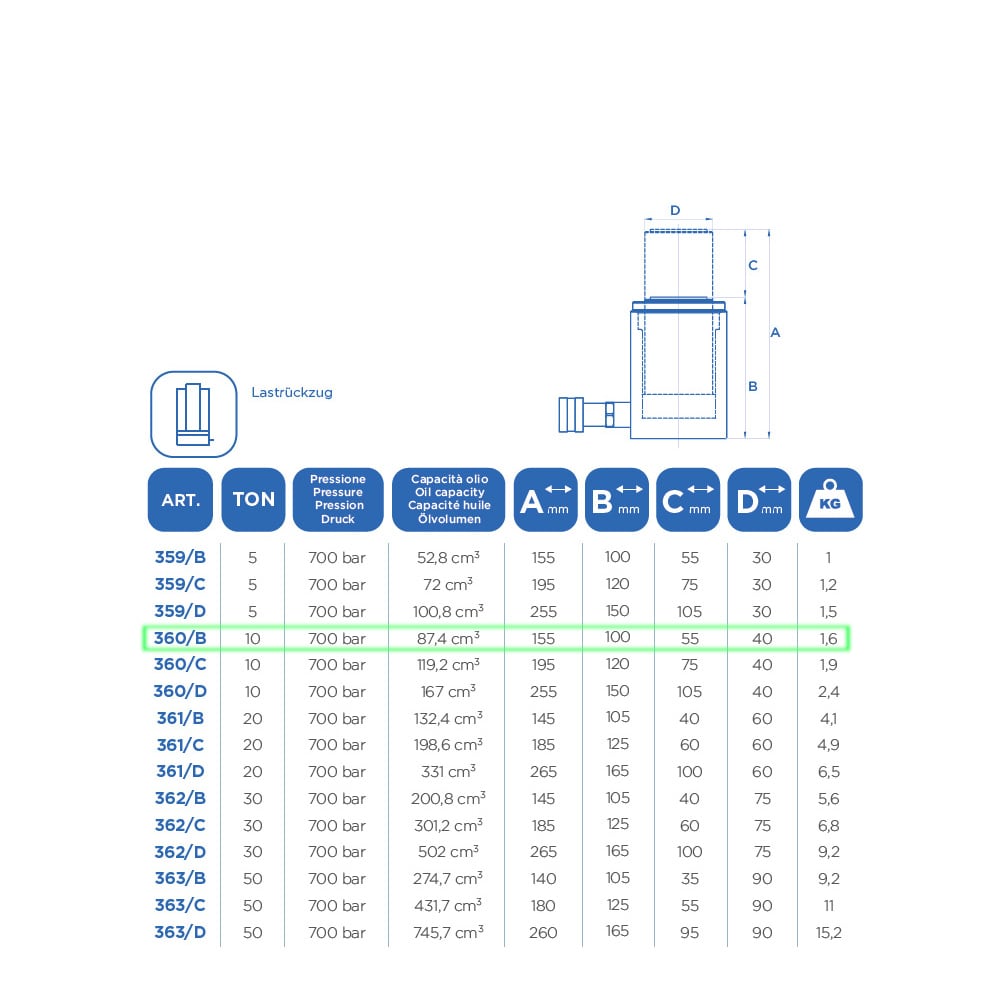

Technical data
| Lifting force | 10t |
| Pressure | 700bar |
| oil volume | 87,4cm³ |
| Piston retraction | Load retraction |
| Action | Single acting |
| Height min. | 100mm |
| Height max. | 155mm |
| Stroke | 55mm |
| Ø piston | 40mm |
| Quick coupling | 25/1,5 |
| Weight | 1,6 Kg |
| Country of manufacture | Italy |
Features of the short stroke cylinder:
- High strength special piston for extremely long life and reliability
- Single acting with load return
- Very low height of for limited space, thus the perfect choice even in the tightest spaces
- Quick coupling size: 25/1.5
- Female thread on the cylinder if you want to attach another quick coupling/connector: F1/4" NPT
- A 100% Italian product with 60 years of experience
Applications of the OMCN 360/B short stroke hydraulic cylinder:
These extremely rugged hydraulic cylinders lend themselves to applications where space is at a premium.
OMCN cylinders can be found in many industrial fields, such as
- Steel construction
- Heavy industry
- Power plants
- Construction
- Plant engineering
- Mechanical engineering
The main field of application is lifting, aligning, weighing, clamping or as a power source for universal pressing work. Due to the short guides, flat cylinders should not be loaded at an angle or off-center.
