Heavy-duty cylinder 245t, OMCN 368/CM
Product number:
9966-368-CM
Regular price:
€5,359.00
Delivery time, 20 days.
Leasing is that simple!
Use the many advantages of leasing for your success. No more long trips to the bank and a decision within minutes.
Product information "Heavy-duty cylinder 245t, OMCN 368/CM"

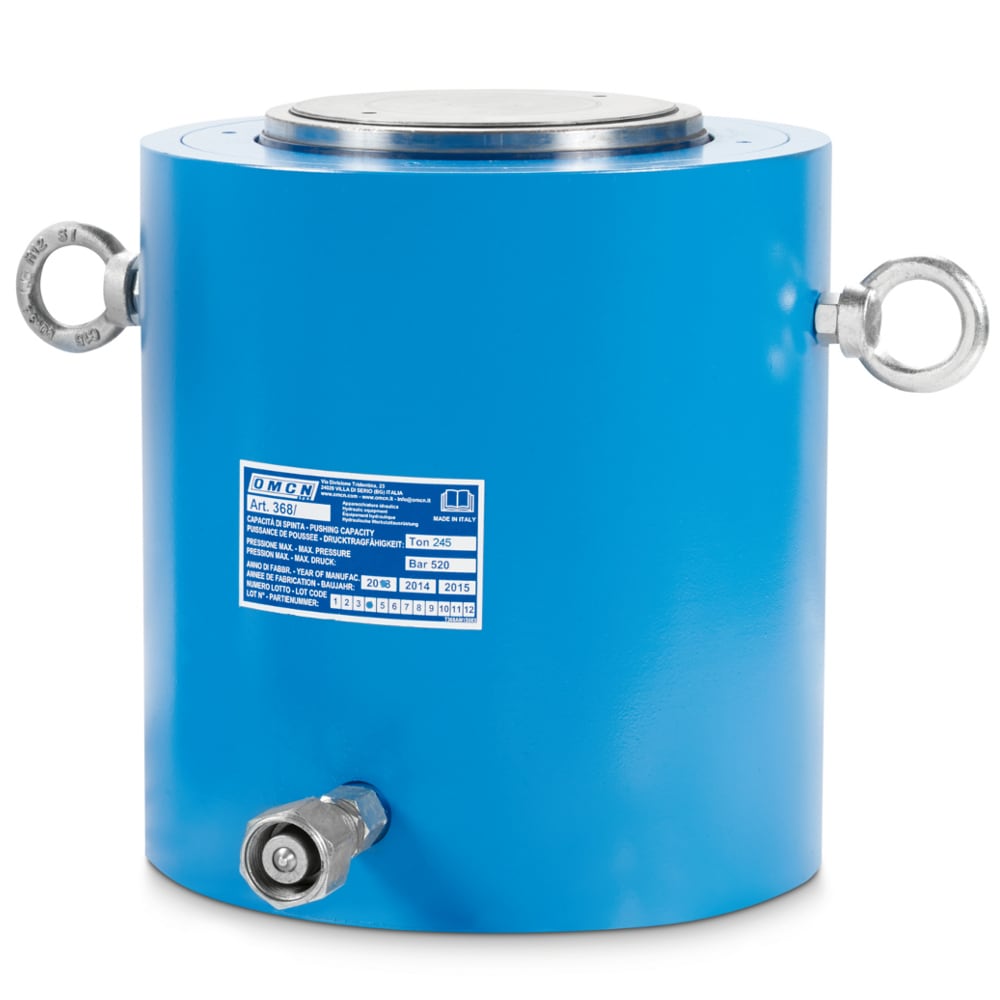

Heavy-duty cylinder 245t OMCN 368/CM
245t lifting capacity | 520 bar | spring return
- 100% Italian hydraulics
- Made in Italy

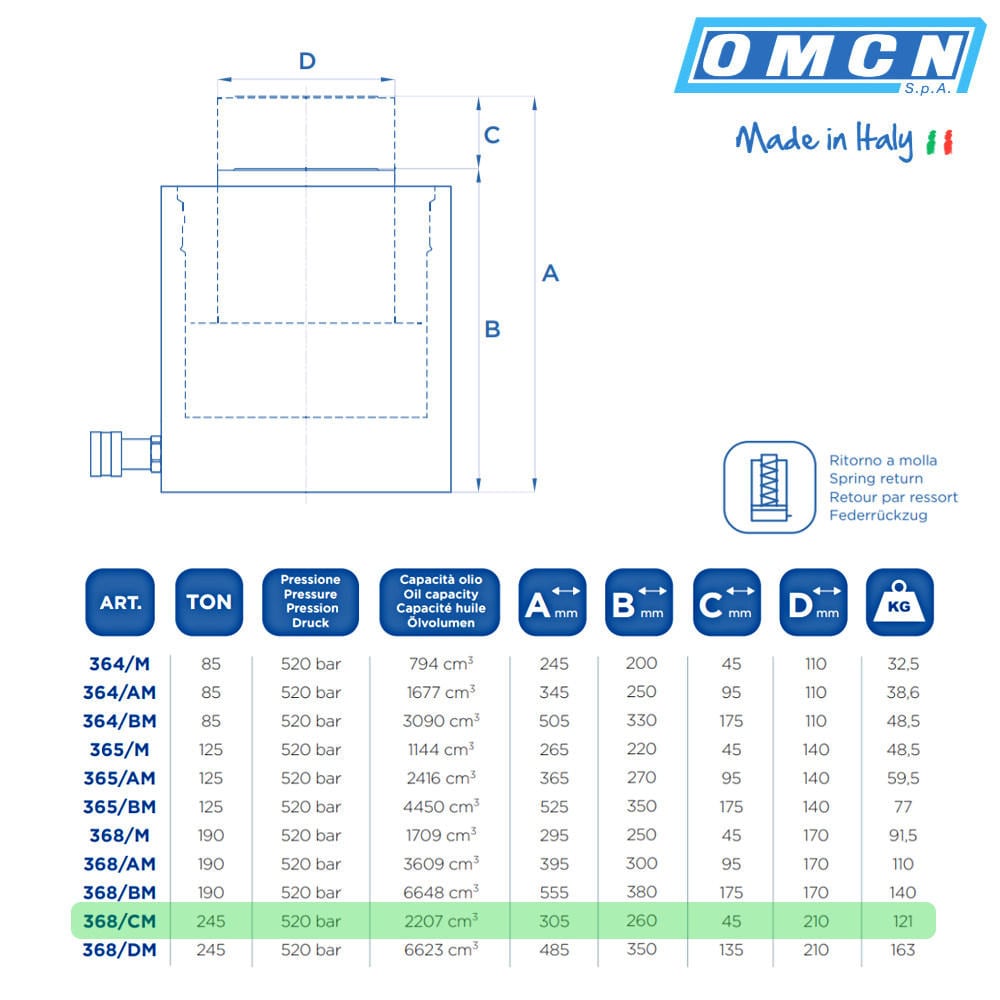

Technical data
| Lifting capacity | 245 t |
| Lifting pressure | 520 bar |
| oil volume | 2207cm³ |
| Piston return | Spring return |
| Action | Single-acting |
| Height min. | 260 mm |
| Height max. | 305 mm |
| Stroke | 45 mm |
| Ø piston | 210 mm |
| Quick coupling | 25/1,5 |
| Weight | 121 kg |
| Country of manufacture | Italy |
Features of the heavy-duty cylinder 245t:
- Special piston made of high-strength materials for maximum reliability and an extremely long service life.
- Spring return, single-acting.
- Solid and very robust design for a safe feeling when lifting heavy loads.
- Quick coupling size: 25/1.5
- The internal thread on the cylinder if you want to attach a different quick coupling/connection: F 3/8" NPT
- A 100% Italian product with over 60 years of experience from the manufacturer OMCN
Applications of the OMCN 368/CM heavy duty cylinder with 245t:
This robust hydraulic cylinder is used wherever heavy loads such as industrial plants or bridges need to be lifted.
OMCN cylinders can be found in many areas of industry and construction, such as
- Steel construction
- Heavy industry
- Power stations
- Construction
- Mechanical engineering
- Bridge construction
