Heavy-duty cylinder 125t, OMCN 365/BM
Product number:
9966-365-BM
Regular price:
€2,609.00
Delivery time, 20 days.
Leasing is that simple!
Use the many advantages of leasing for your success. No more long trips to the bank and a decision within minutes.
Product information "Heavy-duty cylinder 125t, OMCN 365/BM"
Heavy-duty cylinder 125t OMCN 365/BM
125t lifting capacity | 520 bar | spring return
- 100% Italian hydraulics
- Made in Italy

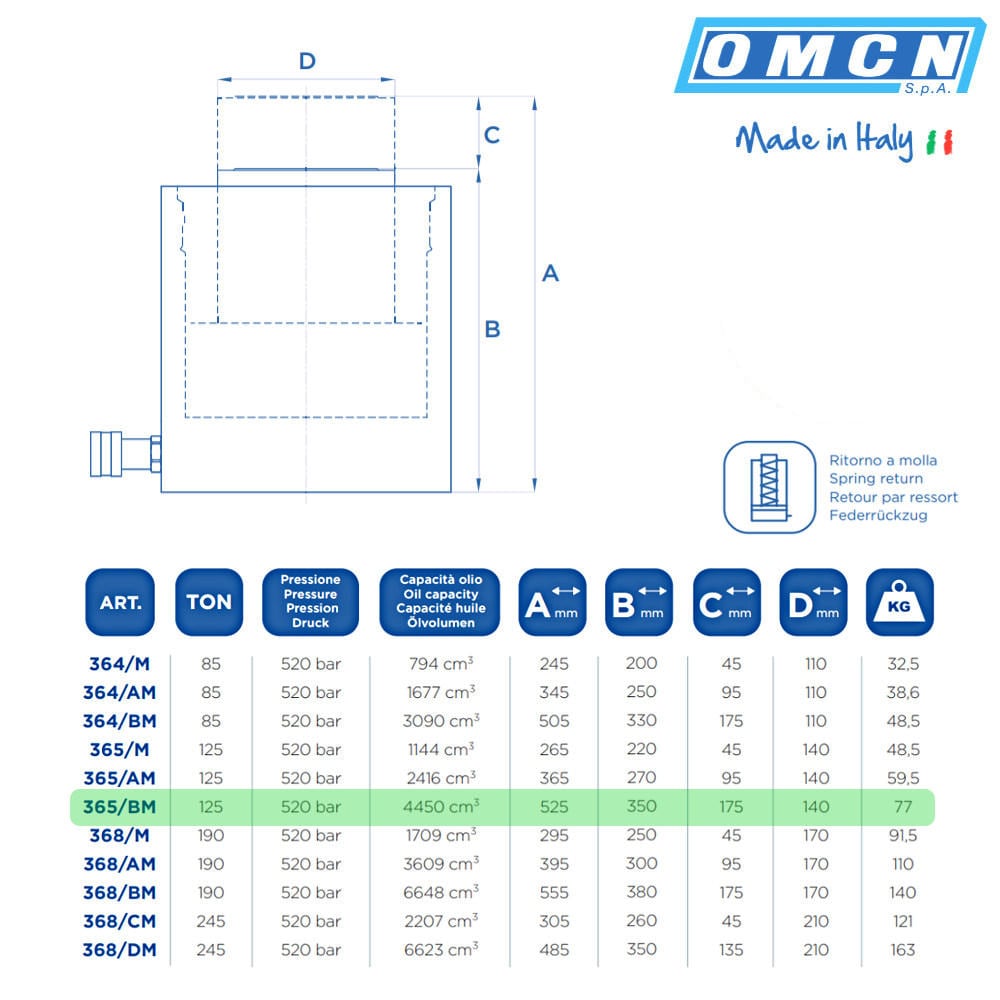

Technical data
| Lifting force | 125 t |
| Lifting pressure | 520 bar |
| oil volume | 4450 cm³ |
| Piston return | Spring return |
| Action | Single-acting |
| Height min. | 350 mm |
| Height max. | 525 mm |
| Stroke | 175 mm |
| Ø piston | 140 mm |
| Quick coupling | 25/1,5 |
| Max. weight | 77 kg |
| Country of manufacture | Italy |
Features of the heavy-duty cylinder 125t:
- Special piston made of high-strength materials for maximum reliability and an extremely long service life.
- Spring return, single-acting.
- 175mm stroke
- Solid and very robust design for a safe feeling when lifting heavy loads.
- Quick coupling size: 25/1.5
- The internal thread on the cylinder if you want to attach a different quick coupling/connection: F 3/8" NPT
- A 100% Italian product with over 60 years of experience from the manufacturer OMCN
Applications of the OMCN 365/BM heavy-duty cylinder with 125t:
This robust hydraulic cylinder is used wherever heavy loads such as industrial plants or bridges need to be lifted.
OMCN cylinders can be found in many areas of industry and construction, such as
- Steel construction
- Heavy industry
- Power stations
- Construction
- Mechanical engineering
- Bridge construction
