Double-acting hydraulic cylinder, 35t / 15t, OMCN 369/E
Product number:
9966-369-E
Regular price:
€1,969.00
Delivery time, 20 days.
Leasing is that simple!
Use the many advantages of leasing for your success. No more long trips to the bank and a decision within minutes.
Product information "Double-acting hydraulic cylinder, 35t / 15t, OMCN 369/E"

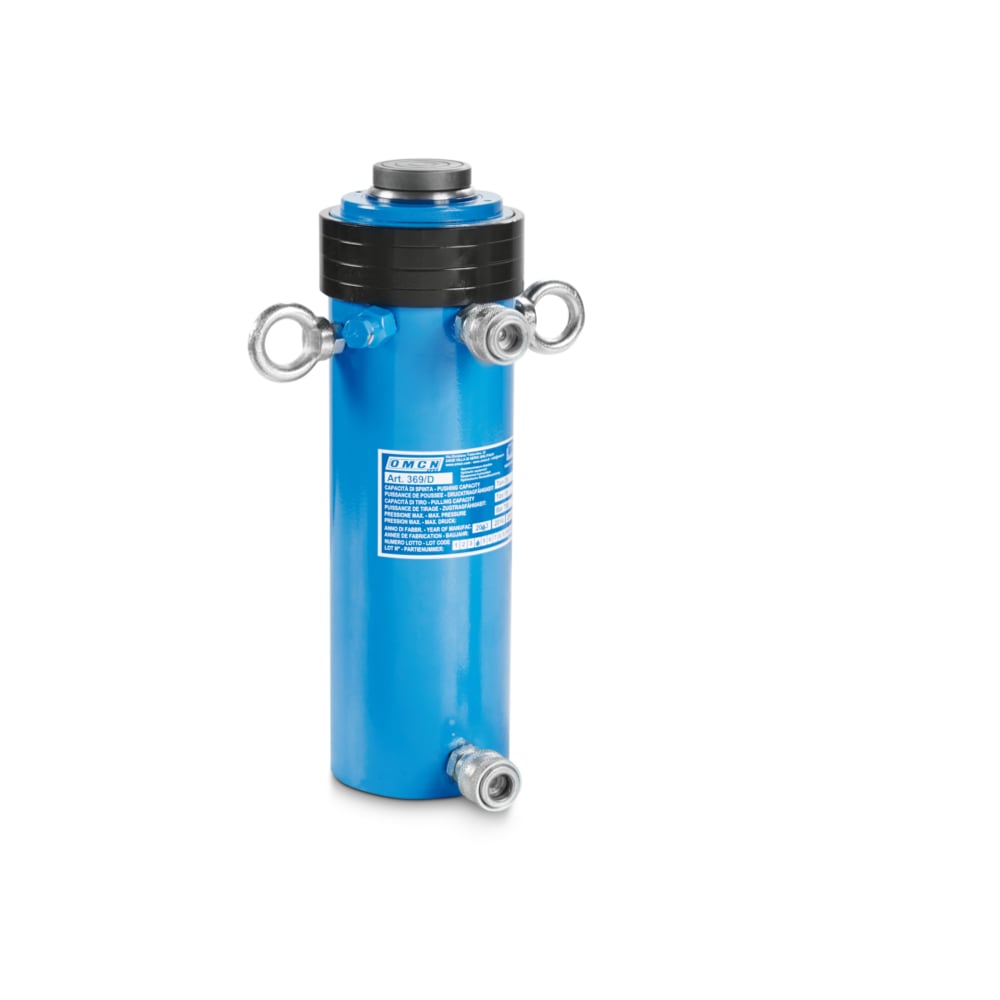

Double-acting cylinder OMCN 369/E
35t / 15t lifting capacity | 700 bar
- 100% Italian hydraulics
- Made in Italy

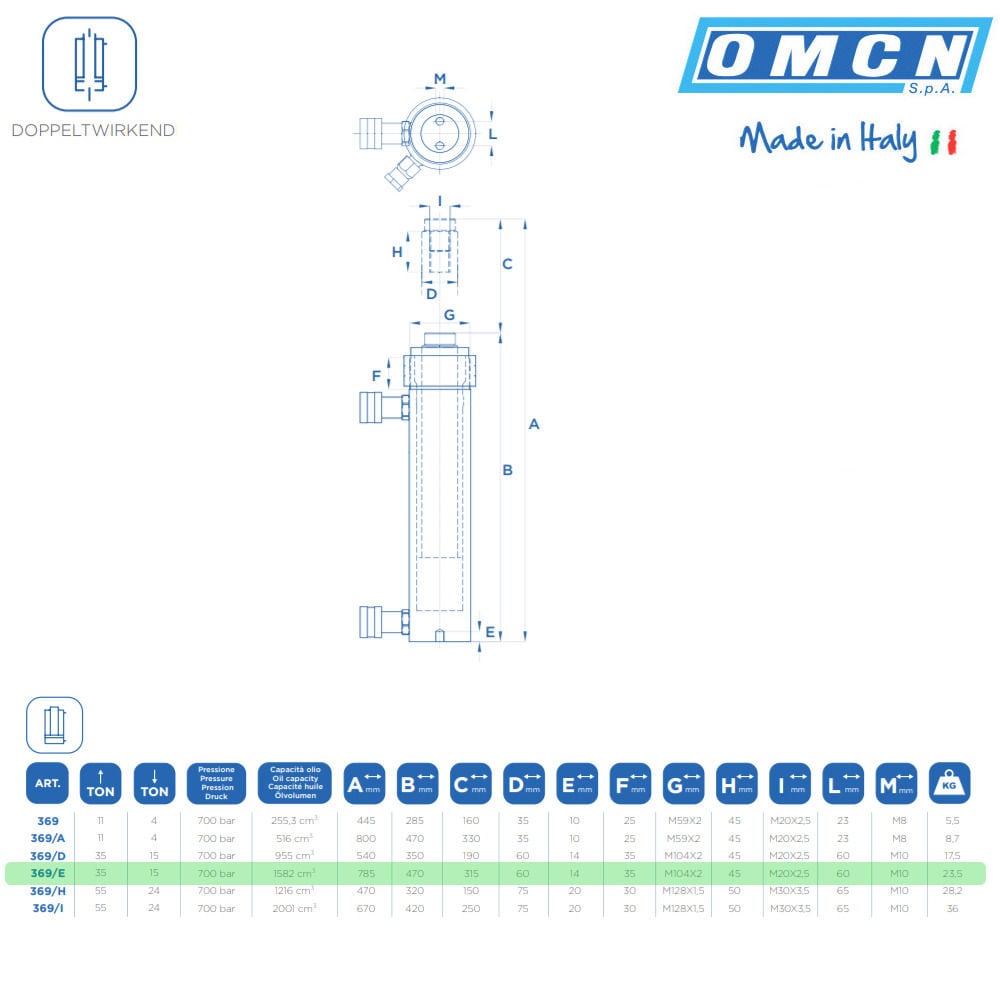

Technical data
| Lifting capacity | 35t / 15 t |
| Action | double-acting |
| Pressure | 700 bar |
| oil volume | 1582 cm³ |
| Max. height | 785 mm |
| Height min. | 470 mm |
| Stroke | 315 mm |
| Ø piston | 60 mm |
| Quick coupling | 25/1,5 |
| Max. weight | 23.5 kg |
| Country of manufacture | Italy |
Double-acting hydraulic cylinder - Features:
- High-strength special piston for extremely long service life and reliability
- Double-acting with lifting force when extending and retracting
- Quick coupling size: 25/1.5
- Internal thread on the cylinder if you want to attach a different quick coupling/connection: F1/4" NPT
- A 100% Italian product with 60 years of experience
Applications of the double-acting OMCN 369/E hydraulic cylinder:
OMCN cylinders can be found in many areas of industry, such as
- Steel construction
- Heavy industry
- Power stations
- Construction industry
- Plant engineering
- Mechanical engineering
The main area of application is lifting, aligning, weighing, clamping or as a power source for universal pressing work. Due to the short guides, flat cylinders should not be loaded at an angle or off-center.
