Consul EL 2.35 Premium " 3.5t " Made in Germany
€5,899.00
Delivery time, 15 days.
Product information "Consul EL 2.35 Premium " 3.5t " Made in Germany"
The all-rounder made in Germany - Consul EL 2.35 Premium
- 3.5 tons load capacity
- 35 seconds lifting time
- Special support arms approx. 650-1340mm
- Made in Germany
- Energy set
- Range: From Smart ForTwo BR453 to VW T6 (long)
- Construction: Pillars made of hot-rolled special profile - no sheet metal! This makes them particularly stable.
- Area of application: Like all Consul lifts, this lift is also designed for daily use in professional workshops

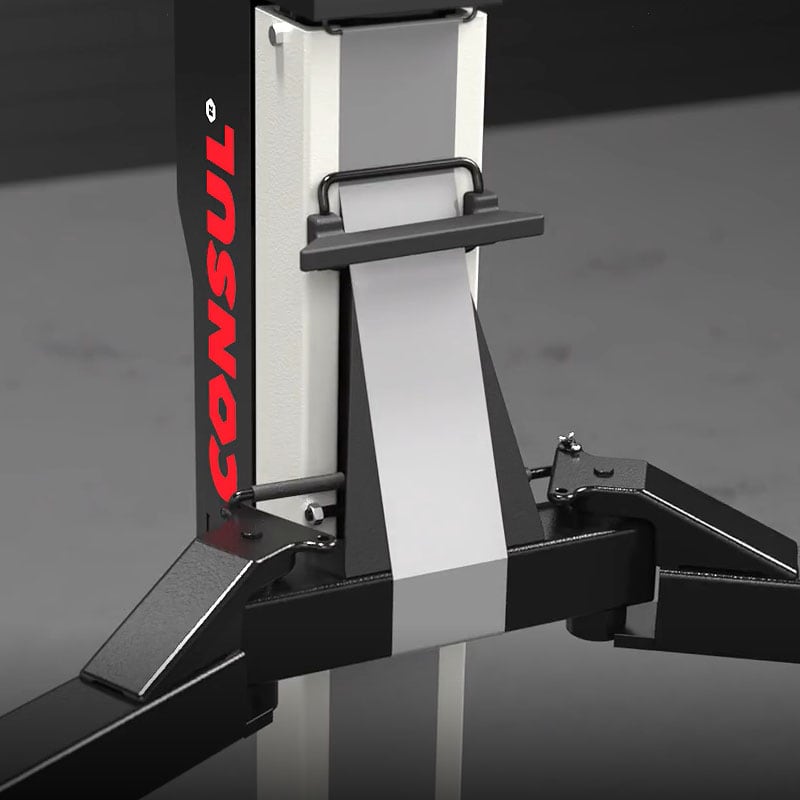

- lifting carriage with 6 roller bearings: The lifting carriages have 6 roller bearings, so the EL 2.35 Premium has a very smooth lifting process

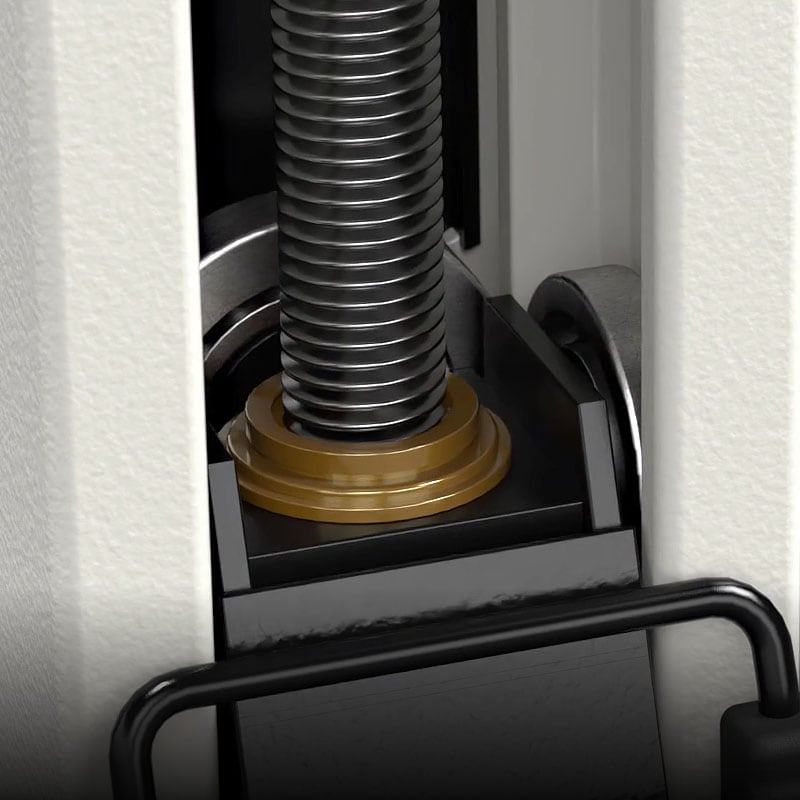

- Lifting nuts: The lifting nut is made of bronze and the safety nut is made of a cast alloy.
- Lubrication: An oiler that supports lubrication is fitted as standard.
- Power set: This lift has a power set integrated in the control box as standard, consisting of: 230V socket + air pressure connection.
- Height adjustment: The height adjustment is computer-controlled.
- Operation: Lifting and lowering via softline pushbutton control.

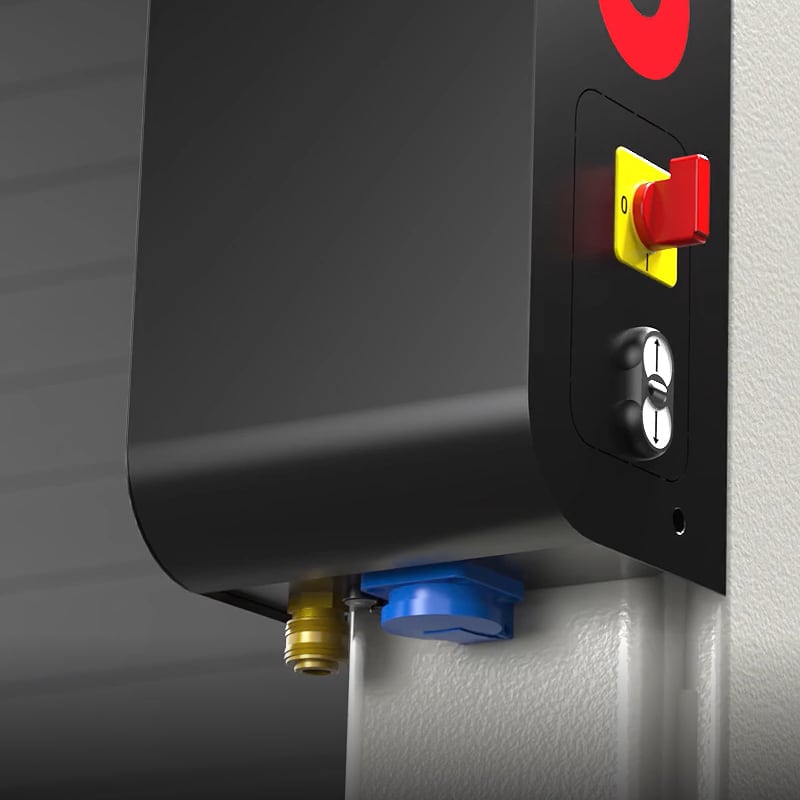

- Control box: For a sleek and modern design, the control box is integrated into the motor cover.
- Lifting time: With a sensational lifting time of approx. 35 seconds, this platform is one of the fastest spindle lifts.
- Internal lifting carriage: The advantage of internal lifting carriages is that there is no oil or grease on the outside of the column. No soiling of clothing when walking past
- Door stops: The door stops are spring-loaded so that neither the vehicle nor the lift can be damaged when getting in and out of the vehicle
- Cable bridge: The scope of delivery includes the cable bridge to connect the two columns together
- Support arm lock: The automatic support arm lock closes from a height of 300 mm, but can be readjusted manually.
- Country of manufacture: Consul is one of the few manufacturers that still produces in Germany. That's a promise!
Probably the best support arms in this weight class!

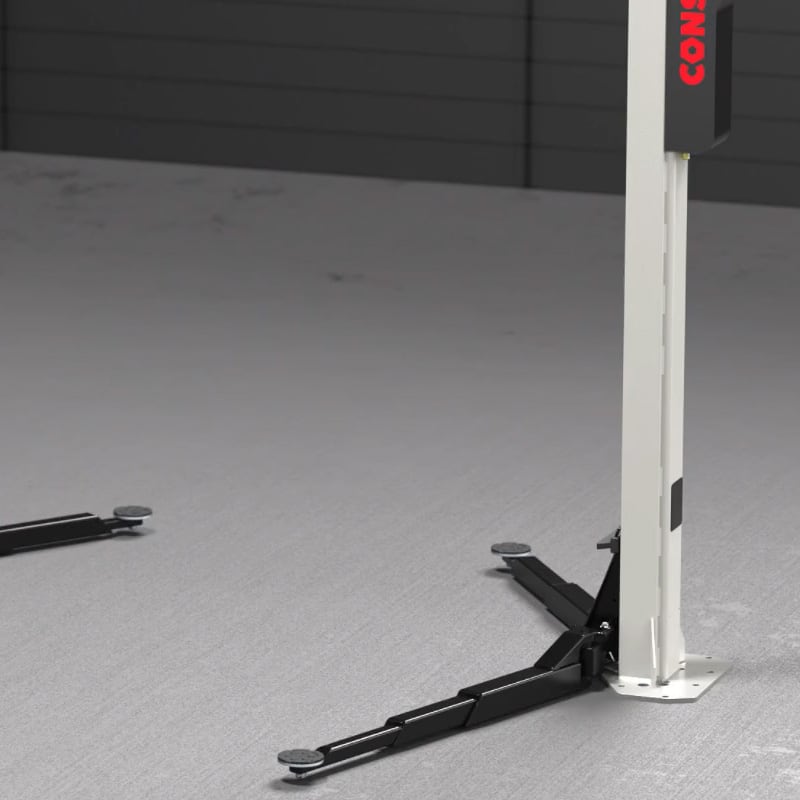

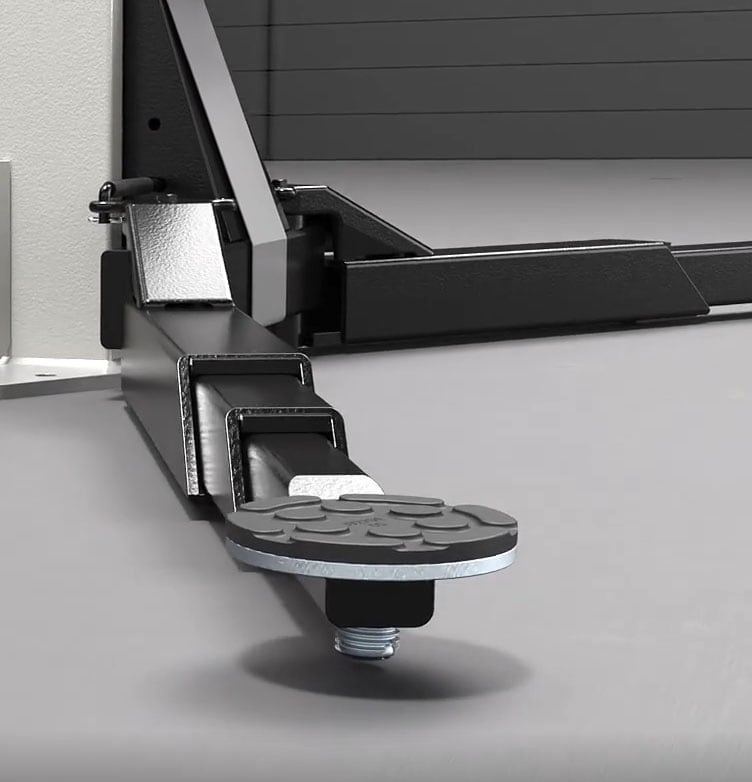

- 3-part: All four support arms are 3-part. This means that the vehicle can be driven in and lifted forwards or backwards.
- Dimensions: All support arms are identical and have dimensions of approx. 650-1340 mm, making them very flexible.
- Lower swivel height: With a lower swivel height of 85 mm, these support arms are also among the flattest on the market. Precise installation is necessary to achieve this specification.
- Long wheelbase: This lift can also be used to lift VW T5 & T6 with a long wheelbase.
Safety:
- Signal tone when lowering
- Re-entry protection
- Protection class IP 54
- DIN EN 1493
- CE-certified
Technical data:
| Load capacity | 3500 kg |
| Lifting height max. | approx. 2,005 mm* |
| Lifting / lowering time | approx. 35 s |
| Lowering height | approx. 85 mm |
| Extension of support arms | approx. 650 - 1,340 mm (3-part) |
| Installation width/height | approx. 3,400 / 2,560 mm |
| Drive-through width | approx. 2,390 mm |
| Internal column spacing | approx. 2,830 mm |
| Drive power | 2 x 3.0 kW |
| Drive voltage (elec.) | 400 / 50 V/Hz |
| Fuse protection (elec.) | 20 A slow-blow |
* Lifting height achievable with optional accessories.
| Drive: | spindle |
|---|---|
| Type of lifting plattform: | 2-post lift, car lifts |
| Capacity range: | 2,5 t - 3,5 t, 3,6 t - 5,0 t |
