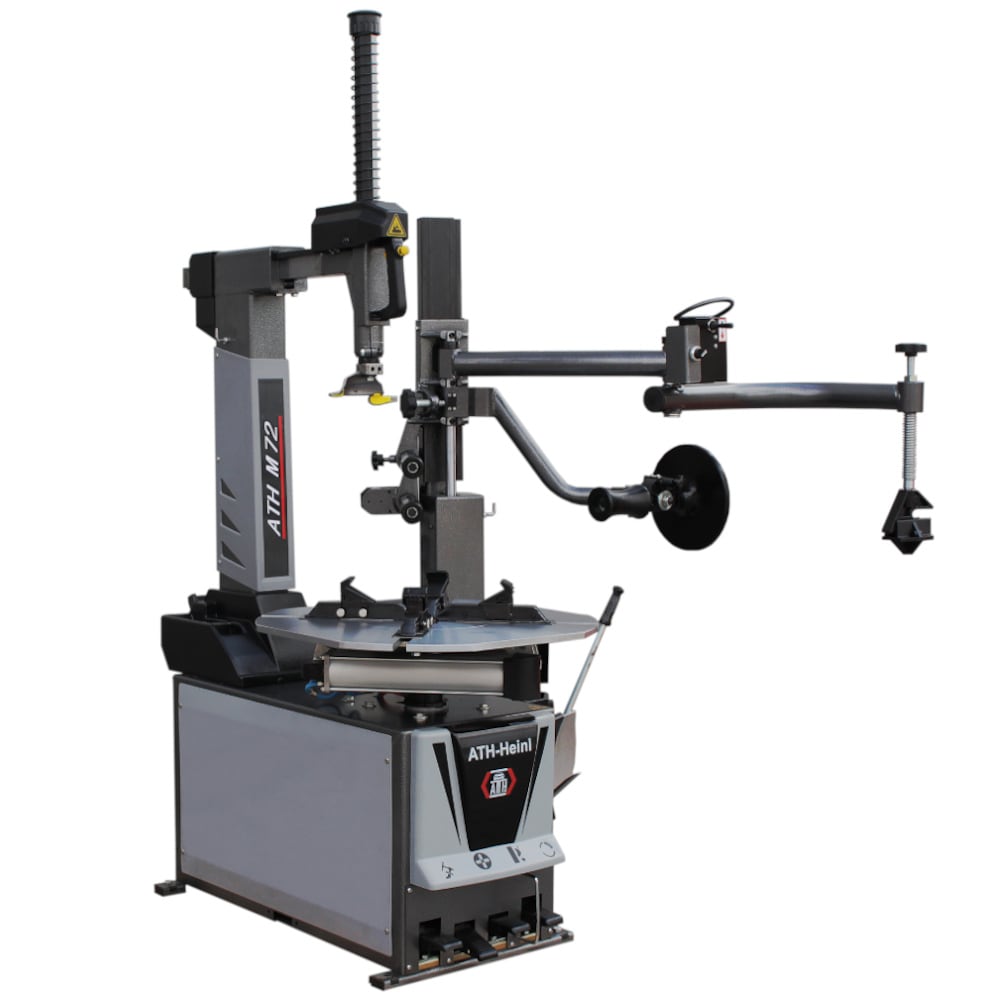

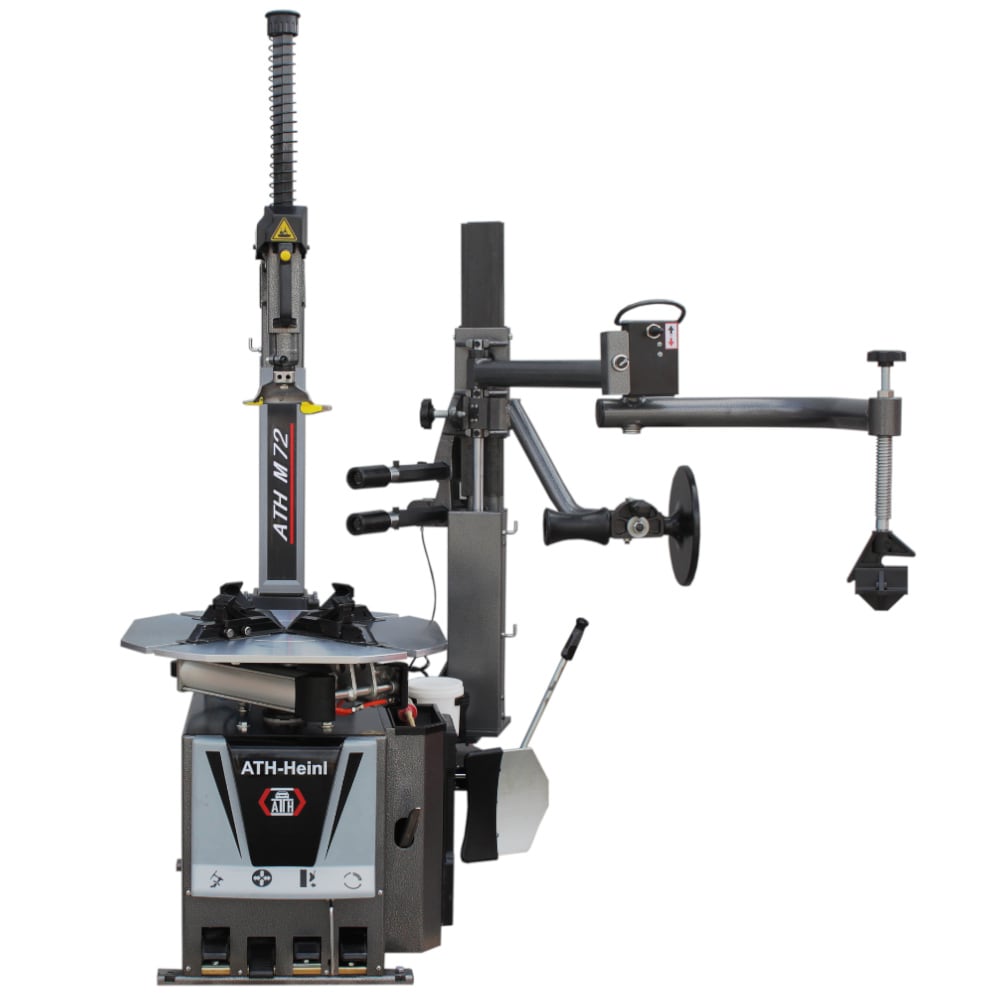

ATH-Heinl M72 + A34 " 26" inch " For runflat & UHP tires
Product number:
ATH-M72-A34
Regular price:
€3,999.00
Delivery time, 8 days.
Leasing is that simple!
Use the many advantages of leasing for your success. No more long trips to the bank and a decision within minutes.
Product information "ATH-Heinl M72 + A34 " 26" inch " For runflat & UHP tires"
ATH-Heinl M72 + A34
- Up to 26" external clamping | up to 30" internal clamping
- Efficient tilting mast
- 2 turning speeds
- Tail swing with pneumatic mounting head clamping
- Including auxiliary mounting arm ATH A34 for low profile, run-flat & UHP tires
Features of the ATH-Heinl M72 + A34
- ATH M72 tire changer with pneumatic rear swivel and tilting mast for efficient work
- Incl. ATH A34 auxiliary mounting arm (right) for effortless and damage-free (de)mounting of low-profile, UHP and run-flat tires thanks to pneumatic control
- Pneumatic mounting head clamping, including automatic vertical and horizontal rim removal
- Torsion-resistant construction with high-precision laser cutting
- Resistant hammer blow powder coating
- 2 mounting speeds (6 and 12 rpm)

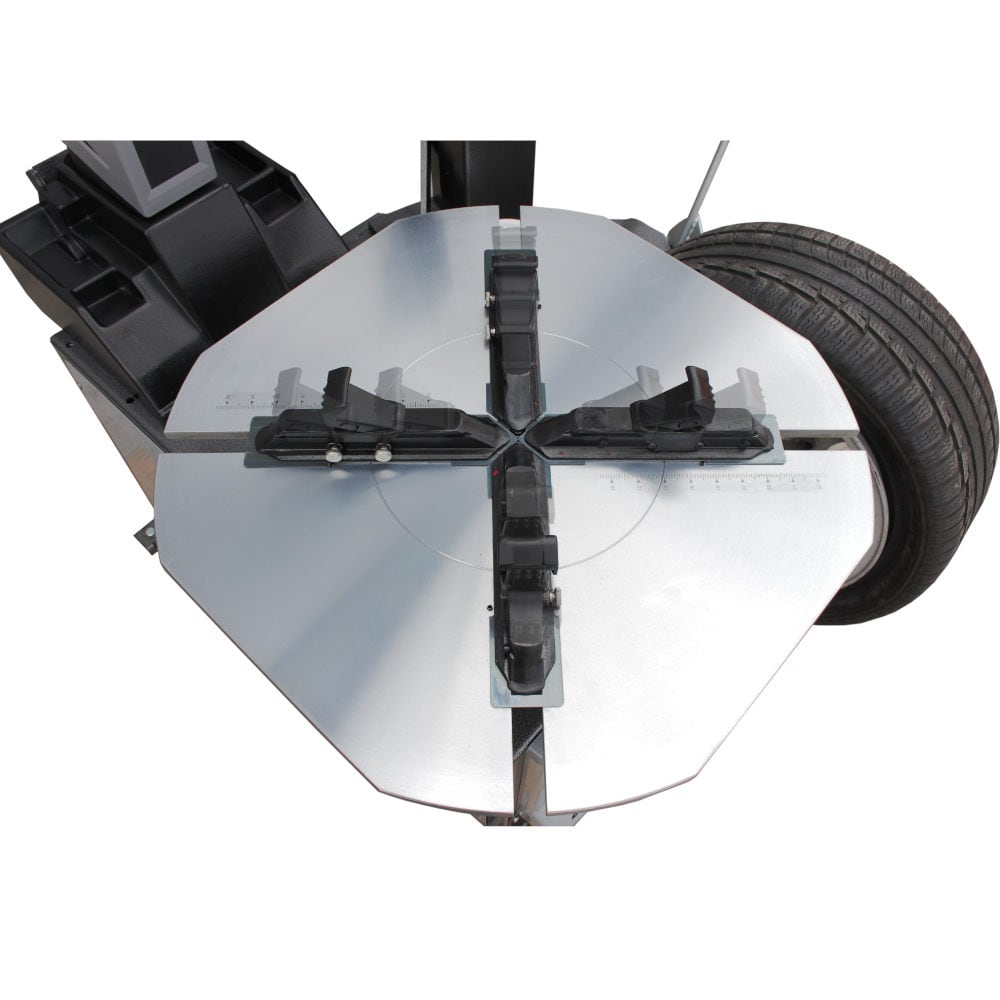

- Self-centring, pre-adjustable 4-jaw system with two double-acting ALU clamping cylinders, external clamping range from 9" to 26", 3-fold quick adjustment

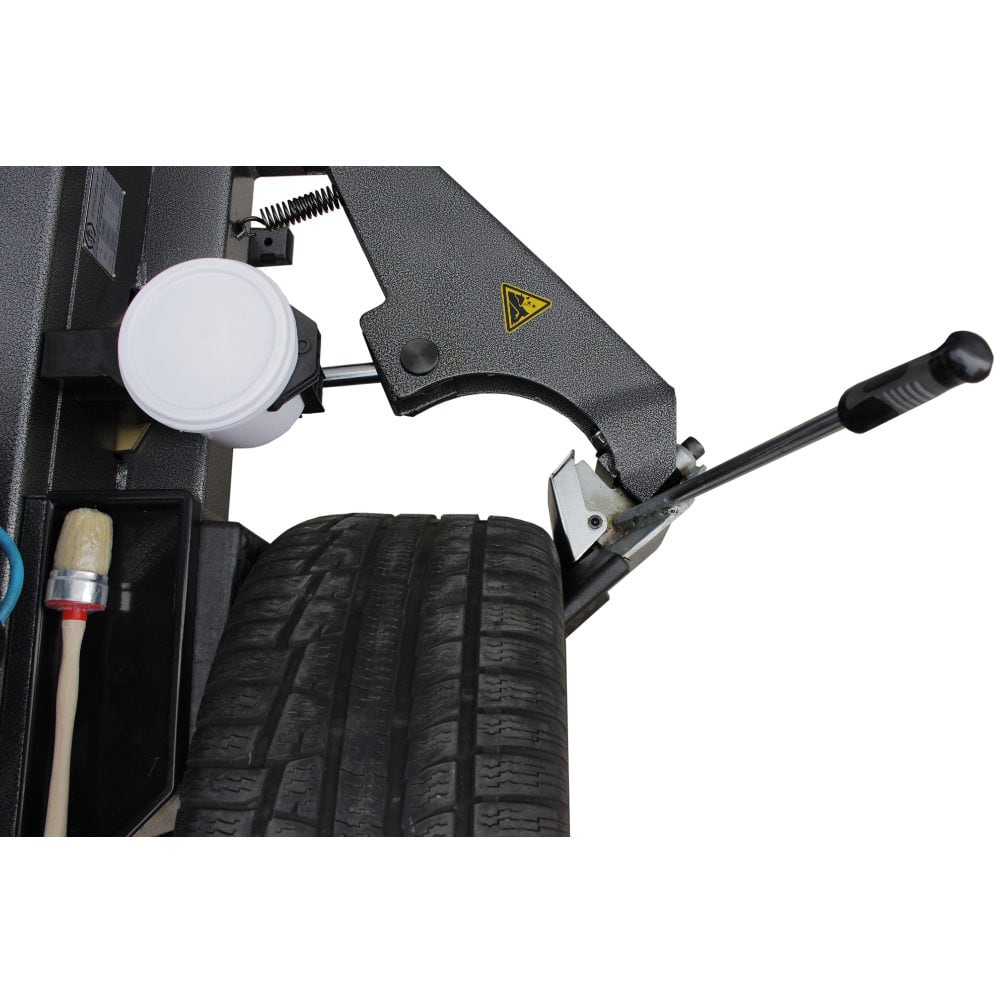

- Side bead breaker with double-acting aluminum bead breaker cylinder and anti-clamping system
- Extendable valve block with aluminum valves

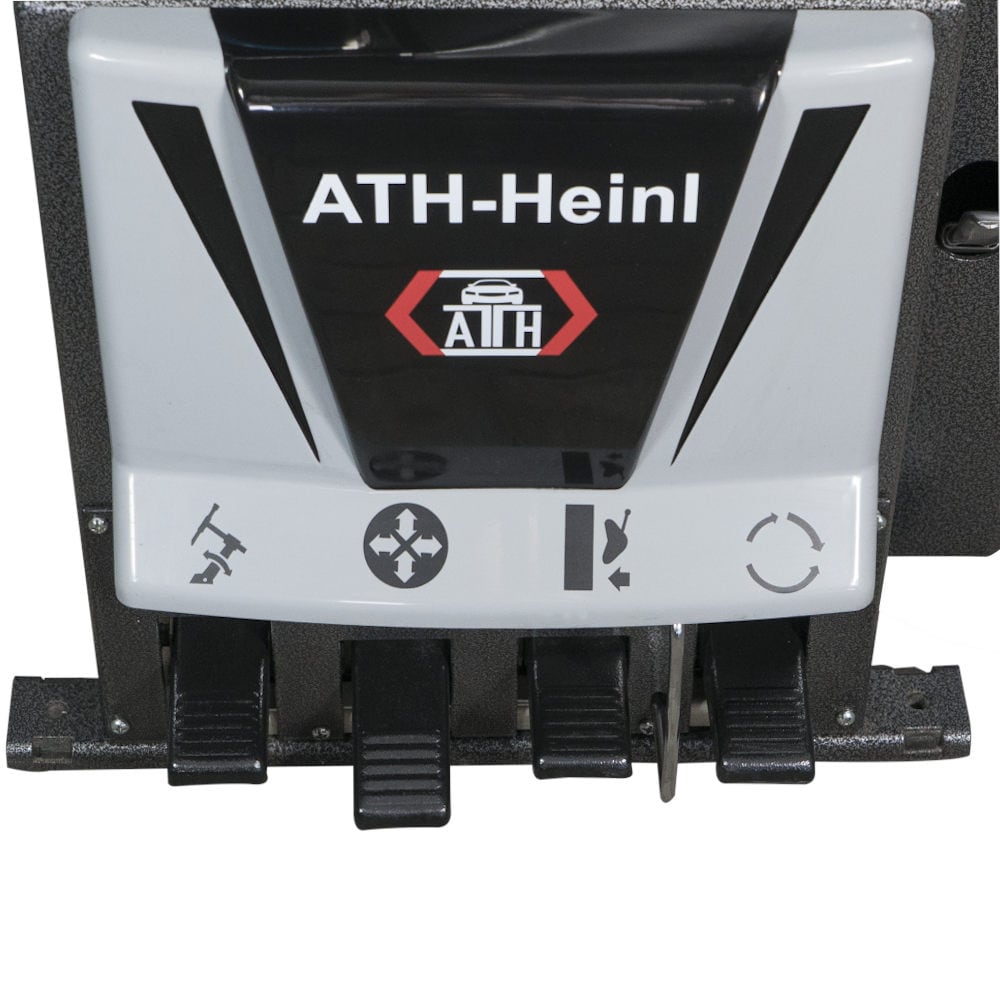

- Control via ergonomically arranged foot pedals
- Ideally suited for car wheels, with optional accessories also for motorcycle wheels
Optional
- WDK kit: Only in conjunction with the A34 auxiliary arm
- Motorcycle clamping claws for mounting motorcycle tires
Technical data M72 + A34
| Internal clamping range | 11 - 30 " |
| External clamping range | 9 - 26 " |
| Rim width | 4 - 13 " |
| Wheel diameter max. | 1050 mm |
| Bead breaker range | 83 - 350 mm |
| Bead breaking force | 2500 kg |
| Assembly speeds | 6 / 12 rpm |
| Drive power | 0.75 / 0.90 kW |
| Drive voltage (electrical) | 3 x 400V / 50Hz V / Hz |
| Machine dimensions (W x D x H) | 1150 x 1000 x 1800 mm |
| Machine weight | 361 kg |
| Compressed air connection | 10 bar |
| Noise level | 70 dB(A) |
With the ATH M72 + A34 tire changer, you are equipped for every situation! With this device, there are no limits up to an external clamping range of 26".
360° video ATH M72 + A34:
Presentation ATH M72:
| Rim size: | 26" - 30" |
|---|
Login
No reviews found. Share your insights with others.
Skip product gallery
Matching products

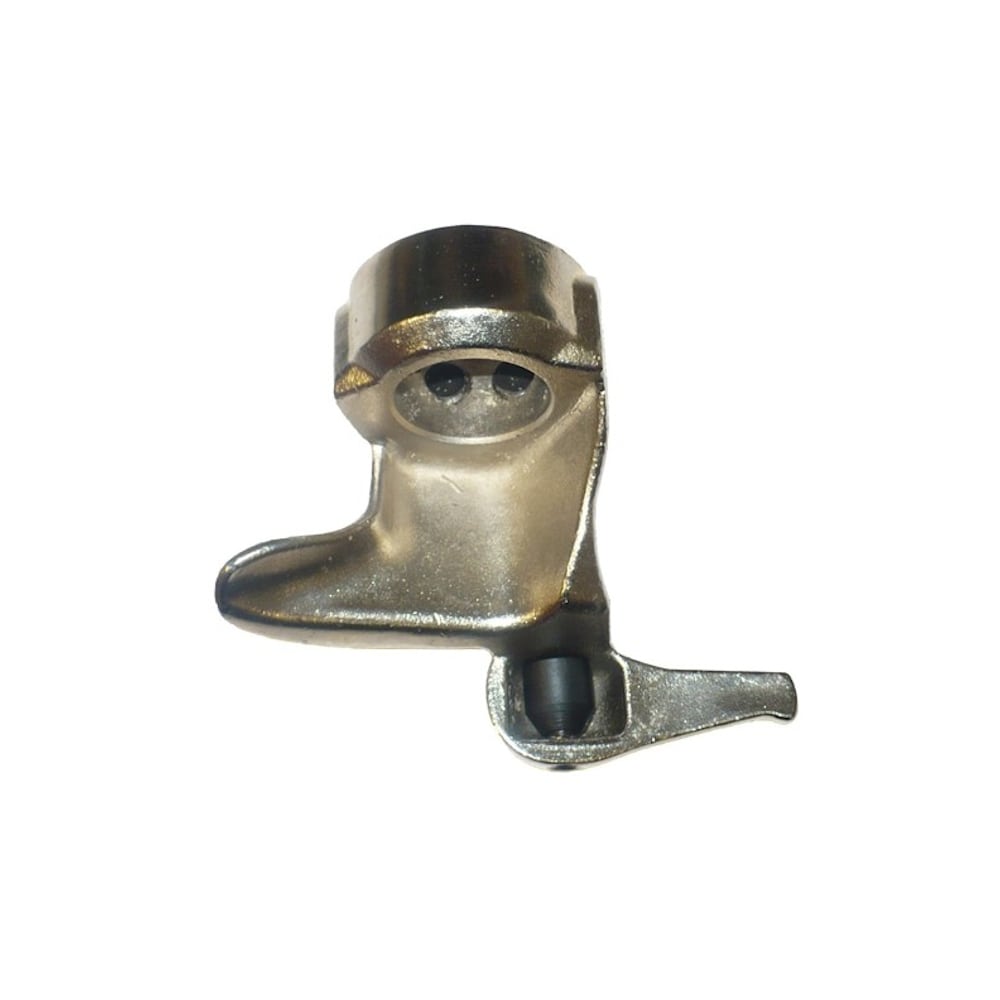

Motorcycle/scooter - Mounting head for ATH (receptacle Ø28 mm)
