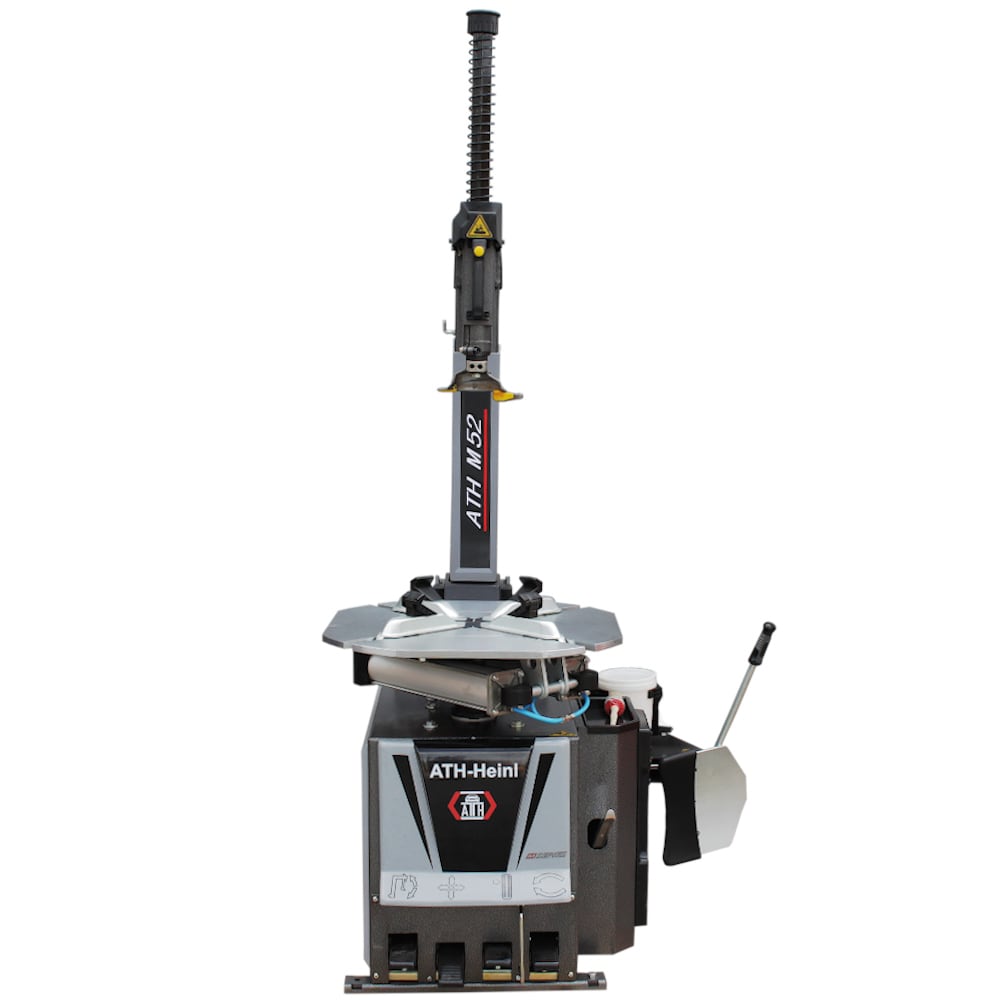

ATH Heinl M52 " Tire changer with tilting mast " up to 22" inch
€2,399.00
Delivery time, 8 days.
Product information "ATH Heinl M52 " Tire changer with tilting mast " up to 22" inch"
ATH-Heinl M52
- Up to 22" outer tension | up to 26" inner tension
- Efficient tilt mast
- Tailswing with pneumatic mounting head clamping
- 2 rotation speeds
Features of the ATH-Heinl M52
- ATH M52 tire changer with pneumatic mounting head clamping including automatic vertical and horizontal rim removal
- Tilting mast for efficient working
- Torsionally stiff construction with high-precision laser cutting
- Resistant hammer blow powder coating
- Pneumatic mounting head clamping with adjustable autom. vertical and horizontal rim removal
- Self-centering, pre-adjustable 4-clamping jaw system with two double-acting ALU clamping cylinders, clamping range outside up to 22'', additionally adjustable by -2''
- Lateral bead breaker with double-acting aluminum cylinder with anti-clamp system
- Extendable valve block with aluminum valves and ergonomically arranged foot pedal control
- Ideally suited for passenger car wheels, with optional accessories also for motorcycle wheels
Optional
- Auxiliary mounting arm ATH A34 for effortless (de-) mounting of low profile, UHP and run-flat tires due to pneumatic control
Technical data of the M52
| Clamping range inside | 14 - 26 " |
| Clamping range outside | 12 - 22 " |
| Rim width | 4 - 13 " |
| Wheel diameter max. | 1050 mm |
| Bead breaking range | 85 - 330 mm |
| Bead breaking force | 2500 kg |
| Assembly speeds | 6 + 12 rpm |
| Drive power | 0,75 kW |
| Drive voltage (electrical) | 3 / 400V / 50Hz |
| Machine dimensions (W x D x H) | 1150 x1000 x1800 mm |
| Weight | 252 kg |
| Compressed air connection | 10 bar |
| Noise level | 70 dB(A) |
The specified maximum clamping range applies when the rim is gripped at the outer edge.
With the ATH M52 tire changer you get a tire changer that is not only reliable, but also robust and of high quality. With an outer rim tension of 22", you can cover all common tire sizes and "external" mounting is a thing of the past.
360° video ATH M52:
Presentation ATH M52
| Rim size: | 22" - 24" |
|---|
