ATH Comfort Lift 2.40XL
€4,399.00
Delivery time, 20 days.
Product information "ATH Comfort Lift 2.40XL"
ATH Comfort Lift 2.40XL – The Accessible Professional 2-Post Lift
- Barrier-free – Upper crossbar
- 2 m lifting height
- Longer support arms than the Comfort Lift 2.35XL
- Automatic unlocking of the safety latches at the push of a button
- Approx. 30-second lifting time
Comfort Lift 2.40XL - Higher, faster, and more versatile
- Liftingcapacity: 4000 kg, perfect for a wide range of vehicles.
- Lifting height: 2000 mm, ideal even for tall mechanics.
- Drive-through width: 2,500 mm, ideally suited for a wide range of vehicles
- Power Kit: To ensure a constant and optimal power supply, the Comfort Lift features a 230V outlet, a compressed air connection, and a 12V outlet on the control panel column.
- Lifting arms: Equipped with four 3-piece lifting arms, the Comfort Lift is ready for all standard vehicles, from the Smart to the Crafter Long (at an alternative mounting point).
- Lifting mechanism: Double-telescoping lifting plates for versatile applications.
- Universally Positionable: Thanks to its design, the lift can be positioned with the control box on either the left or right side—whichever suits you best.
- Design: Modern design in anthracite gray with a powder-coated finish for durability.
- Power connection: This 4-ton lift operates on 400V.
- Lifting speed: Saves time and increases efficiency thanks to very fast lifting and lowering times of approx. 30 seconds.
- Robust: Enhanced safety thanks to a robust construction and automatic locking mechanism.
- Unlocking: Unlocking is automatic by pressing the corresponding button on the control box. It must first be raised slightly, then the latches are unlocked via a push button on the control box.

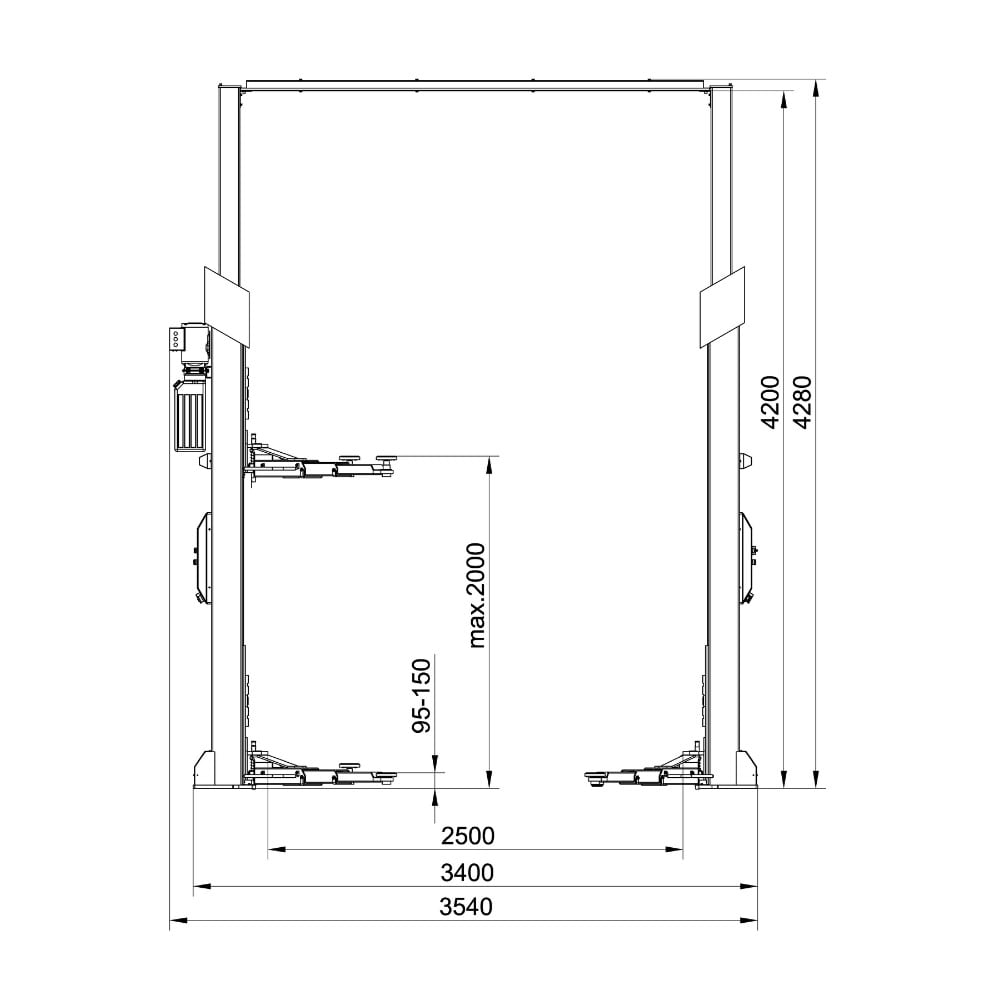

Technical Specifications:
| Load capacity | 4000 kg |
| Lifting height | 2000 mm |
| Passage width | 2500 mm |
| Overall width | 3542 mm |
| Overall height | 4280 mm |
| Suspension arms | 4x 3-piece |
| Motor power | 3 kW |
| Lifting and lowering time | approx. 30 sec. |

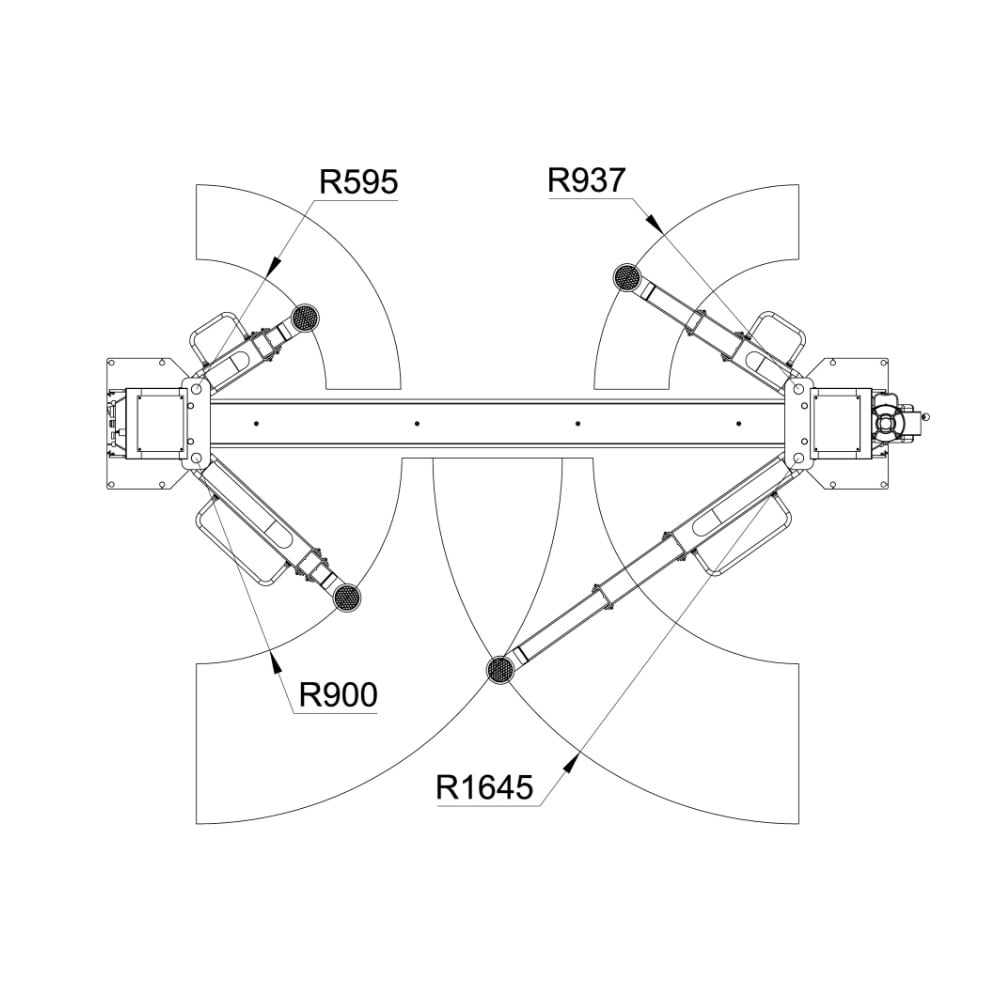

| Dimensions of 3-piece front arms | 595–937 mm |
| Dimensions of 3-piece rear arms | 900 - 1645 mm |
| Operating voltage | 400V / C16A |
| Foundation | Min. C20/25 4000 x 2000 x 200 mm deep |
Optional accessories:
- Support plate extension 80 mm (set) | No. ATE2019-S
- Support plate extension 155 mm (set) | No. ATE2018-S
- Van mounting kit 1: Renault Master, Opel Movano, Nissan Interstar | No. HTA2348
- Van mounting set 2: Citroën Jumper, Peugeot Boxer, Fiat Ducato from model year 2006 | No. HTA2349
- Van Mounting Set 3: Mercedes Sprinter, VW Crafter from 2006 onward | No. HTA2351
- Van Mount Set 4: U-profile for frame mounting | No. HTA2352
- Mounting bracket for extensions: For adapters with mounting diameter Ø50 mm | No. HHS2010-3
- Ceiling Switch ATH DA1: IR light barrier | No. 629008
- Additional mounting kit: To increase the base area | No. HZB4006
- Power kit for the motorless column | No. HES7114-S
| Drive: | hydraulic |
|---|---|
| Type of lifting plattform: | 2-post lift, car lifts |
| Capacity range: | 3,6 t - 5,0 t |
Login
ATH-Heinl Comfort Lift 2.40XL – Barrier-free solution
Immerse yourself in the world of advanced lifting technology: powerful performance and intuitive operation await you!
Energy Set: Everything within reach!
Tired of constantly searching for the right connection? Our ATH-Heinl Comfort Lift 2.40XL with the innovative energy set puts an end to this! You will find a practical 230V socket, a 12V connection and a compressed air connection with a quick-release coupling directly on the control box. Why be satisfied with less when you can have everything in one place? Whether it's power for tools or compressed air for your equipment, with our energy set you are prepared for any challenge. Upgrade to convenience and efficiency!
Flexible & customizable: the mounting plates!
Why settle for rigid solutions when flexibility is everything? Our ATH-Heinl Comfort Lift 2.40XL takes adaptability to a new level with its innovative mounting plates. Thanks to the ingenious double thread, the plates can be easily extended from 95mm to up to 150mm. Do you need a lower or higher receptacle? No problem! With a few simple turns, the plates adapt exactly to your needs. The days of compromise are over. Choose flexibility, choose precision – choose these lift plates for your lift!
Safe & intuitive: automatic support arm release!
When working with a lifting platform, every second counts, and safety is no coincidence. That's why the automatic support arm release on our ATH-Heinl Comfort Lift 2.40XL is a real highlight. Imagine: the platform reaches its lowest position, and immediately you can effortlessly swing the support arms into the ideal position – without any additional effort. But the best part? As soon as you are ready to lift, the automatic locking mechanism secures the support arms so that everything stays firm and secure. No slipping, no hassle. Simplicity and safety go hand in hand – so you can concentrate on what's important. Experience the difference with our lift, which not only lifts but also holds!
Protection & comfort: the door stop rubber!
Who hasn't experienced that queasy feeling of damaging your car door when driving onto or off the lift? But with the door stop rubber on our ATH-Heinl Comfort Lift 2.40XL, this worry is a thing of the past. Mounted on the inside of both columns, this inconspicuous hero provides optimal protection for your car doors. Whether you are getting in or out hastily, the rubber gently cushions every contact. This way, your doors remain safe and unscathed, even if they graze the column. Say goodbye to scratches and dents and hello to unclouded comfort and safety. With our door stop rubber, your access to the stage is more carefree than ever!

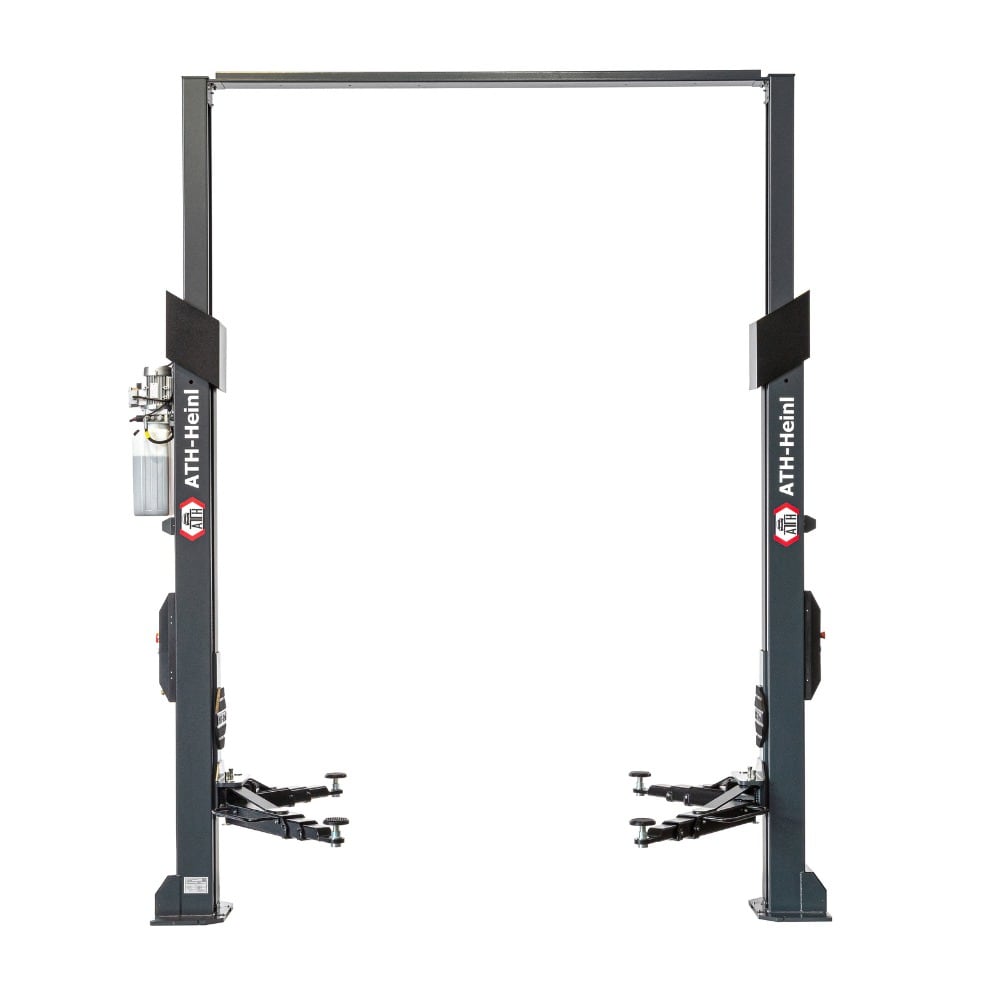

Accessibility meets functionality
This lift has a special design with an upper bridge that is shaped like a gallows. The cable and hydraulic hoses run over this bridge, which not only creates a clean and tidy working environment, but also keeps the floor space completely free. This barrier-free design allows unhindered access from all sides and makes working around the vehicle easier and safer. The innovative upper cable and hose guide minimizes the risk of tripping hazards and damage, making the ATH-Heinl 2.40XL the ideal choice for workshops that value efficiency, safety and a barrier-free workplace.
Flexible arm configuration for optimal fit
The ATH-Heinl Comfort Lift 2.40XL impresses with its highly flexible, three-piece arms that offer exceptional adaptability to a wide range of vehicle types. This flexibility allows for precise adjustment of the support arms, with the front arms extending from 565 to 890 mm and the rear arms offering an impressive range of 895 to 1593 The differentiated length adjustment of the support arms allows the lift to be efficiently adjusted to specific requirements, simplifying operation and increasing efficiency in the workshop.
