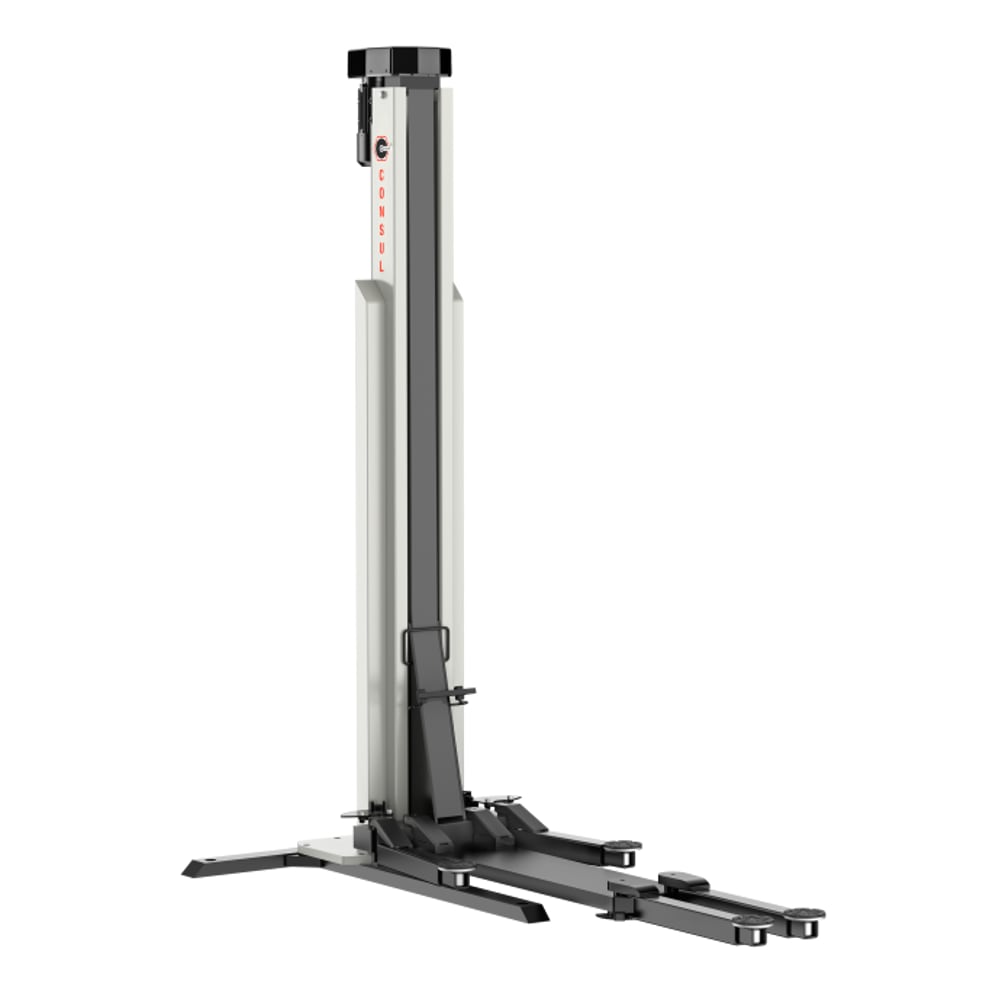

Consul 1.25 with 2.5t load capacity, stationary
Product number:
Consul1-25
Regular price:
€10,999.00
Delivery time, 30 days.
Leasing is that simple!
Use the many advantages of leasing for your success. No more long trips to the bank and a decision within minutes.
Product information "Consul 1.25 with 2.5t load capacity, stationary"
Consul 1.25
- 2.5t load capacity
- Stationary
- Made in Germany
Especially suitable for bodywork and car recycling or as an additional workstation in confined spaces.
Design features of the 1-post lift
- Support columns made of special rolled profile, 6-roller bearing mounted carriage
- Bronze support/safety nut
- Lubricator for supportive lubrication
- Re-entry protection
- Softline pushbutton control
- Lockable main switch (as required by CE)
- Acoustic warning device (foot protection)
- Non-slip Power-Grip drive
- Pick-up plate with hard rubber profile, adjustable threaded spindle (25 mm stroke)
- Incl. telescopic swivel arms, some can be swiveled in from the outside
- Swivel arm lock, spring-loaded door stop
- Without base frame for barrier-free work under the vehicle
- Complete column interior cover
- Protection class IP 54, GS test badge, DIN EN 1493, CE certificate
Technical data of the Consul 1.25
| Load capacity | kg | 2.500 |
| Lifting height | mm | approx. 1,942 |
| Lifting time loaded | s | approx. 45 |
| Under-swing height | mm | 80 |
| Overrun height | mm | 110 |
| Extension short support arms | mm | 609 - 890 |
| Extension long support arms | mm | 694 - 1.035 |
| Installation width / length | mm | 2.470 / 2.847 |
| Installation height | mm | 2.900 |
| Drive power | kW | 3,0 |
| Drive voltage (electrical) | V/Hz | 400 / 50 |
| Fuse protection (electrical) | A slow blow | 16 |
| Drive: | spindle |
|---|---|
| Type of lifting plattform: | 1-post-lift, car lifts |
| Capacity range: | 2,5 t - 3,5 t |
